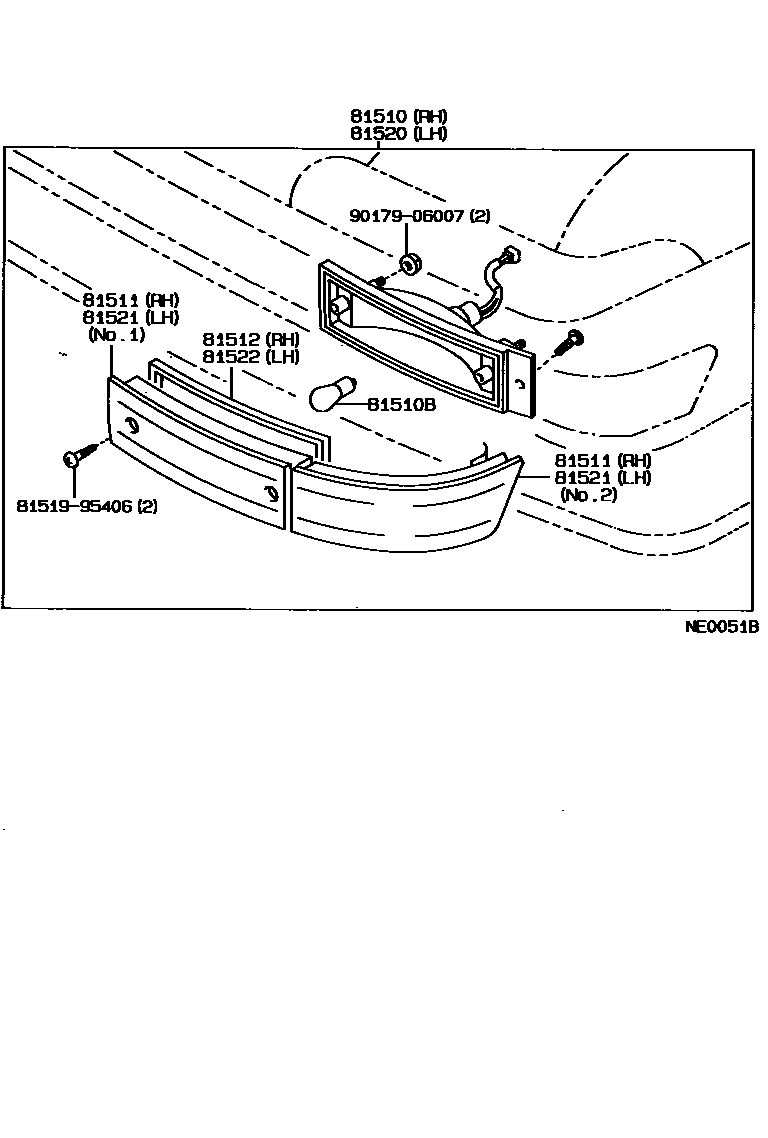

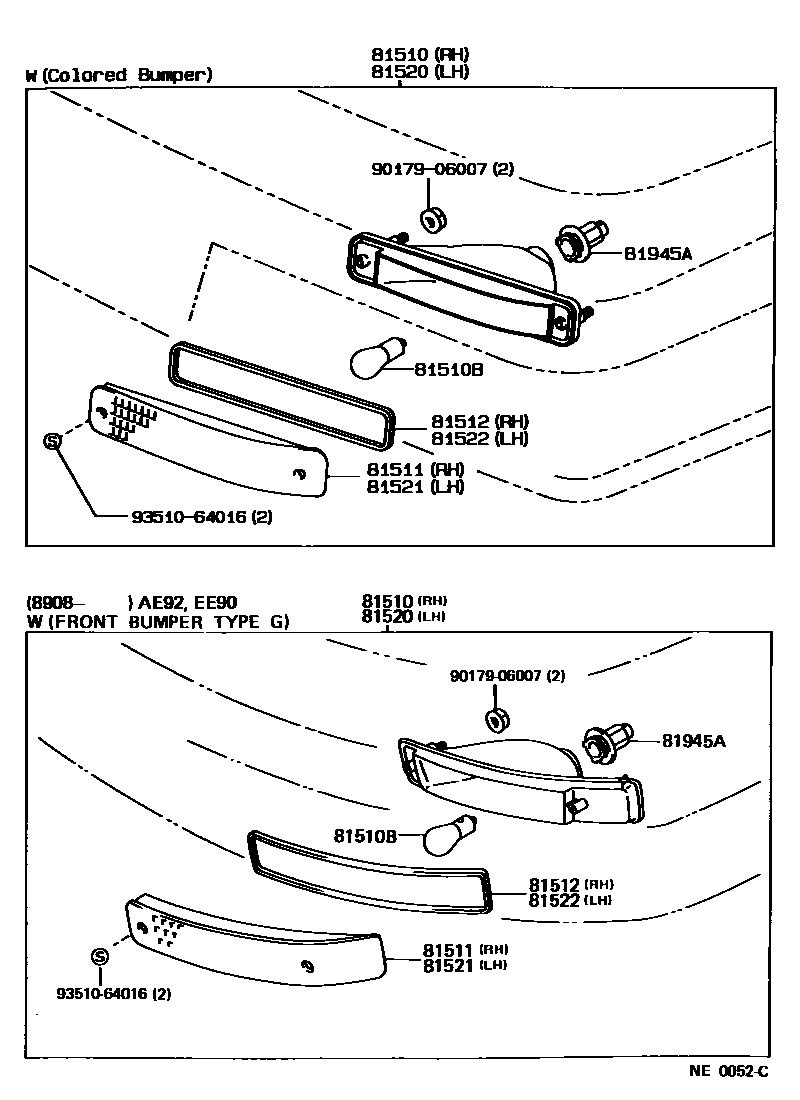

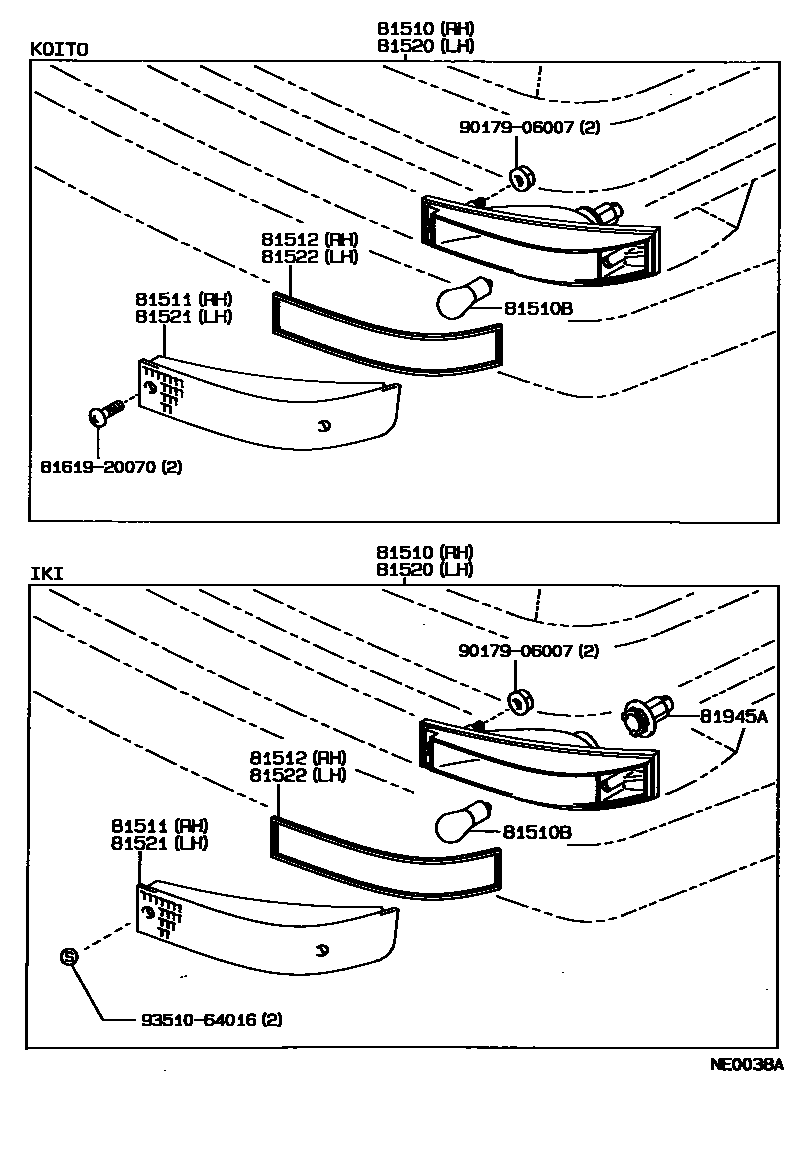

Toyota COROLLA 前转向灯 — Figure 8103
Toyota COROLLA EPC diagram 8103, 前转向灯, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-80048 · 81510-80051 · 81510-80053 · 81510-80054 · 81510-80068 · 81510-80082 |
| 81510B | Bulb (for front turn signal lamp) | 99132-11210 |
| 81511 | Right front turn signal lamp cover | 81511-12540 · 81511-12560 · 81511-12580 · 81511-12590 · 81511-12591 · 81514-12550 |
| 81512 | Right front turn signal lamp housing gasket | 81512-12550 · 81512-12560 · 81512-12580 · 81512-12590 · 81512-12591 |
| 81520 | Left front turn signal lamp assembly | 81520-80048 · 81520-80051 · 81520-80053 · 81520-80054 · 81520-80068 · 81520-80082 |
| 81521 | Left front turn signal lamp cover | 81521-12540 · 81521-12560 · 81521-12580 · 81521-12590 · 81521-12591 · 81524-12550 |
| 81522 | Left front turn signal lamp housing gasket | 81512-12550 · 81512-12560 · 81512-12580 · 81512-12590 · 81512-12591 |
| 81945A | Lamp holder | 81945-12010 |
