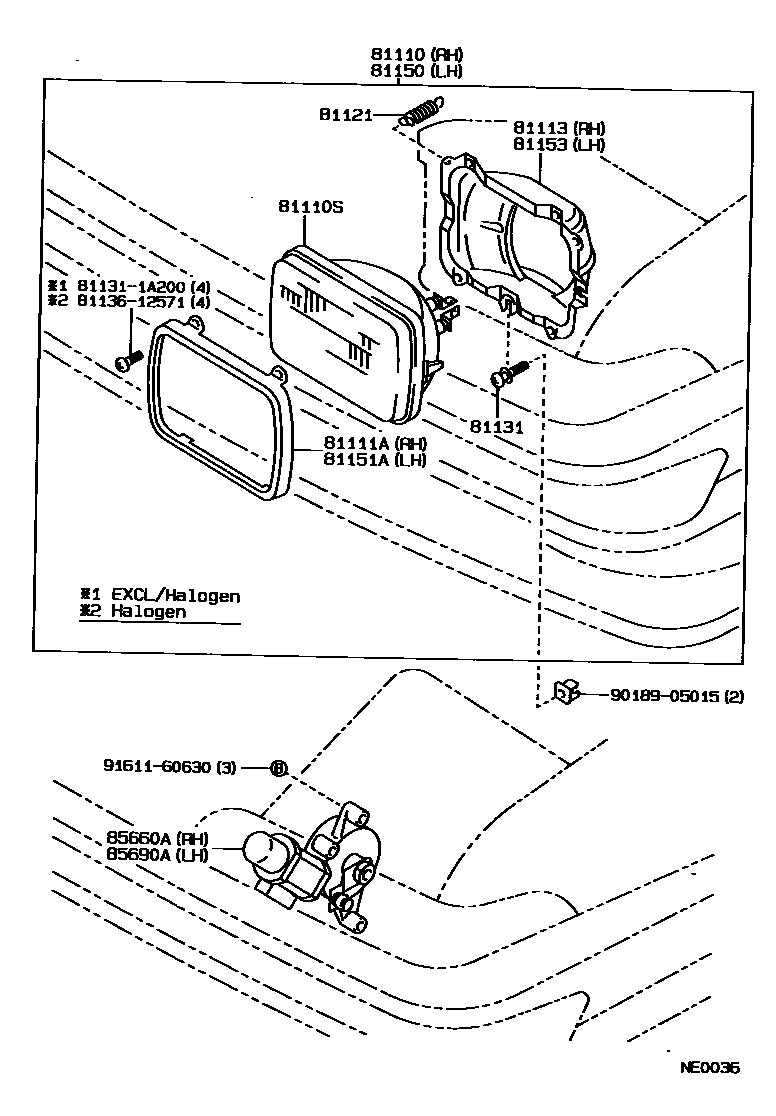

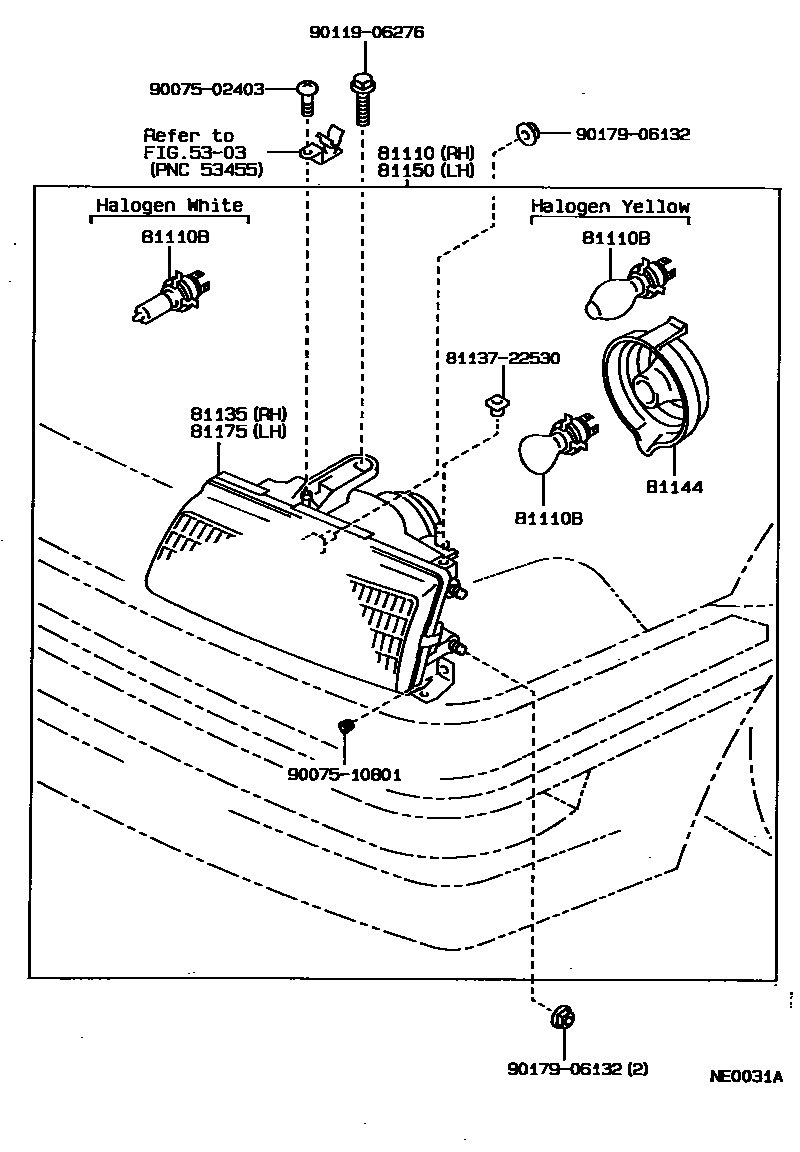

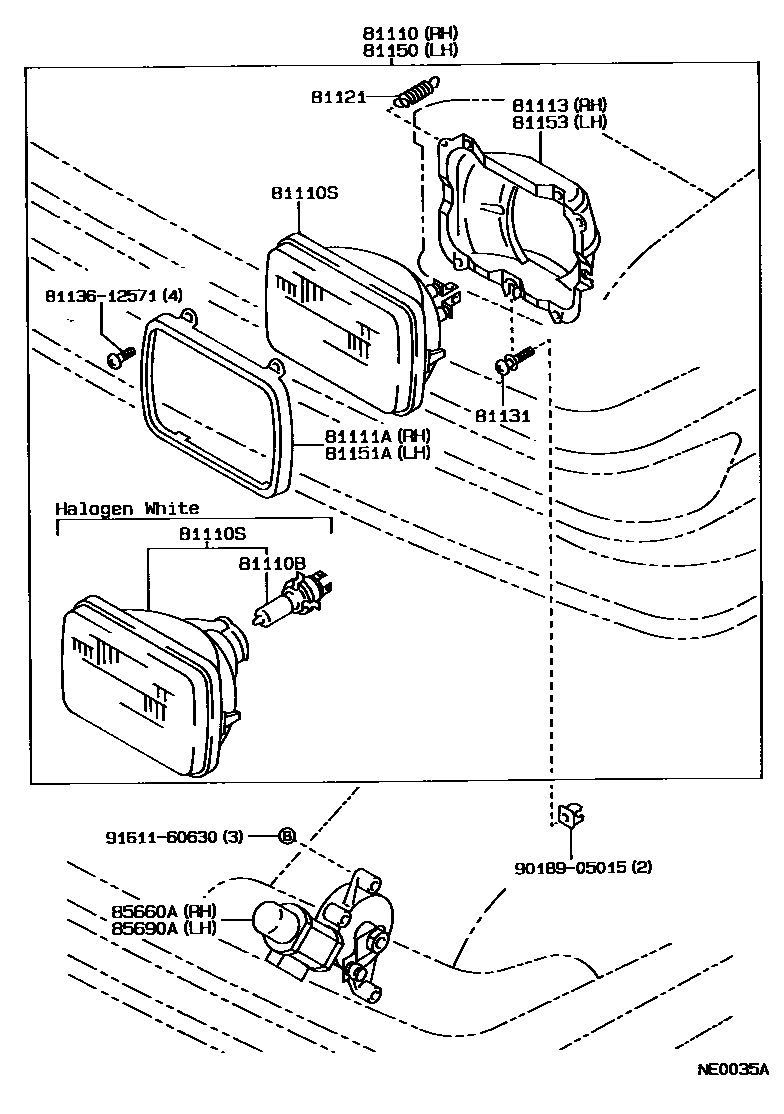

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-17010 · 81110-17020 · 81110-17030 · 81110-1A600 · 81110-1A610 · 81110-1A620 · 81110-1A621 · 81110-1A630 · 81110-1A640 · 81110-1A650 · 81110-1A651 · 81110-2B060 |
| 81110B | Bulb (for headlight No. 1) | 90981-13013 · 90981-13015 · 90981-13016 |
| 81110S | No. 1 enclosed lamp assembly | 90981-04003 · 90981-04020 · 90981-04029 · 90981-04030 |
| 81111A | No. 1 closed car light fixing ring on the right | 81111-14710 · 81111-17010 |
| 81113 | Right No. 1 closed lamp seat | 81113-17010 · 81113-20840 |
| 81121 | headlight spring | 81121-14710 · 81121-17010 |
| 81131 | Headlight adjustment screw | 81131-14710 · 81131-17010 |
| 81135 | Right headlight assembly assembly | 81130-1A590 · 81130-1A610 · 81130-1A620 · 81130-1A621 · 81130-1A630 · 81130-1A640 |
| 81144 | No. 1 headlight cover | 81139-20730 |
| 81150 | Left headlight assembly | 81150-17010 · 81150-17020 · 81150-17030 · 81150-2B020 · 81160-1A600 · 81160-1A610 · 81160-1A620 · 81160-1A621 · 81160-1A630 · 81160-1A640 · 81160-1A650 · 81160-1A651 |
| 81151A | No. 1 closed headlight fixing ring on the left | 81111-14710 · 81111-17010 |
| 81153 | No. 1 closed lamp seat on the left | 81153-17010 · 81153-20690 |
| 81175 | Left headlight assembly assembly | 81170-1A590 · 81170-1A610 · 81170-1A620 · 81170-1A621 · 81170-1A630 · 81170-1A640 |
| 85660A | Right side light telescopic motor assembly | 85660-12020 · 85660-12021 |
| 85690A | Left side car light telescopic motor assembly | 85690-12020 · 85690-12021 |
