Toyota COROLLA accelerator pedal connecting rod — Figure 7801

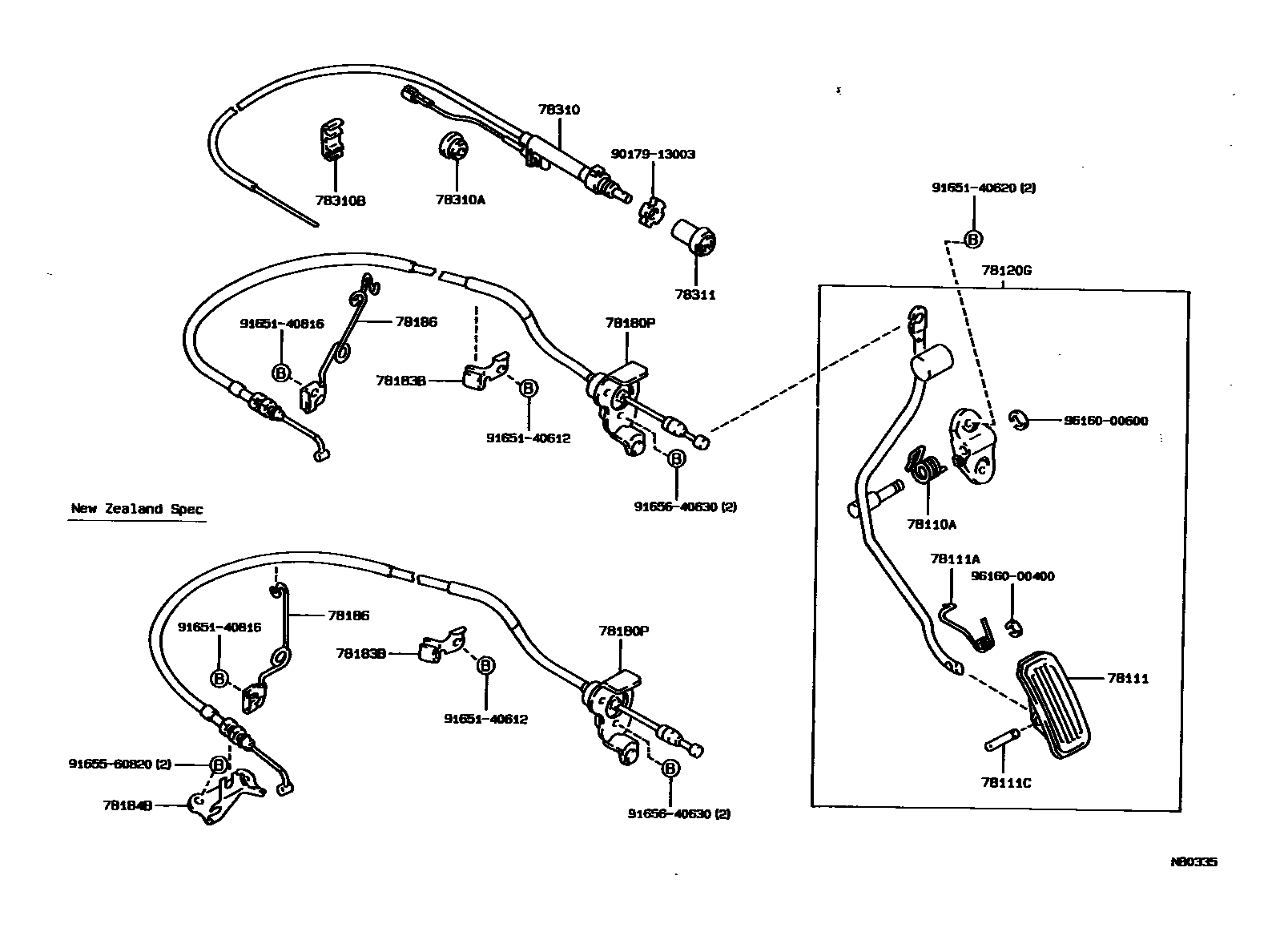

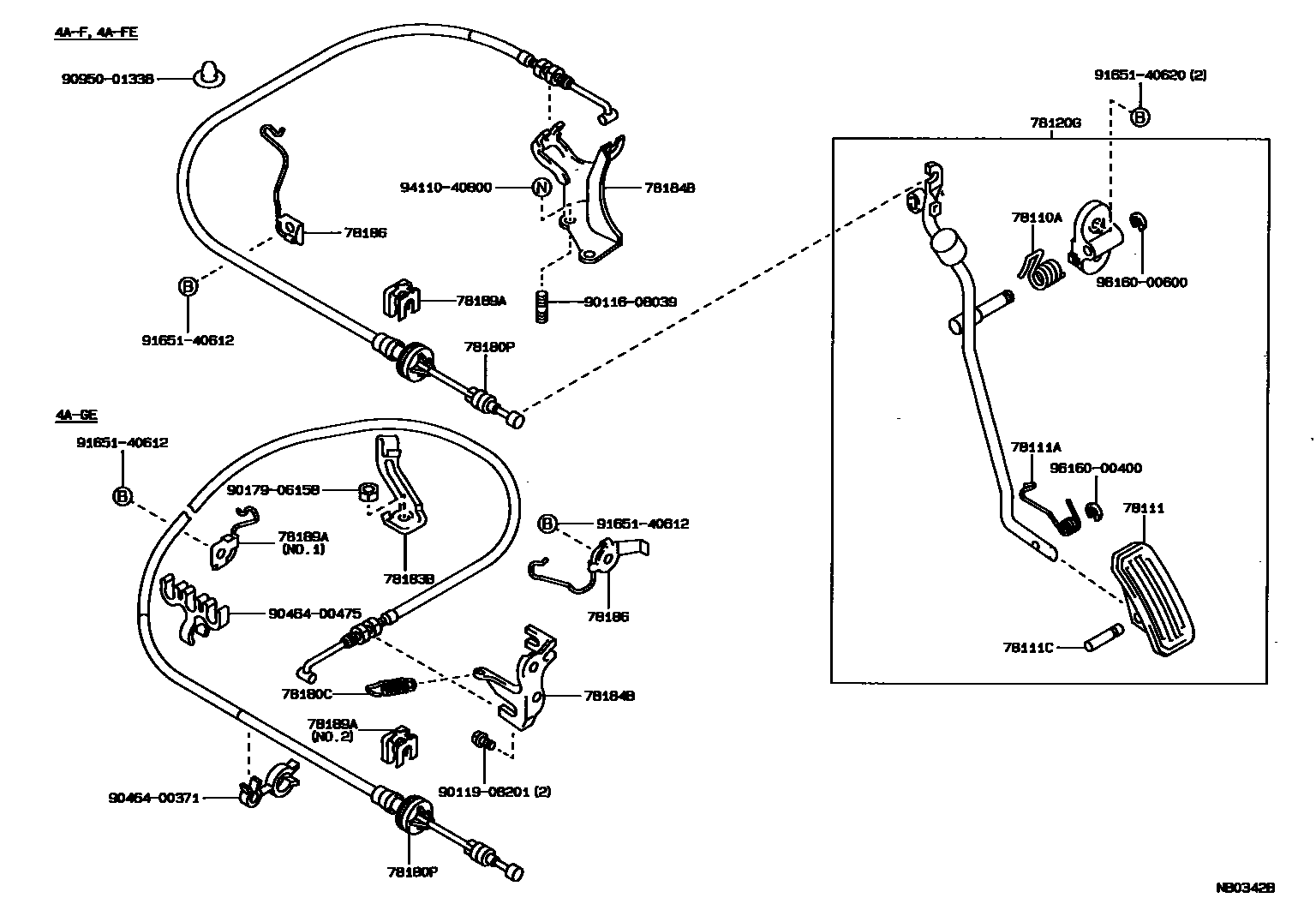

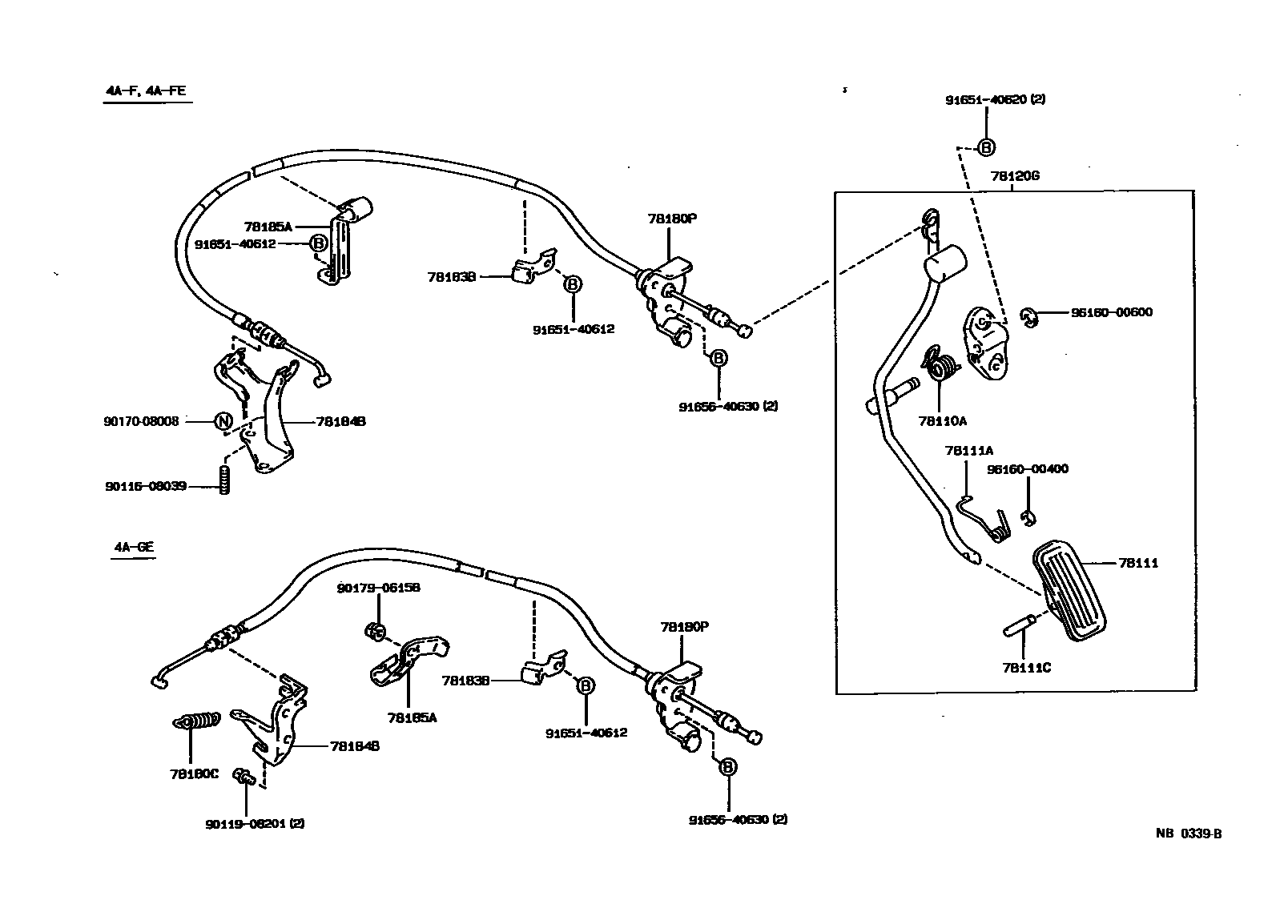

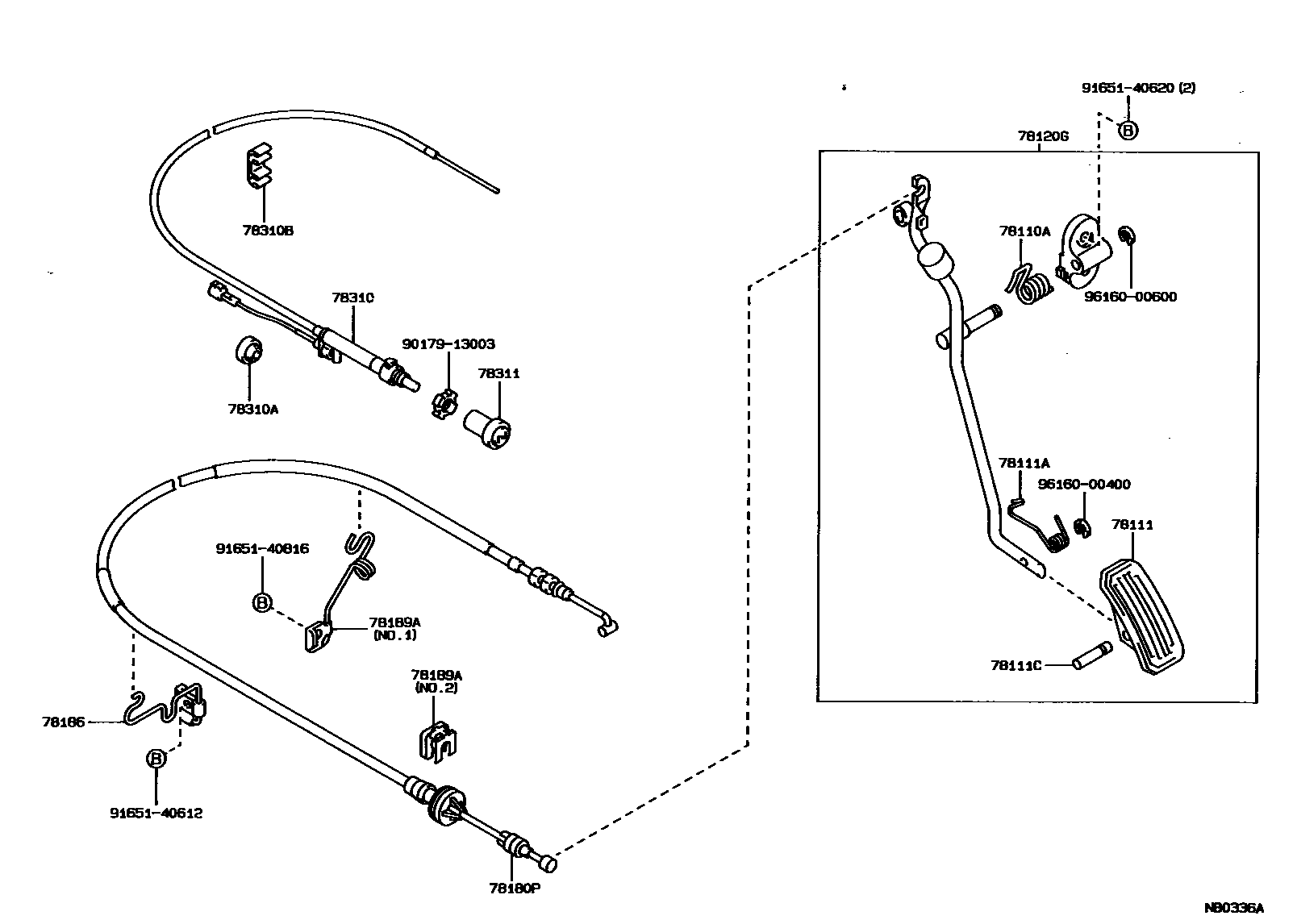

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-26036 |
| 78111 | accelerator pedal | 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-20056 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78120G | Accelerator pedal lever assembly | 78120-12070 · 78120-12080 · 78120-12110 · 78120-12120 |
| 78180C | Tension spring (for throttle cable) | 90507-10016 |
| 78180P | Accelerator pedal control cable assembly | 78180-12780 · 78180-12781 · 78180-12840 · 78180-12850 · 78180-12851 · 78180-1A010 · 78180-1A030 · 78180-1A100 · 78180-1A101 · 78180-1A200 · 78180-1A320 · 78180-1A500 |
| 78183B | Accelerator pedal control cable clip | 78183-12100 · 78183-12120 |
| 78184B | Throttle pedal control cable bracket | 78184-10070 · 78184-12220 · 78184-12230 |
| 78185A | No. 2 accelerator pedal control cable clip | 78183-12110 · 78183-12140 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-12170 · 78186-12180 · 78186-12190 · 78186-12200 · 78186-12230 · 78186-12240 · 78186-12250 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78186-12190 · 78189-12030 |
| 78310 | Choke door cable assembly | 84506-12060 · 84506-12070 |
| 78310A | Choke cable retaining ring | 90480-13055 |
| 78310B | Choke cable clip | 90464-00117 |
| 78311 | Choke control cable button | 78311-12021 |
