Toyota COROLLA 挡泥板和扰流板 — Figure 7601

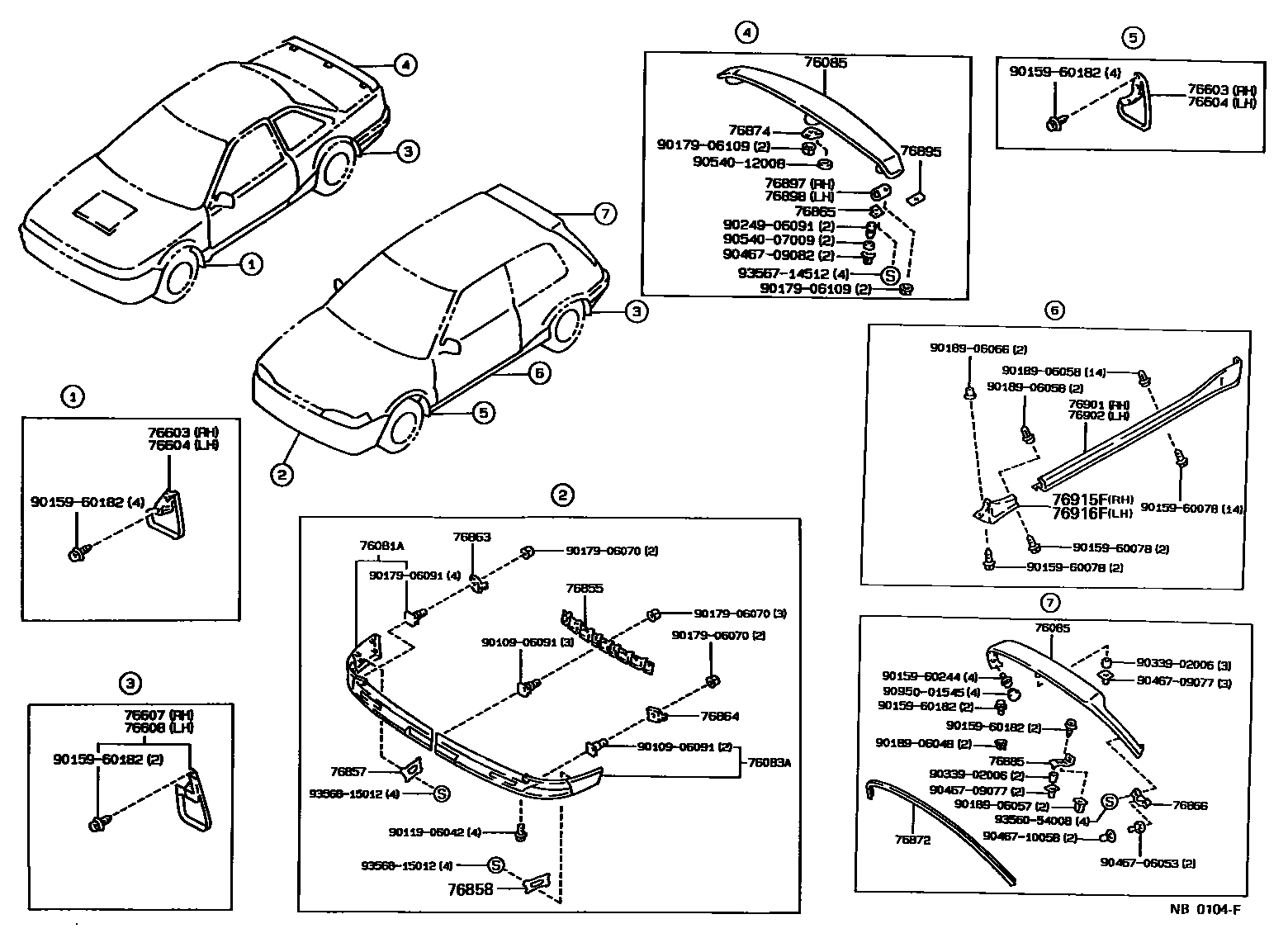

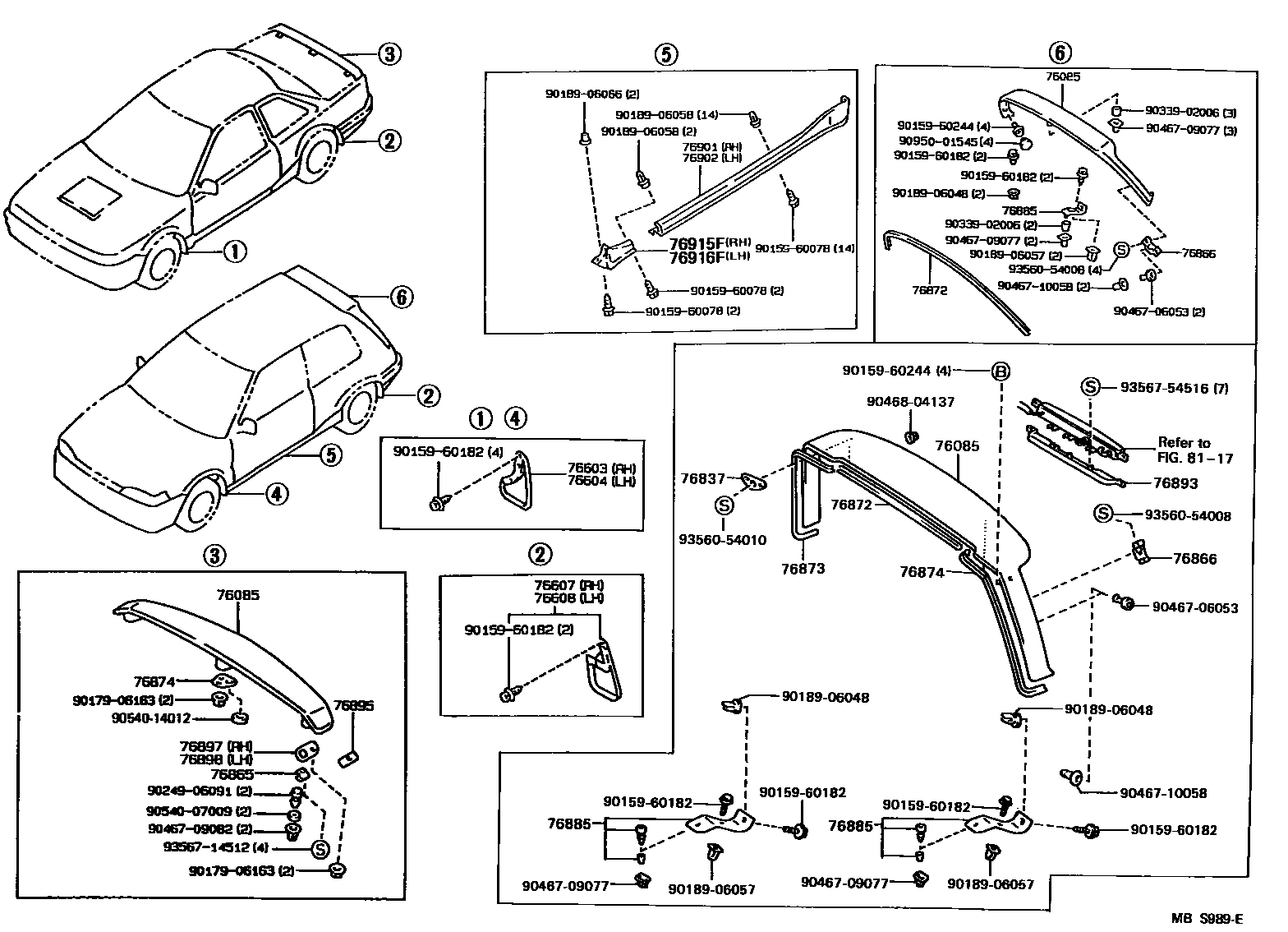

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76081A | Right front spoiler sub-assembly | 76081-12030 |
| 76083A | Left front spoiler sub-assembly | 76083-12030 |
| 76085 | Rear spoiler sub-assembly | 76085-12900 · 76085-12902 · 76085-12903 · 76085-12907 |
| 76603 | Right front fender fender sub-assembly | 76621-12050 · 76621-12070 |
| 76604 | Left front fender fender sub-assembly | 76622-12050 · 76622-12070 |
| 76607 | Right rear side fender sub-assembly | 76607-19465 · 76625-19225 · 76625-19325 |
| 76608 | Left rear side fender sub-assembly | 76608-19465 · 76626-19235 · 76626-19335 |
| 76837 | No. 7 rear spoiler fixing piece | 76837-12020 |
| 76855 | No. 1 front center spoiler lower fixing piece | 76855-12060 |
| 76857 | Right front spoiler fixing | 76857-12050 |
| 76858 | Left front spoiler fixing | 76858-12050 |
| 76863 | No. 2 right front spoiler lower fixing piece | 76863-12040 |
| 76864 | No. 2 left front spoiler fixing piece | 76863-12040 |
| 76865 | No. 1 rear spoiler fixing piece | 76865-12110 |
| 76866 | No. 2 rear spoiler fixing piece | 76866-12030 |
| 76872 | No. 1 rear spoiler protective strip | 76872-12070 · 76872-12090 |
| 76873 | No. 2 rear spoiler protective strip | 76873-12100 |
| 76874 | No. 3 rear spoiler protective strip | 76874-12050 · 76874-12110 |
| 76885 | No. 5 rear spoiler fixing piece | 76885-12050 |
| 76893 | No. 1 rear spoiler cover | 76893-12020 |
| 76895 | No. 5 rear spoiler protective strip | 76895-12020 |
| 76897 | Right rear spoiler protection strip | 76897-12010 |
| 76898 | Left rear spoiler protection strip | 76898-12010 |
| 76901 | Right fender sub-assembly | 76911-12020 |
| 76902 | Left fender sub-assembly | 76912-12020 |
| 76915F | Right front fender | 76915-12020 |
| 76916F | Left front fender | 76916-12020 |
