Toyota COROLLA 后防护条 — Figure 7504

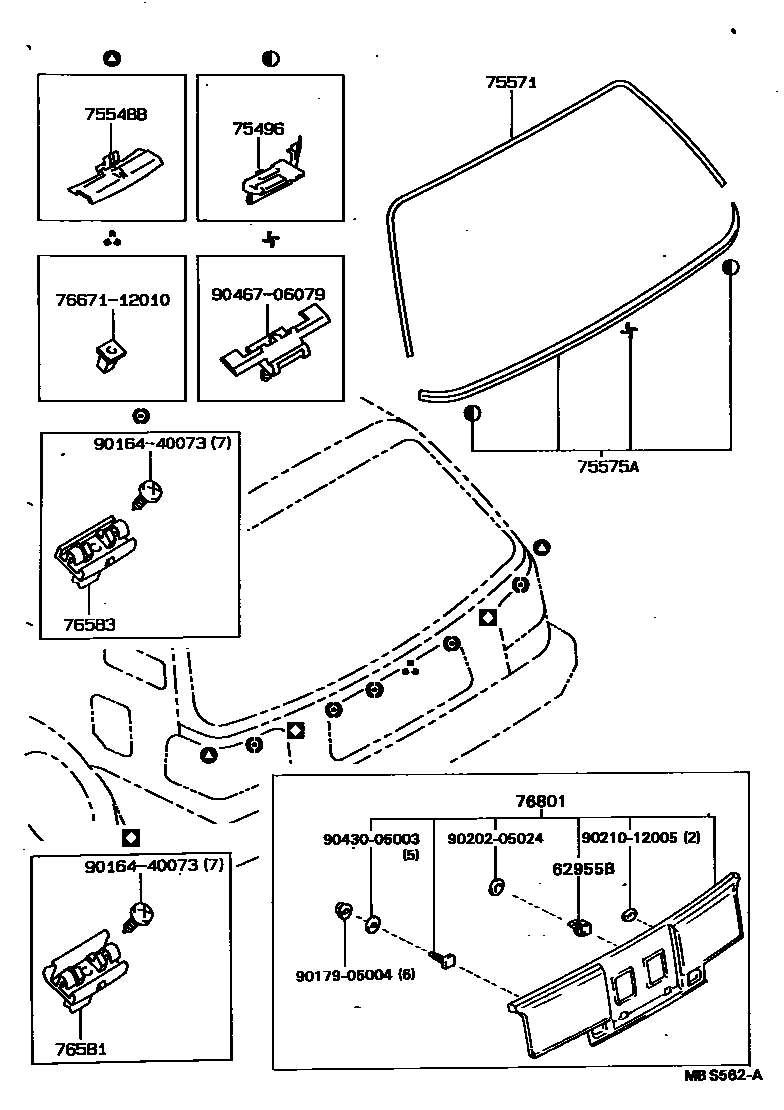

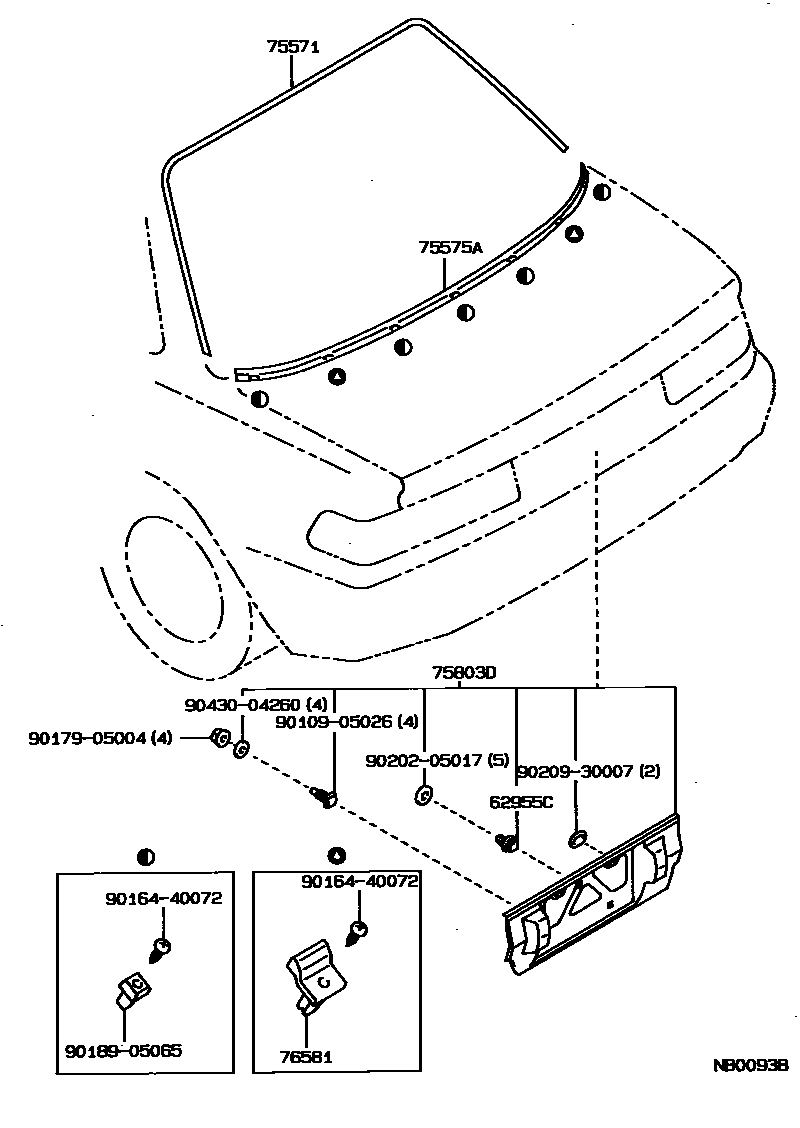

Toyota COROLLA EPC diagram 7504, 后防护条, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62955B | Rear door decorative strip fasteners | 62955-12010 |
| 62955C | Back door protective strip fixings | 62955-20020 |
| 75496 | No. 1 rear window protective strip clip | 75496-12010 · 75497-12010 · 76671-12010 |
| 75548B | Rear window protective strip fasteners | 75548-12100 |
| 75571 | Protective strips on the outside of the rear window | 75571-12270 · 75571-12410 · 75571-12560 |
| 75575A | Lower protective strip on the outside of the rear window | 75507-12030 · 75507-12050 · 75575-12280 |
| 75803D | Rear door outer lower protective strip sub-assembly | 75803-12100 |
| 76581 | Rear window protective strip fixings | 76581-12010 · 76581-12030 |
| 76583 | Fixing piece for the lower right protective strip outside the rear window | 76583-12020 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-12330 |
