Toyota COROLLA 侧防护条 — Figure 7503

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 40 PNC and OE references.

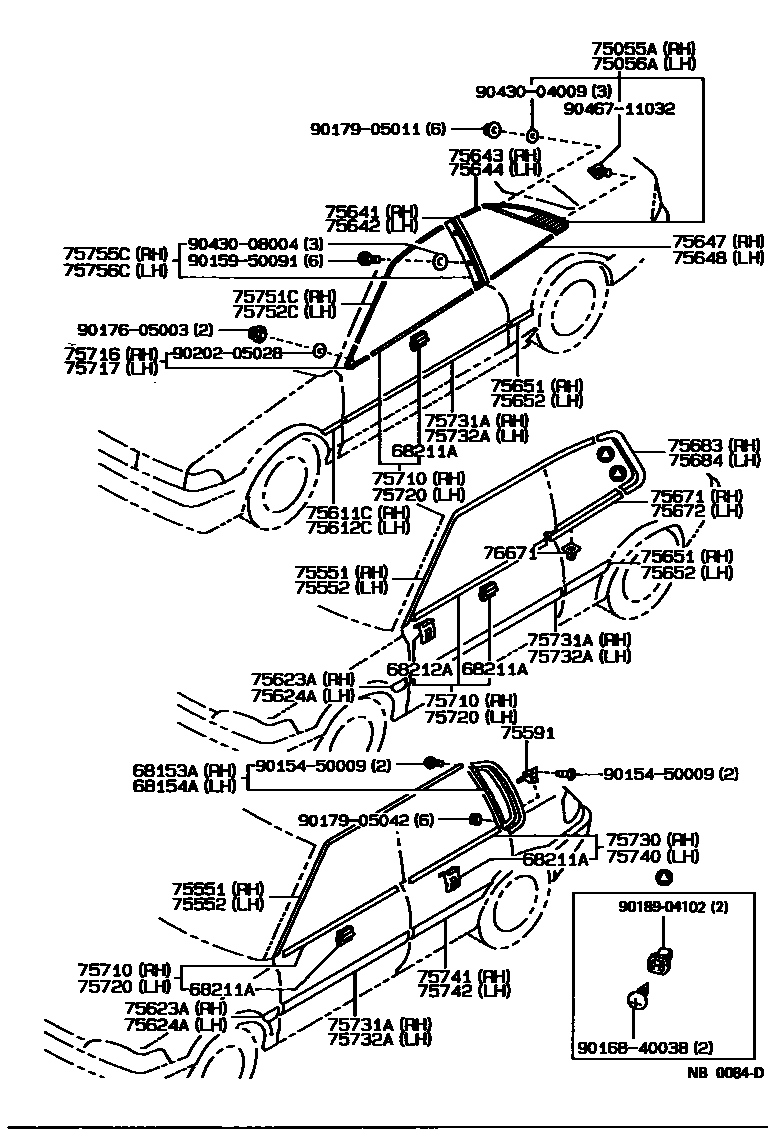

Toyota COROLLA 侧防护条 EPC diagram — NB0084D
侧防护条 — NB0084D (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
68153ARight corner window No. 2 glass protective strip68153-12060
68154ANo. 2 glass protective strip for left corner window68154-12060
68211ADoor belt line protection strip clip68211-12130 · 68211-12150
68212ACar door glass outer seal strip clip68212-12010
75055ARight side enclosure outer decorative panel sub-assembly75055-12100
75056ALeft side enclosure outer decorative panel sub-assembly75056-12100
75551Drainage groove side decorative strip on the right side of the roof75551-12410 · 75551-12420
75552Drainage groove side decorative strip on the left side of the roof75552-12410 · 75552-12420
75591No. 1 front side panel decorative panel protective strip fixings75591-12060
75611CRight front fender outer protective strip75611-12360
75612CLeft front fender outer protective strip75612-12320
75623ARight front fender outer rear protective strip75623-12330 · 75623-12460
75624ALeft front fender outer rear protective strip75624-12330 · 75624-12460
75641Right front corner window outer protective strip75641-12150
75642Left front corner window protection strip75642-12150
75643Protective strip on the outside of the right corner window75643-12060
75644Protective strip on the outside of the left corner window75644-12060
75647Right corner window outer lower protective strip75647-12060
75648Left corner window outer lower protective strip75648-12060
75651Right side outer protective strip75651-12710 · 75651-12760
75652Left side outer protective strip75652-12710 · 75652-12760
75671Right corner window decorative strip75660-12210
75672Left corner window decorative strip75670-12210
75683Right rear side panel waistline protection strip75683-12080
75684Left rear side panel waistline protection strip75684-12080
75710Right front door waistline protection strip assembly75710-12410 · 75710-12430 · 75710-12450
75716Right front door waistline front protective strip end cover75716-12070
75717Left front door waistline front protective strip end cover75717-12080
75720Left front door waistline protection strip assembly75720-12410 · 75720-12430 · 75720-12450
75730Right rear door waistline protection strip assembly75730-12130
75731ARight front door outer protective strip75731-12860 · 75731-1A010 · 75731-1A080 · 75731-1A180
75732ALeft front door outer protective strip75732-12700 · 75732-12740 · 75732-12810 · 75732-1A020
75740Left rear door waistline protection strip assembly75740-12220
75741Right rear door outer protective strip75741-12490 · 75741-12630
75742Left rear door outer protective strip75742-12610 · 75742-12760
75751CRight front door window frame front protective strip75751-12160
75752CLeft front door window frame front protective strip75752-12160
75755CRight front door window frame rear protective strip75755-12080
75756CLeft front door window frame rear protective strip75756-12100
76671No. 1 corner window decoration with clip76671-12010
