Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

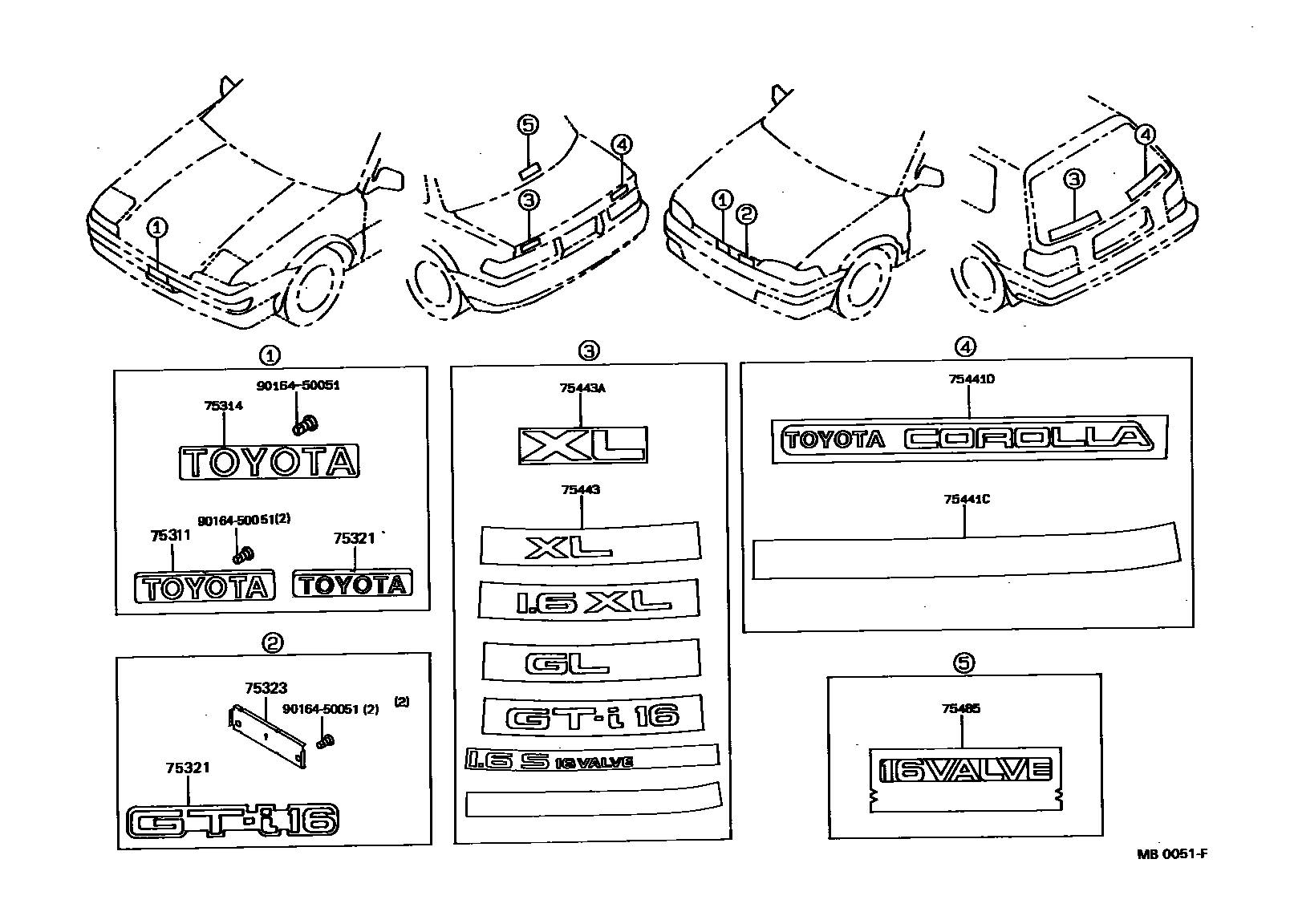

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-1A490 · 75311-1A660 · 75321-12420 |
| 75314 | front bumper label | 75314-12050 |
| 75321 | Radiator grille or front plate | 75321-12240 |
| 75323 | Radiator grille fixings | 75324-12100 |
| 75441C | Back door nameplate | 75441-12500 |
| 75443 | No. 3 nameplate on back door | 75443-12880 · 75443-12890 · 75443-1A020 · 75443-1A021 · 75443-1A030 · 75443-1A031 · 75443-1A430 · 75443-1A490 |
| 75485 | Back window nameplate | 75485-12080 |
