Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 4 PNC and OE references.

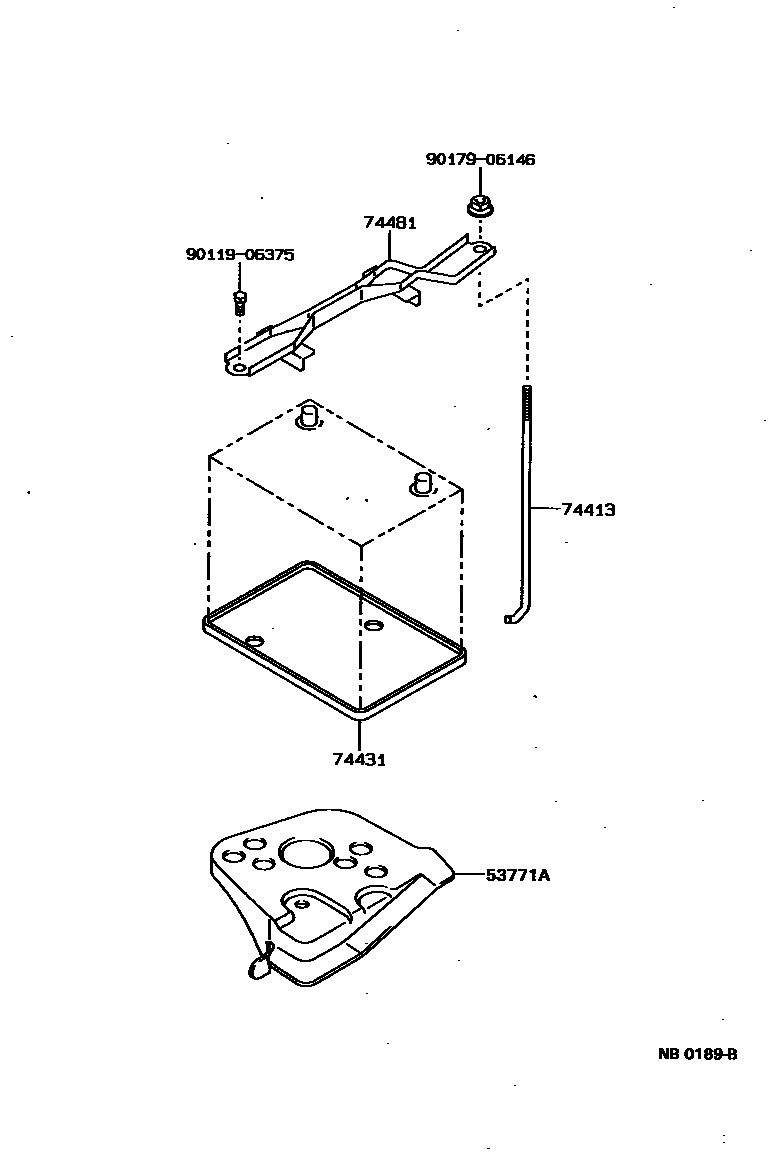

Toyota COROLLA battery holder EPC diagram — NB0189B
battery holder — NB0189B (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
53771Abattery holder bracket53771-12100
74413Battery clamp bolt74451-12050
74431battery tray74431-14010 · 74431-14020
74481Battery fixing clip74404-12250 · 74404-12260
