Toyota COROLLA 扶手和遮阳板 — Figure 7401

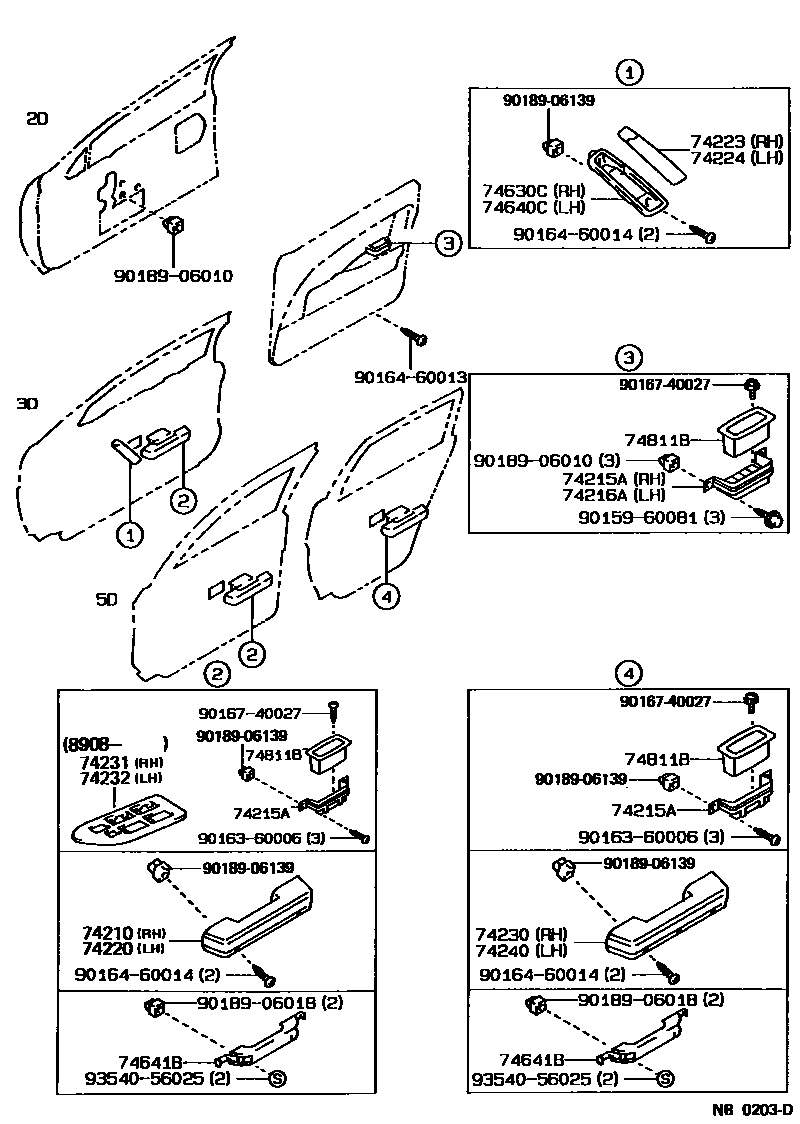

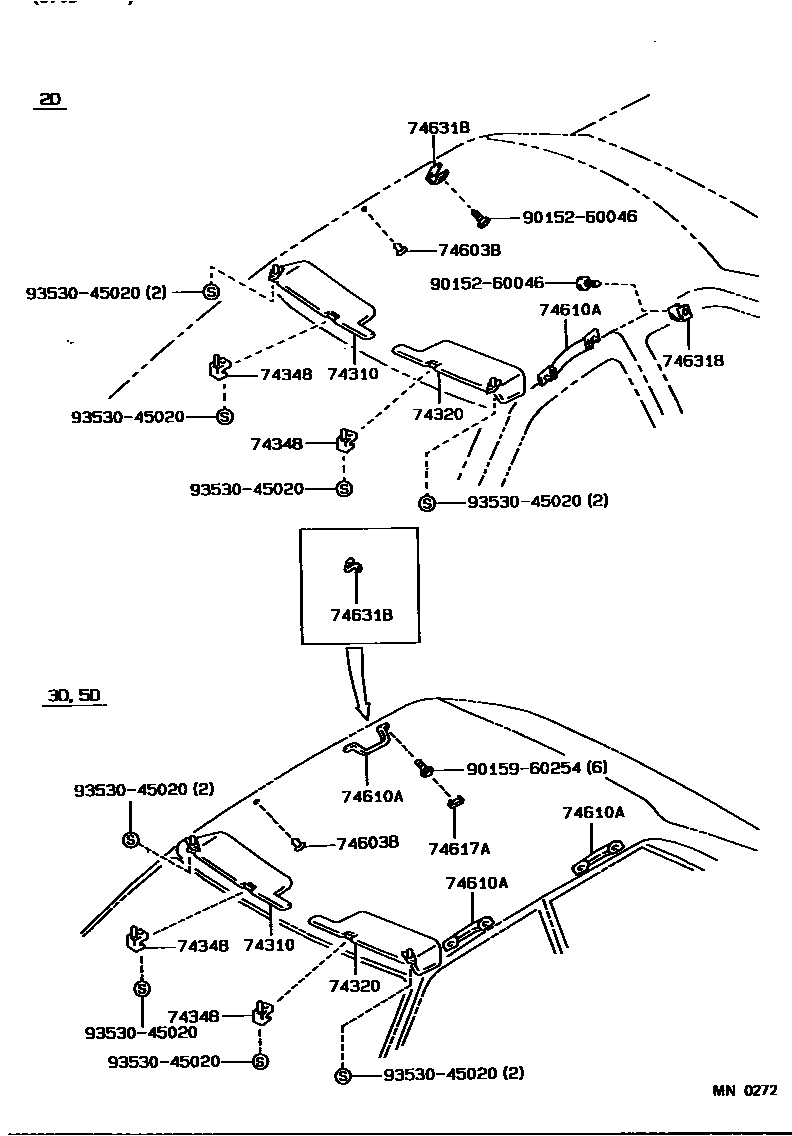

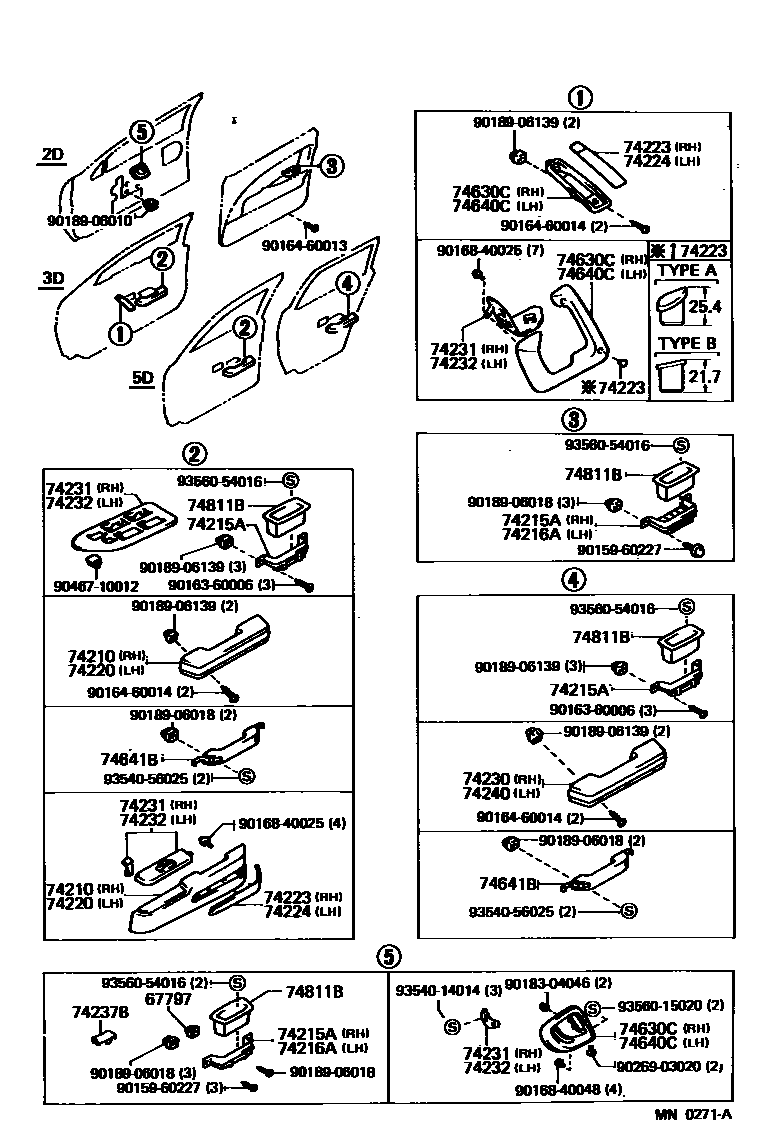

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67797 | Door trim panel trim fixings | 67797-12010 |
| 74215A | Right door armrest seat | 74215-12020 · 74215-12030 · 74215-12040 |
| 74216A | Left door armrest seat | 74215-12030 |
