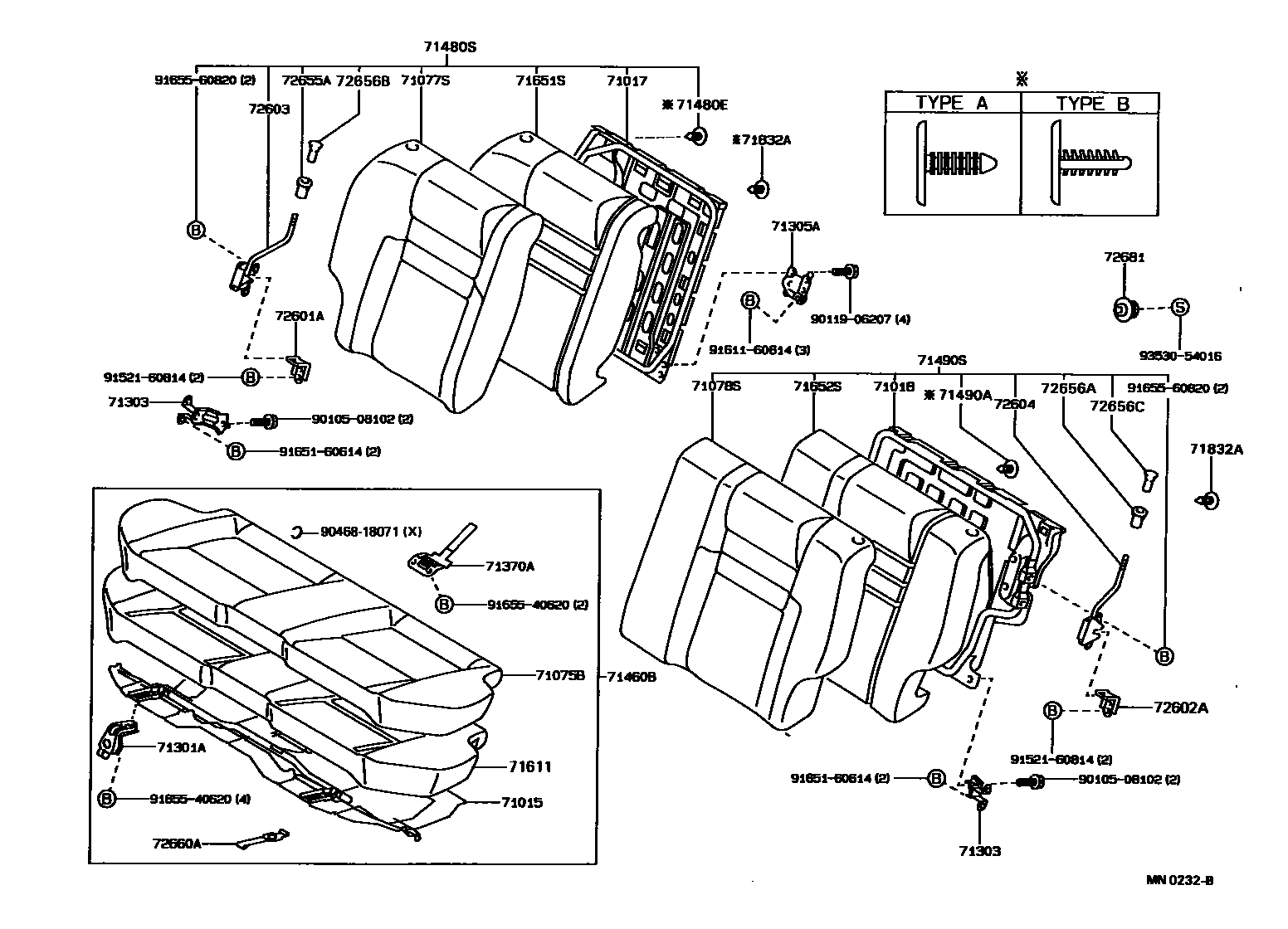

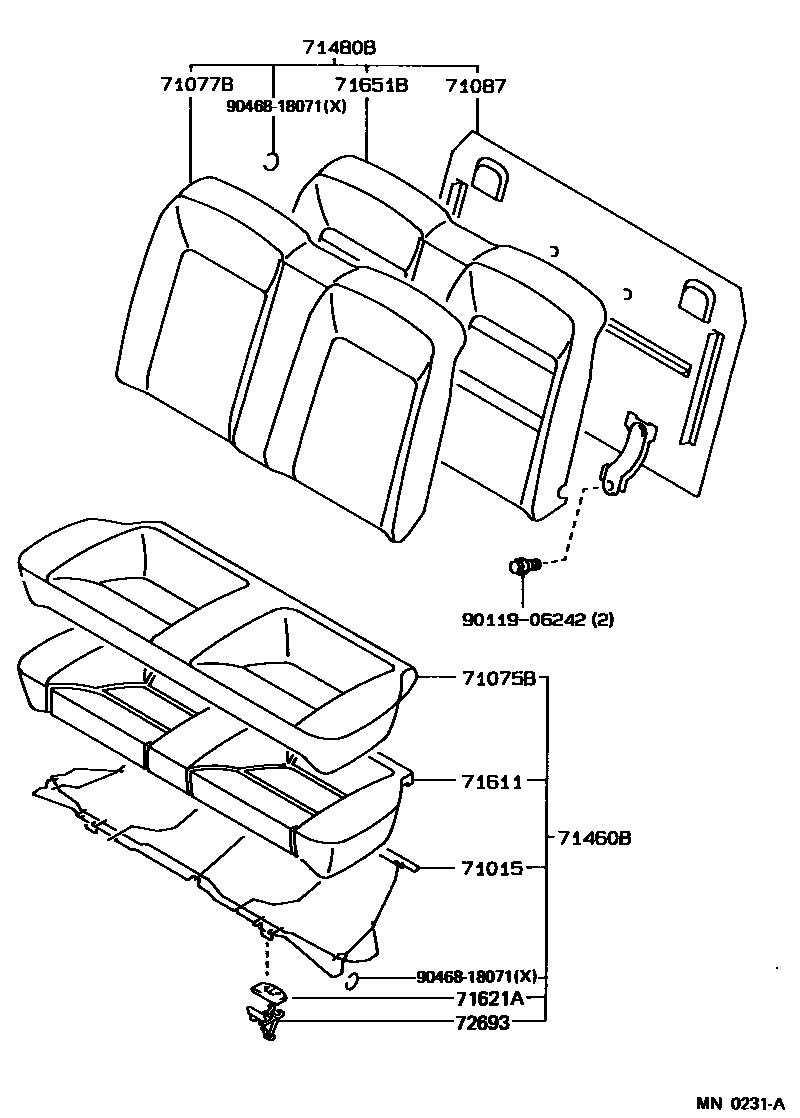

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-12270 · 71015-12280 |
| 71017 | Right rear seat back frame sub-assembly | 71017-12270 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12060 |
| 71087 | Rear seat back panel sub-assembly | 71087-12070 |
| 71303 | Rear seat back hinge sub-assembly | 71303-12060 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12060 |
| 71611 | Rear seat cushion cushion | 71611-12540 · 71611-12580 · 71611-12630 |
| 71621A | Rear seat A seat cushion muffler | 71621-12270 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-12670 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12560 · 71651-12610 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12420 · 71652-12440 |
| 72601A | Right rear seat back lock sub-assembly | 72601-12080 |
| 72602A | Rear left seat back lock sub-assembly | 72601-12080 |
| 72603 | Rear right seat back lock sub-assembly | 72630-12140 · 72630-12210 |
| 72604 | Rear left seat back lock sub-assembly | 72640-12130 · 72640-12200 |
| 72693 | Rear seat cushion hook | 72693-12020 · 72693-12050 · 72693-32020 |
