Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

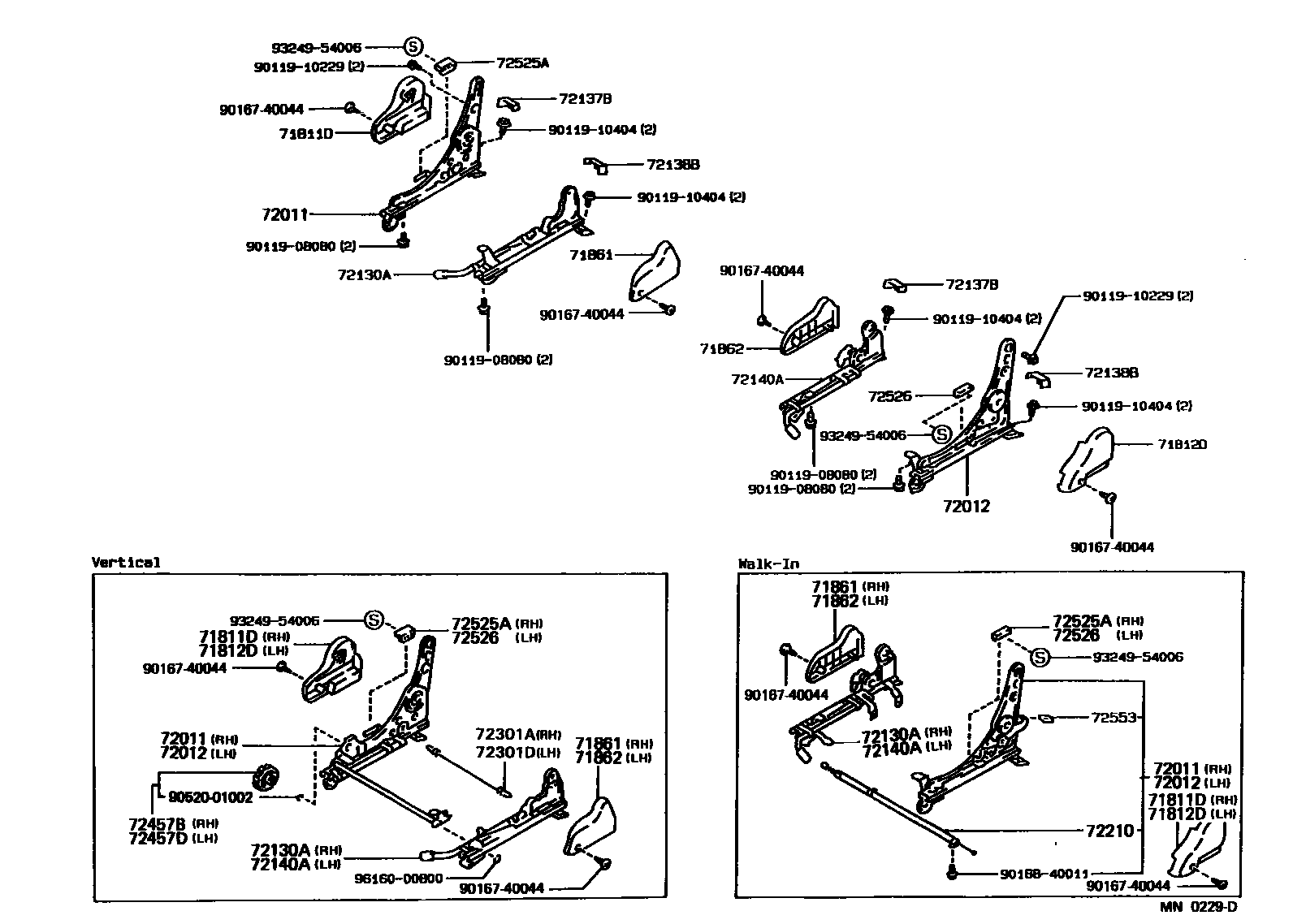

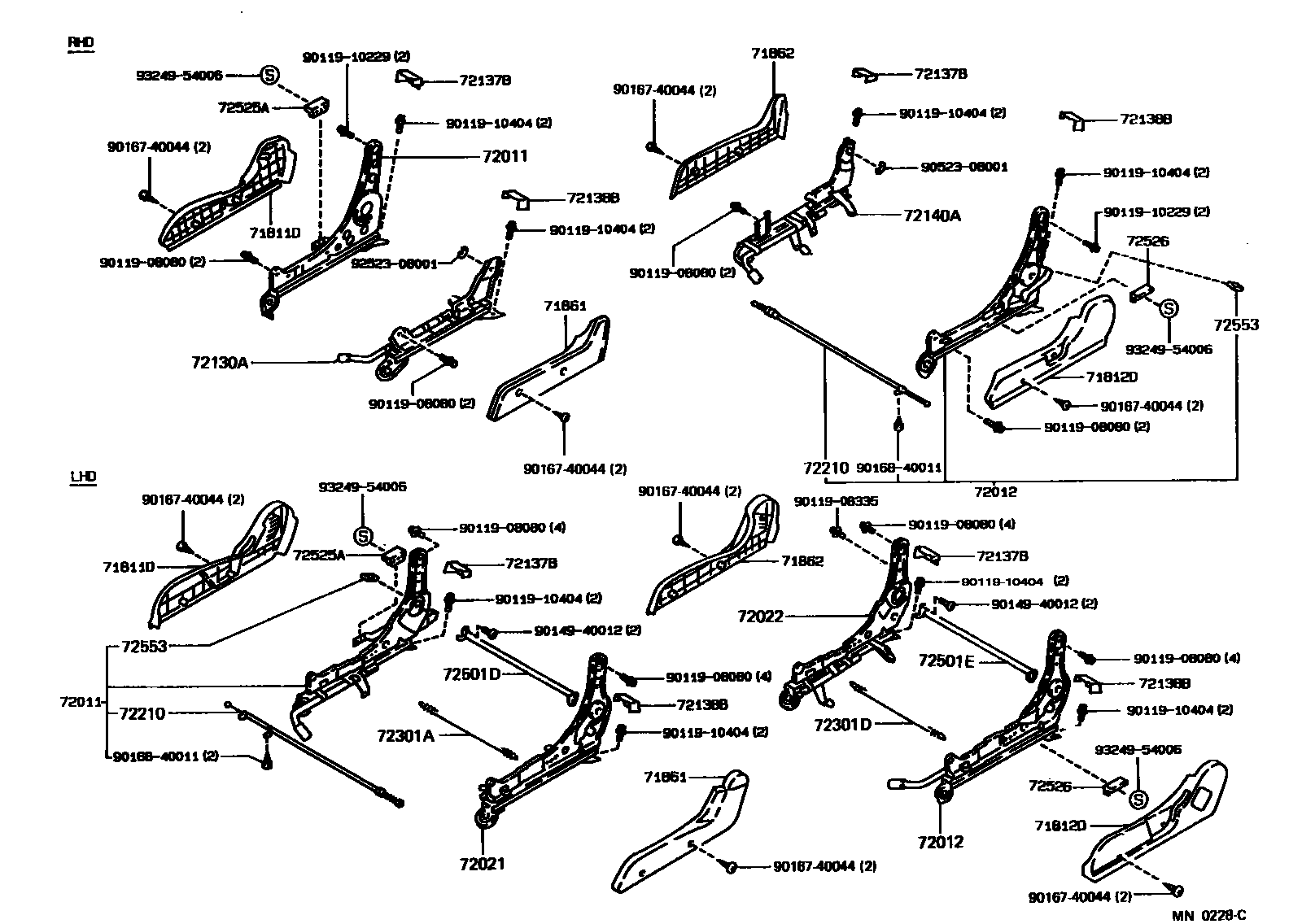

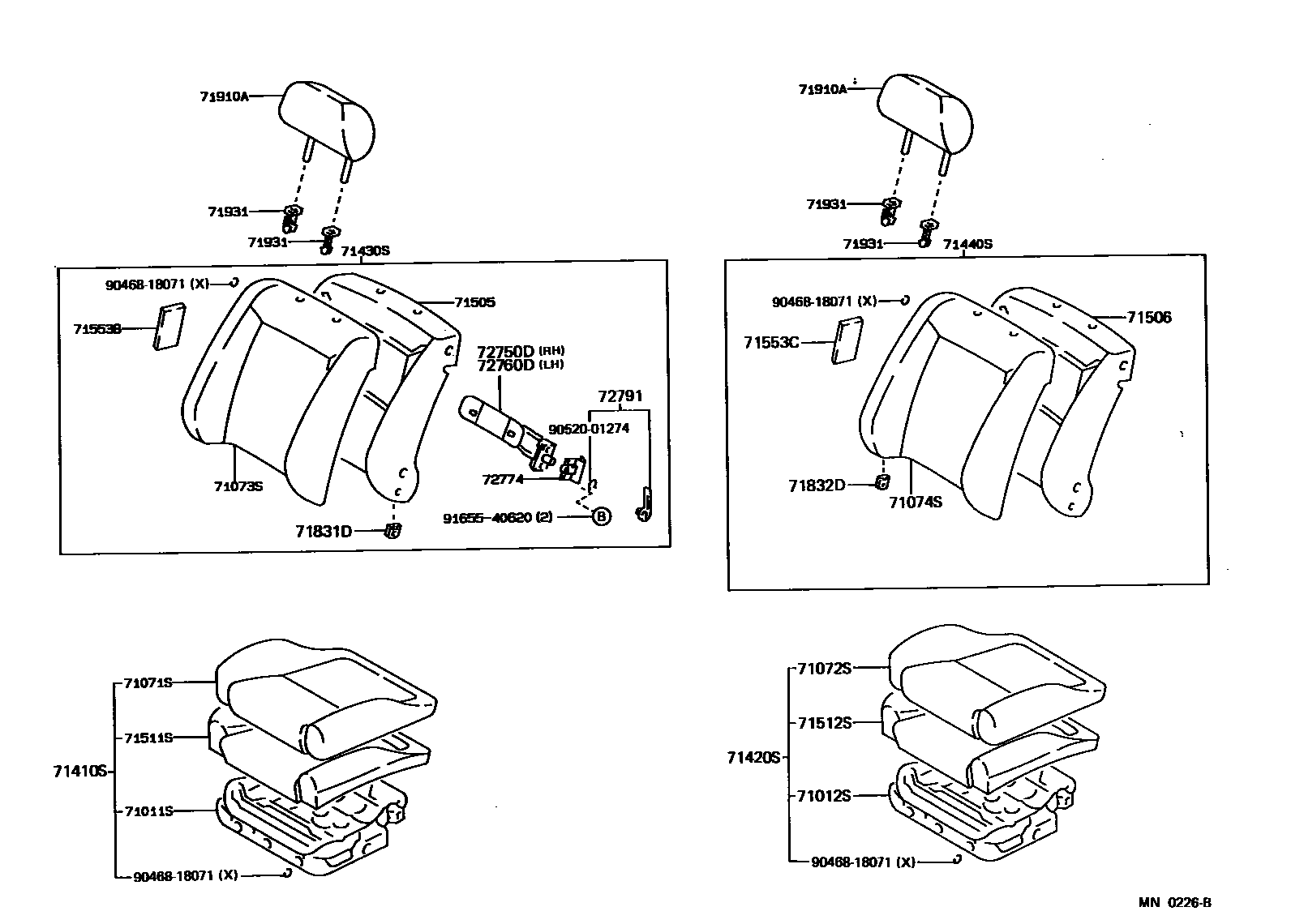

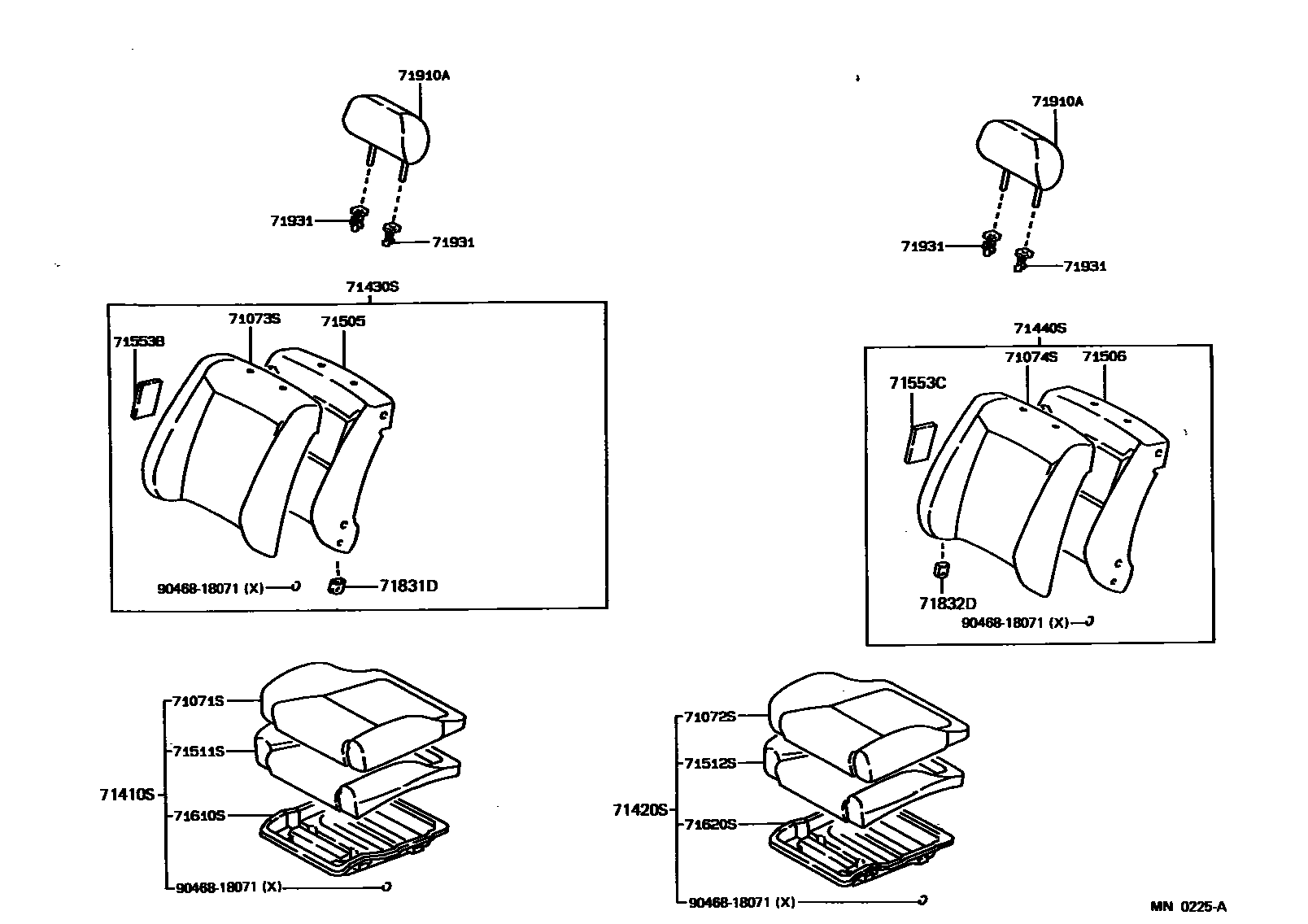

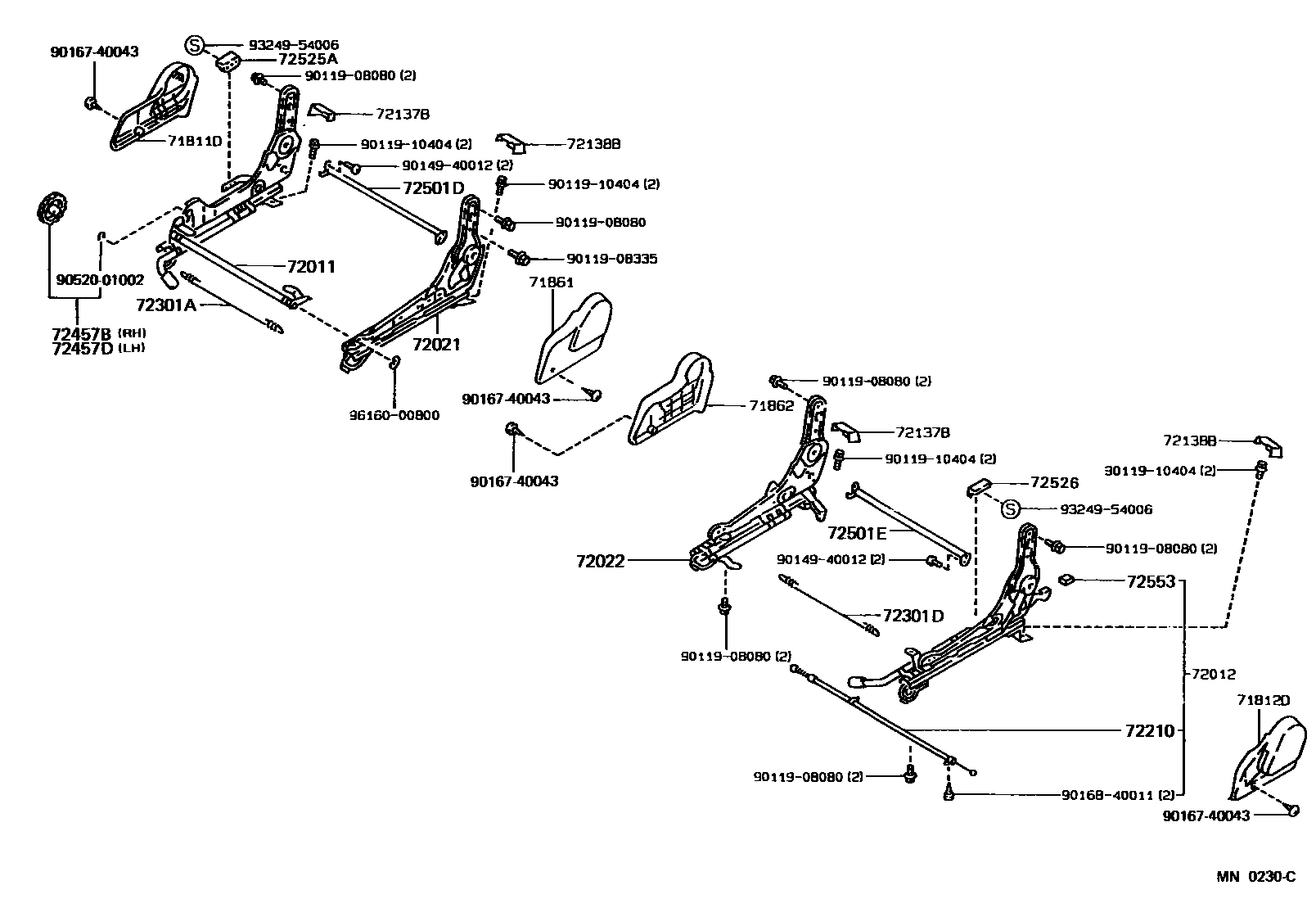

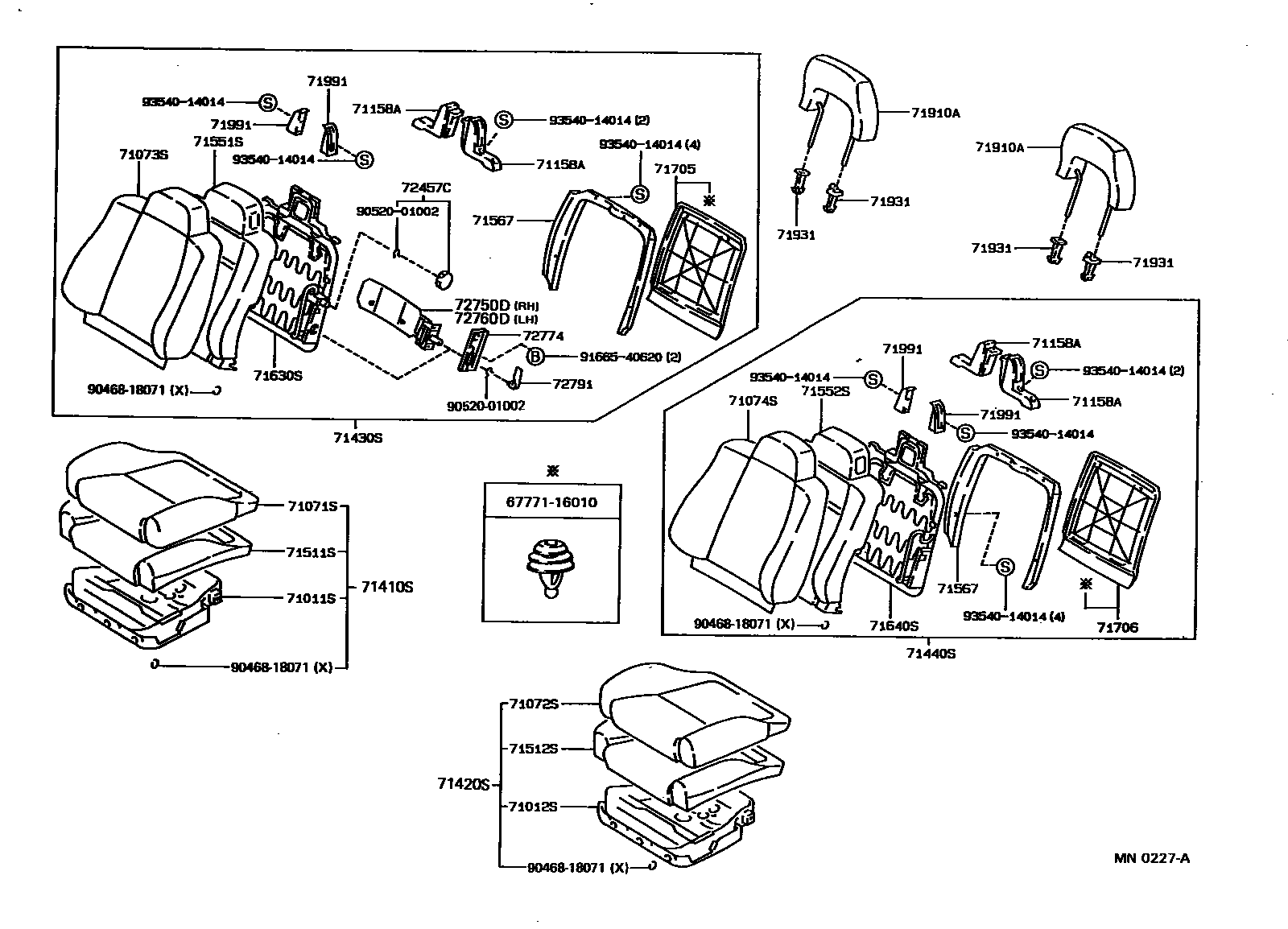

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 6 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-12280 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-12280 |
| 71158A | Front outer seat back frame | 71158-12090 |
| 71505 | Front right seat back cushion sub-assembly with frame | 71505-12030 · 71505-12050 · 71505-12060 · 71505-12070 · 71505-12090 |
| 71506 | Front left seat back cushion sub-assembly with frame | 71505-12070 · 71506-12030 · 71506-12040 · 71506-12050 · 71506-12060 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12580 · 71511-12590 · 71511-12610 · 71511-12640 · 71511-12730 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12580 · 71511-12590 · 71511-12610 · 71511-12640 · 71511-12730 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12540 · 71551-12550 |
| 71552S | Front left seat back cushion (for split seats) | 71551-12540 · 71551-12550 |
| 71553B | Front B seat back cushion | 71553-12200 · 71553-12220 · 71553-12230 |
| 71553C | Front C seat back cushion | 71553-12200 · 71553-12220 · 71553-12230 |
| 71567 | Front seat back safety cushion | 71567-12010 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-12300 · 71610-12320 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-12300 · 71610-12320 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-12480 · 71630-12490 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-12480 · 71640-12350 |
| 71831D | Front right seat hinge cover | 71831-12010 |
| 71832D | Front left seat hinge cover | 71831-12010 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-12310 · 72010-12320 · 72010-12330 · 72010-12540 · 72011-12110 · 72011-12120 · 72011-12140 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-12100 · 72012-12110 · 72012-12120 · 72012-12150 · 72020-12330 · 72020-12340 · 72020-12520 · 72020-12530 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-12130 · 72021-12140 · 72021-12160 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-12120 · 72022-12130 · 72022-12140 · 72022-12150 |
| 72130A | Front right seat inner slide rail assembly | 72130-12460 · 72130-12490 · 72130-12500 · 72130-12520 |
| 72140A | Front left seat inner slide rail assembly | 72140-12310 · 72140-12320 · 72140-12430 · 72140-12440 |
| 72210 | Seat slide rail control cable assembly | 72210-12190 · 72210-12200 · 72210-12210 · 72210-12220 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-12040 · 72301-12100 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-12040 · 72301-12100 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72501-12050 · 72501-12070 · 72501-12090 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72501-12050 · 72501-12070 · 72501-12090 |
| 72553 | Seat back tilt pedal cover | 72553-12040 |
| 72750D | Right lumbar support adjuster assembly | 72750-12060 · 72750-12070 |
| 72760D | Left lumbar support adjuster assembly | 72760-12070 · 72760-12080 |
| 72774 | Lumbar support spring guard | 72774-12020 |
