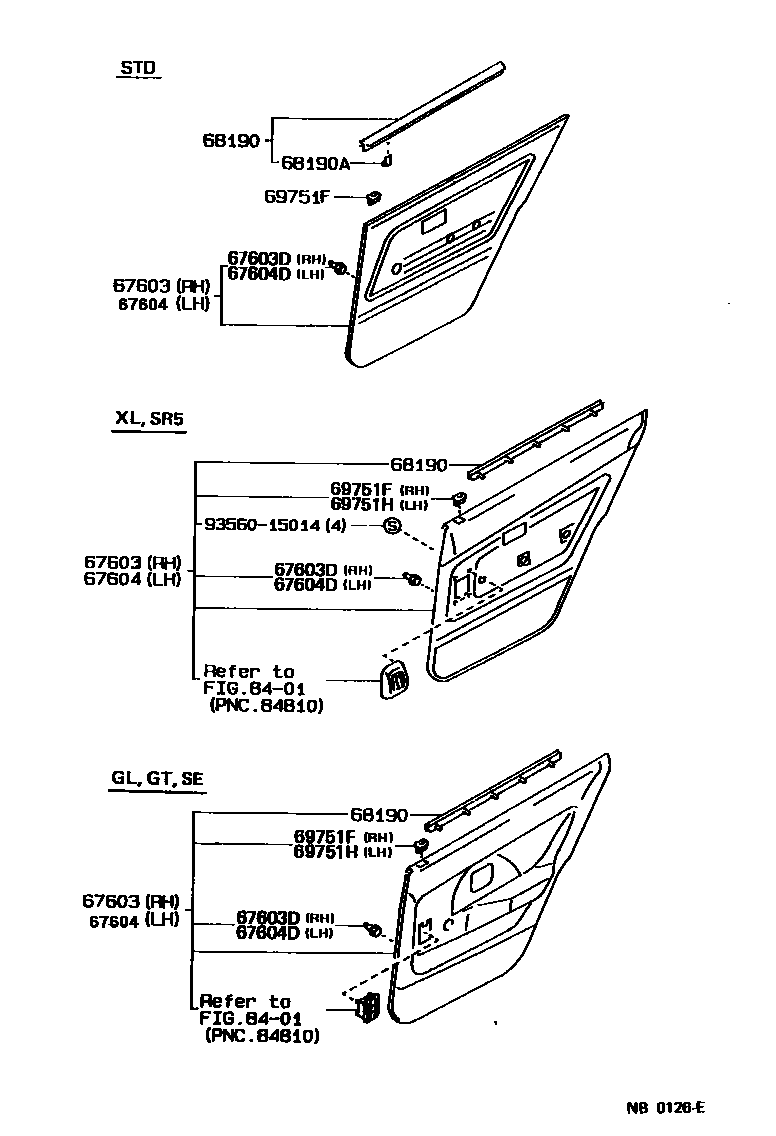

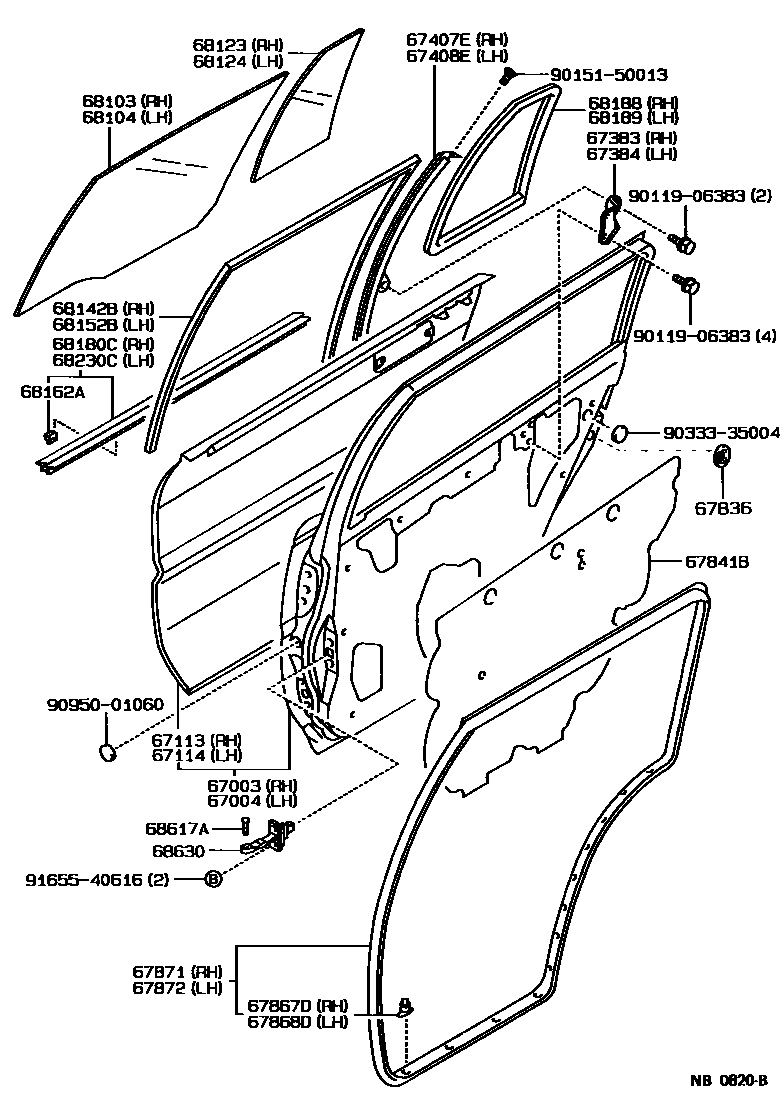

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-12600 · 67003-12610 |
| 67004 | Left rear door panel sub-assembly | 67004-12600 · 67004-12610 |
| 67113 | Right rear door outer panel | 67113-12140 |
| 67114 | Left rear door outer panel | 67114-12140 |
| 67383 | No. 2 right rear door inner panel bracket | 67383-12030 |
| 67384 | No. 2 left rear door inner panel bracket | 67384-12030 |
| 67407E | Right rear door window divider sub-assembly | 67407-12160 |
| 67408E | Left rear door window divider sub-assembly | 67408-12160 |
| 67603D | Right rear door trim panel fixing | 67771-12030 · 67771-12040 · 67771-12050 · 67771-89104 |
| 67604D | Left rear door trim panel fixing | 67771-12030 · 67771-12040 · 67771-12050 · 67771-89104 |
| 67836 | Right rear door lock child restraint cover | 67836-12030 |
| 67841B | Rear door access hole cover | 67841-12210 · 67841-12220 |
| 67867D | Right rear door seal strip fixing | 67867-12120 · 67868-12050 |
| 67868D | Left rear door seal strip fixing | 67868-12030 · 67868-12070 |
| 67871 | Right rear door sealing strip | 67871-12320 · 67871-12321 |
| 67872 | Left rear door sealing strip | 67872-12320 · 67872-12321 |
| 68103 | Right rear door glass sub-assembly | 68113-12260 · 68113-12270 |
| 68104 | Left rear door glass sub-assembly | 68114-12260 · 68114-12270 |
| 68123 | Right rear door window glass | 68123-12450 · 68123-12460 |
| 68124 | Left rear door window glass | 68124-12450 · 68124-12460 |
| 68142B | Right rear door window lift chute | 68142-12140 |
| 68152B | Left rear door window lift chute | 68152-12060 |
| 68162A | Catch (for rear door glass outer sealing strip) | 68211-12160 |
| 68180C | Right rear door glass outer sealing strip assembly | 68180-12090 |
| 68188 | Right rear door corner window seal | 68188-12210 · 68188-12220 |
| 68189 | Left rear door corner window seal | 68189-12220 · 68189-12230 |
| 68190 | Rear door glass inner sealing strip assembly | 68173-12140 · 68173-12160 · 68190-12110 · 68240-12060 |
| 68190A | Catch (for rear door glass inner sealing strip assembly) | 68211-10030 |
| 68230C | Left rear door glass outer sealing strip assembly | 68230-12060 |
| 68617A | Rear door opening limiter pin | 68617-12030 · 68617-22020 |
| 68630 | Rear door opening limiter assembly | 68630-12040 |
