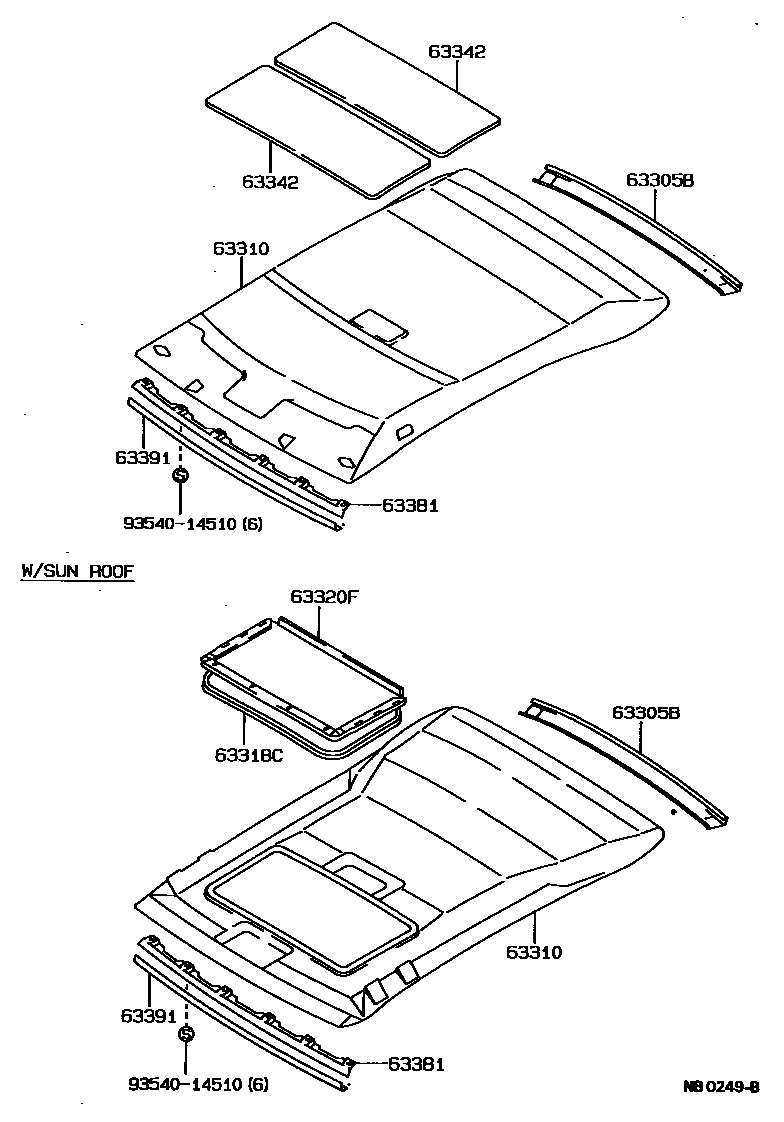

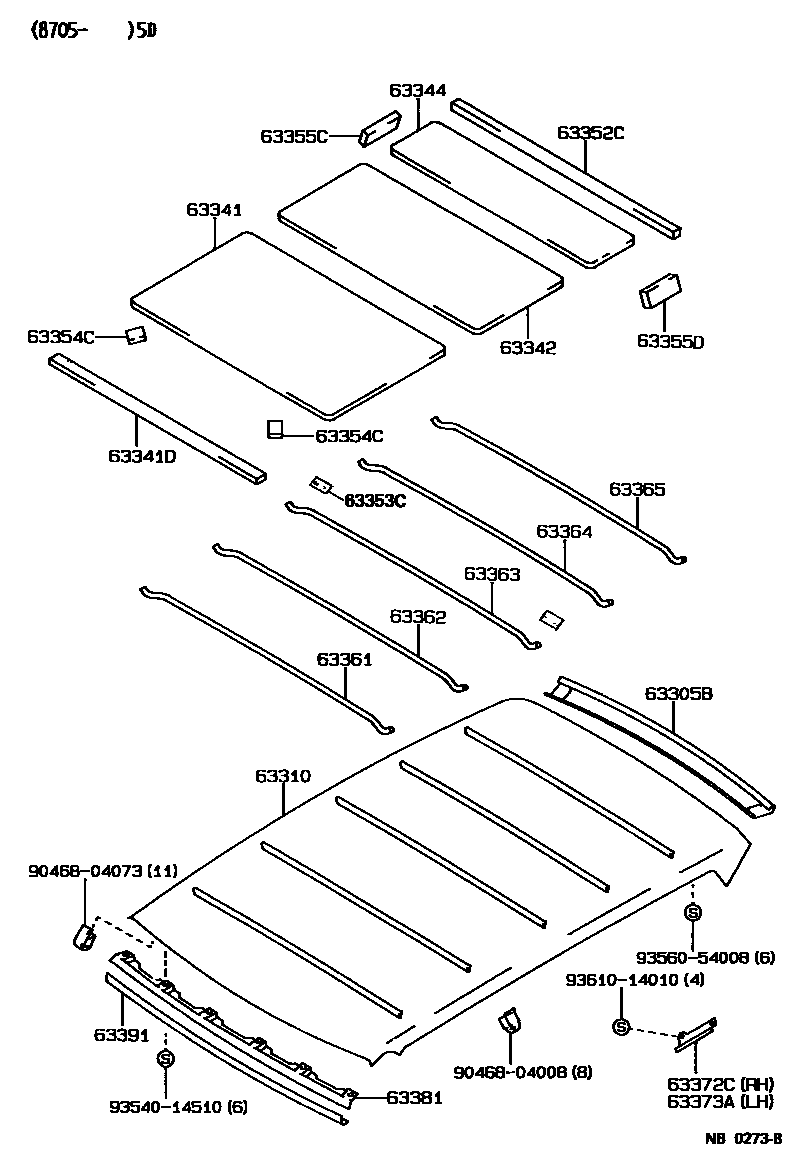

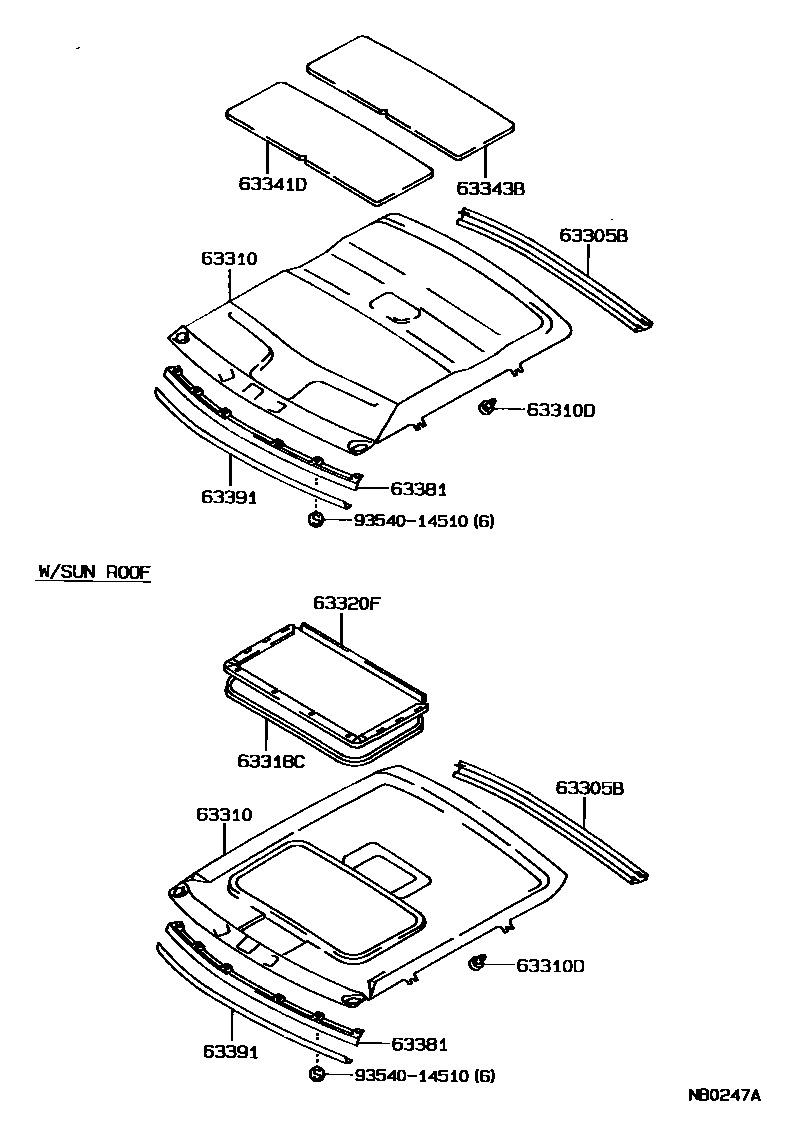

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310D | headliner clip | 90467-07034 |
| 63341 | No. 1 roof silencer mat | 63341-12100 |
| 63341D | Front roof silencer pad | 63341-12110 · 63343-12050 |
| 63342 | No. 2 roof muffler pad | 63342-12040 · 63343-12050 |
| 63343B | Rear roof silencer pad | 63343-12050 |
| 63344 | No. 4 roof silencer mat | 63344-12020 |
| 63352C | Headlining end pads | 63352-12090 |
| 63353C | Center roof lining lining | 63353-12020 |
| 63354C | Headlining front side pads | 63354-12030 |
| 63355C | Right side roof lining | 63355-12020 |
| 63355D | Roof left inner lining block | 63355-12020 |
| 63361 | Headlining bracket No. 1 | 63361-12210 · 63361-12220 · 63361-12230 |
| 63362 | Headlining bracket No. 2 | 63362-12170 · 63362-12180 · 63362-12190 |
| 63363 | No. 3 roof lining bracket | 63362-12190 · 63363-12020 · 63363-12030 |
| 63364 | No. 4 roof lining bracket | 63361-12210 · 63361-12230 · 63362-12180 |
| 63365 | No. 5 headliner bracket | 63362-12170 · 63362-12180 · 63362-12190 |
| 63372C | Headlining bracket hook | 63372-12060 |
| 63373A | No. 2 headliner bracket hook | 63373-12010 |
| 63381 | Front lining fastener | 63381-12180 · 63381-12190 |
