Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

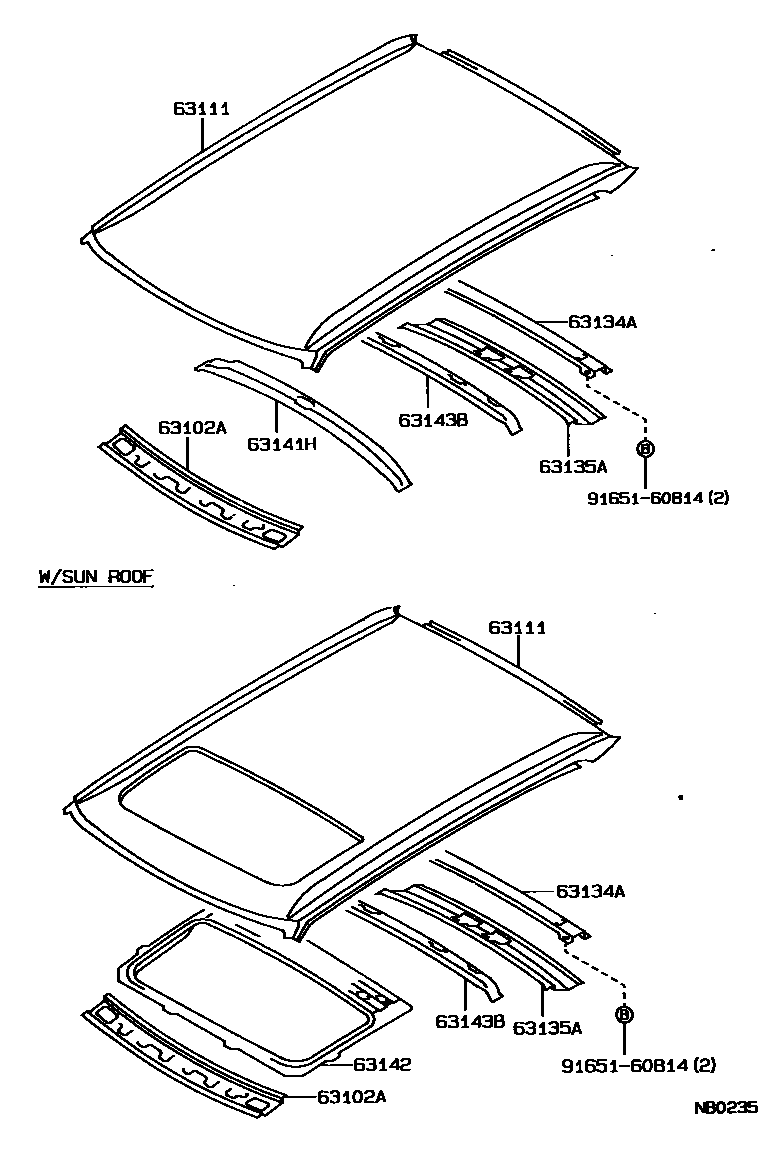

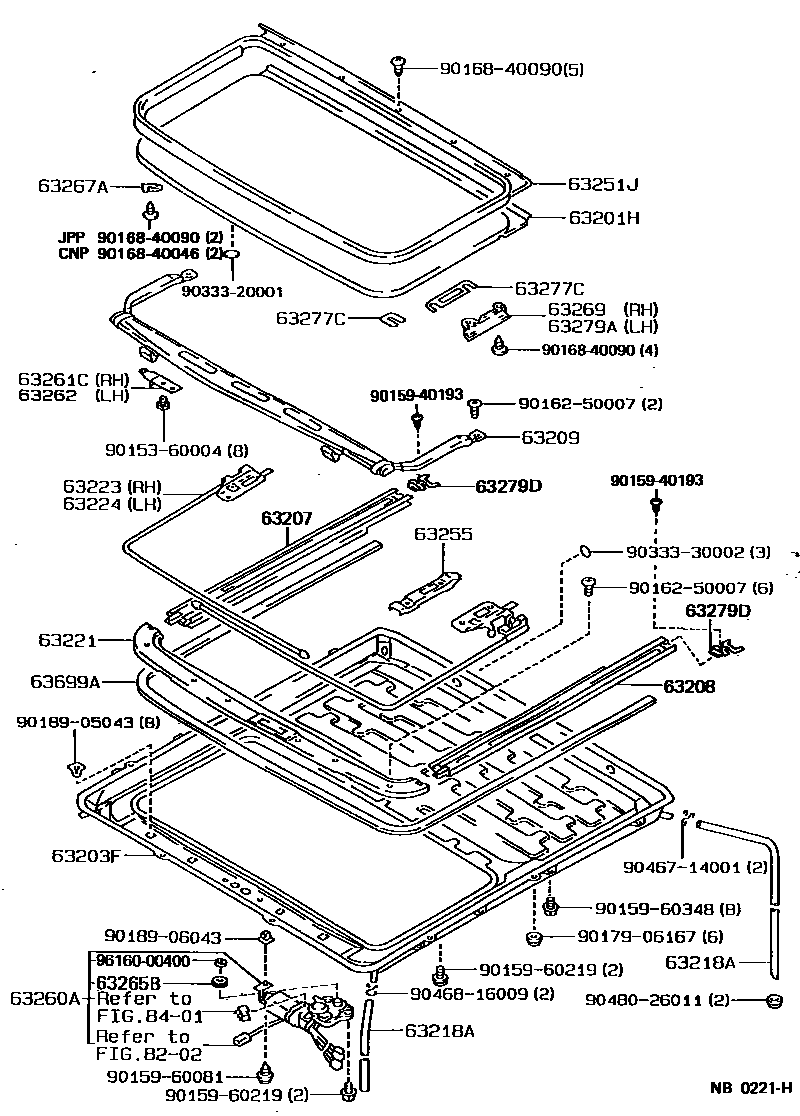

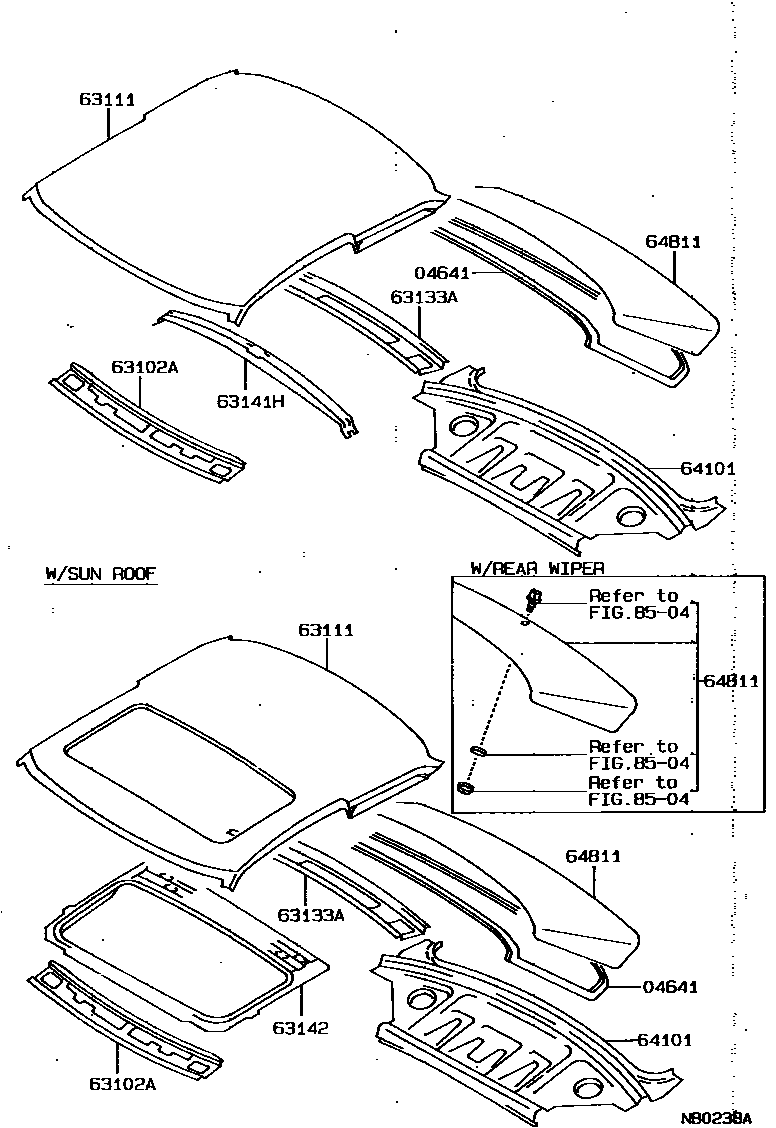

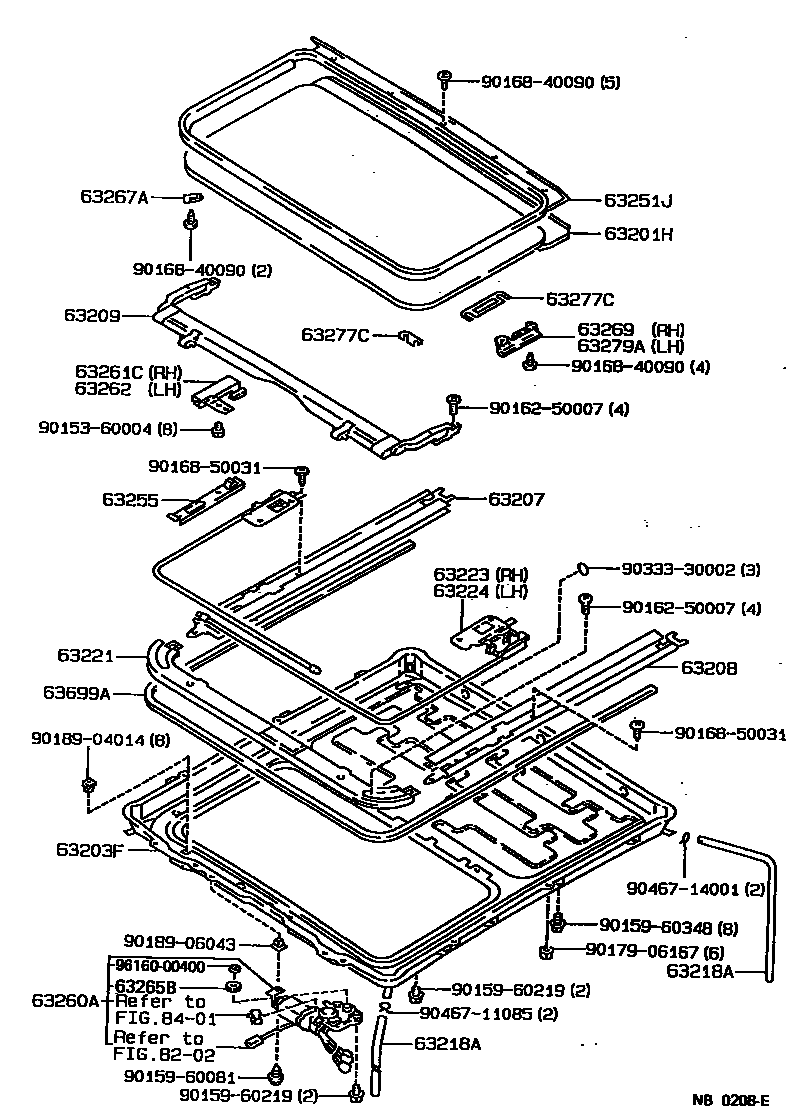

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 4 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641 | Back window glass sealing strip assembly | 04562-12010 |
| 63102A | Windshield roof sub-assembly | 63102-12040 · 63102-12060 |
| 63111 | roof panel | 63111-12390 · 63111-12391 · 63111-12400 · 63111-12401 · 63111-12900 · 63111-12901 · 63111-12902 · 63111-12903 |
| 63133A | upper frame of back window | 63133-12180 |
| 63134A | Opening frame on back door | 63134-12140 |
| 63135A | Opening frame under rear door | 63135-12080 |
| 63141H | Center roof panel reinforcement | 63141-12130 · 63141-12140 |
| 63142 | No. 2 roof panel reinforcement | 63142-12030 · 63142-12040 |
| 63143B | No. 3 roof panel reinforcement | 63143-12040 |
| 63201H | Sliding sunroof panel sub-assembly | 63201-12100 · 63201-12130 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-12120 · 63203-12130 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-12050 · 63207-12051 · 63207-12070 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-12050 · 63208-12051 · 63208-12070 |
| 63209 | Roof deflector sub-assembly | 63209-12040 · 63209-12050 · 63209-12051 · 63209-12052 |
| 63218A | Hoses (for sliding roof or removable roof drainage) | 63249-12070 · 63249-12100 · 63249-12110 · 63249-12120 · 63249-16050 |
| 63221 | Sliding sunroof cable duct | 63221-12050 · 63221-16020 |
| 63223 | Right sliding sunroof transmission cable | 63223-12040 · 63223-12041 · 63223-12042 · 63223-12043 · 63223-12060 · 63223-12061 · 63223-12062 |
| 63224 | Left sliding sunroof transmission cable | 63224-12030 · 63224-12031 · 63224-12032 · 63224-12033 · 63224-12050 · 63224-12051 · 63224-12052 |
| 63251J | Sliding skylight seal No. 2 | 63251-12060 · 63251-12061 · 63251-12062 · 63251-12090 · 63251-12091 |
| 63255 | Right sliding sunroof guide cover | 63255-12060 · 63255-16010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12040 · 63260-12041 · 63260-12060 · 63260-12061 |
| 63261C | Right front sliding sunroof slider | 63261-12030 · 63261-12050 · 63261-12051 · 63261-16010 |
| 63262 | Left front sliding sunroof slider | 63262-12030 · 63262-12050 · 63262-12051 · 63262-16010 |
| 63265B | Sliding sunroof driving gear | 63265-20010 |
| 63267A | Right sliding sunroof sealing strip protector | 63267-12020 |
| 63269 | Sliding sunroof sealing strip fixings | 63269-20010 |
| 63277C | Sliding skylight panel gasket | 63277-14020 · 63277-24010 · 63277-30020 |
| 63279A | No. 3 skylight frame to longitudinal beam bracket | 63279-20010 |
| 63279D | Sliding sunroof guide rail stop | 63279-32010 |
| 63699A | Sliding sunroof guide seals | 63699-12030 · 63699-12040 · 63699-16010 |
| 64101 | Upper back panel sub-assembly | 64101-12390 |
| 64811 | back window glass | 64811-1A270 |
