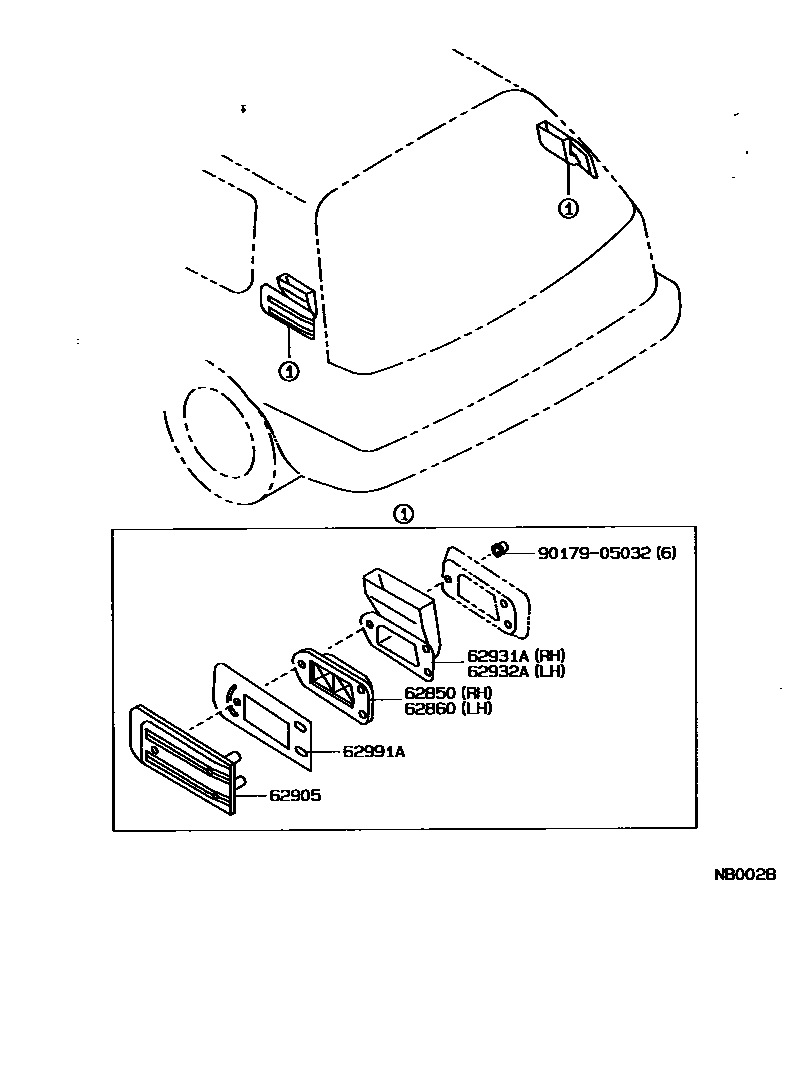

Toyota COROLLA 车侧通风装置 — Figure 6102
Toyota COROLLA EPC diagram 6102, 车侧通风装置, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62850 | Right compartment pressure reducing valve assembly | 62850-12090 · 62850-12100 |
| 62860 | Left compartment pressure reducing valve assembly | 62860-12070 · 62860-12080 |
| 62905 | Side ventilation grilles | 62905-12320 · 62906-12320 |
| 62931A | Right side ventilation duct | 62931-12220 |
| 62932A | Left side ventilation duct | 62932-12220 |
| 62991A | Side ventilation grille lining | 62991-12100 |
