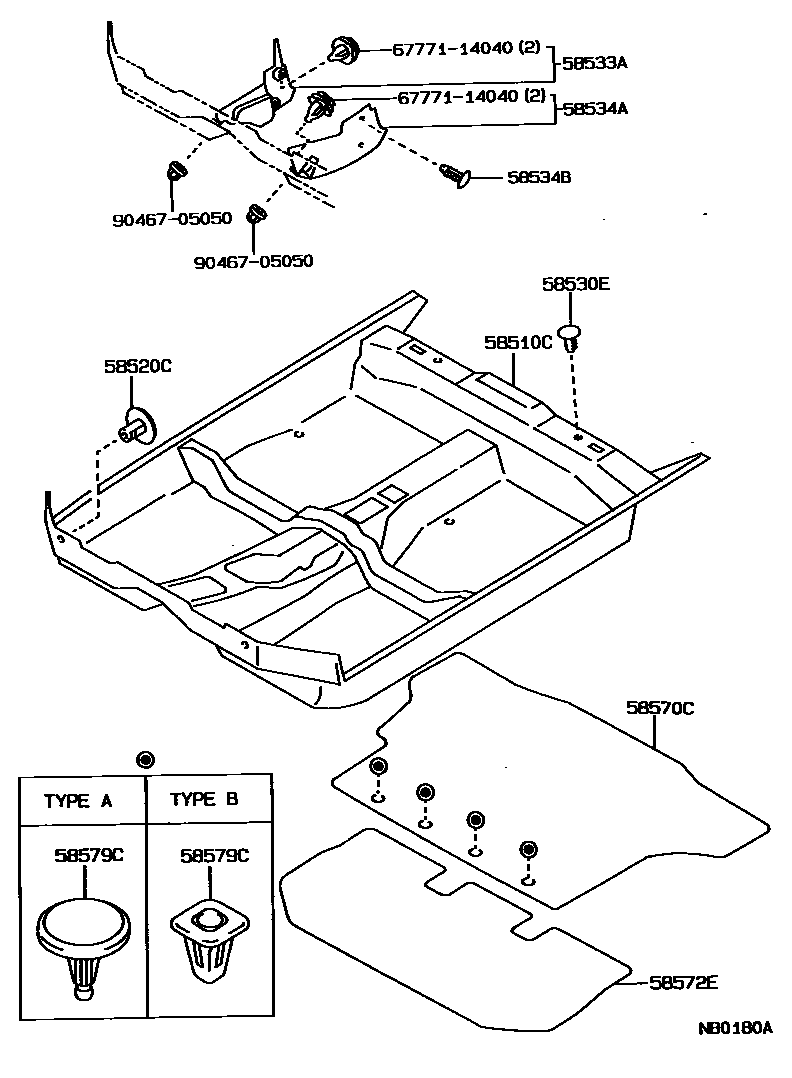

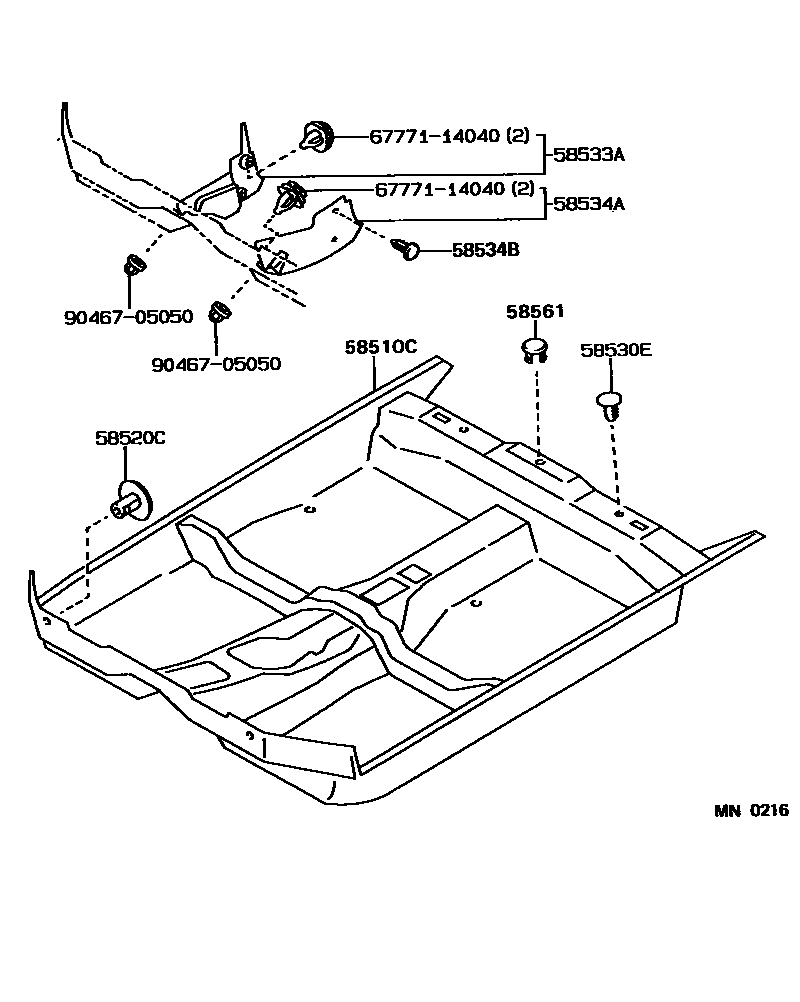

Toyota COROLLA 地板垫和地毯 — Figure 5804
Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58533A | Right center carpet cover | 58533-12010 · 58533-12020 |
| 58534A | transmission cover gasket | 58534-12010 · 58534-12020 |
| 58561 | Floor mat fastener No. 1 | 58561-12010 |
| 58572E | Rear floor front mat | 58572-12040 · 58572-12041 |
| 58579C | Rear carpet fixing clip | 90467-10023 |
