Toyota COROLLA 地板隔热垫 — Figure 5802

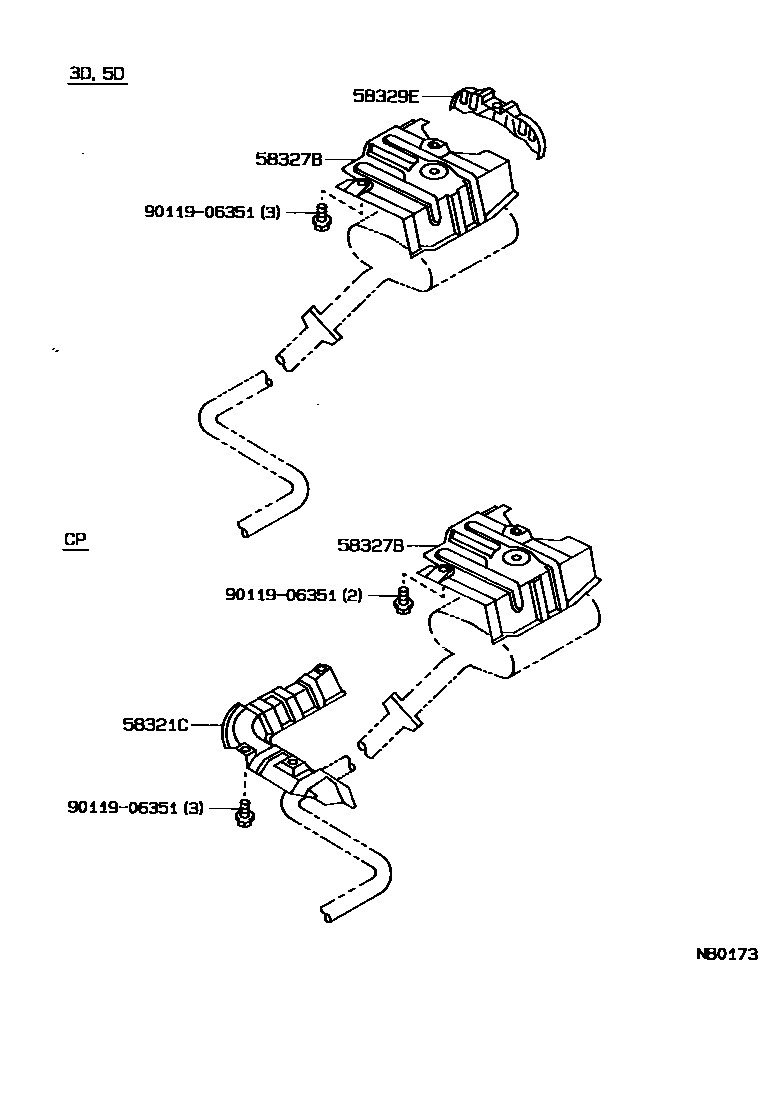

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58321C | Rear floor front insulation mat | 58321-12040 |
| 58327B | Main muffler heat insulation pad | 58327-12060 · 58327-12080 |
| 58329E | Main muffler rear upper heat insulation pad | 58329-12010 |
