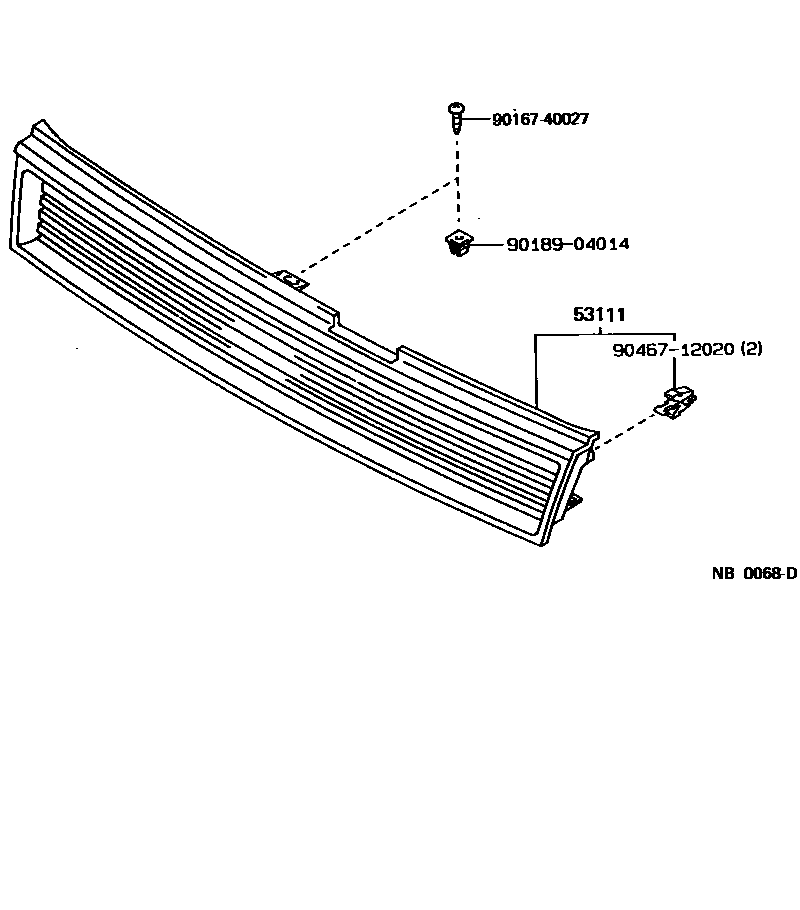

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53111 | radiator grille | 53101-12490 · 53101-12770 |

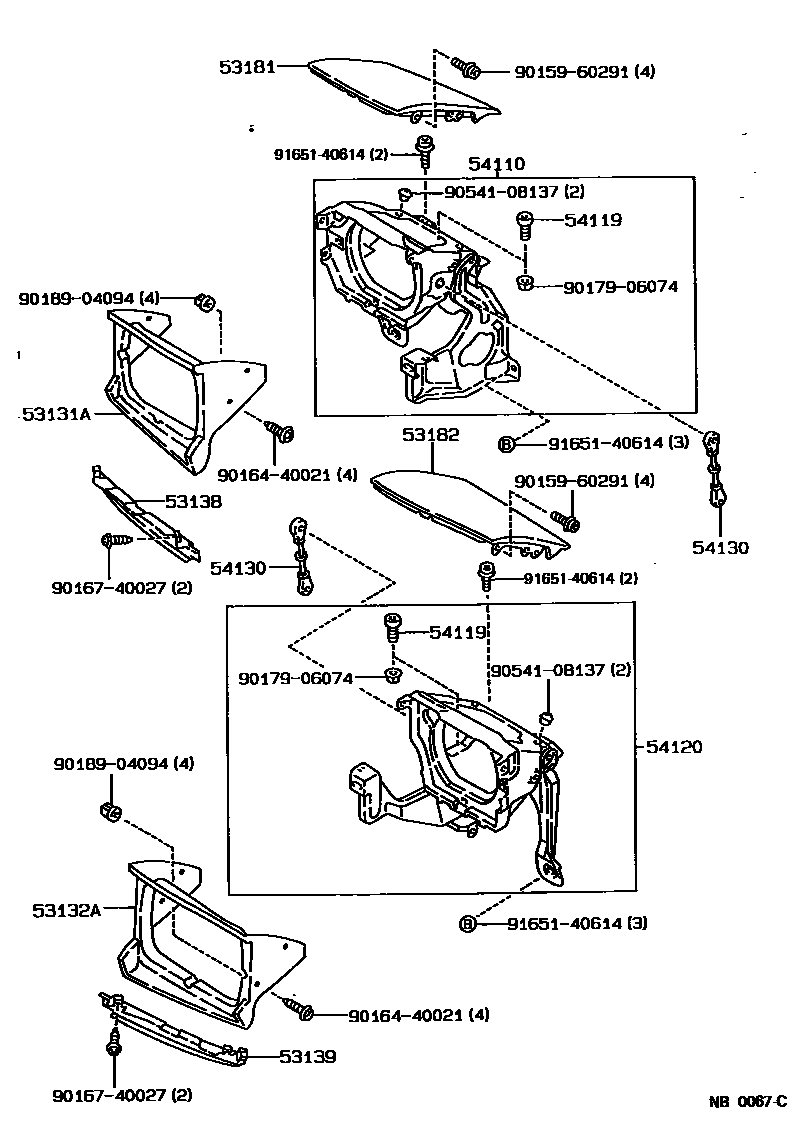

| 53131A | Right headlight lampshade | 53131-12370 |
| 53132A | Left headlight lampshade | 53132-12280 |
| 53138 | Right headlight guard | 53138-12080 |
| 53139 | Left headlight guard | 53139-12150 |
| 53181 | Right headlight cover | 53181-12040 |
| 53182 | Left headlight cover | 53182-12040 |
| 54110 | Right telescopic headlight bracket assembly | 54110-12020 · 54110-12021 |
| 54119 | Retractable headlight linkage stop | 54119-14010 |
| 54120 | Left telescopic headlight bracket assembly | 54120-12020 · 54120-12021 |
| 54130 | Telescopic headlight pole assembly | 54130-12020 · 54130-12021 |
