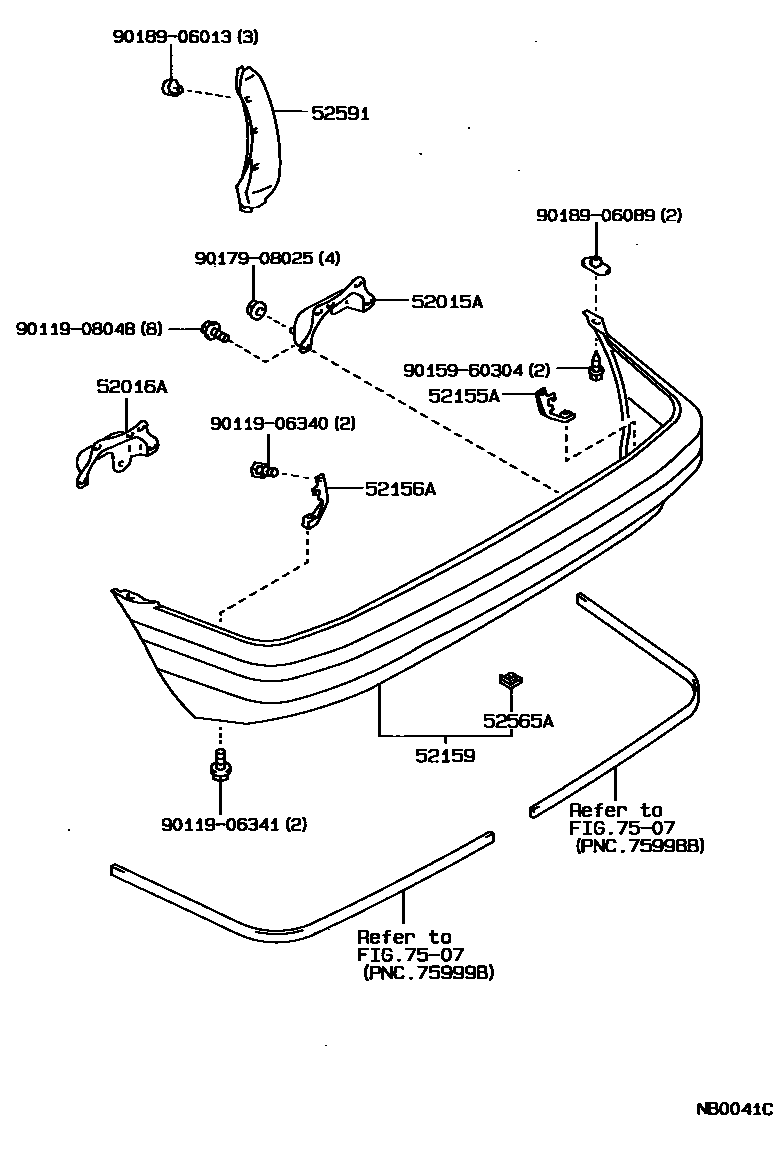

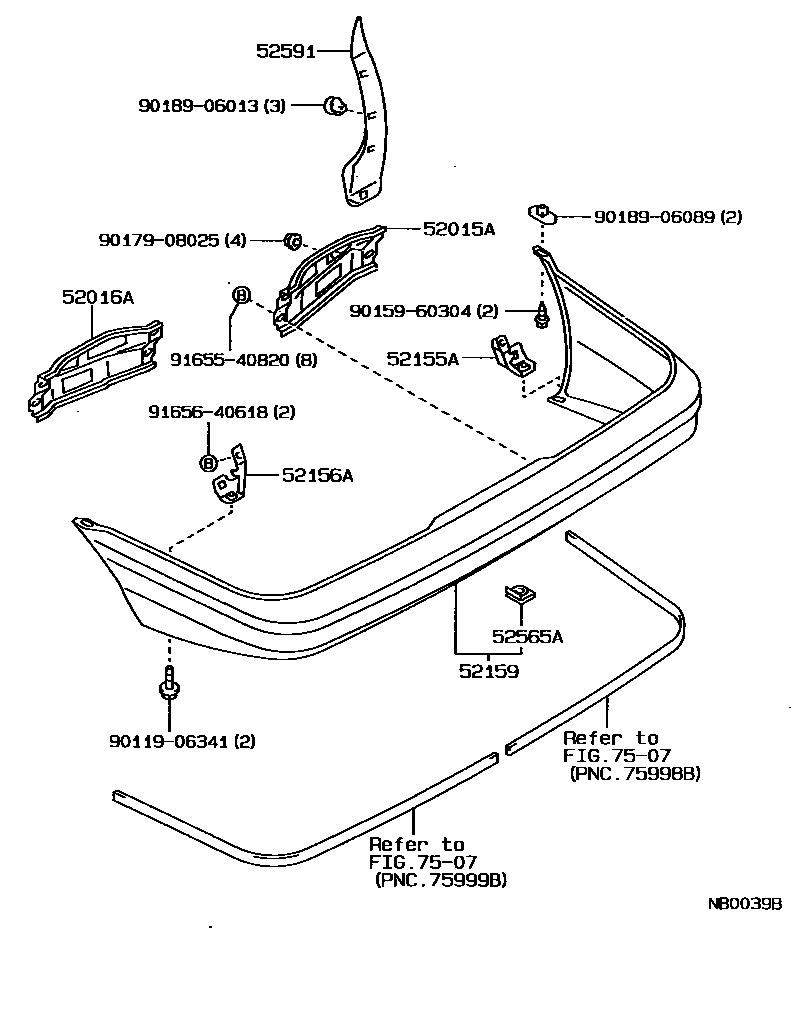

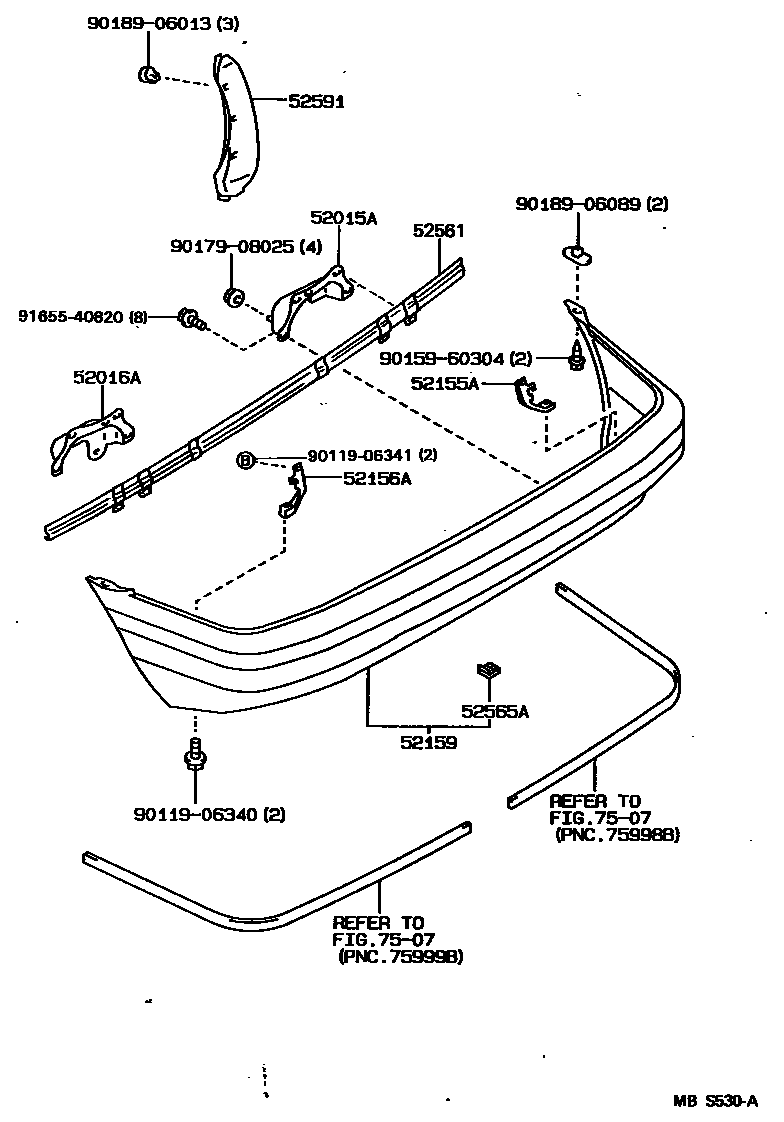

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52181-12300 · 52181-12310 · 52181-12380 |
| 52016A | Rear bumper left arm sub-assembly | 52182-12250 · 52182-12260 · 52182-12300 |
| 52155A | Rear bumper right side bracket | 52155-12160 · 52155-12170 · 52155-12190 |
| 52156A | Rear bumper left bracket | 52156-12130 · 52156-12150 · 52156-12160 |
| 52159 | rear bumper cover | 52105-12050 · 52159-12820 · 52159-1A240 |
| 52561 | Rear bumper upper center fixing bracket | 52561-12120 |
| 52565A | Rear bumper lower fixing bracket | 52565-12040 · 52565-16020 |
| 52591 | Rear bumper right seal | 52591-12060 · 52591-12070 |
