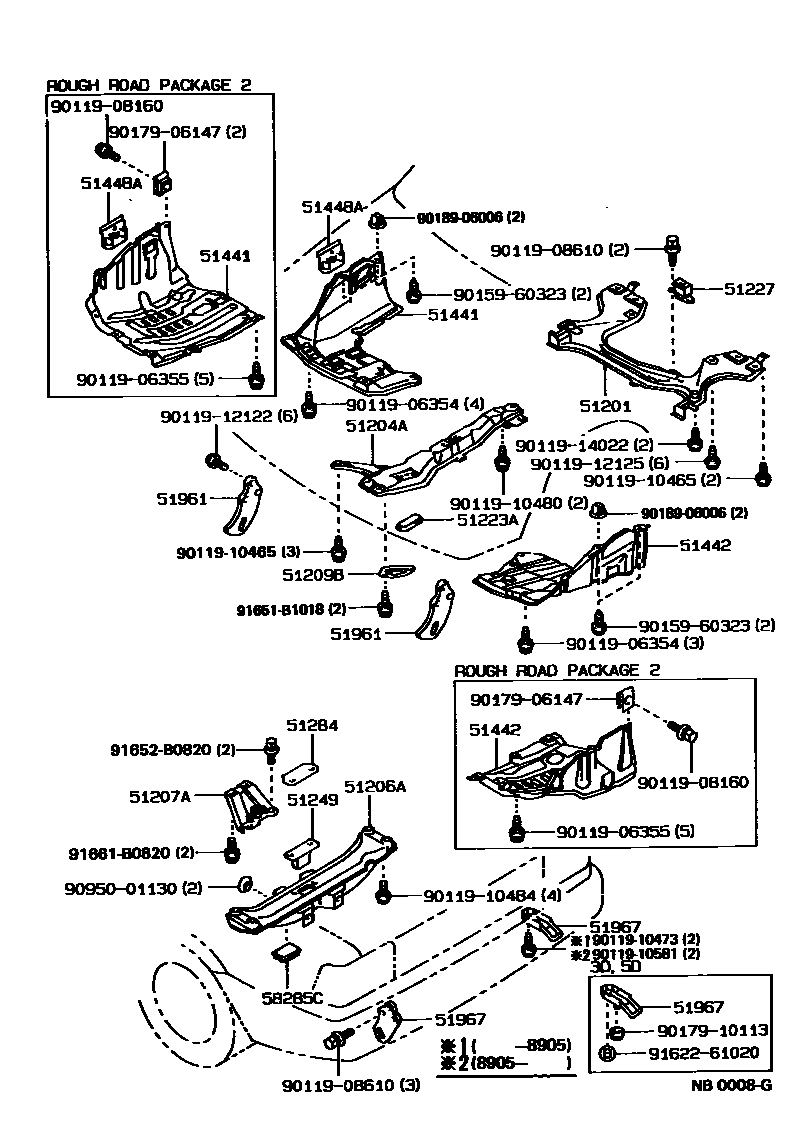

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-12280 · 51201-12281 · 51201-12282 |
| 51204A | Engine center mount beam sub-assembly | 51204-12060 |
| 51206A | Rear suspension cross member sub-assembly | 51206-12030 |
| 51207A | Differential support beam sub-assembly | 51207-12010 |
| 51209B | Center beam front protective cover sub-assembly | 51209-20010 |
| 51223A | Engine mounting hole cover | 51223-20020 |
| 51227 | Front suspension cross member shock absorber counterweight | 51227-12030 · 51227-12031 |
| 51249 | Rear suspension cross member shock absorber | 51249-12020 · 51249-12030 · 51249-12040 |
| 51284 | Rear suspension cross member hole cover | 51284-12010 |
| 51441 | No. 1 engine bottom cover | 51408-12020 · 51408-12040 · 51441-12120 |
| 51442 | No. 2 engine bottom cover | 51409-12010 · 51442-12050 · 51442-12060 |
| 51448A | Engine right bottom cover | 51448-20010 |
| 51961 | No. 1 hook | 51963-12180 |
| 51967 | Rear transport hook | 51095-12040 · 51095-12050 · 51095-12070 · 51968-12020 · 51968-12080 · 51968-12090 |
| 58285C | Rear floor hole cover | 58285-12020 |
