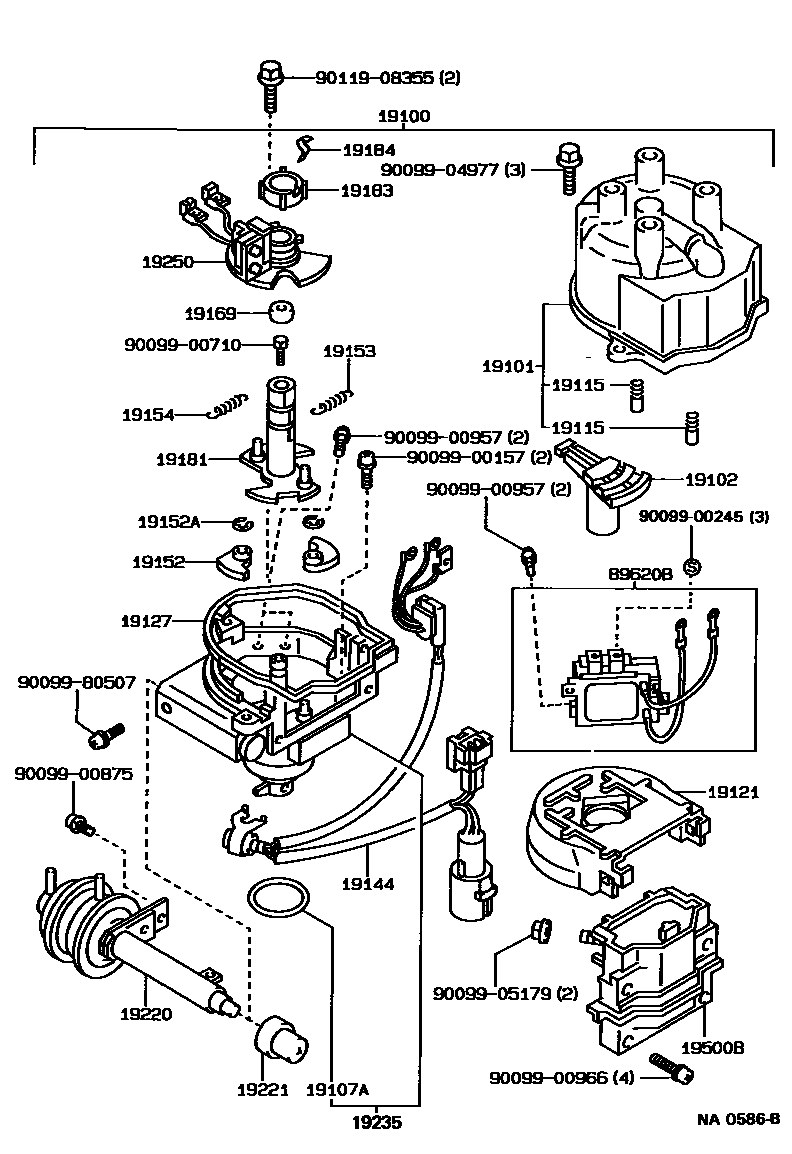

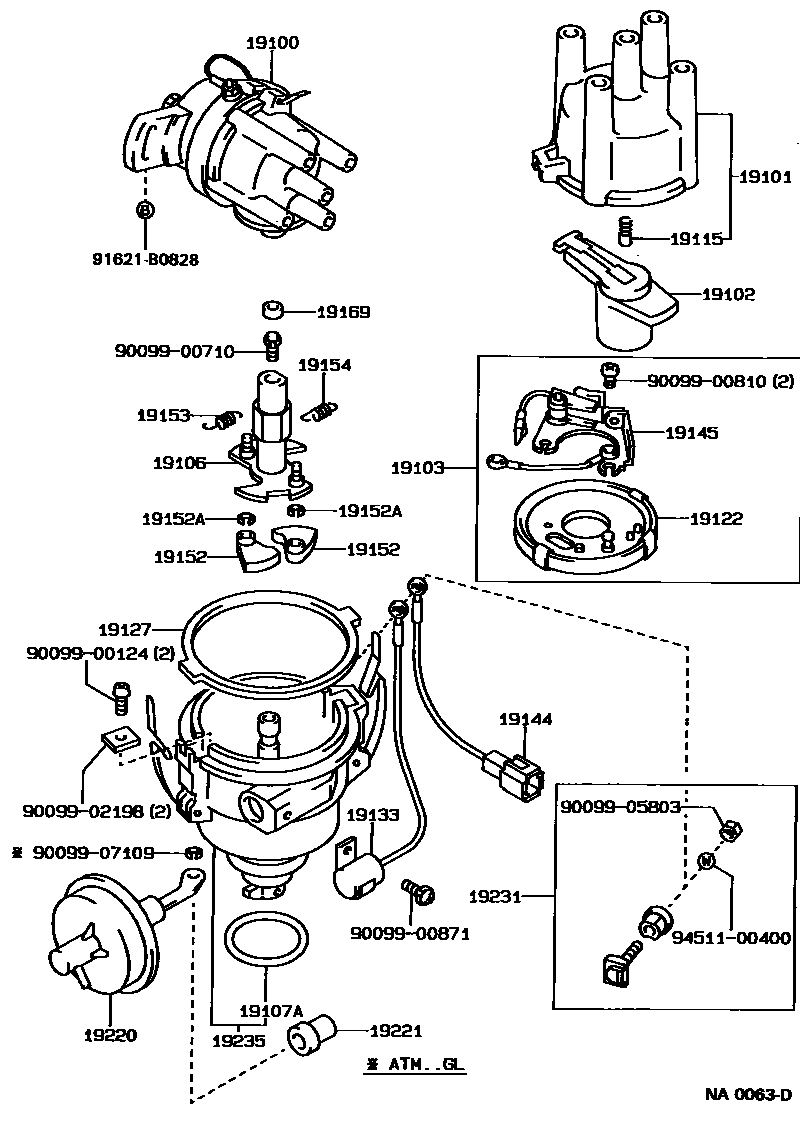

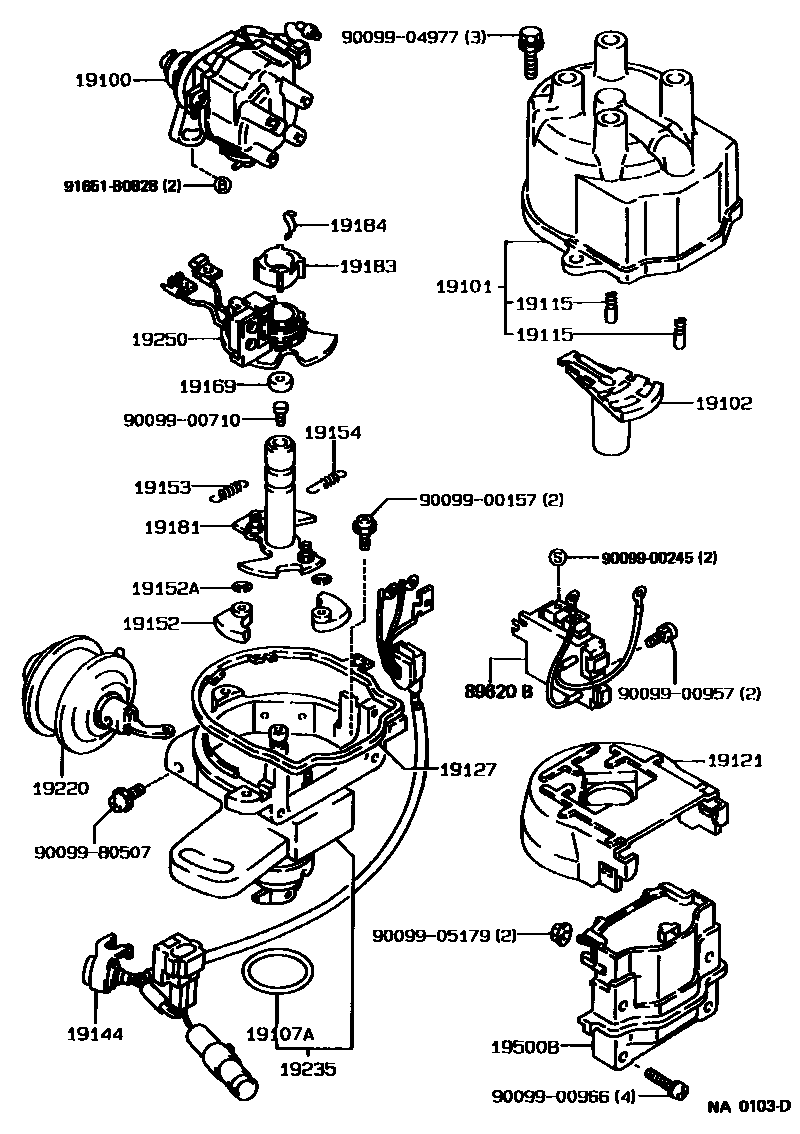

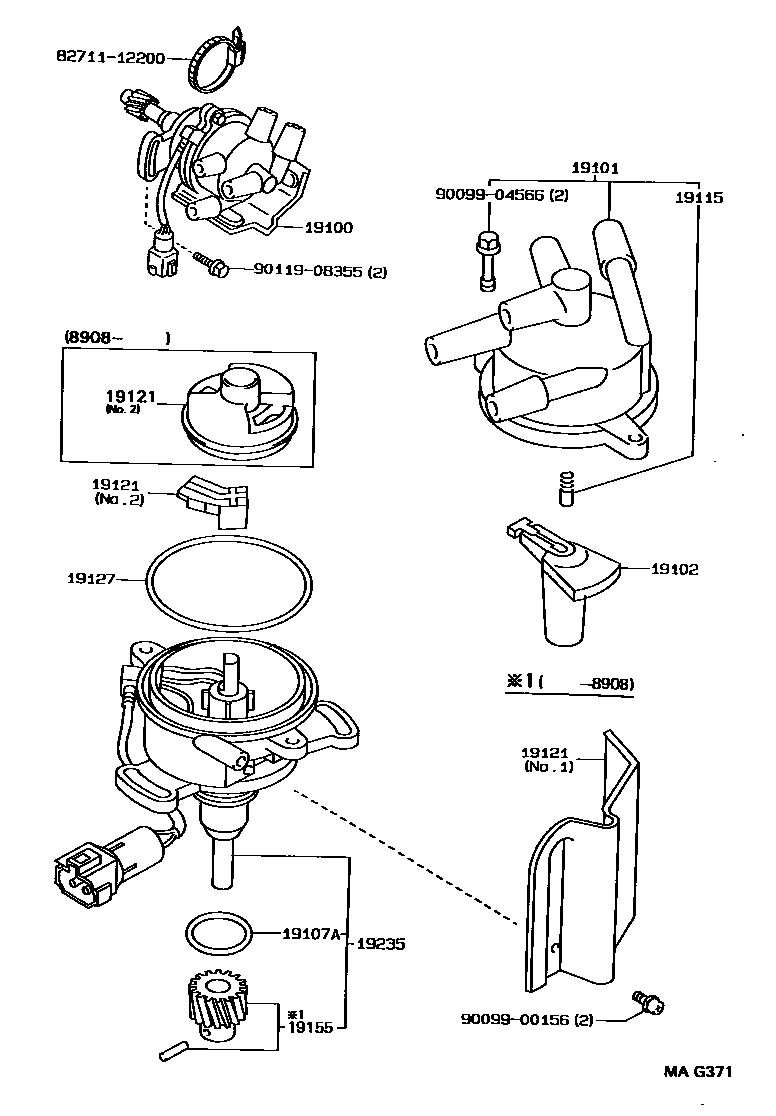

Toyota COROLLA 分电器 — Figure 1902
Toyota COROLLA EPC diagram 1902, 分电器, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19020-11032 · 19020-11061 · 19020-11142 · 19020-11180 · 19020-16090 · 19020-16110 · 19020-16111 · 19100-11031 · 19100-11050 · 19100-16170 · 19100-16250 |
| 19101 | Distributor cover sub-assembly | 19101-10020 · 19101-11010 · 19101-11032 · 19101-15120 · 19101-16160 · 19101-16250 |
| 19102 | Distributor flame head sub-assembly | 19102-11031 · 19102-16060 · 19102-26151 |
| 19103 | Distributor breaker sub-assembly | 19103-10020 · 19103-11050 |
| 19106 | Distributor cam sub-assembly | 19106-11020 · 19106-11040 |
| 19107A | Distributor housing O-ring | 90099-14091 · 96711-35030 |
| 19115 | Distributor cover center piece | 19115-50010 · 19115-63010 |
| 19121 | dust cover | 19121-11080 · 19121-16040 · 19121-16090 · 19121-16150 · 19121-16160 |
| 19122 | Distributor fixing plate | 19122-10020 · 19122-11050 |
| 19127 | Dust seal | 19127-11010 · 19127-15010 · 19127-15021 · 19127-15120 |
| 19133 | Distributor capacitor | 90099-52059 |
| 19144 | Distributor breaker lead | 19144-10030 · 19144-11030 · 19144-11032 · 19144-11130 · 19144-11330 · 19144-16090 · 19144-16110 |
| 19145 | Distributor contacts | 19145-10020 |
| 19152 | Speed regulator weight | 19152-15160 |
| 19152A | Snap ring (for governor weight) | 90099-07122 |
| 19153 | A governor spring | 19153-11021 · 19153-11030 · 19153-11142 · 19153-11180 · 19153-16090 · 19153-16220 |
| 19154 | B governor spring | 19153-16220 · 19154-11021 · 19154-11030 · 19154-11142 · 19154-11180 · 19154-16090 |
| 19155 | Distributor spiral gear | 19195-16040 |
| 19169 | Cam grease stop | 19169-63011 |
| 19181 | Distributor signal distributor | 19181-11032 · 19181-11060 · 19181-11066 · 19181-11180 · 19181-11182 · 19181-11190 · 19181-16100 · 19181-16110 |
| 19183 | Signal splitter | 19183-15010 |
| 19184 | Distribution head fixed spring | 19184-63010 |
| 19220 | Distributor vacuum advance device assembly | 19220-10030 · 19220-11030 · 19220-11051 · 19220-11060 · 19220-11134 · 19220-11142 · 19220-16230 · 19220-16240 · 19220-16241 |
| 19221 | Distributor regulator cover | 19221-60040 |
| 19231 | Distributor terminals | 19231-24140 |
| 19235 | Distributor housing | 19235-10021 · 19235-11050 · 19235-11080 · 19235-16090 · 19235-16110 · 19235-16160 · 19235-16250 |
| 19250 | Signal generator assembly | 19251-15091 · 19251-16100 |
| 19500B | Ignition coil assembly | 90919-02164 |
| 89620B | Ignition assembly | 89620-10120 · 89620-12340 |
