Toyota COROLLA 点火线圈和火花塞 /电热塞 — Figure 1901

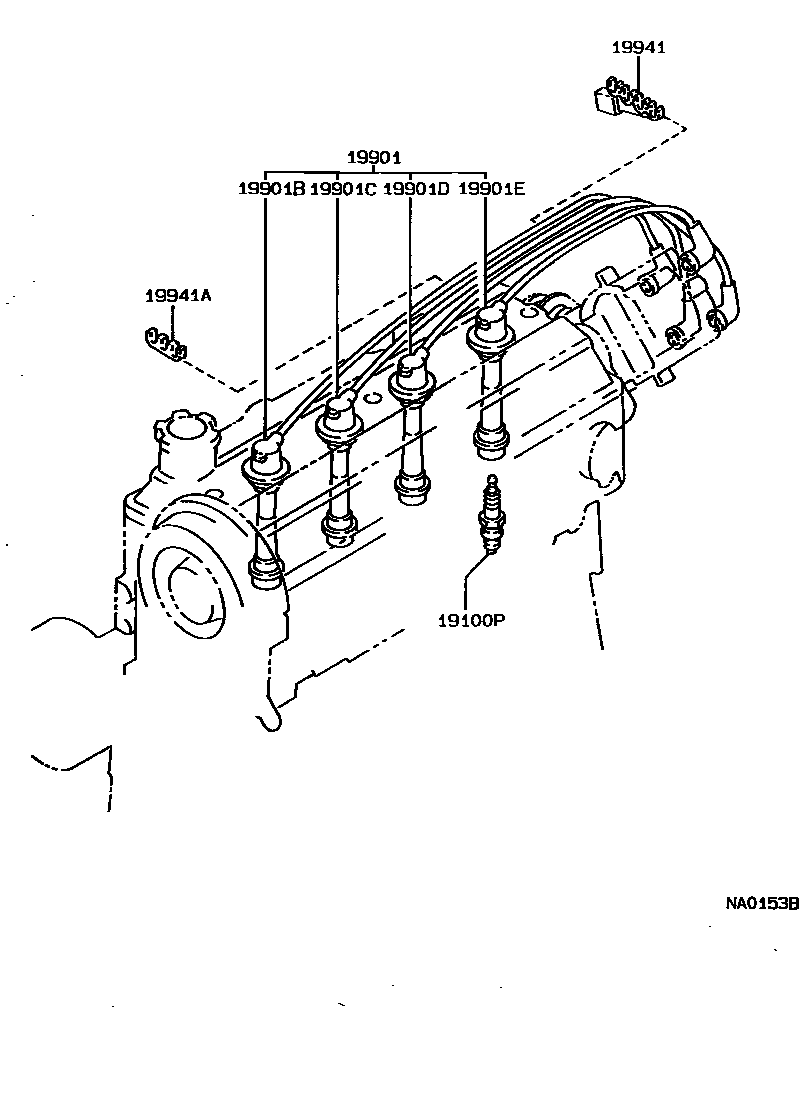

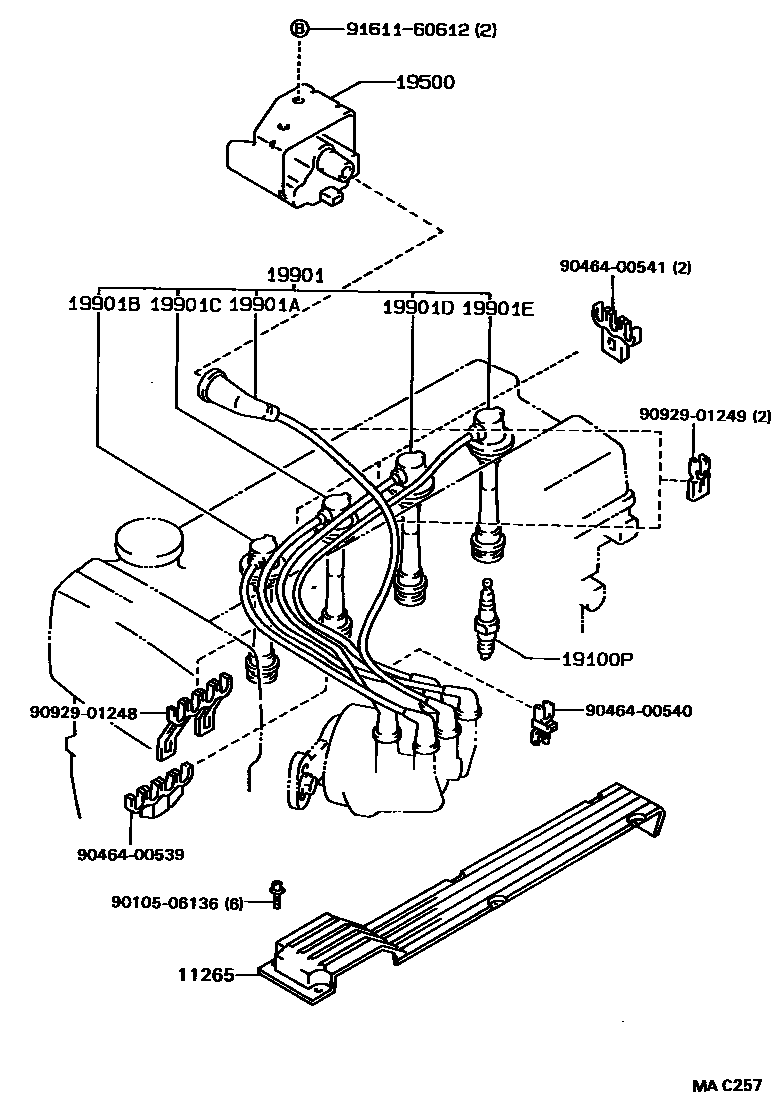

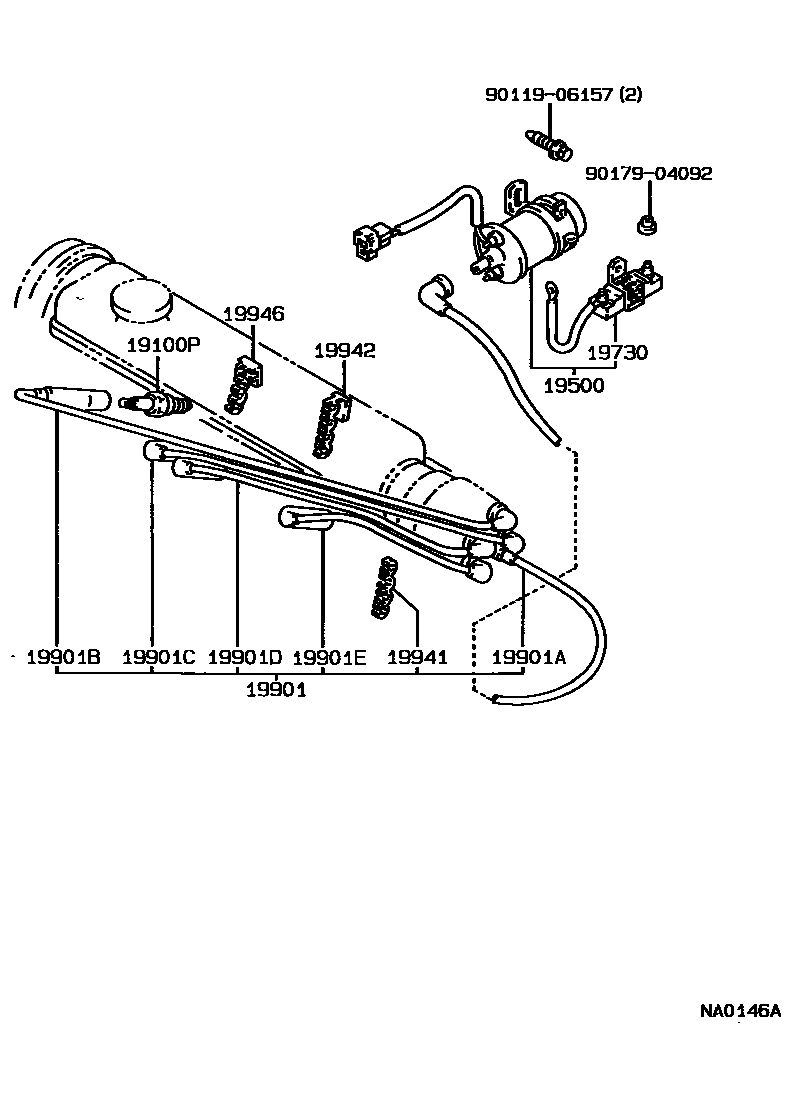

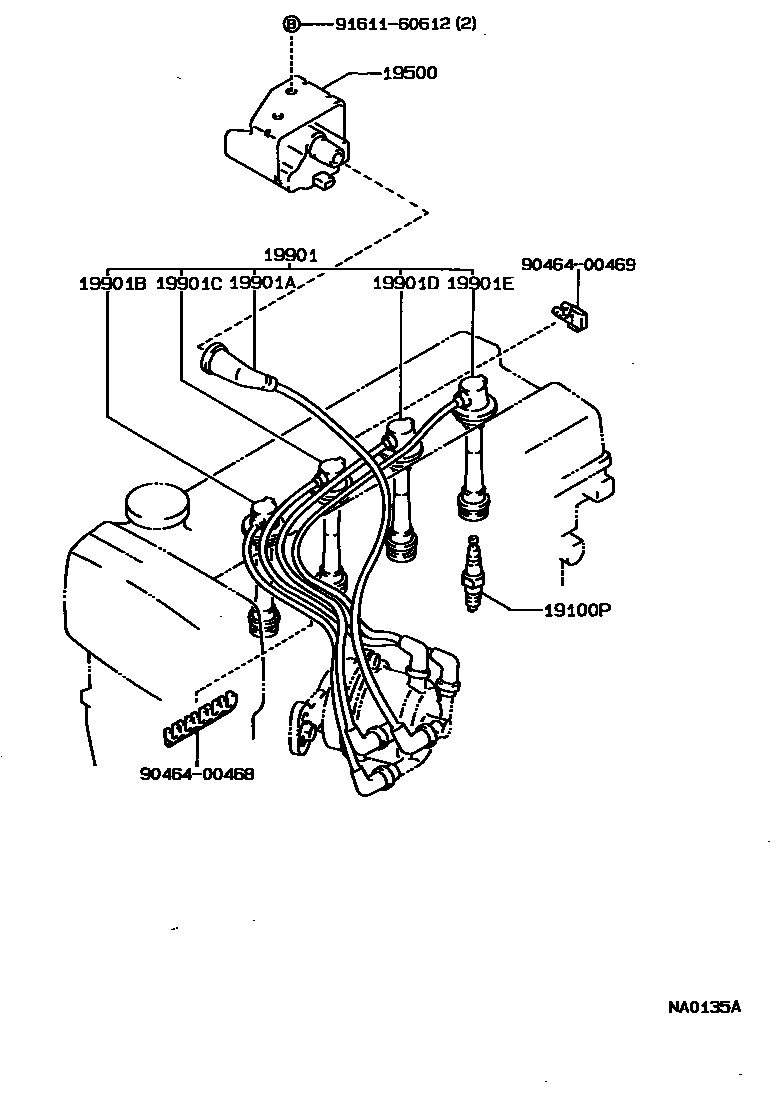

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 5 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11265 | Coil and resistor wire covers | 11265-16010 |
| 19100P | spark plug | 90919-01084 · 90919-01091 · 90919-01131 · 90919-01153 · 90919-01155 · 90919-01166 |
| 19500 | Ignition coil assembly | 19080-16030 · 90919-02178 · 90919-02183 |
| 19730 | Ignition coil resistor | 90919-04040 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21395 · 90919-21397 · 90919-21461 · 90919-22194 · 90919-22209 · 90919-22210 · 90919-22211 |
| 19901A | coil damping line | 90919-13264 · 90919-13268 · 90919-13320 · 90919-13337 |
| 19901B | No. 1 spark plug damper wire | 90919-12606 · 90919-12699 · 90919-12707 · 90919-12778 · 90919-12912 · 90919-12982 · 90919-15058 |
| 19901C | No. 2 spark plug damper wire | 90919-12569 · 90919-12700 · 90919-12708 · 90919-12775 · 90919-12983 · 90919-15059 |
| 19901D | No. 3 spark plug damper wire | 90919-12570 · 90919-12701 · 90919-12709 · 90919-12776 · 90919-12984 · 90919-15060 |
| 19901E | No. 4 spark plug damper wire | 90919-12571 · 90919-12702 · 90919-12777 · 90919-12985 · 90919-15061 |
| 19941 | No. 1 damping wire clip | 90464-00358 · 90464-00490 · 90929-01165 · 90929-01274 |
| 19941A | Clamp (for damping wire) | 90464-00287 |
| 19942 | No. 2 damping wire clip | 90464-00372 |
| 19946 | No. 3 impedance wire clip | 90464-00404 |
