Toyota COROLLA Exhaust Pipe — Figure 1702

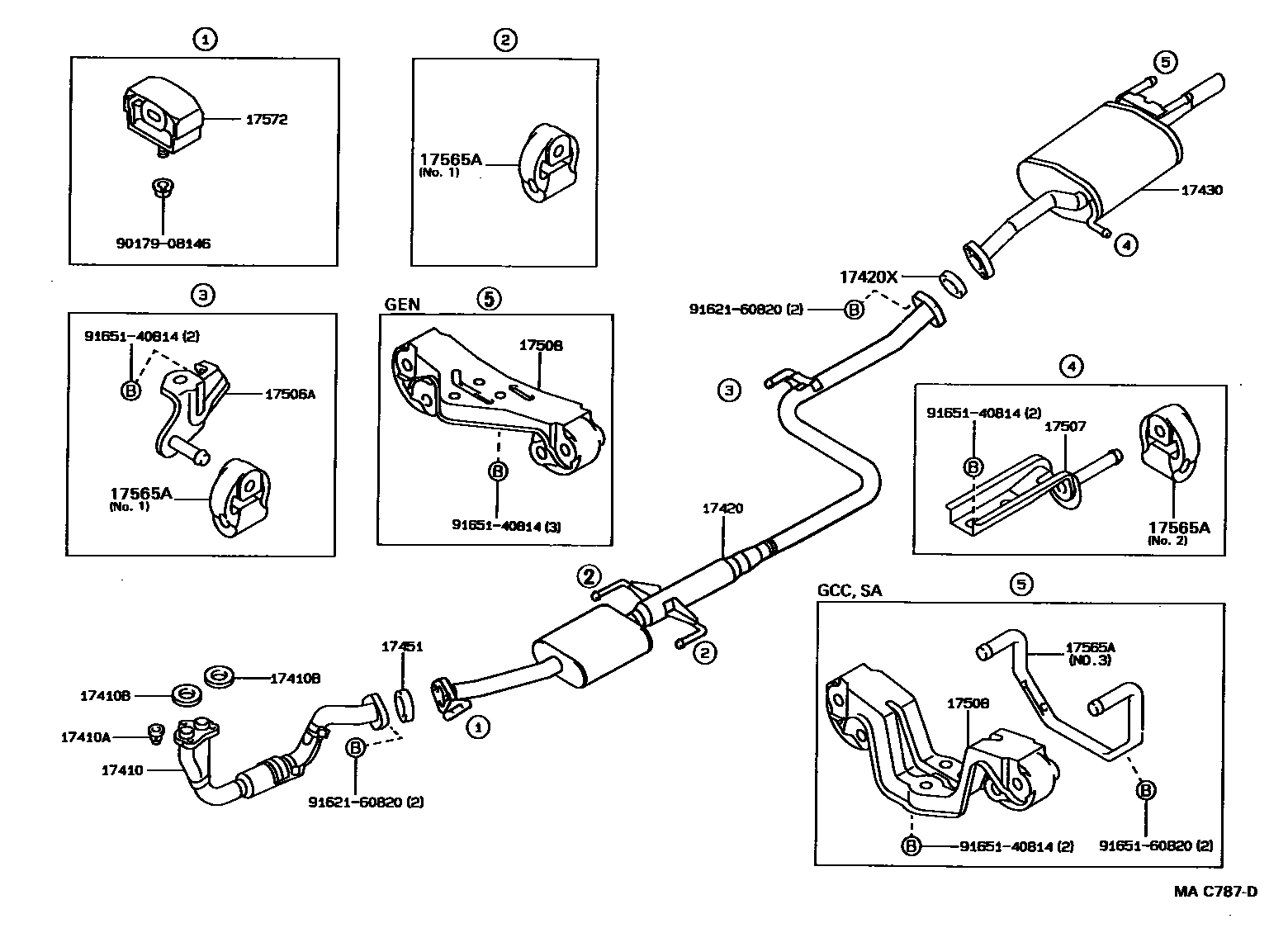

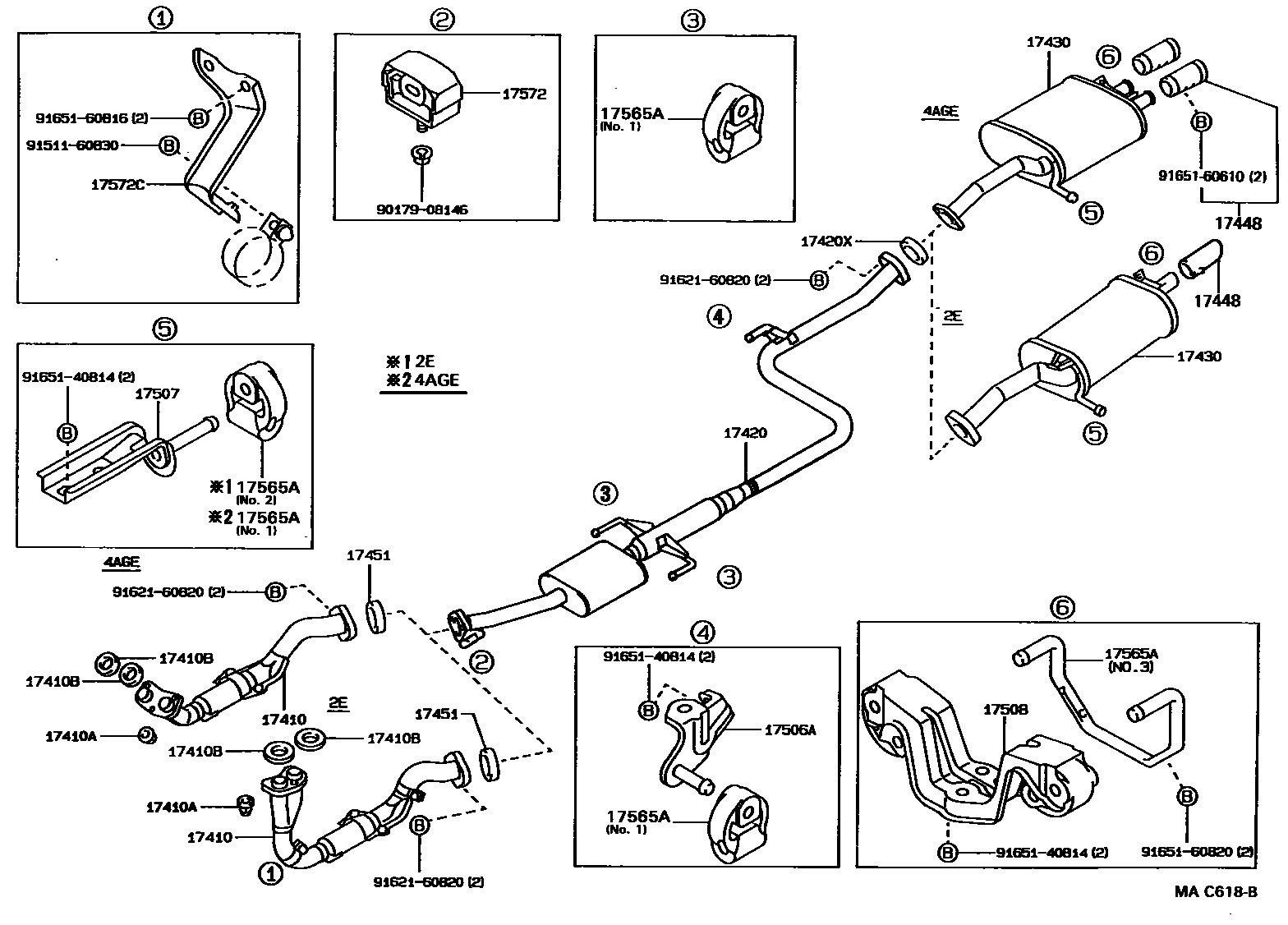

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-11280 · 17410-16410 · 17410-16420 · 17410-16700 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06001 · 90917-06004 · 90917-06006 · 90917-06037 · 90917-06038 · 90917-06039 · 90917-06064 |
| 17420 | Central exhaust pipe assembly | 17420-11060 · 17420-11061 · 17420-11110 · 17420-16140 · 17420-16150 · 17420-16390 · 17420-16430 |
| 17420X | Center exhaust pipe liner | 90917-06001 · 90917-06004 · 90917-06012 · 90917-06038 · 90917-06039 · 90917-06045 · 90917-06047 · 90917-06060 |
| 17430 | Exhaust tailpipe assembly | 17430-11200 · 17430-11201 · 17430-16400 · 17430-16430 · 17430-16440 · 17430-16820 · 17430-16840 · 17430-16850 |
| 17448 | Exhaust pipe tail throat | 17448-11020 · 17448-16010 · 17448-19015 · 17448-19025 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06012 · 90917-06039 · 90917-06045 · 90917-06047 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-15050 · 17506-15060 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-15030 |
| 17508 | No. 3 exhaust pipe bracket sub-assembly | 17508-15030 · 17508-15040 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-15040 · 17565-15050 · 17565-15070 |
| 17572 | No. 1 exhaust pipe bracket | 17572-15050 |
| 17572C | Front exhaust pipe bracket (for front) | 17571-11110 |
