Toyota COROLLA Engine Oil Cooler — Figure 1503

Toyota COROLLA EPC diagram 1503, Engine Oil Cooler, with 1 images and 11 PNC and OE references.

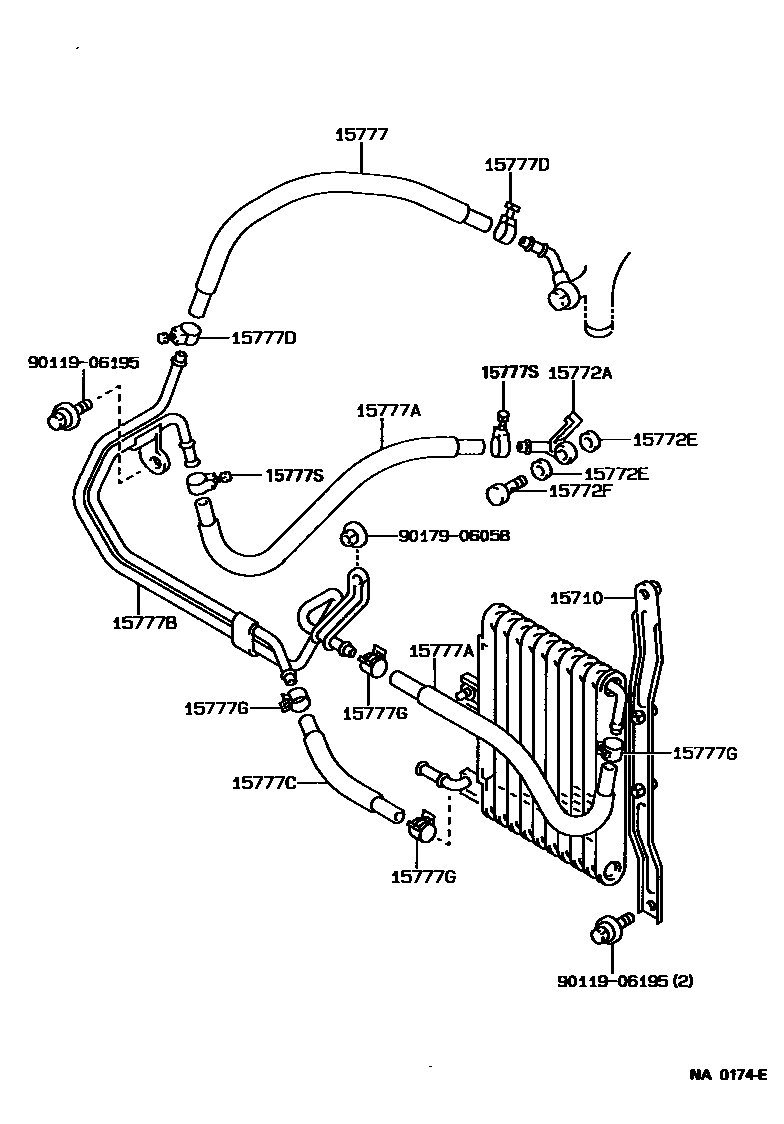

Toyota COROLLA Engine Oil Cooler EPC diagram — NA0174E
Engine Oil Cooler — NA0174E (198908 – 999999)

PNC and OE references

PNCPart nameOE numbers
15710Oil cooler assembly15700-16040
15772AConnector (for oil pipe)90405-10030
15772EGasket (for oil pipe)90430-12018 · 90430-12027
15772FJoint bolt (for oil pipe)90401-12009
15777oil cooler hose15776-15010
15777Aoil cooler hose15776-15020 · 15778-16020
15777Boil cooler pipe15767-15020
15777Coil cooler hose15779-15010 · 15779-15011
15777DHose clamp or clip (for oil cooler hose)90460-01001
15777GHose clips or clips90467-15018 · 90467-16004
15777SHose clips or clips90460-01001
