Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 3 images and 4 PNC and OE references.

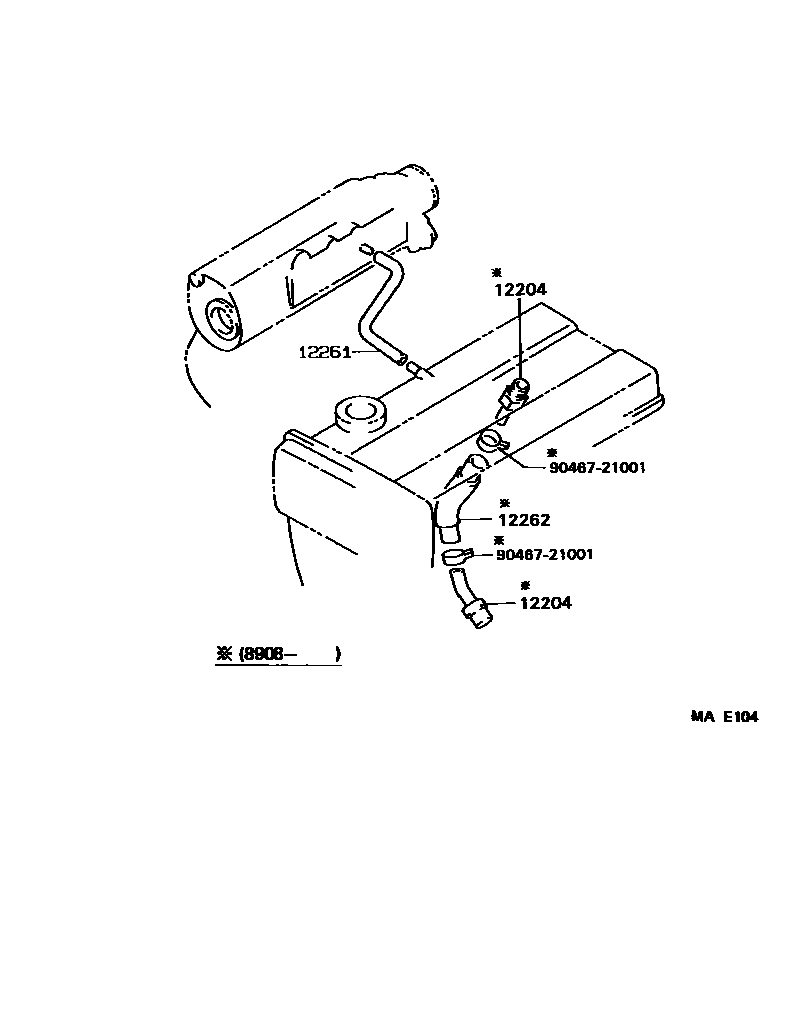

Toyota COROLLA Ventilation Hose EPC diagram — MAE104
Ventilation Hose — MAE104 (198705 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — NA0050
Ventilation Hose — NA0050 (198705 – 999999)

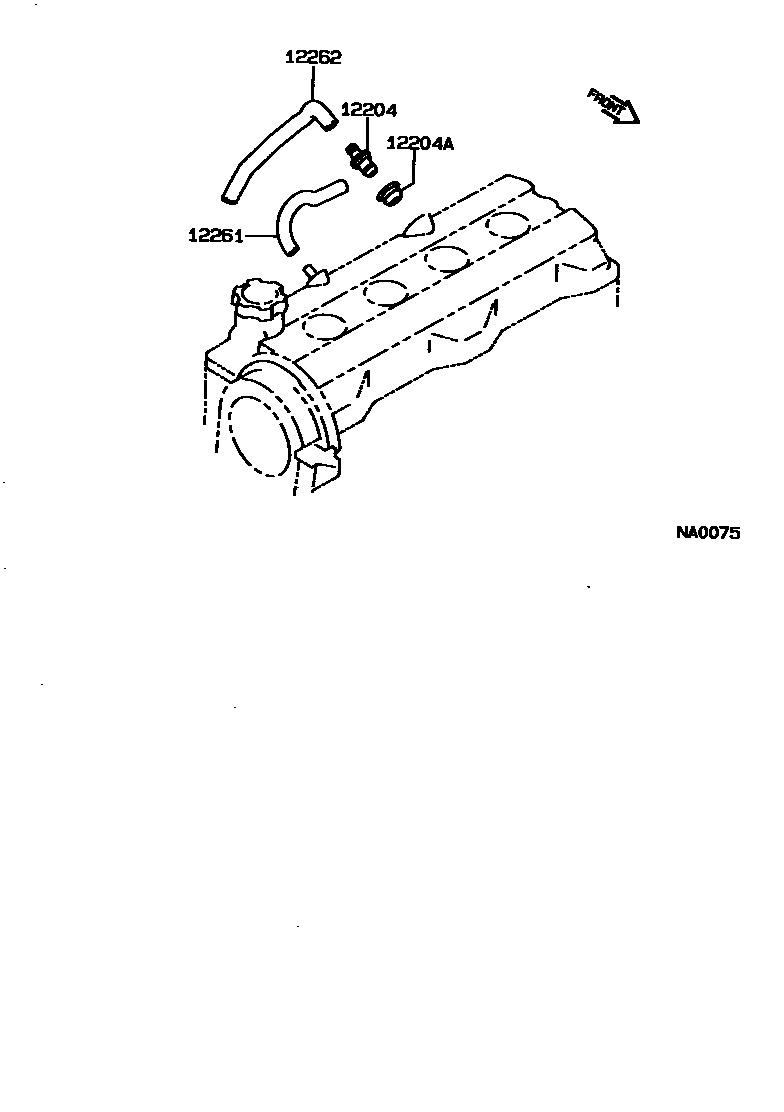

Toyota COROLLA Ventilation Hose EPC diagram — NA0075
Ventilation Hose — NA0075 (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-11040 · 12204-15030 · 12204-15040 · 90404-54038 · 90406-17006
12204AGasket (for ventilation system)90480-18001 · 90480-18006
12261Ventilation Hose12261-10010 · 12261-11020 · 12261-15090 · 12261-16031
12262Ventilation hose No. 212262-10020 · 12262-15040 · 12262-16040
