Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 22 PNC and OE references.

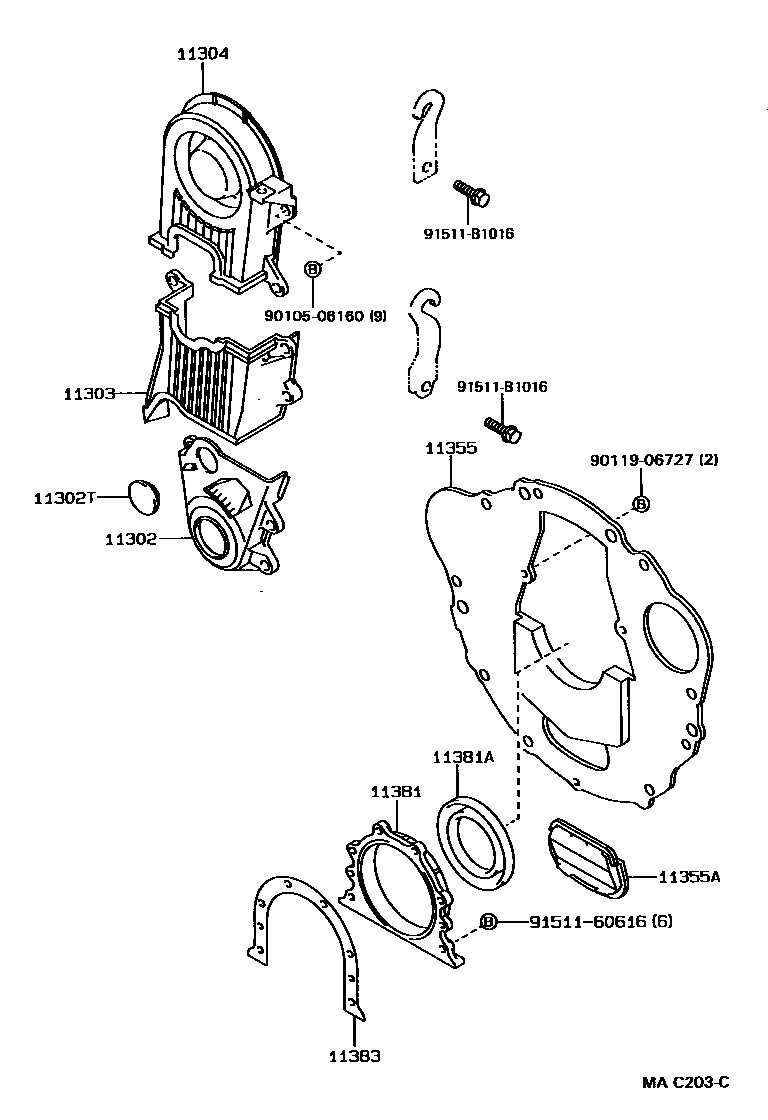

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MAC203C
Timing Gear Cover & Rear End Plate — MAC203C (198705 – 999999)

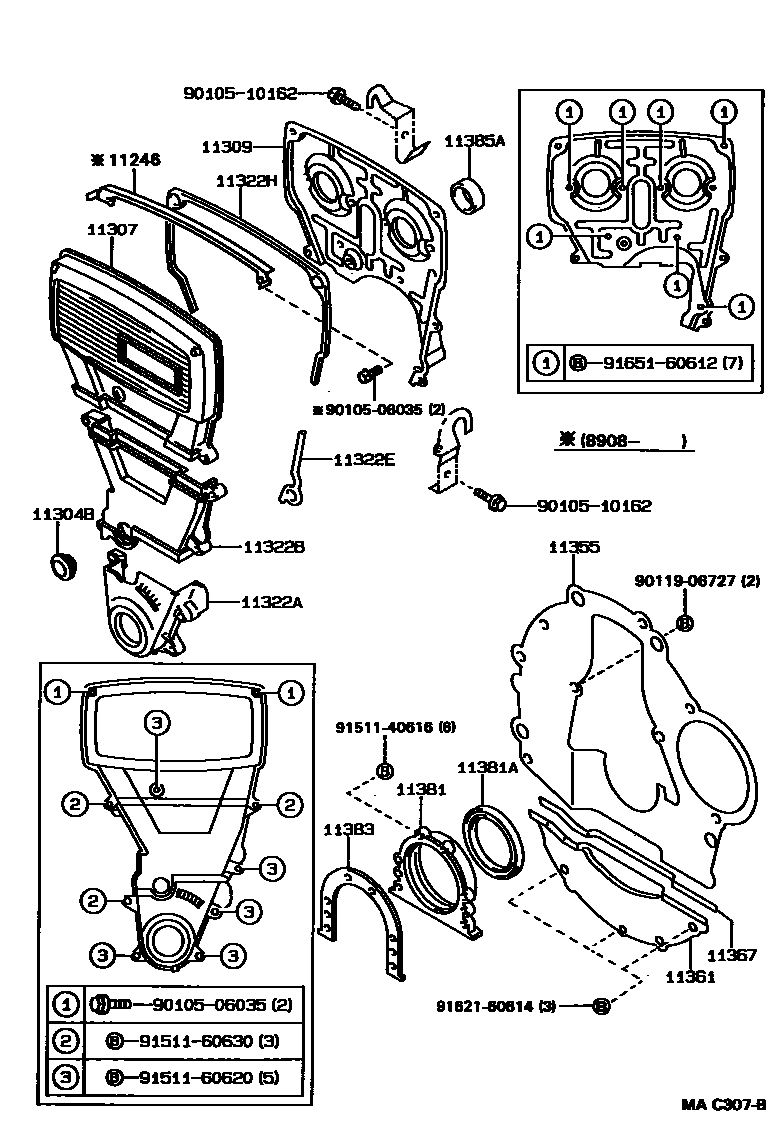

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MAC307B
Timing Gear Cover & Rear End Plate — MAC307B (198705 – 999999)

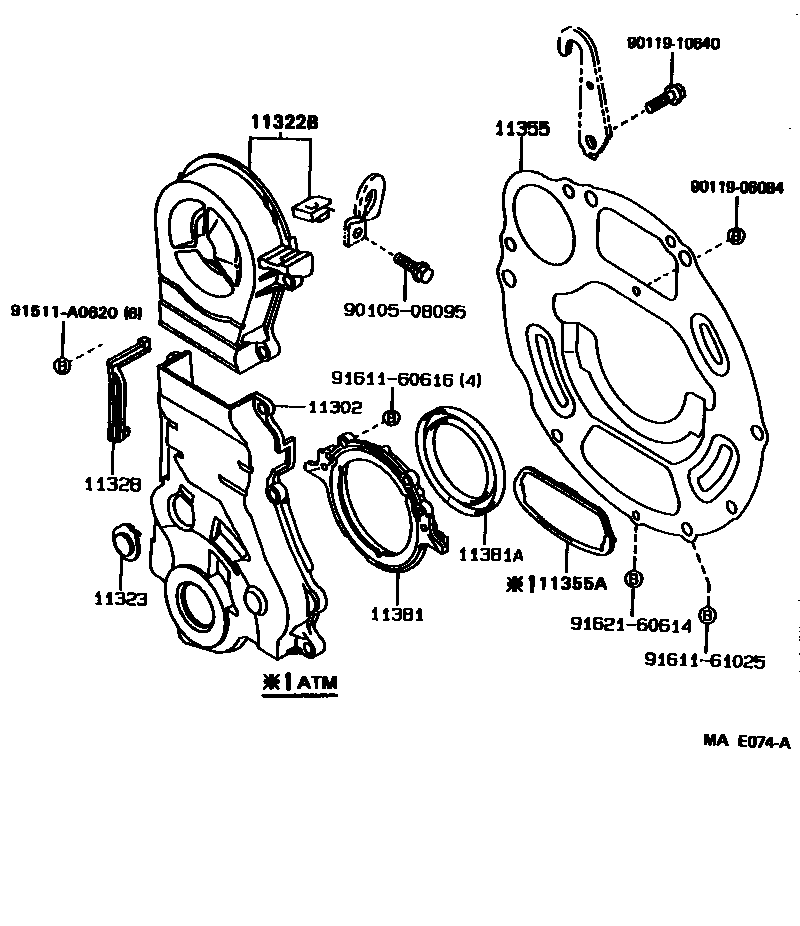

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MAE074A
Timing Gear Cover & Rear End Plate — MAE074A (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
11246Card holder bottom pad11246-16010
11302TIMING CHAIN OR BELT COVER SUB-ASSY11302-11041 · 11302-11042 · 11302-15040 · 11302-15041
11302Thole plug90950-01391
11303Crankshaft gear or crankshaft pulley cover sub-assembly11303-15040
11304No. 2 timing chain or timing belt cover11304-15020
11304BHalf-round plug (for No. 2 timing chain cover)90950-01535
11307No. 3 timing belt cover sub-assembly11304-16030
11309No. 4 timing belt cover sub-assembly11325-16020
11322ANo. 1 timing belt cover11302-16011
11322BNo. 2 timing belt cover11303-10022 · 11303-16021
11322ENo. 2 timing belt cover gasket11329-16010
11322HNo. 3 timing belt cover gasket11319-16011
11323No. 3 timing gear cover11323-10011
11328GASKET, TIMING GEAR OR CHAIN COVER11328-11031
11355rear end plate11355-10011 · 11355-11011 · 11355-15060 · 11355-15070 · 11355-15080
11355AHole plug (for rear end plate)90950-01264 · 90950-01548
11361Flywheel housing bottom cover11361-16040
11367Flywheel housing lower gasket11367-15030
11381RETAINER, ENGINE REAR OIL SEAL11381-10020 · 11381-15010
11381ASEAL, ENGINE REAR OIL90311-70004 · 90311-70007 · 90311-75004 · 90311-75009
11383Engine rear oil seal seat gasket11383-15010 · 11383-15011 · 11383-16010
11385AOil seal (for camshaft)90311-35013
