Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

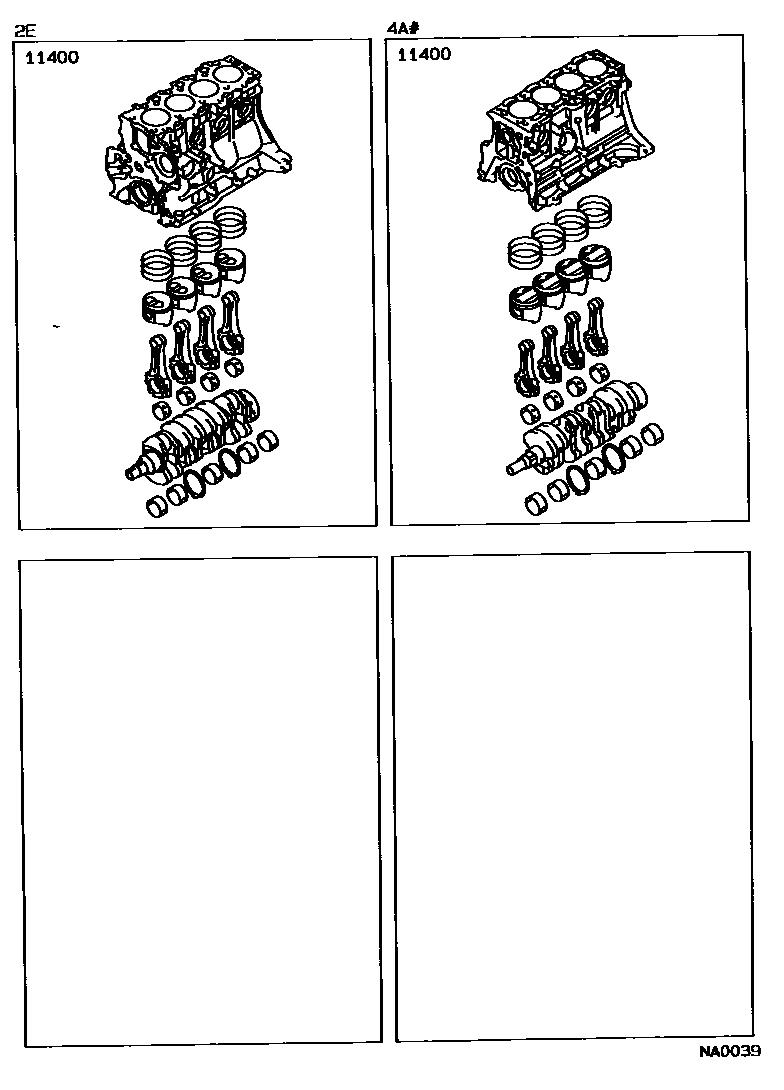

Toyota COROLLA Short Block Assembly EPC diagram — NA0039
Short Block Assembly — NA0039 (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-11031 · 11400-11041 · 11400-11042 · 11400-11080 · 11400-16130 · 11400-16150 · 11400-16230 · 11400-16260 · 11400-16261
