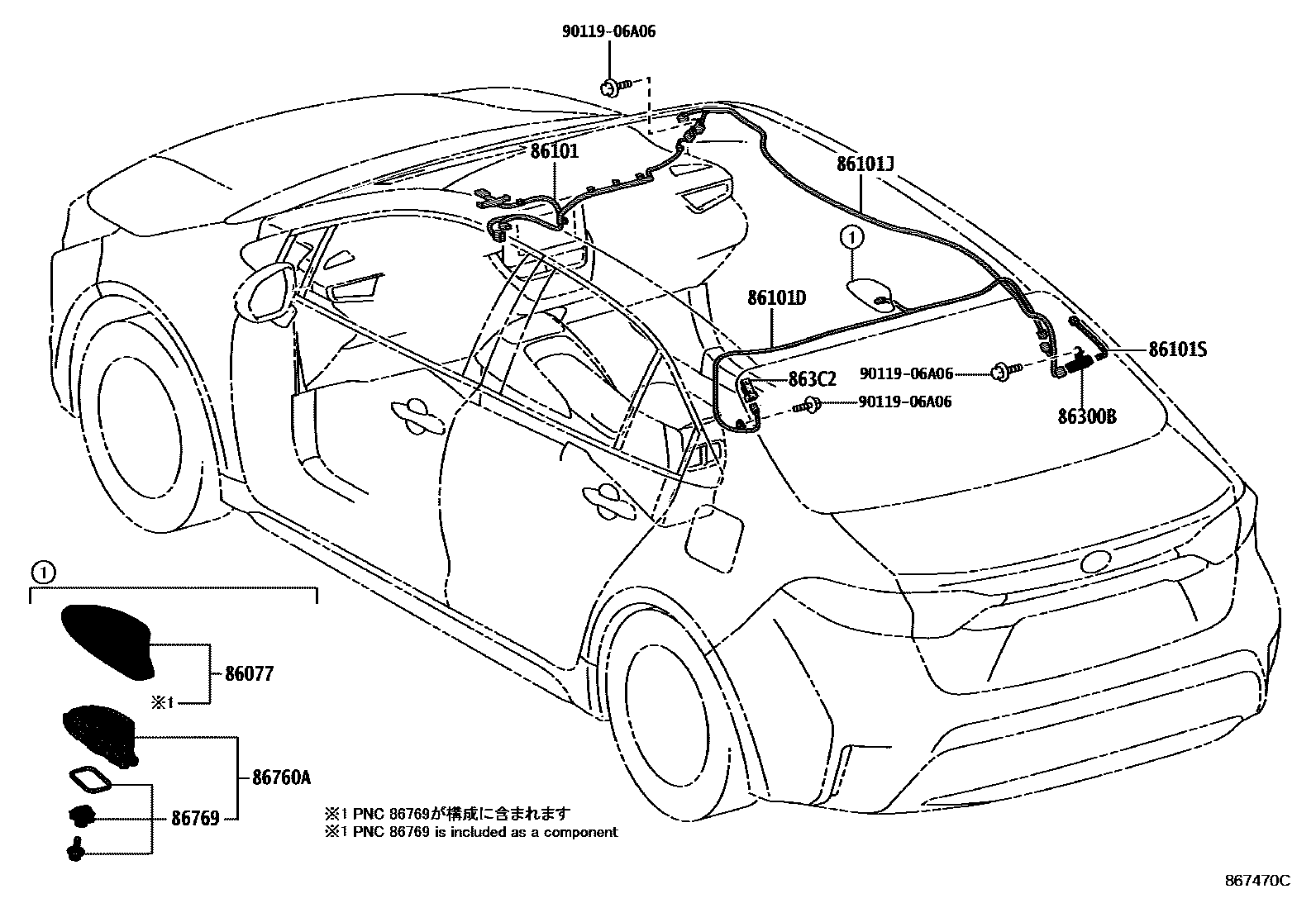

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-12B40 · 86101-12C30 · 86101-12C40 · 86101-12E40 · 86101-12F50 · 86101-12K60 · 86101-12K70 · 86101-12L70 · 86101-12M40 · 86101-12M60 · 86101-12N80 · 86101-12P10 · 86101-12P20 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-12G20 · 86101-12T40 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-12B10 · 86101-12F90 · 86101-12N40 · 86101-12N60 |
| 86101S | Antenna wire sub-assembly | 86101-12A80 |
| 86300B | No. 1 amplifier antenna assembly | 86300-12B50 |
| 863C2 | Digital audio broadcasting receiver antenna base | 863C2-60010 |
| 86760A | Telephone antenna assembly | 86760-12080 |
| 86769 | roof radome | 86769-48020 |
