Toyota COROLLA 扬声器 — Figure 8602

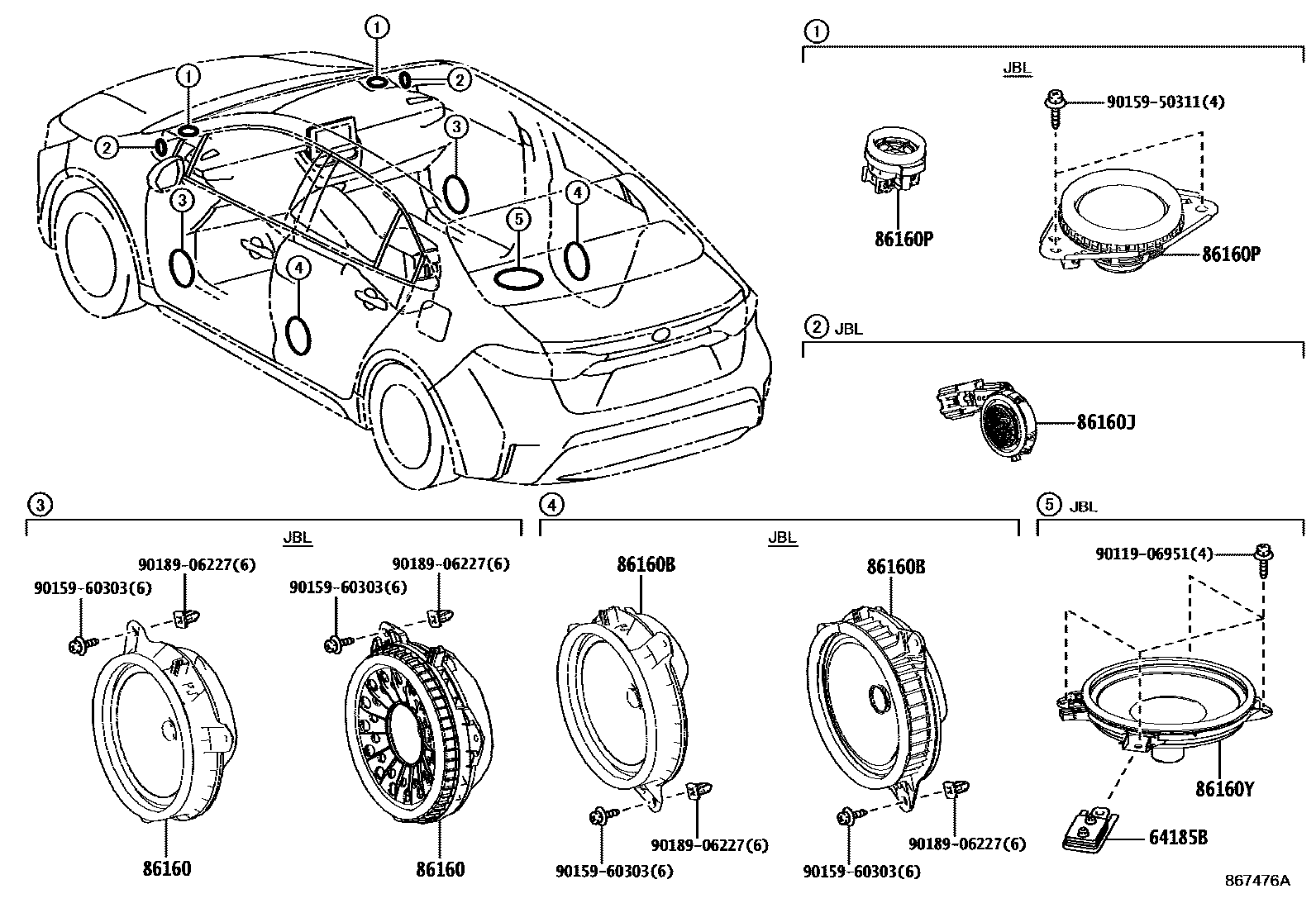

Toyota COROLLA EPC diagram 8602, 扬声器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64185B | No. 1 rear upper shock absorber | 64185-12011 |
| 86160 | No. 1 front speaker assembly | 86160-1A210 · 86160-42160 |
| 86160B | Rear speaker assembly | 86160-1A210 · 86160-42170 |
| 86160J | No. 3 front speaker assembly | 86150-02090 · 86150-02150 · 86150-12240 · 86150-12250 |
| 86160P | No. 2 front speaker assembly | 86150-0W670 · 86150-12230 · 86160-52340 |
| 86160Y | No. 2 rear speaker assembly | 86150-02101 · 86150-12260 |
