Toyota COROLLA HEV 控制ECU — Figure 8433

Toyota COROLLA EPC diagram 8433, HEV 控制ECU, with 2 images and 1 PNC and OE references.

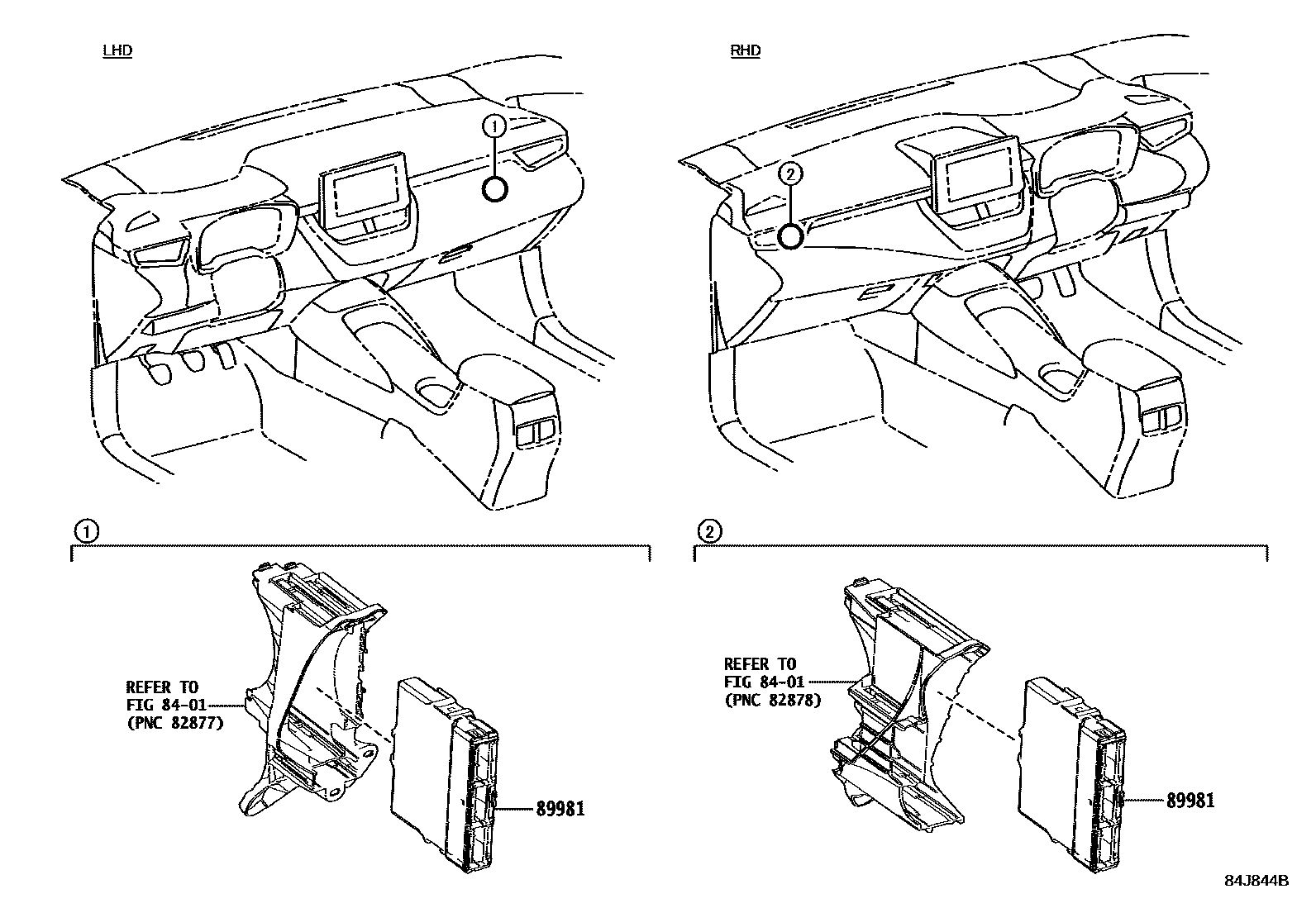

Toyota COROLLA HEV 控制ECU EPC diagram — 84J844B
HEV 控制ECU — 84J844B (201901 – 999999)

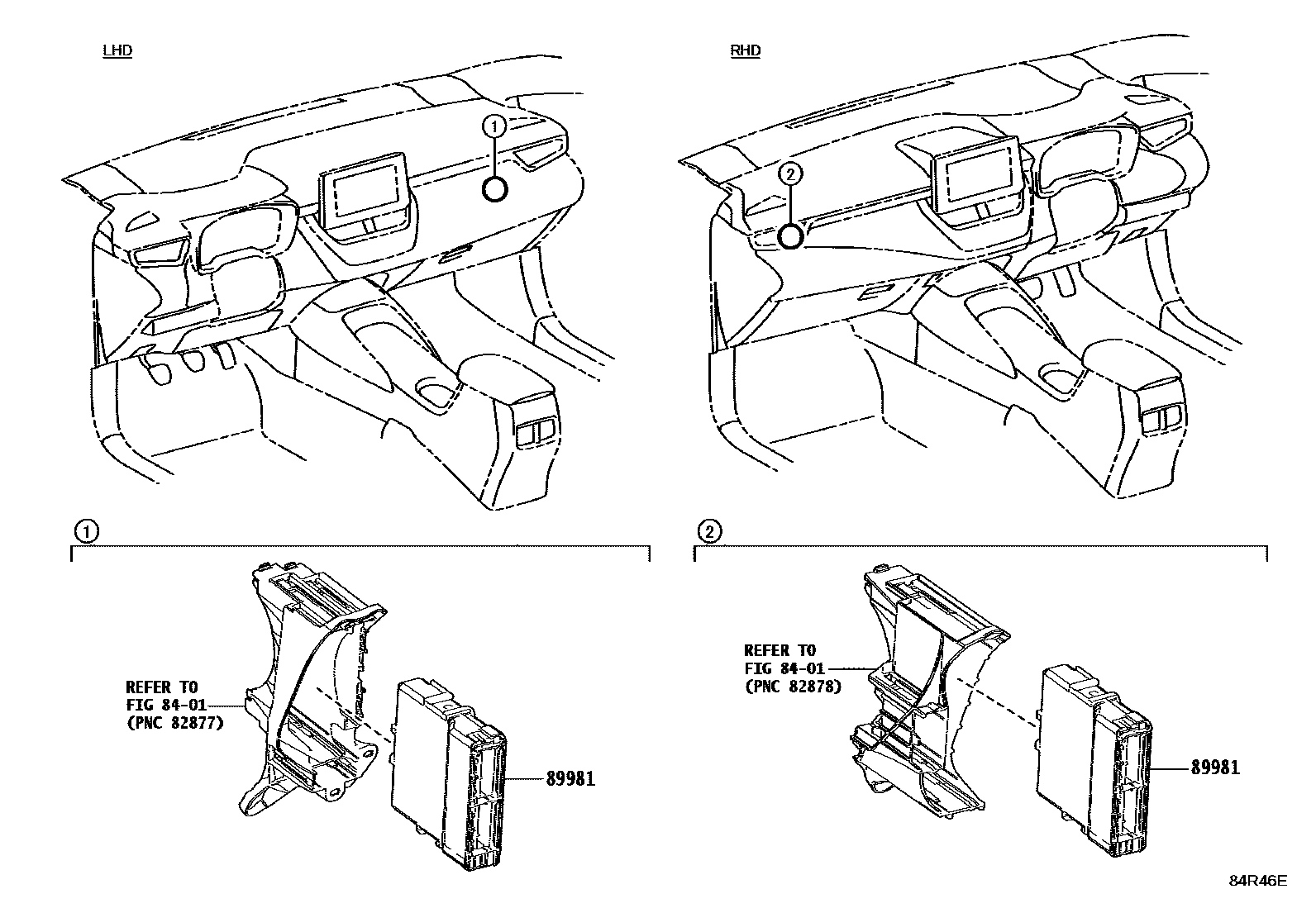

Toyota COROLLA HEV 控制ECU EPC diagram — 84R46E
HEV 控制ECU — 84R46E (202209 – 999999)

PNC and OE references

PNCPart nameOE numbers
89981Hybrid vehicle control ECU89981-12060 · 89981-12061 · 89981-12070 · 89981-12210 · 89981-12300 · 89981-12470
