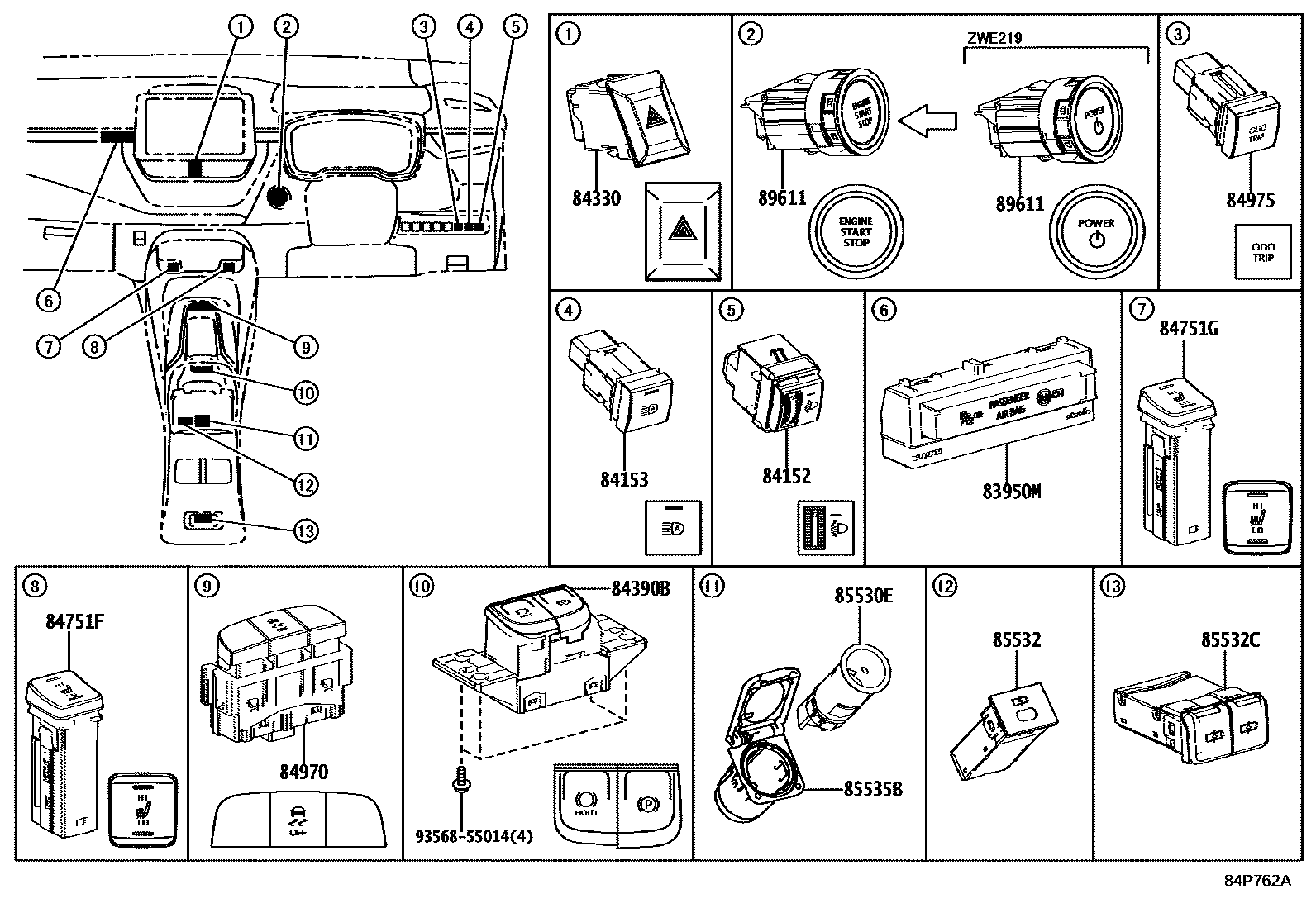

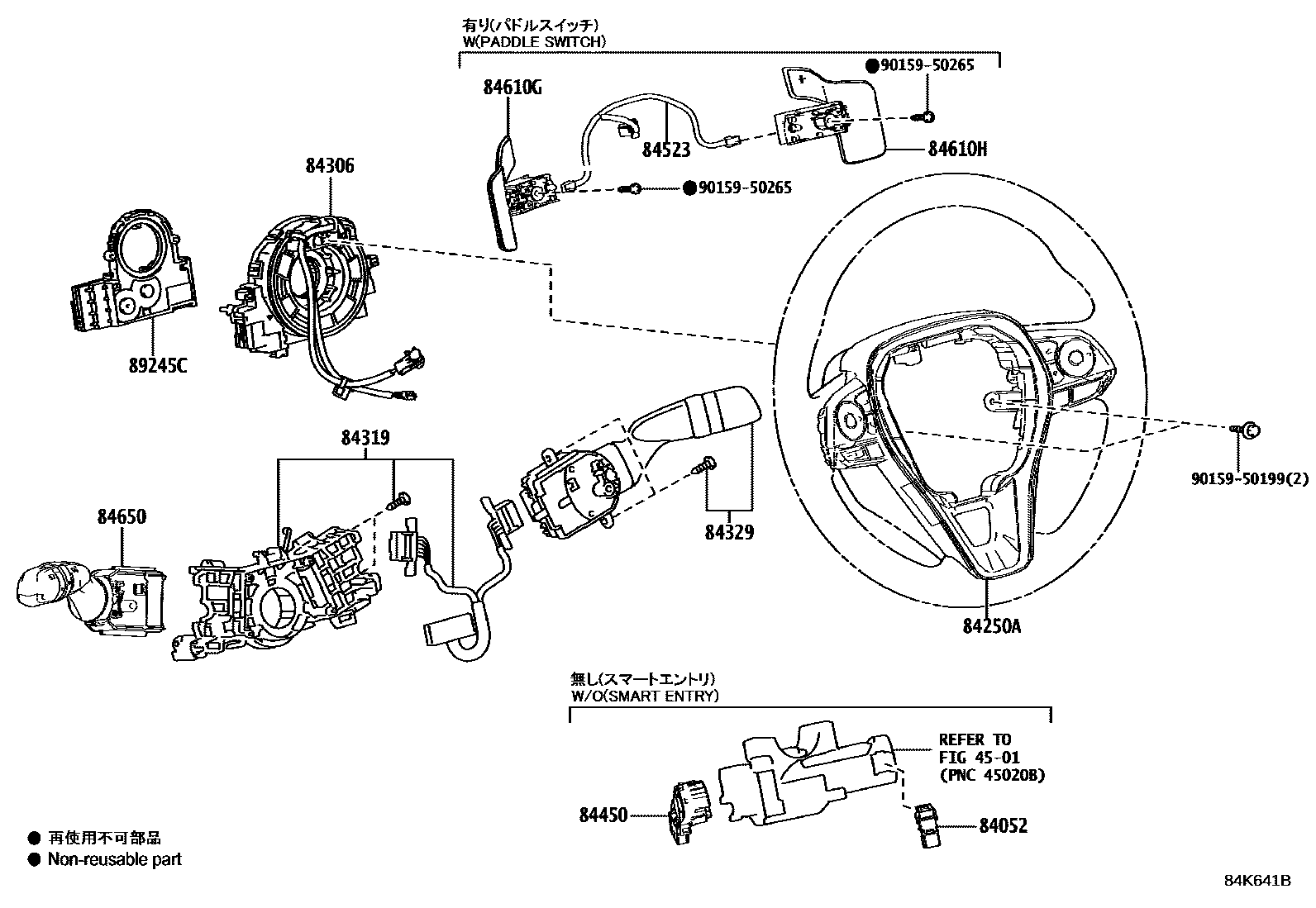

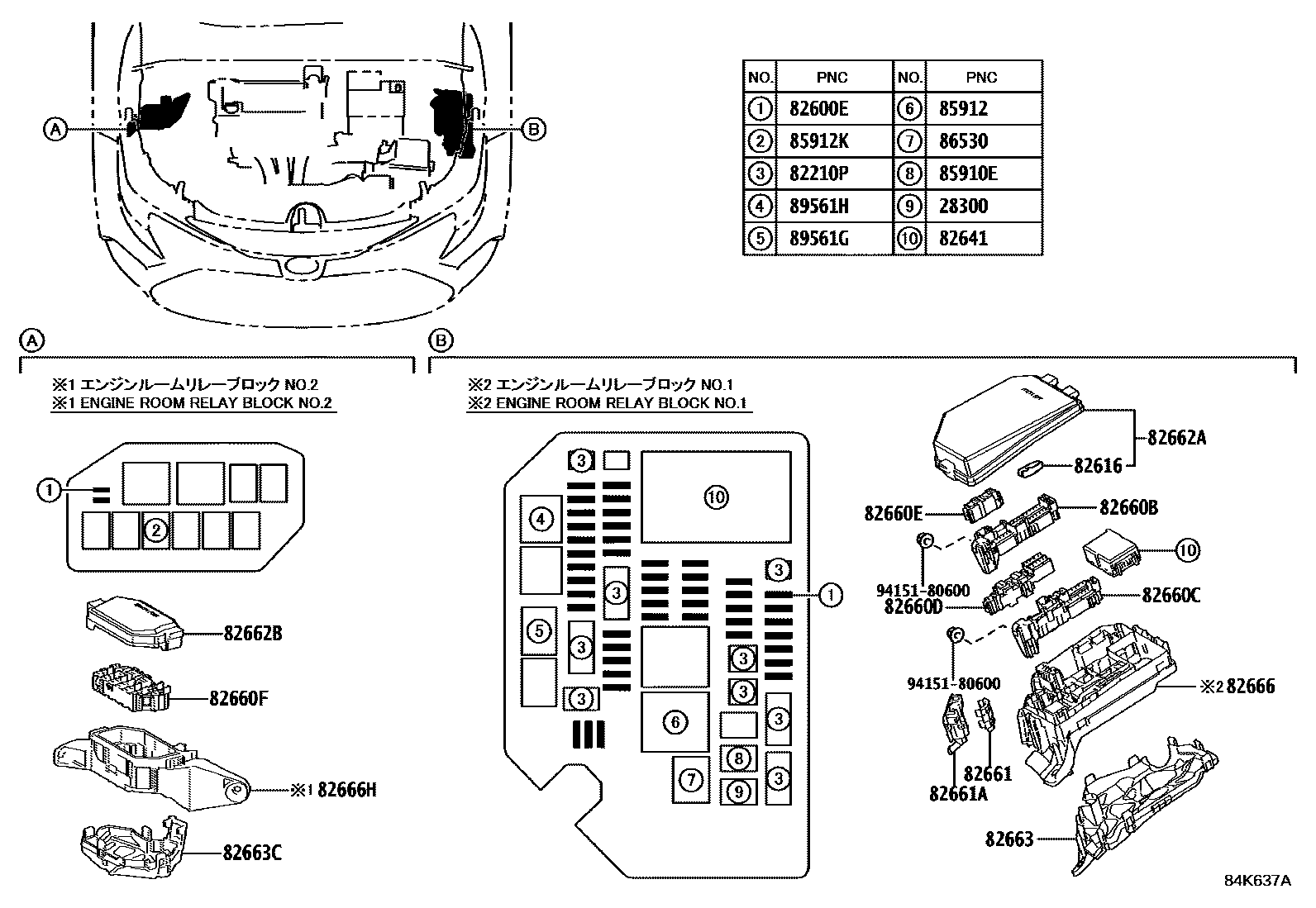

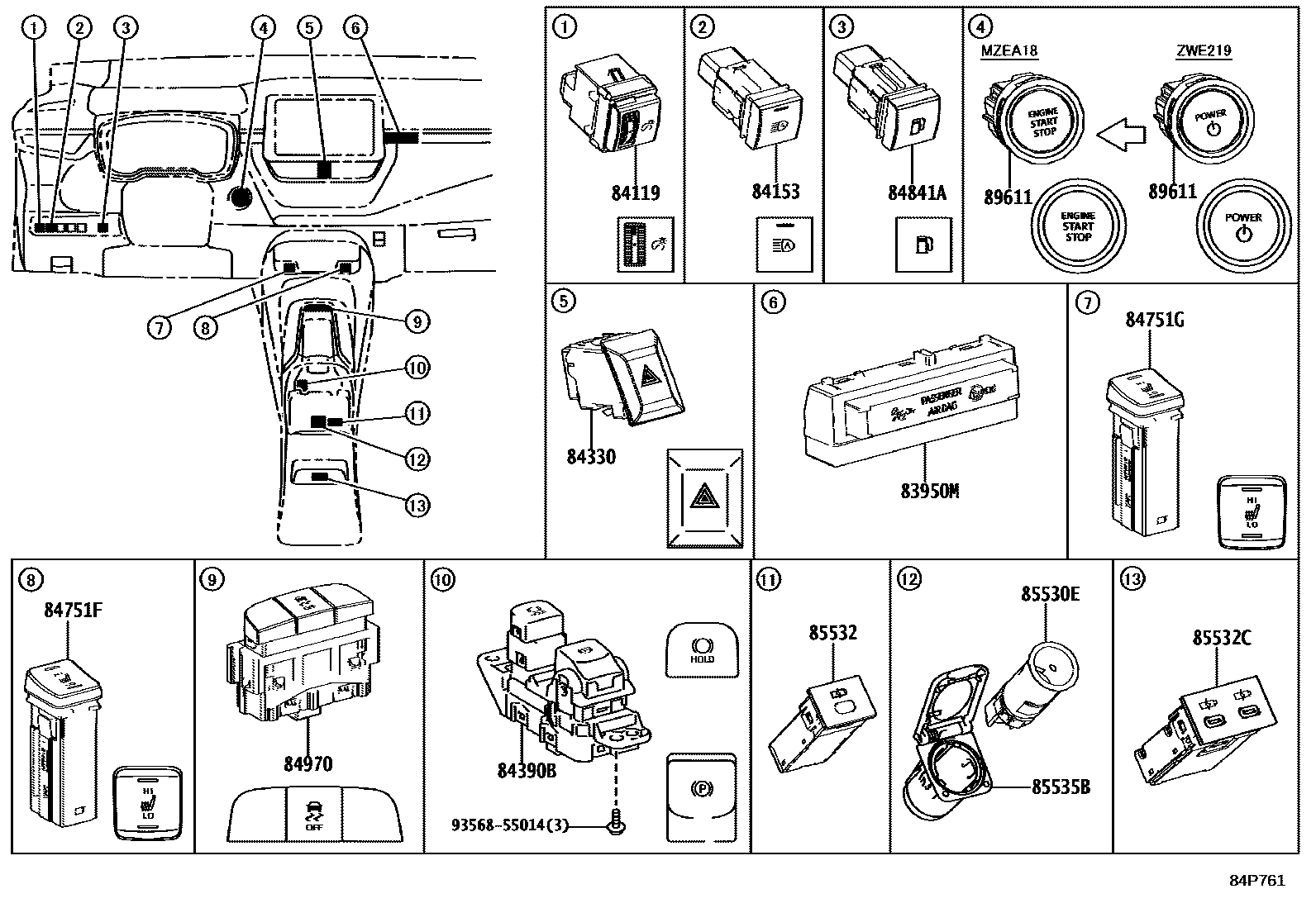

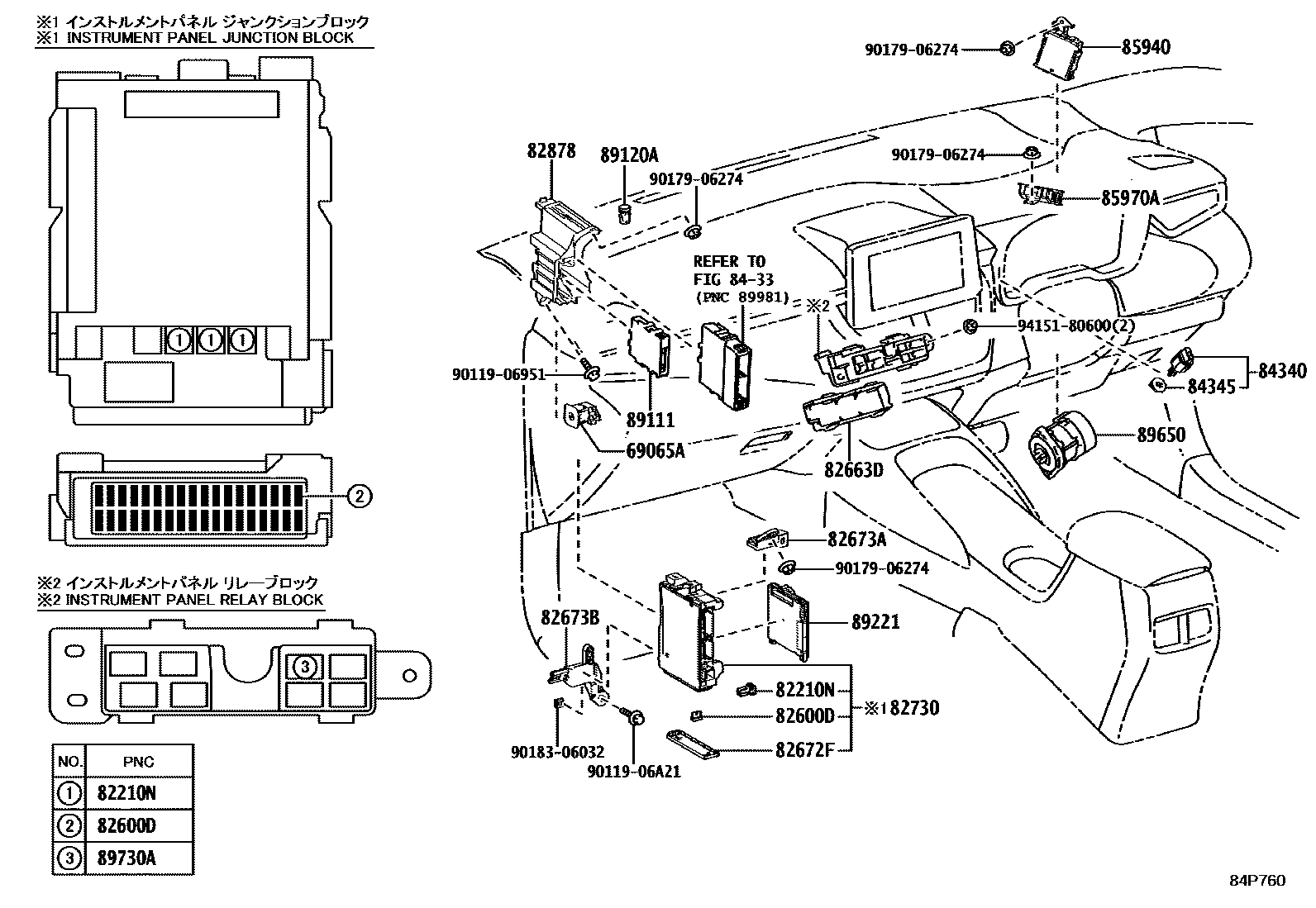

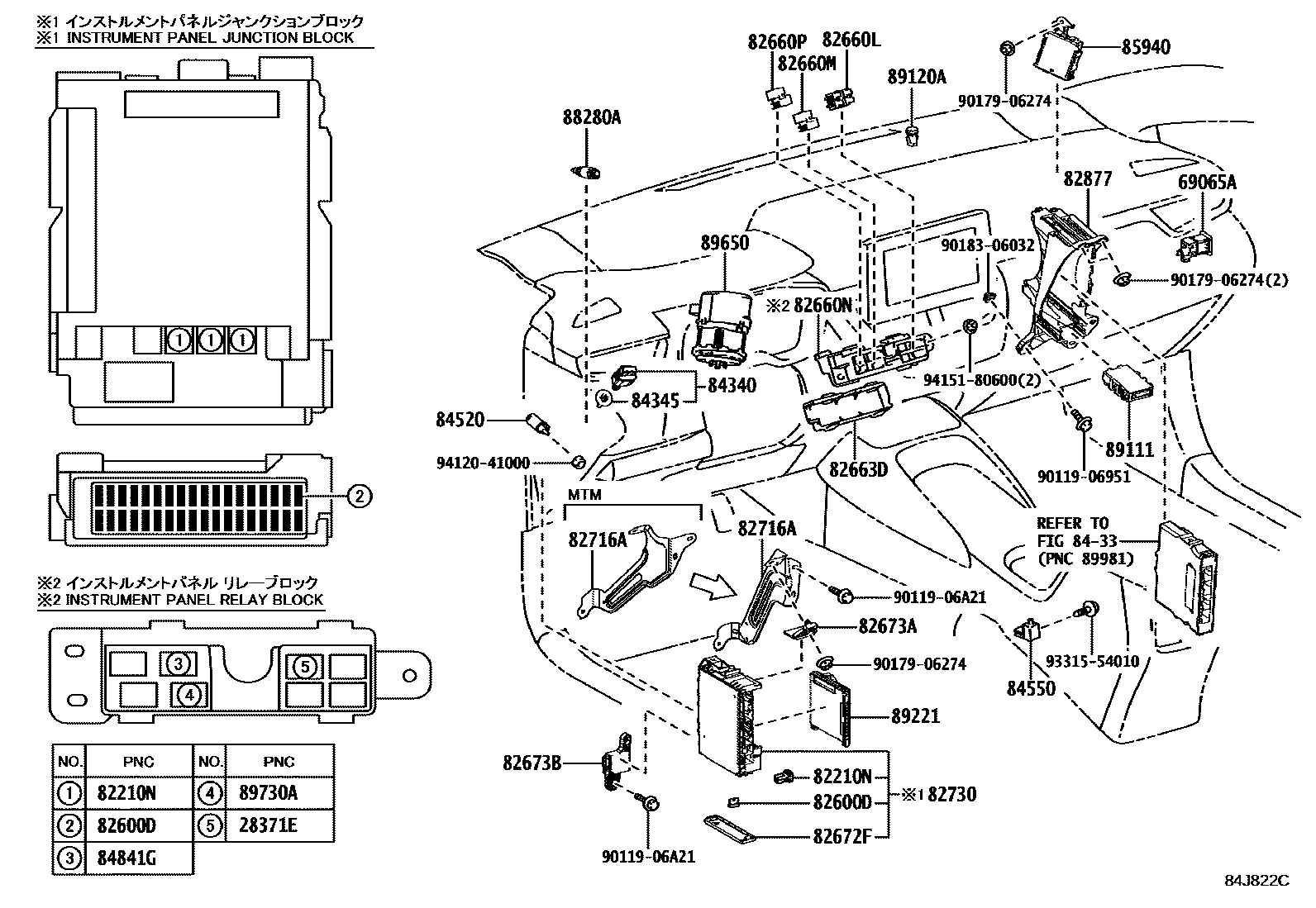

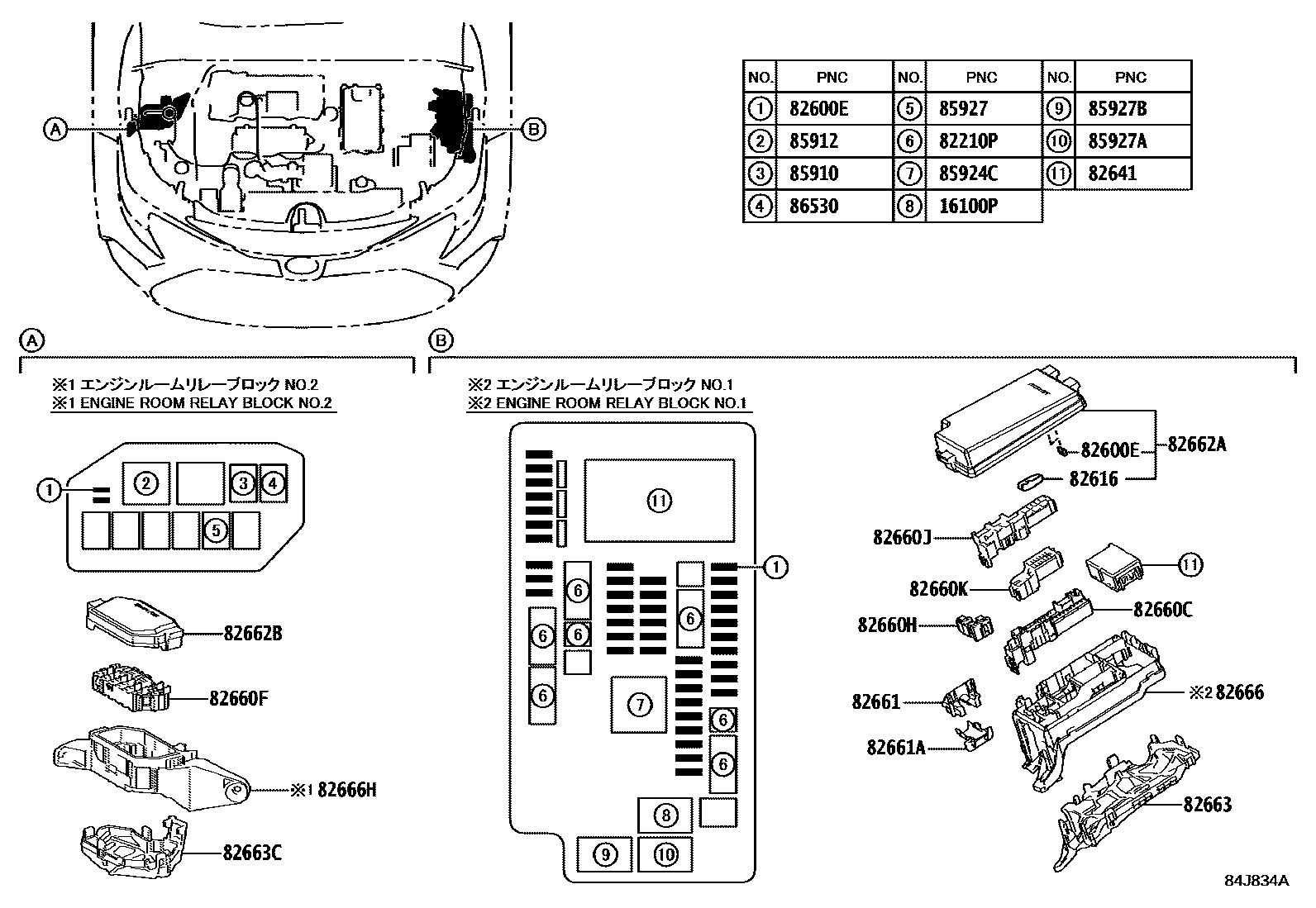

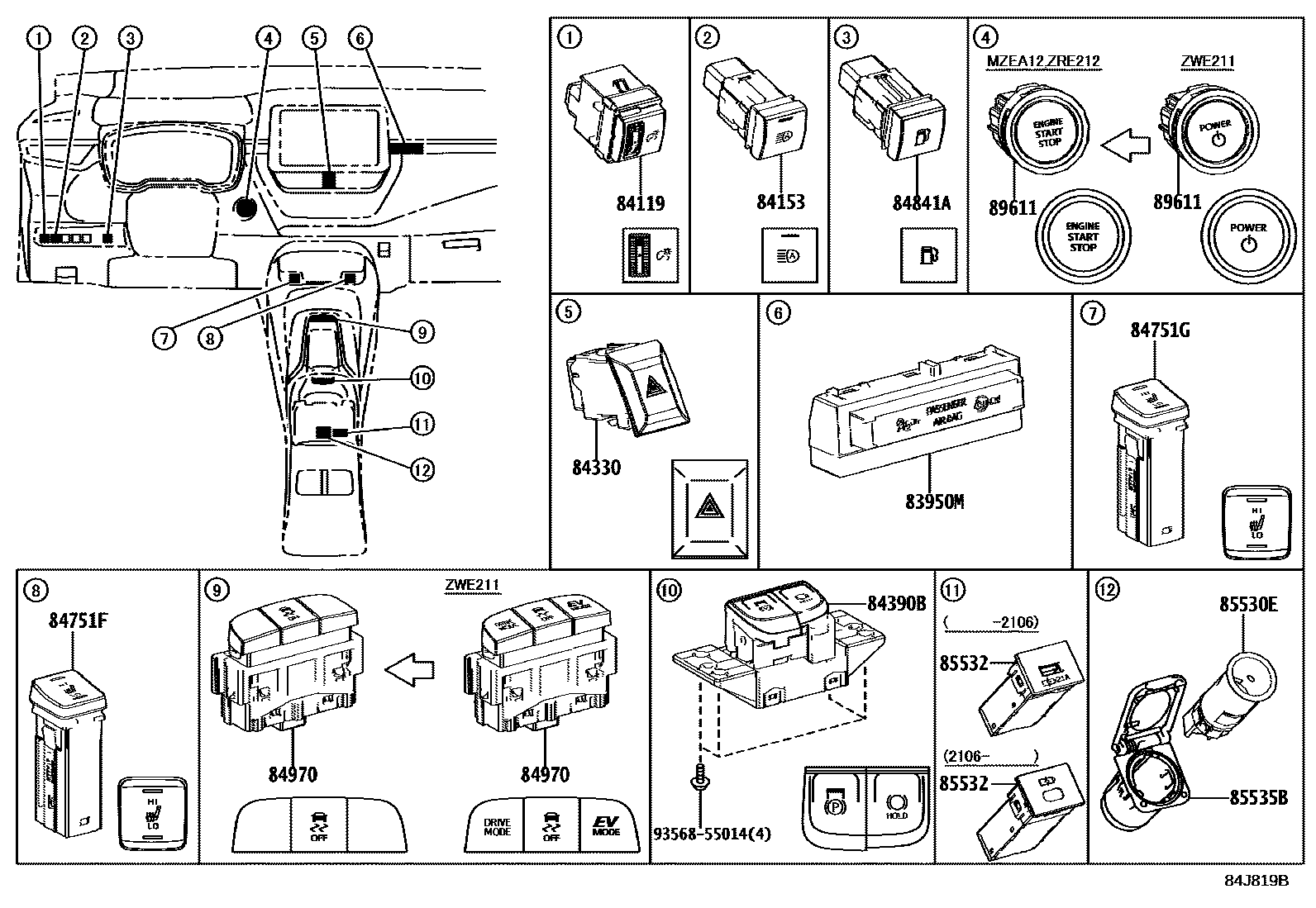

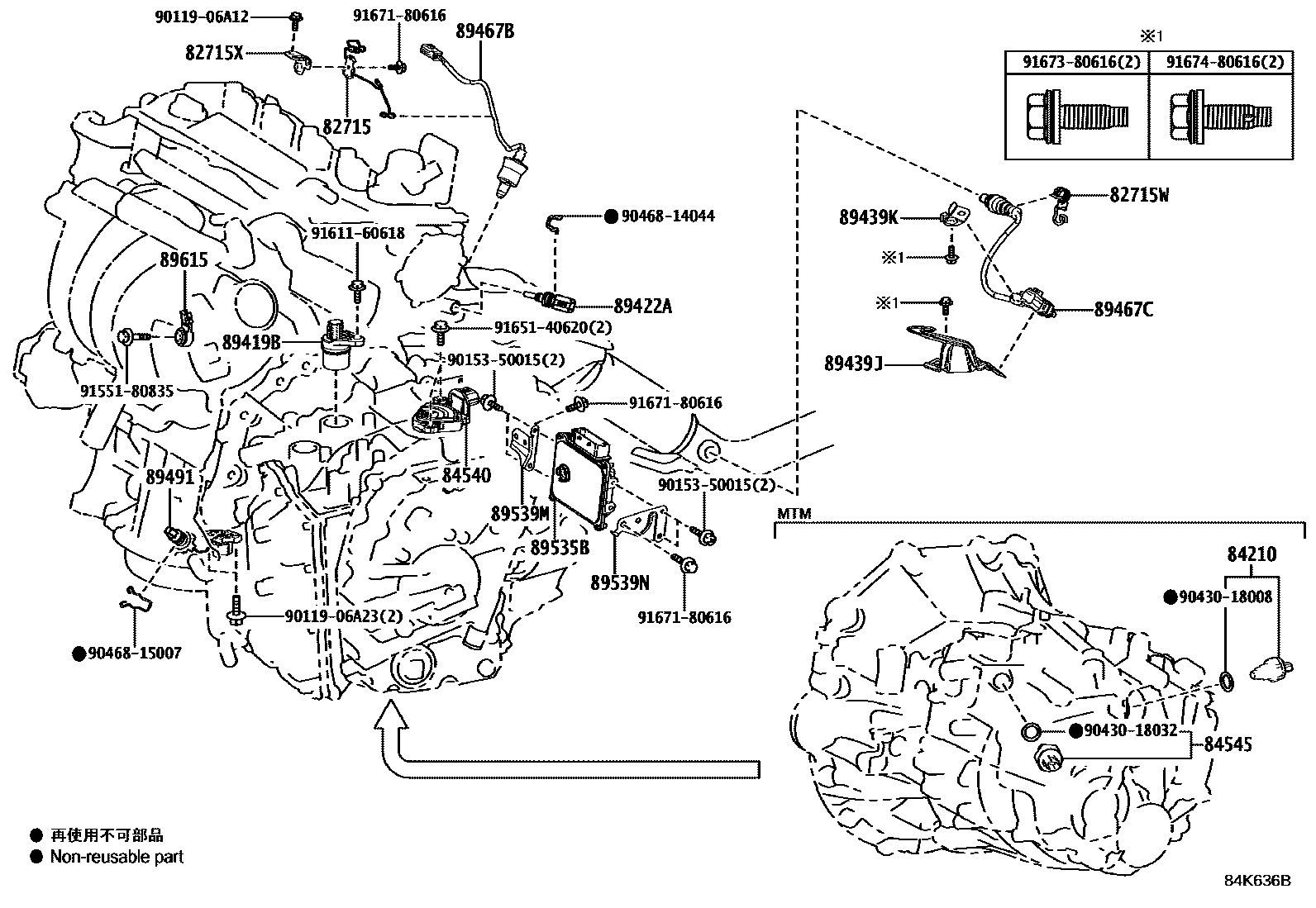

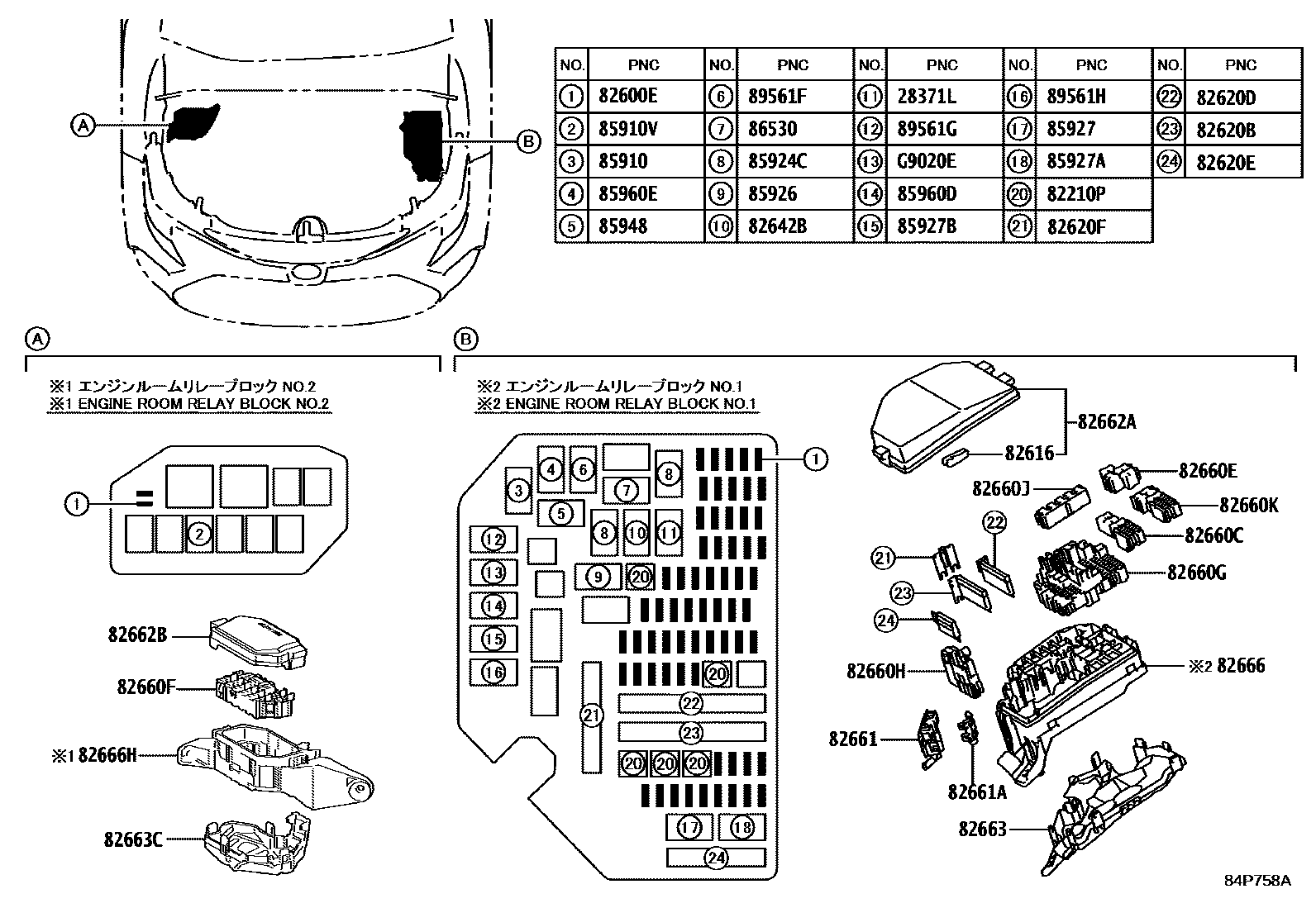

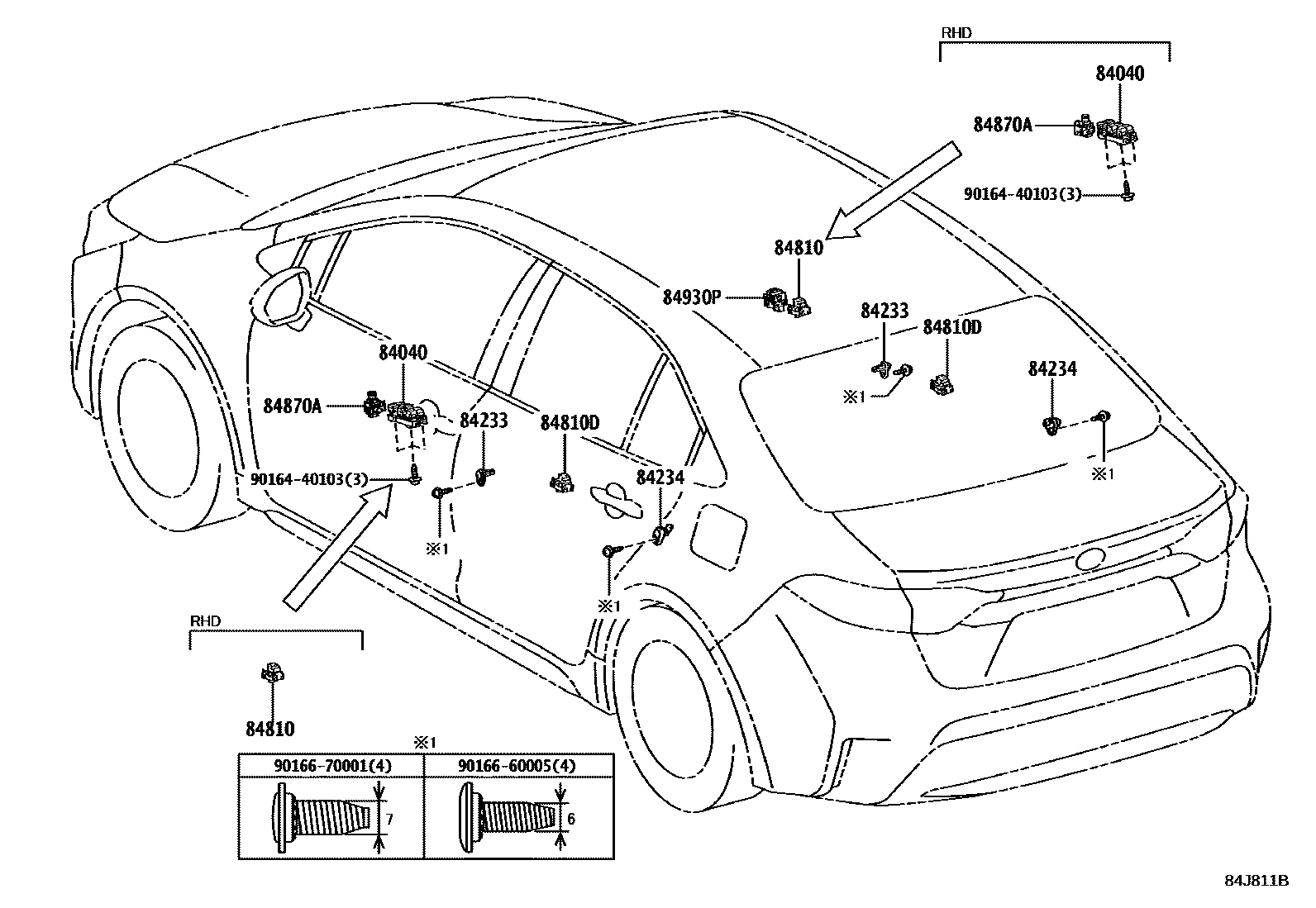

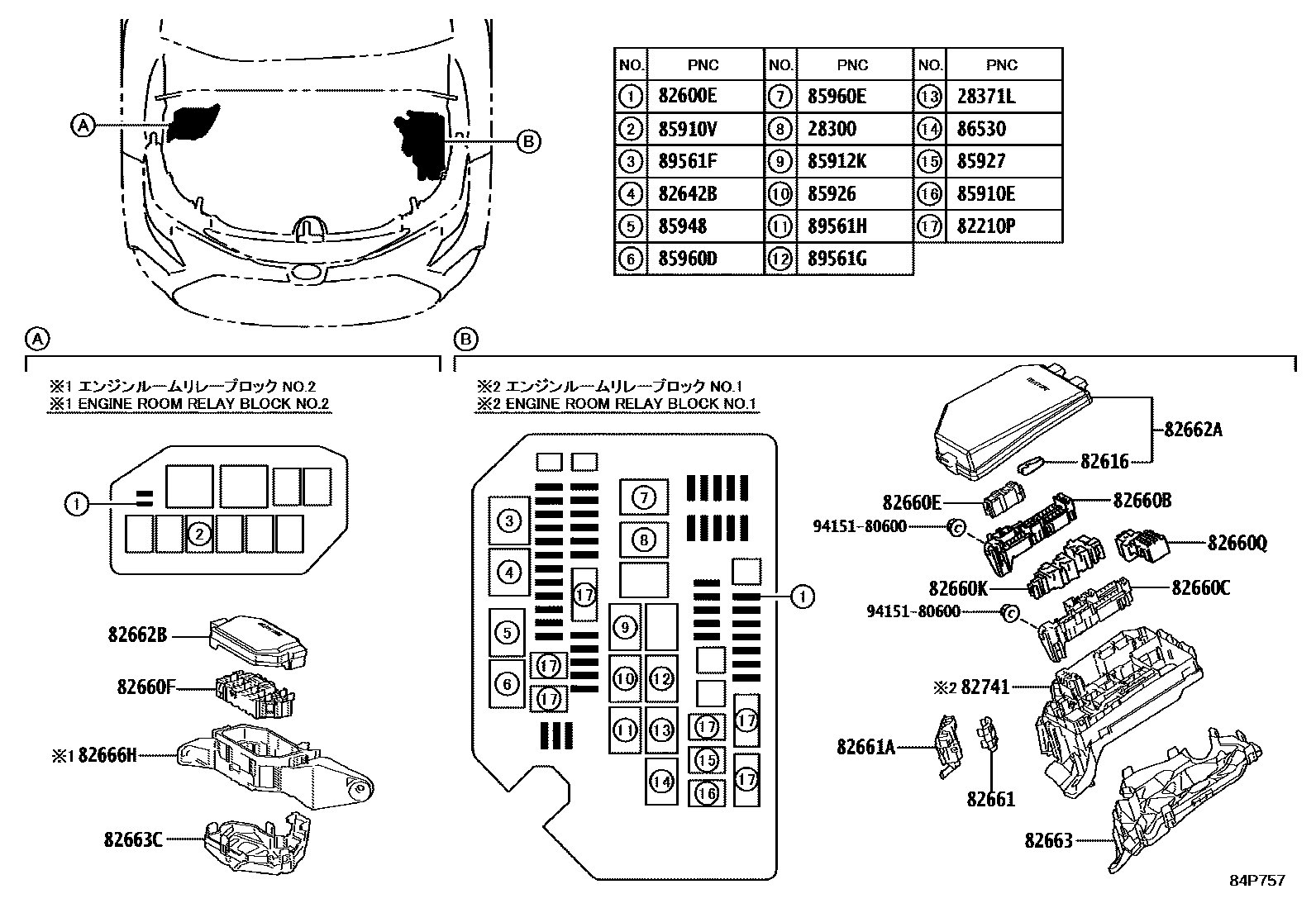

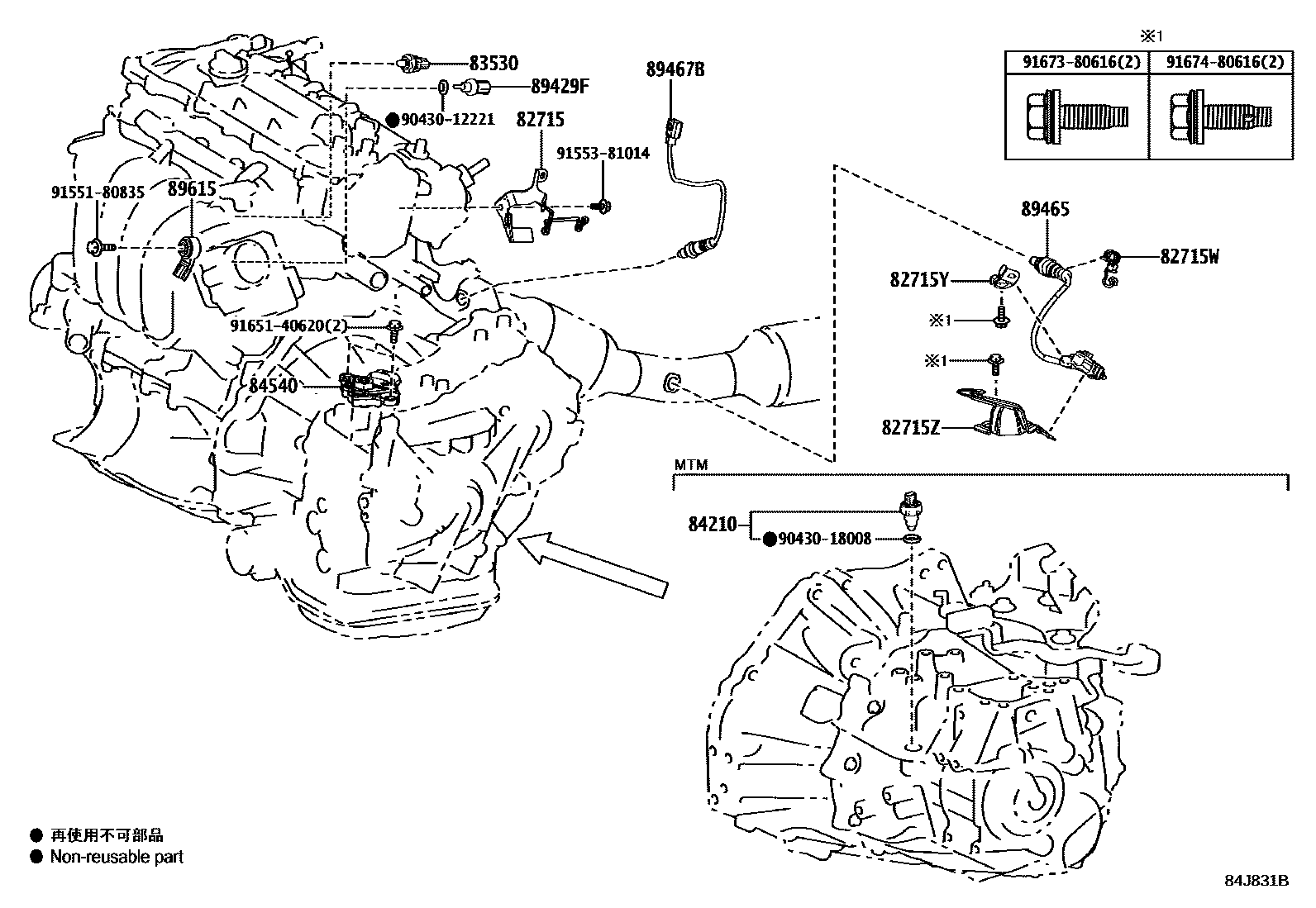

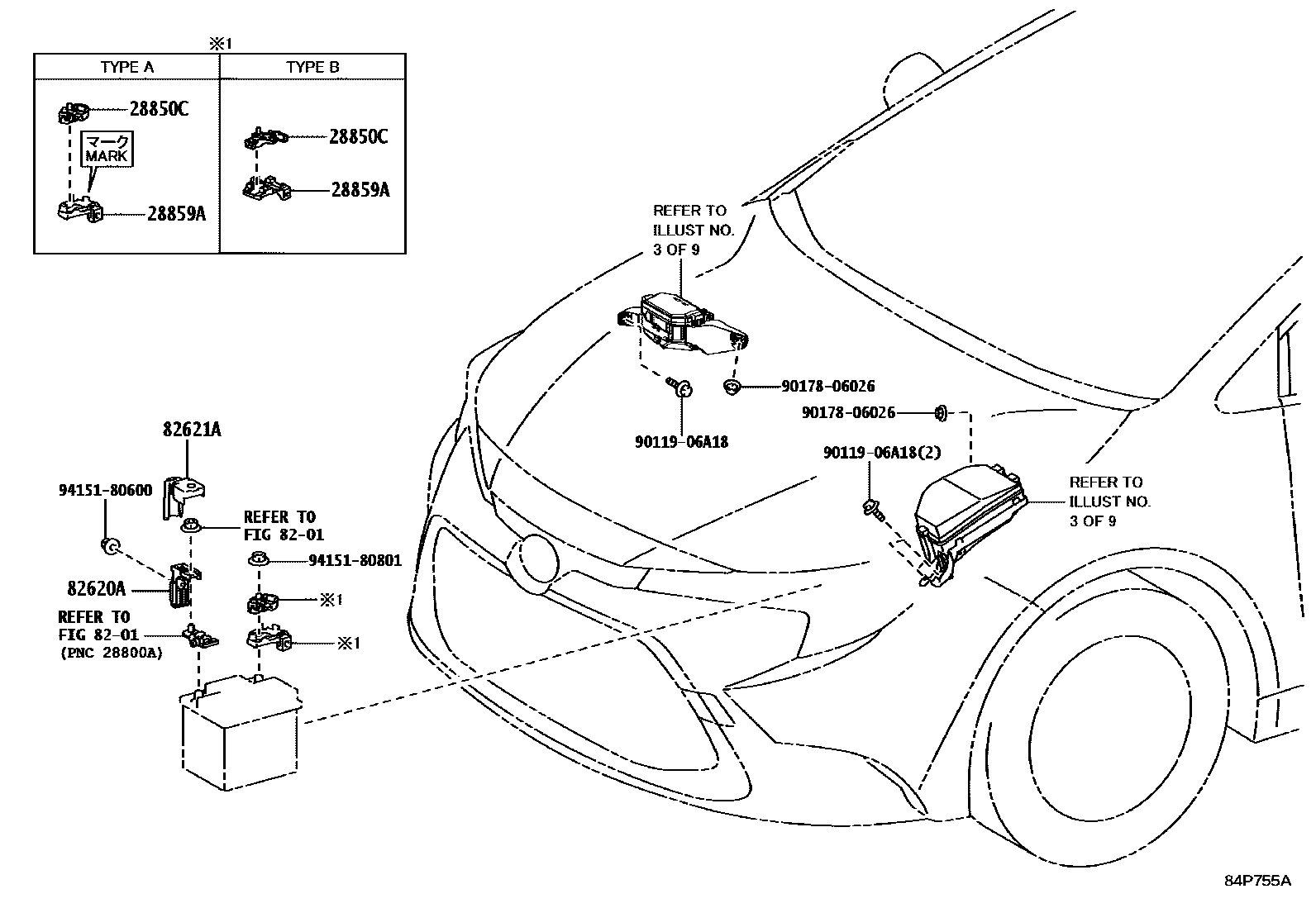

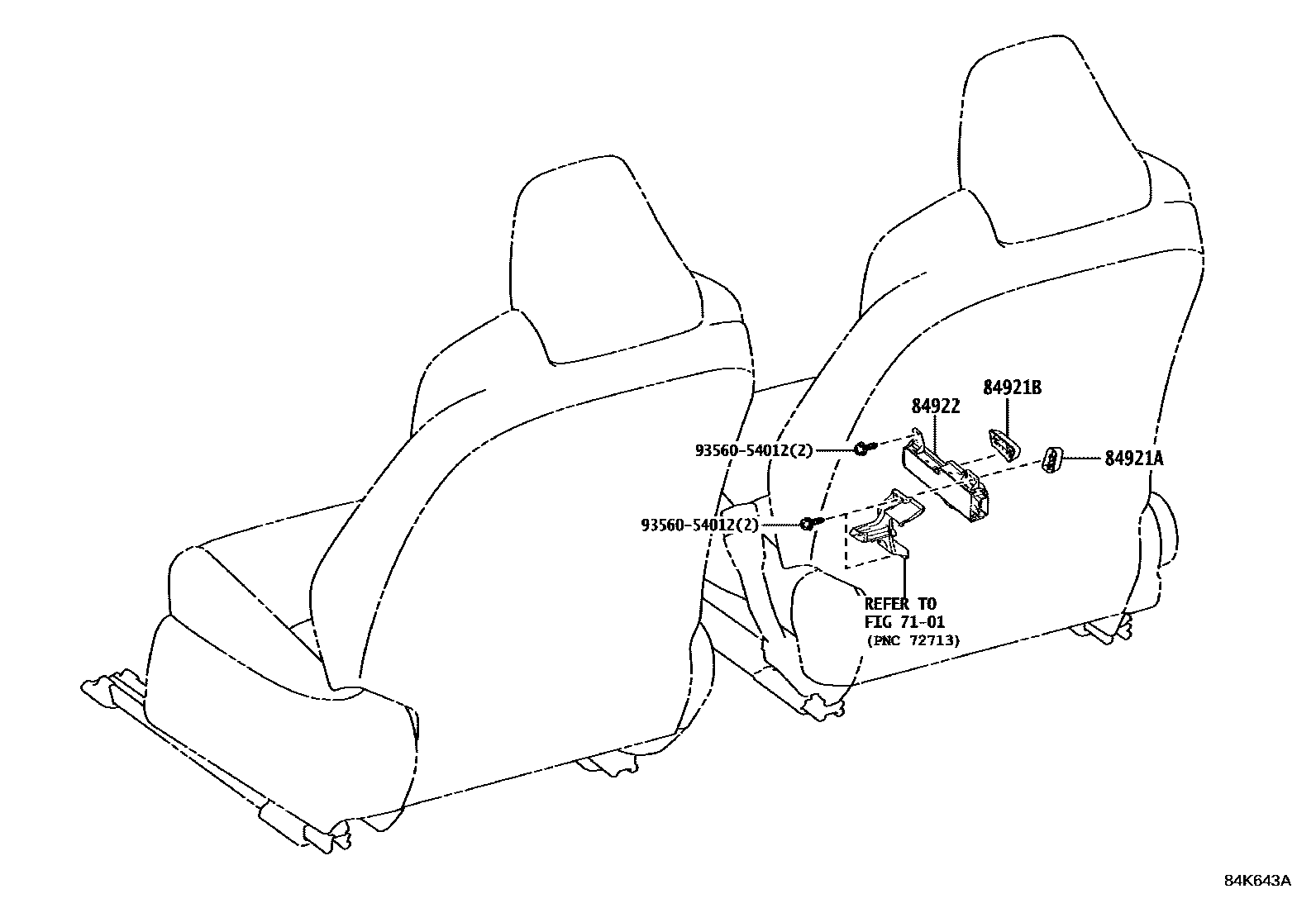

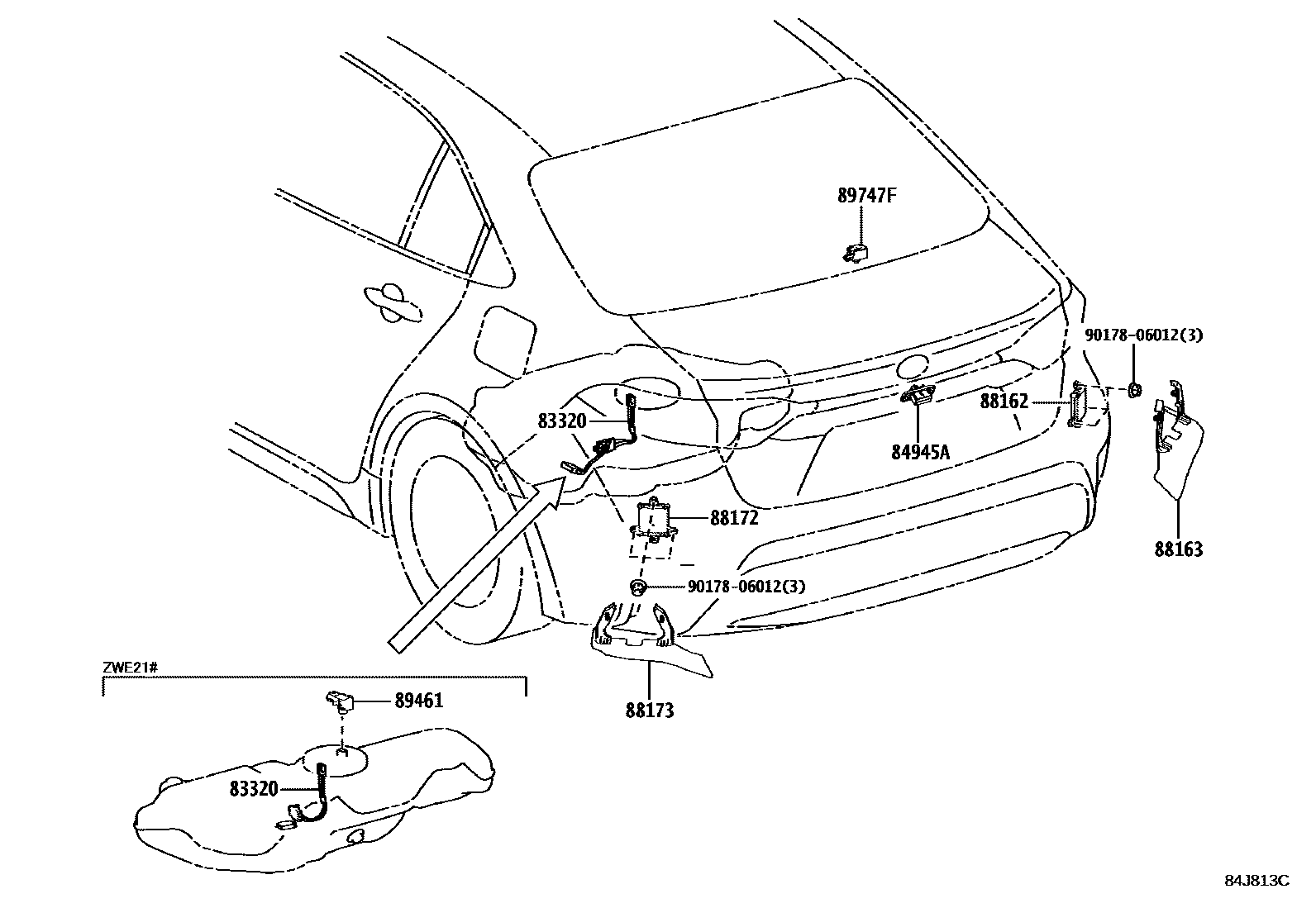

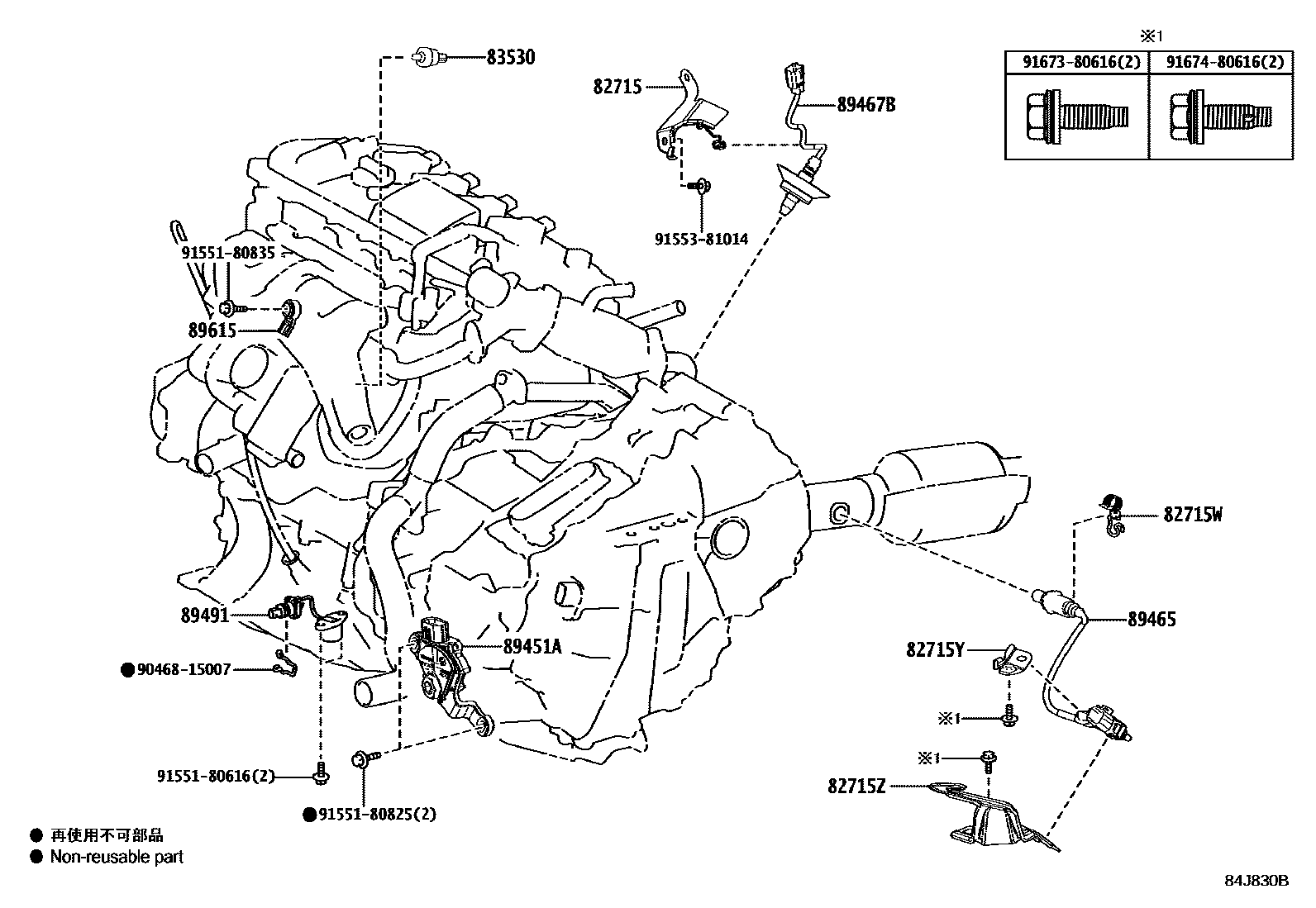

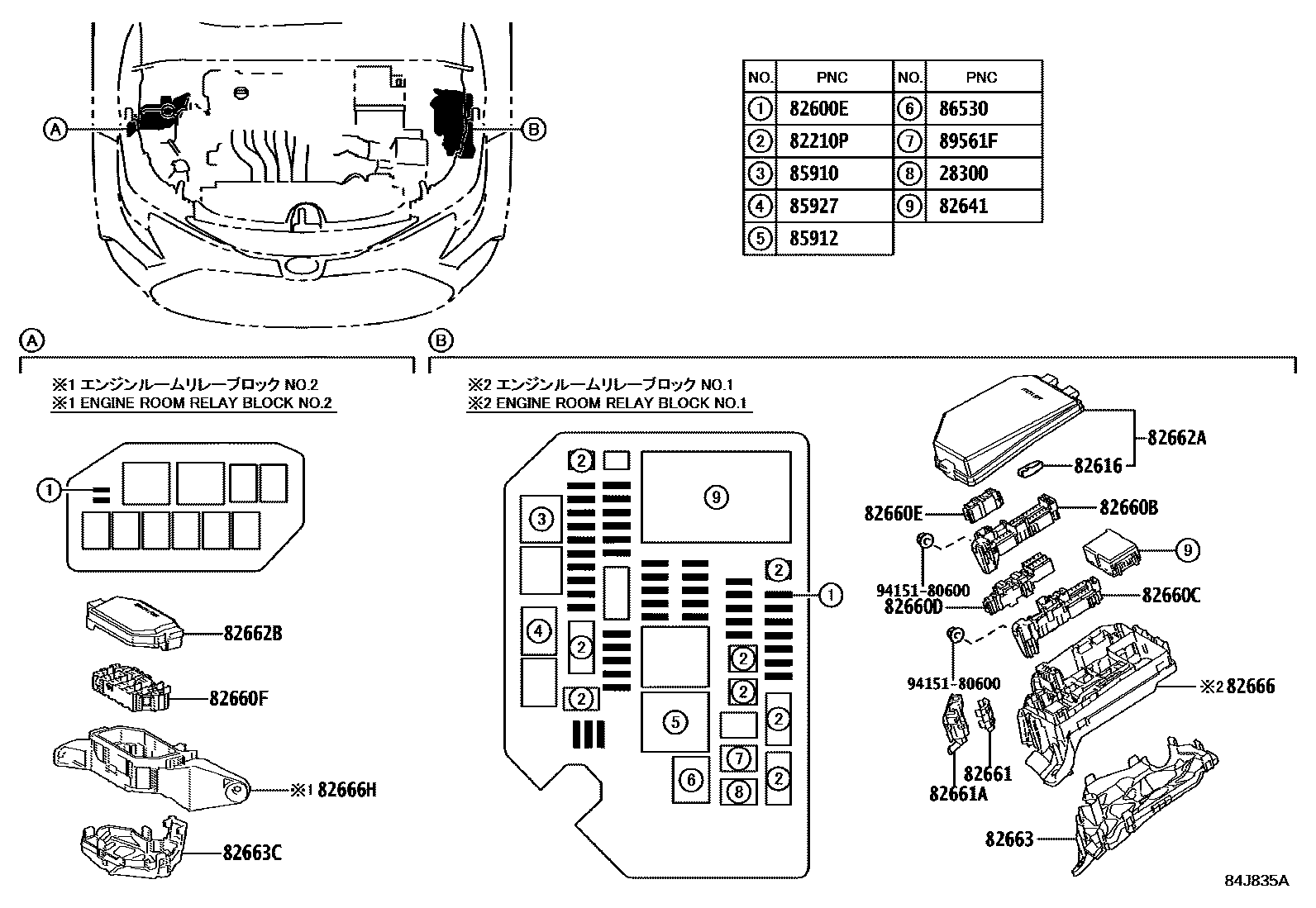

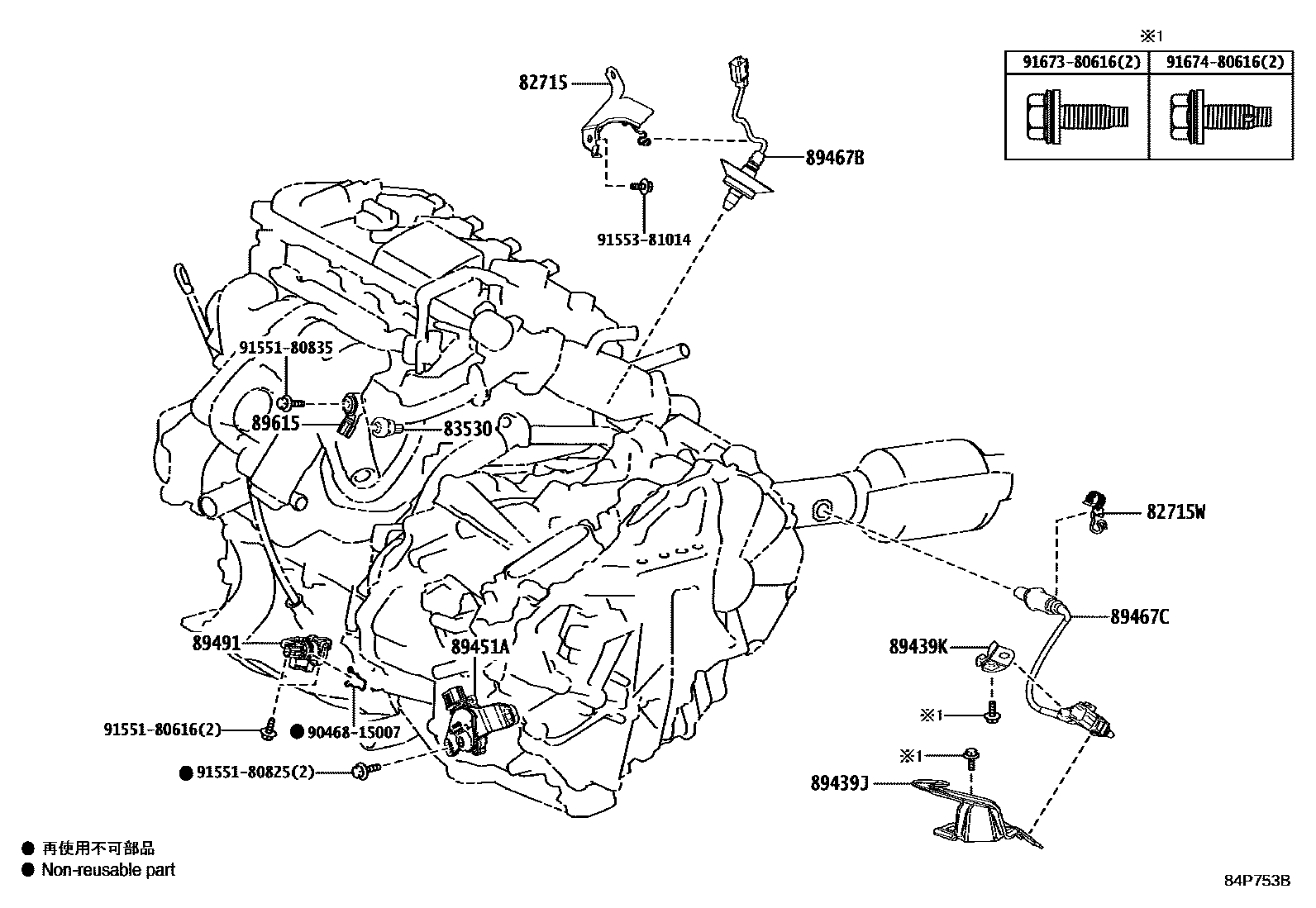

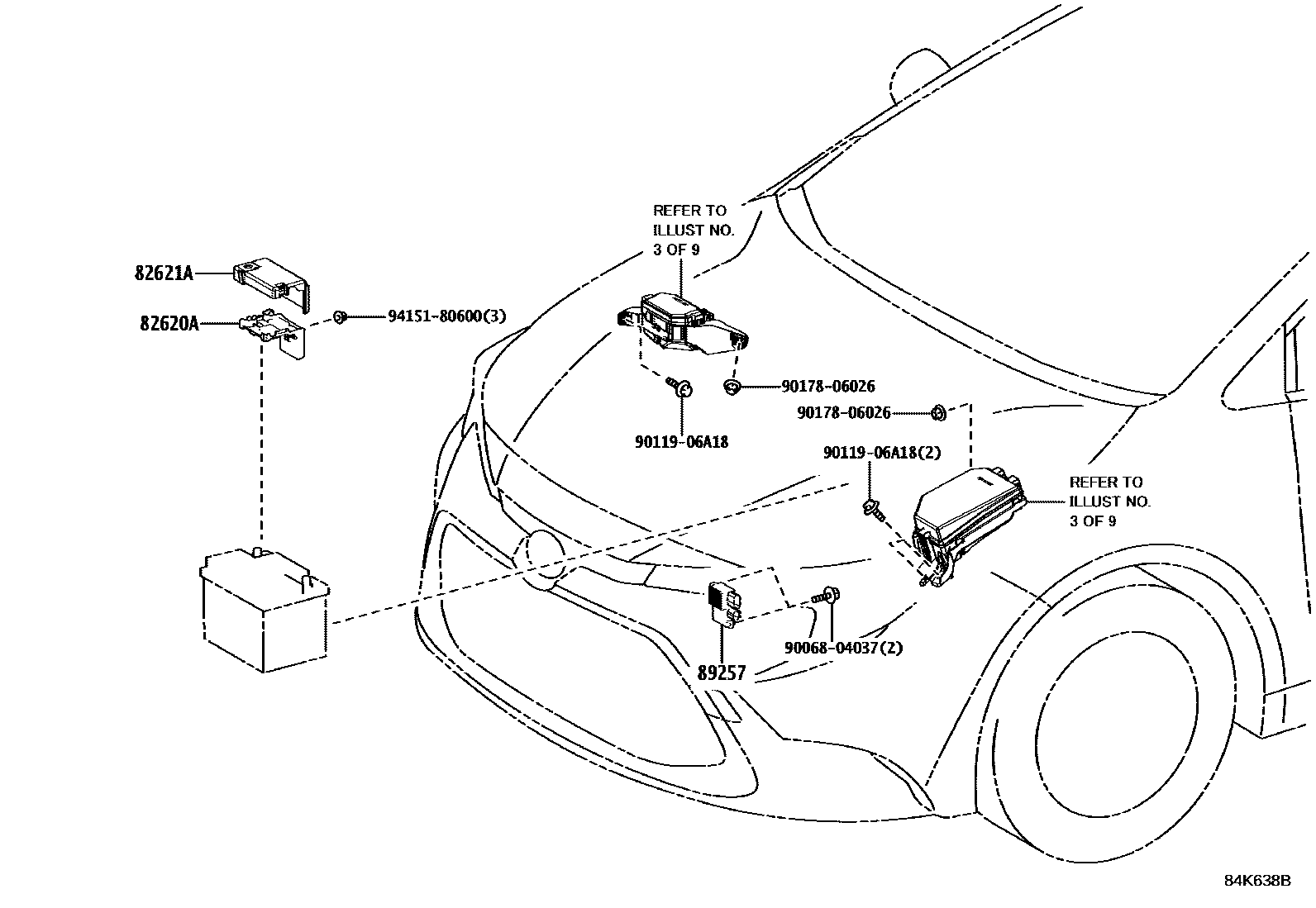

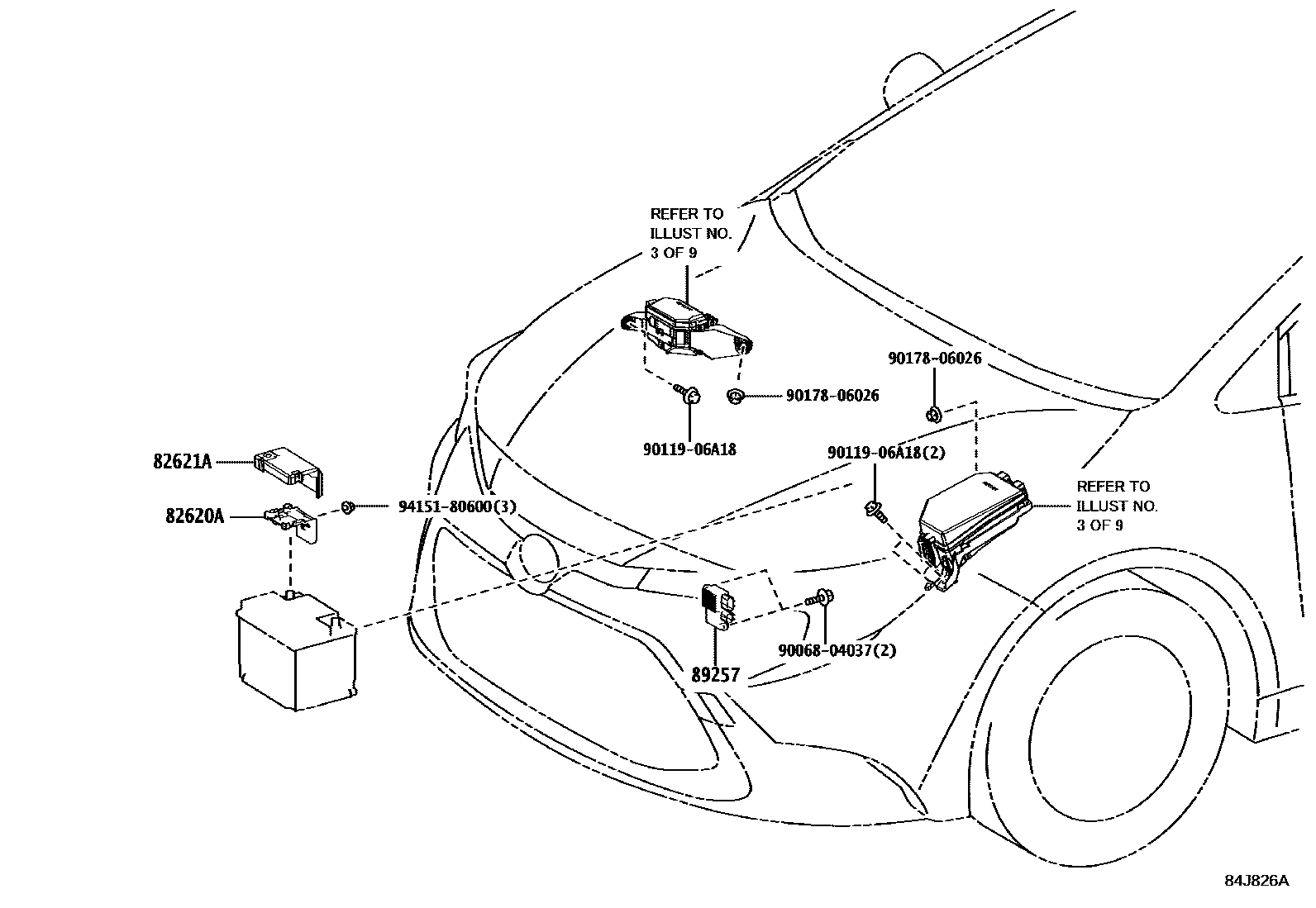

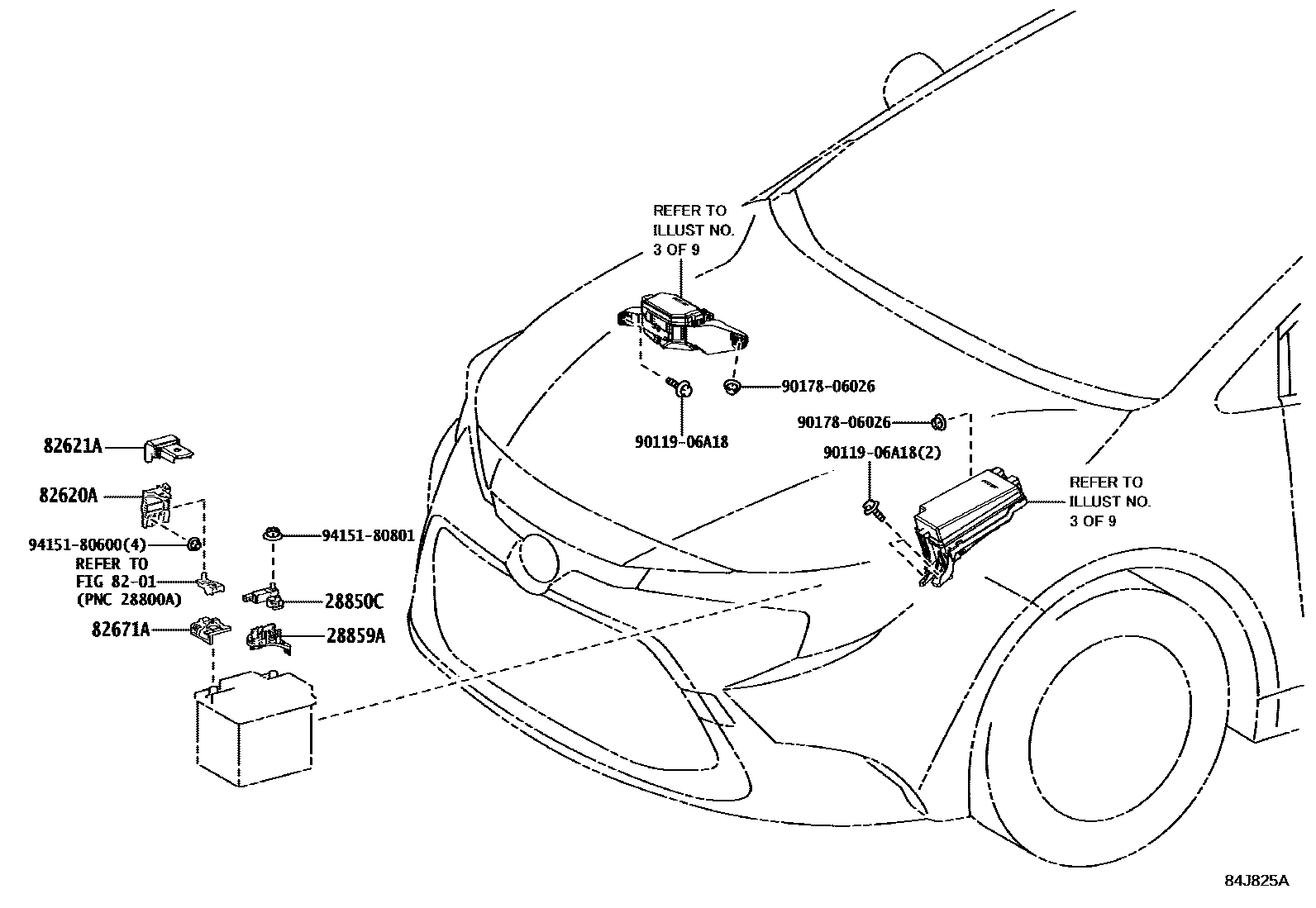

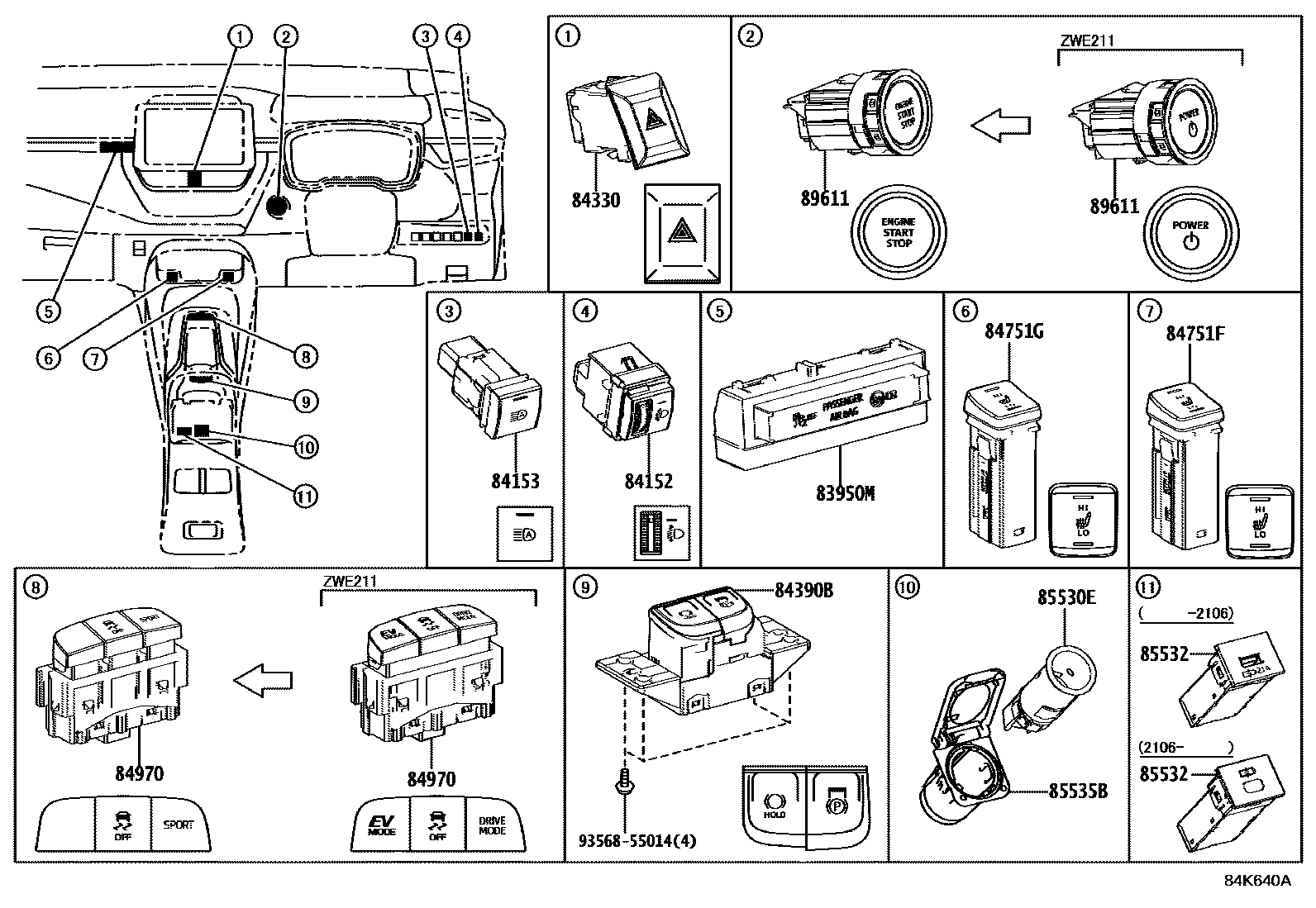

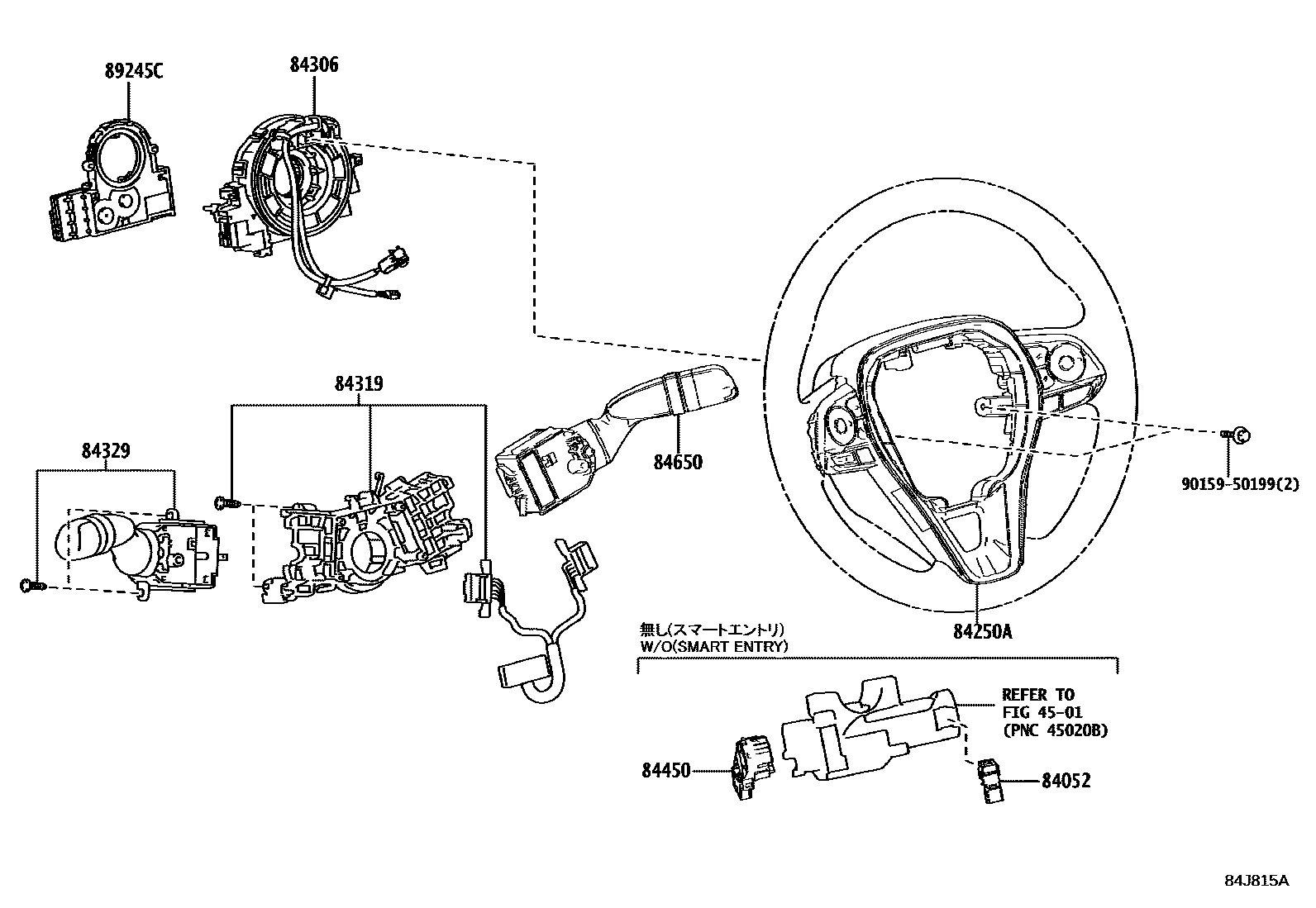

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 27 images and 151 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90987-02027 |
| 28300 | Starter relay assembly | 28300-21020 |
| 28371E | No. 4 ignition relay | 90987-02027 |
| 28371L | IGP relay | 90987-02027 |
| 28850C | Battery status sensor assembly | 28850-25010 · 28850-37080 · 28850-K0010 |
| 28859A | Battery current sensor mount | 28859-37040 · 28859-37050 · 28859-37080 · 28859-F2100 |
| 69065A | Air bag cut-off switch lock cylinder sub-assembly | 69065-12460 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08294 · 90982-08295 · 90982-08296 · 90982-08299 · 90982-08300 · 90982-08301 · 90982-08302 · 90982-08303 · 90982-08304 · 90982-08305 · 90982-08307 · 90982-08308 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09025 · 90982-09026 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-12310 · 82620-16150 · 82620-47090 |
| 82620B | Fuse box assembly | 82620-12330 |
| 82620D | Fuse box assembly | 82620-16100 |
| 82620E | Fuse box assembly | 82620-16120 |
| 82620F | Fuse box assembly | 82620-16140 |
| 82621A | Fuse cover | 82621-12040 · 82621-47020 · 82821-78140 |
| 82641 | Integrated relay No. 1 | 82641-47050 |
| 82642B | No. 1 daytime running light relay | 90080-87026 · 90987-02027 |
| 82660B | Relay assembly | 82660-12360 · 82660-16530 |
| 82660C | Relay assembly | 82660-12390 · 82660-12420 · 82660-16490 |
| 82660D | Relay assembly | 82660-12400 |
| 82660E | Relay assembly | 82660-12470 · 82660-16510 |
| 82660F | Relay assembly | 82660-12410 |
| 82660G | Relay assembly | 82660-16470 |
| 82660H | Relay assembly | 82660-12430 · 82660-16480 |
| 82660J | Relay assembly | 82660-0D050 · 82660-47070 |
| 82660K | Relay assembly | 82660-0A060 · 82660-16500 · 82660-47090 |
| 82660L | Relay assembly | 82660-08020 |
| 82660M | Relay assembly | 82660-0C110 |
| 82660N | Relay assembly | 82660-12460 |
| 82660P | Relay assembly | 82660-52010 |
| 82660Q | Relay assembly | 82660-0A050 |
| 82661 | No. 1 relay box cover | 82661-12350 · 82661-47020 · 82661-76020 |
| 82661A | No. 2 relay box cover | 82661-12340 · 82661-47030 · 82661-76030 |
| 82662A | No. 1 relay box upper cover | 82662-12C40 · 82662-12C60 · 82662-12E90 · 82662-12F20 · 82662-12F70 · 82662-12F90 |
| 82662B | No. 2 relay box upper cover | 82662-12C50 · 82662-12E10 · 82662-12F00 |
| 82663 | Relay box lower cover | 82663-12160 · 82663-16020 · 82663-47070 |
| 82663C | No. 4 relay box lower cover | 82663-47090 |
| 82663D | No. 5 relay box lower cover | 82663-12150 |
| 82666 | Connector holder | 82666-12650 · 82666-12660 · 82666-16050 |
| 82666H | Connector holder No. 2 | 82666-47620 |
| 82671A | junction box | 82671-47040 |
| 82672F | Junction box cover | 82672-12610 · 82672-12640 · 82672-12650 · 82672-12660 |
| 82673A | Junction box bracket | 82673-12340 · 82673-47190 |
| 82673B | Junction box bracket | 82673-12350 · 82673-47210 |
| 82715 | Wire harness clamp bracket | 82715-10310 · 82715-10410 · 82715-12V90 · 8946A-12030 |
| 82715W | Wire harness clamp bracket | 82729-20040 |
| 82715X | No. 2 wire harness clip bracket | 82715-12X50 |
| 82715Y | No. 3 wire harness clip bracket | 82715-47690 |
| 82715Z | Wire harness clamp bracket | 82715-47A60 |
| 82716A | Wire harness clamp bracket | 82715-12W60 · 82715-12X60 |

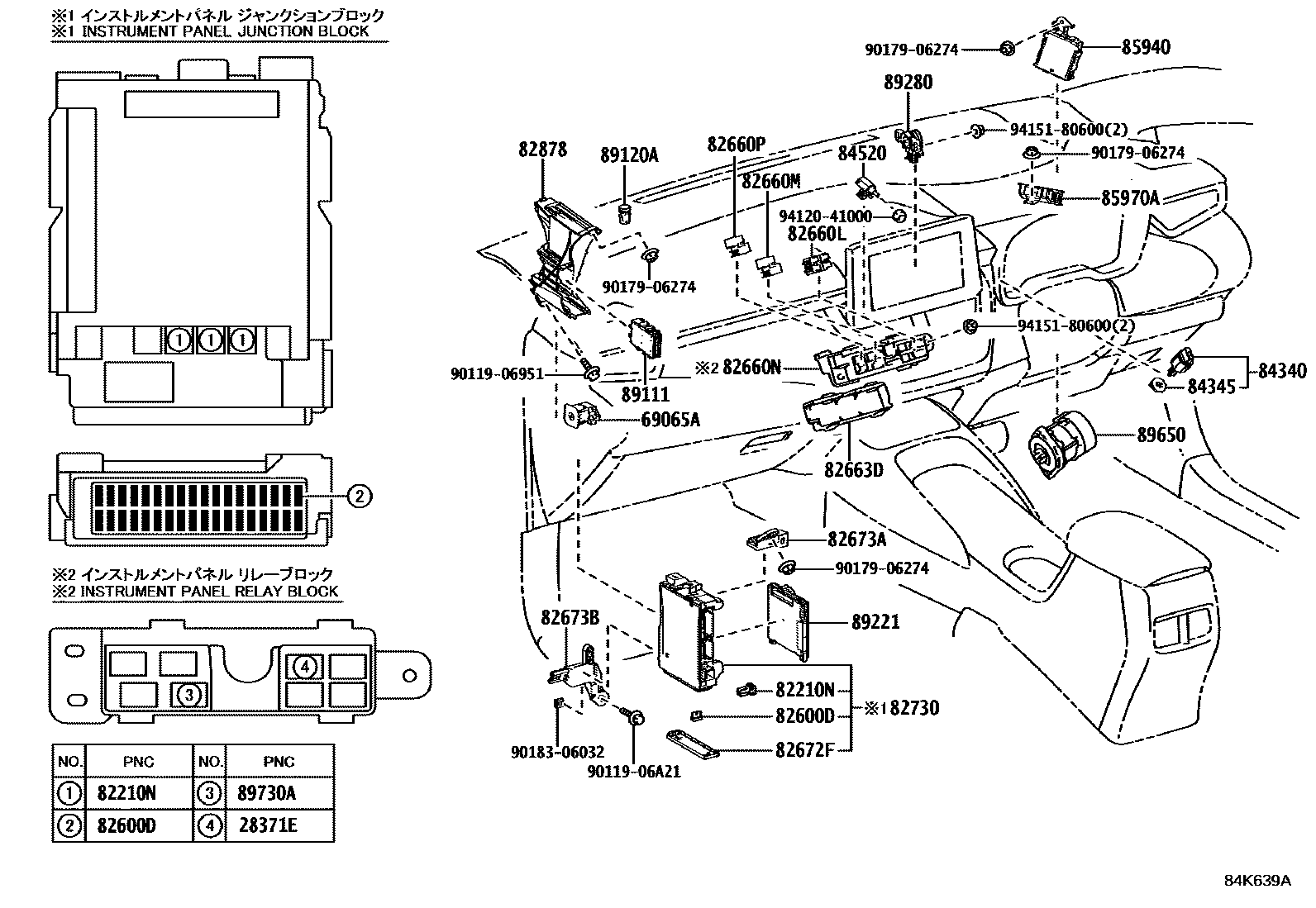

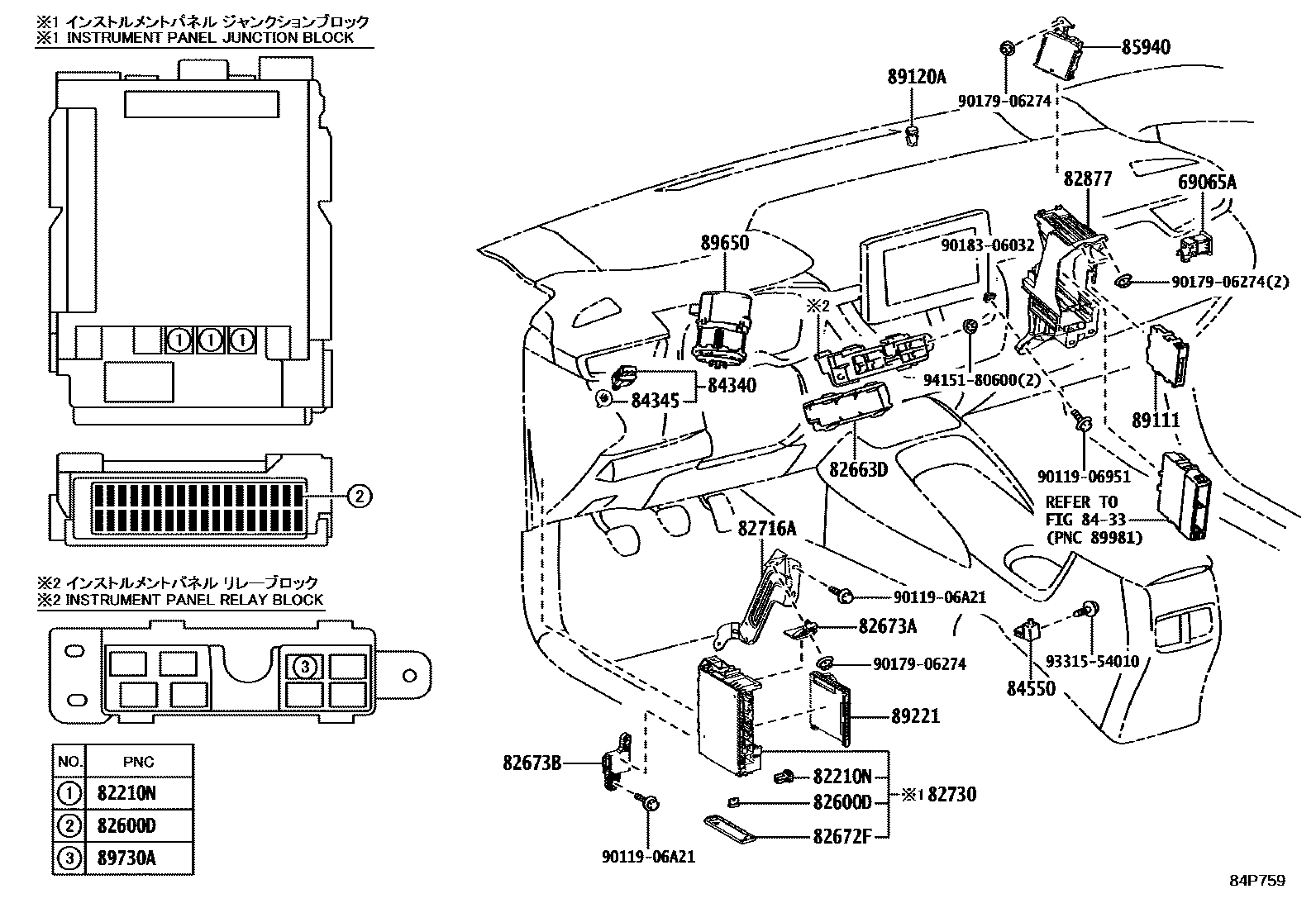

| 82730 | Instrument panel junction box assembly | 82730-12N90 · 82730-12Z10 · 82730-12Z30 · 82730-12Z60 · 82730-12Z80 |
| 82741 | Engine room relay box | 82741-0A020 |
| 82877 | Right ECU integrated box | 82877-16010 · 82877-47040 |
| 82878 | Left ECU integrated box | 82878-16010 · 82878-47020 |
| 83320 | Fuel gauge sensor assembly | 83320-10260 · 83320-10270 · 83320-16320 · 83320-76010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-12060 |
| 83950M | Warning light assembly | 83950-12340 · 83950-12360 |
| 84040 | Multi-channel network main switch assembly | 84040-12150 · 84040-12160 · 84040-12190 · 84040-12220 · 84040-16020 · 84040-16030 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84119 | Light control rheostat | 84119-12190 · 84119-12200 |
| 84152 | Headlight beam height adjustment switch | 84152-12100 · 84152-16040 |
| 84153 | Automatic high beam switch | 84153-16010 · 84153-33040 |
| 84210 | Reversing light switch assembly | 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-53010 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-12550 · 84250-12560 · 84250-12570 · 84250-12580 · 84250-12700 · 84250-12780 |
| 84306 | Spiral cable sub-assembly | 84308-12020 · 84308-12030 · 84308-52010 · 84308-78010 |
| 84319 | Steering wheel switch housing | 84319-11010 · 84319-33030 |
| 84329 | turn signal switch | 84329-12110 · 84329-12130 · 84329-12160 · 84329-12190 · 84329-12200 · 84329-33080 · 84329-42010 |
| 84330 | Hazard warning signal switch assembly | 84332-12600 |
| 84340 | brake light switch assembly | 84340-19085 · 84340-19095 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84390B | Electric parking brake switch assembly | 84390-12010 · 84390-12020 · 84390-12030 · 84390-12040 · 84390-12140 · 84390-12150 |
| 84450 | Ignition or starter switch assembly | 84450-33040 |
| 84520 | Clutch start switch assembly | 88280-70010 |
| 84523 | No. 1 switch harness | 84523-11010 |
| 84540 | Neutral start switch assembly | 84540-12240 · 84540-52070 |
| 84545 | neutral position switch | 84545-52010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84610G | No. 1 transmission shift switch assembly | 84610-33011 |
| 84610H | No. 2 transmission shift switch assembly | 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-12A50 · 84652-12A80 · 84652-33580 · 84652-33590 · 84652-33610 · 84652-33620 |
| 84751F | Seat heater switch | 84751-12120 · 84751-12140 |
| 84751G | Seat heater switch | 84751-12130 · 84751-12150 |
| 84810 | Electric window lift switch assembly | 84810-12100 · 84810-12110 |
| 84810D | Rear electric window lift switch assembly | 84810-12100 · 84810-12110 |
| 84841A | Fuel filler cap opener switch | 84841-12010 |
| 84841G | Fuel filler opening relay | 90987-02027 |
| 84870A | Exterior rearview mirror switch assembly | 84872-12120 · 84872-12130 · 84872-12150 · 84872-12170 · 84872-12230 · 84872-42160 |

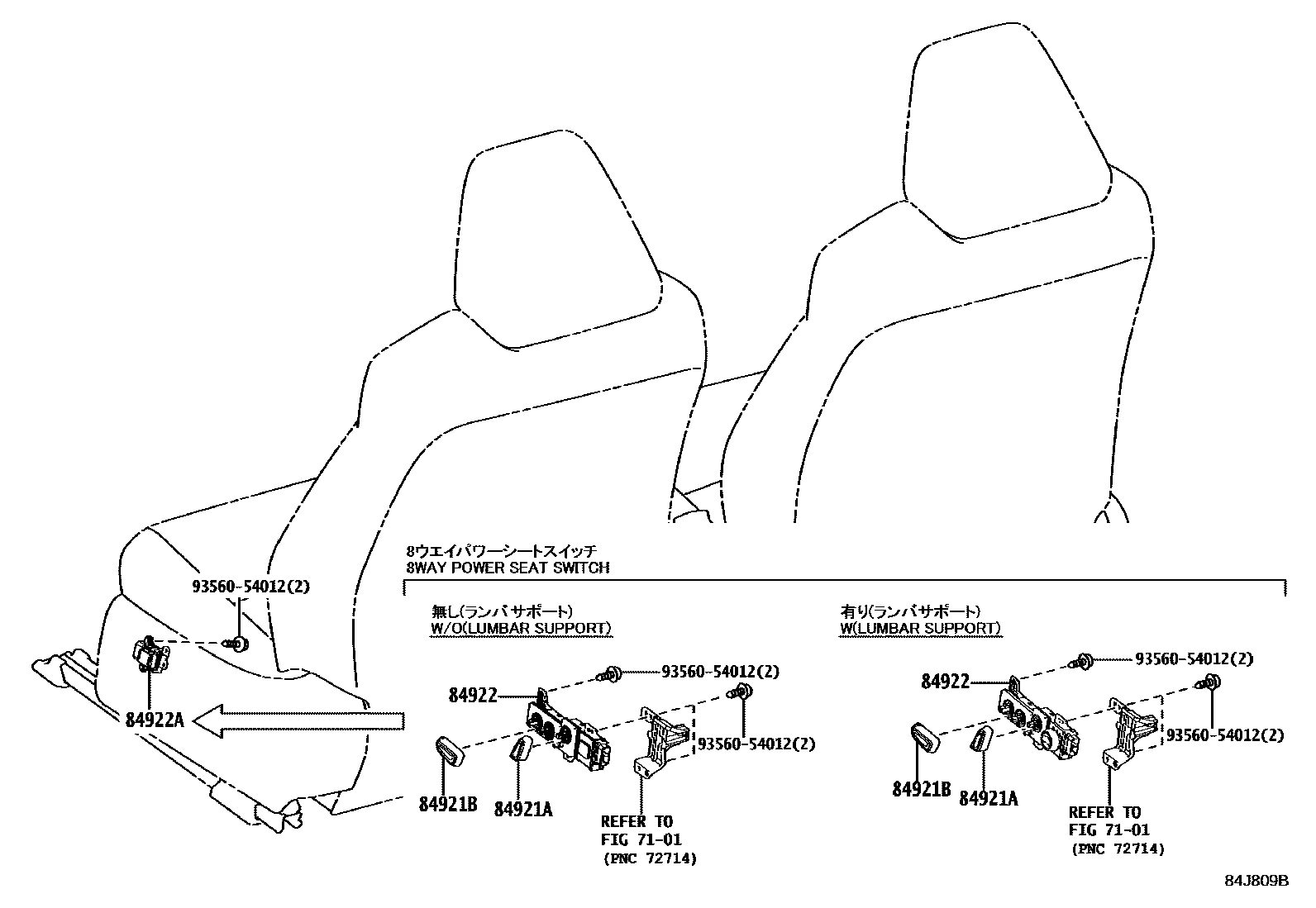

| 84922 | Front electric seat switch | 84922-33200 |
| 84930P | Door control switch assembly | 84930-12260 |
| 84945A | Luggage electronic key switch | 84945-12070 |
| 84970 | Combination switch assembly | 84970-12150 · 84970-12180 · 84970-12190 · 84970-12200 · 84970-12240 · 84970-12360 · 84970-12380 · 84970-12390 · 84970-16050 |
| 84975 | trip odometer switch | 84975-12010 |
| 85530E | No. 3 power socket assembly | 85530-42010 |
| 85532 | USB charging socket | 85532-12020 · 85532-60010 · 85532-60060 |
| 85532C | USB charging socket No. 2 | 85532-60040 · 85532-78010 |
| 85535B | No. 1 power outlet cover | 85535-12080 |
| 85910 | Circuit breaking relay assembly | 90987-02027 |
| 85910E | Injector relay | 90987-02027 |
| 85910V | seat heater relay | 90987-02027 |
| 85912 | defogger relay | 90987-04010 |
| 85912K | VVT relay | 90987-02027 |
| 85924C | IGCT relay | 90987-02025 · 90987-02027 |
| 85926 | Headlight dimmer relay | 90080-87026 · 90987-02027 |
| 85927 | cooling fan relay | 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02027 |
| 85940 | Windshield wiper relay assembly | 85940-12230 · 85940-12240 |
| 85948 | windshield wiper relay | 90987-02027 |
| 85960D | Right headlight relay | 90080-87026 · 90987-02027 |
| 85960E | Left headlight relay | 90080-87026 · 90987-02027 |
| 85970A | Double lock door control relay assembly | 85970-48040 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 88162 | Blind spot monitor right sensor | 88162-12010 · 88162-12070 · 88162-12090 |
| 88163 | Blind spot monitor right side cover | 88163-12010 |
| 88172 | Blind spot monitor left sensor | 88162-12010 · 88162-12070 · 88162-12090 |
| 88173 | Blind spot monitor left cover | 88173-12010 |
| 88280A | Clutch switch assembly | 88280-42010 |
| 89111 | Network gateway ECU | 89111-12040 · 89111-12050 · 89111-12170 · 89111-12190 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 89221 | Multi-channel network body ECU | 89220-12E60 · 89220-12E61 · 89220-12E70 · 89220-12E71 · 89220-12F60 · 89220-12G50 · 89220-12G51 · 89220-12G60 · 89220-12G61 · 89220-12G70 · 89220-12G71 · 89220-12G90 · 89220-12J00 · 89220-12J10 · 89220-12J20 · 89220-12J30 · 89220-12J40 · 89220-12J50 · 89220-12J60 · 89220-12J70 · 89220-12J71 · 89220-12J80 · 89220-12J81 · 89220-12J90 · 89220-12T40 · 89220-12T50 · 89220-12U80 · 89220-12U90 · 89220-12V00 · 89220-12V10 · 89220-12V20 · 89220-12V30 · 89220-12V40 · 89220-12V50 · 89220-12V60 · 89220-12V70 · 89220-12V80 · 89220-12V90 · 89220-12W00 · 89220-12W10 · 89221-12M00 · 89221-12M01 · 89221-12M10 · 89221-12M11 · 89221-12M20 · 89221-12M21 |
| 89245C | steering sensor | 8924B-42010 · 8924B-50010 · 8924B-V1010 |
| 89257 | Cooling fan ECU | 89257-12020 · 89257-K0020 |
| 89280 | Clutch pedal stroke sensor assembly | 89280-10010 |
| 89419B | gear shift sensor | 89419-12011 · 89419-K2010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89429F | temperature sensor | 89429-12010 |
| 89439J | No. 2 sensor bracket | 82715-47A60 |
| 89439K | No. 3 sensor bracket | 82715-47690 |
| 89451A | shift lever position sensor | 89451-10010 · 89451-28020 |
| 89461 | steam pressure sensor | 89461-48020 |
| 89465 | oxygen sensor | 89465-47090 |
| 89467B | air fuel ratio sensor | 89467-12260 · 89467-12280 · 89467-12340 · 89467-47030 |
| 89467C | No. 2 air-fuel ratio sensor | 89465-47090 · 89467-12290 |
| 89491 | Engine oil level sensor | 89491-28090 · 89491-28091 · 89491-33051 · 89491-33052 · 89491-47011 |
| 89535B | Transmission control ECU | 89535-12060 · 89535-12090 · 89535-12250 · 89535-12260 · 89535-12270 |
| 89539M | No. 1 transmission control ECU bracket | 89539-12070 |
| 89539N | No. 2 transmission control ECU bracket | 89539-12080 |
| 89561F | Electronic fuel injection No. 1 main relay | 90987-02027 |
| 89561G | Electronic fuel injection No. 2 main relay | 90987-02027 |
| 89561H | Electronic fuel injection No. 3 main relay | 90987-02027 · 90987-02033 |
| 89611 | One-button start switch | 89611-12010 · 89611-12020 · 89611-16010 · 89611-16020 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-12K10 · 89650-12K20 · 89650-12K30 · 89650-12N60 · 89650-12N70 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| G9020E | Hybrid water pump relay | 90987-02027 |
