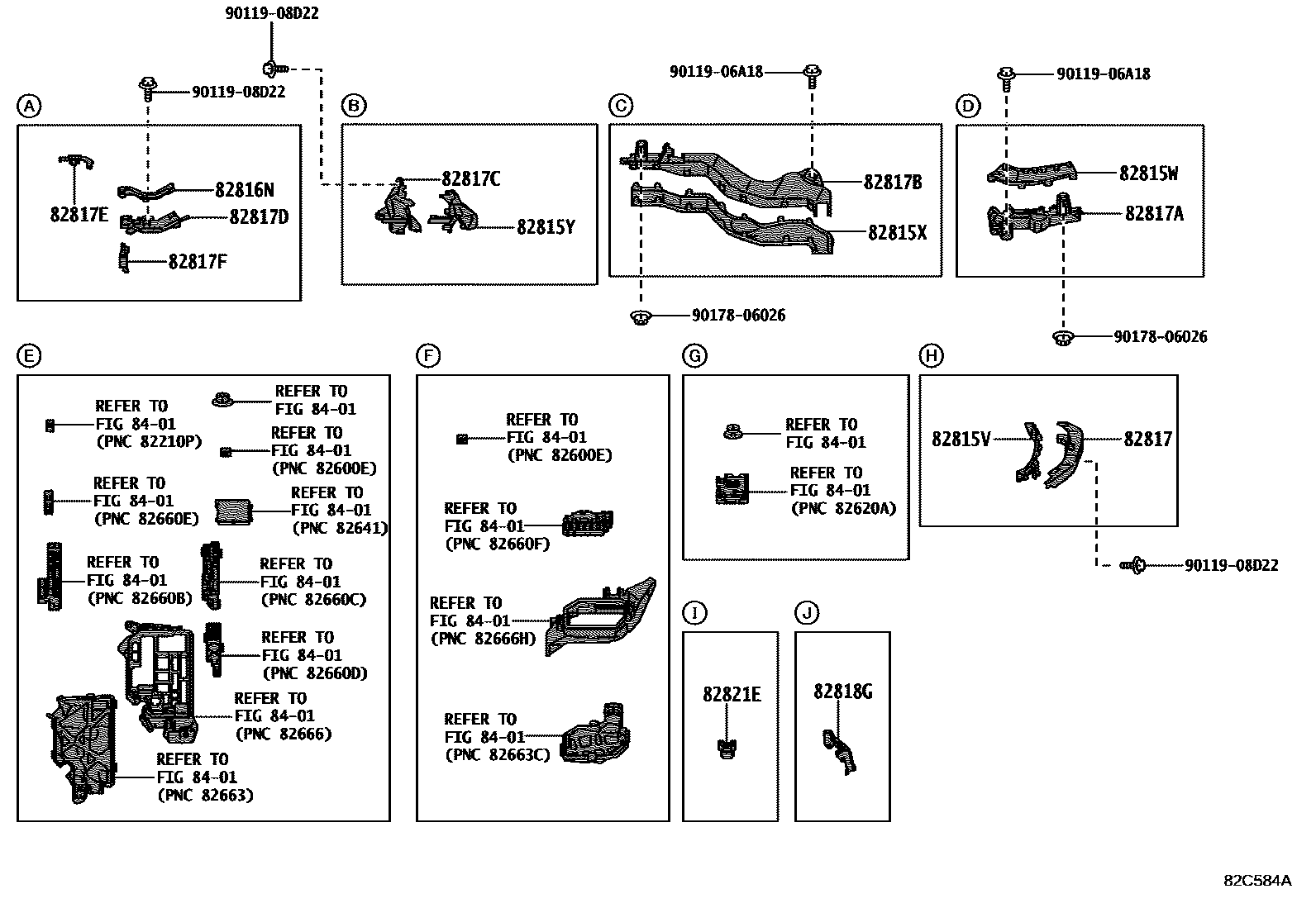

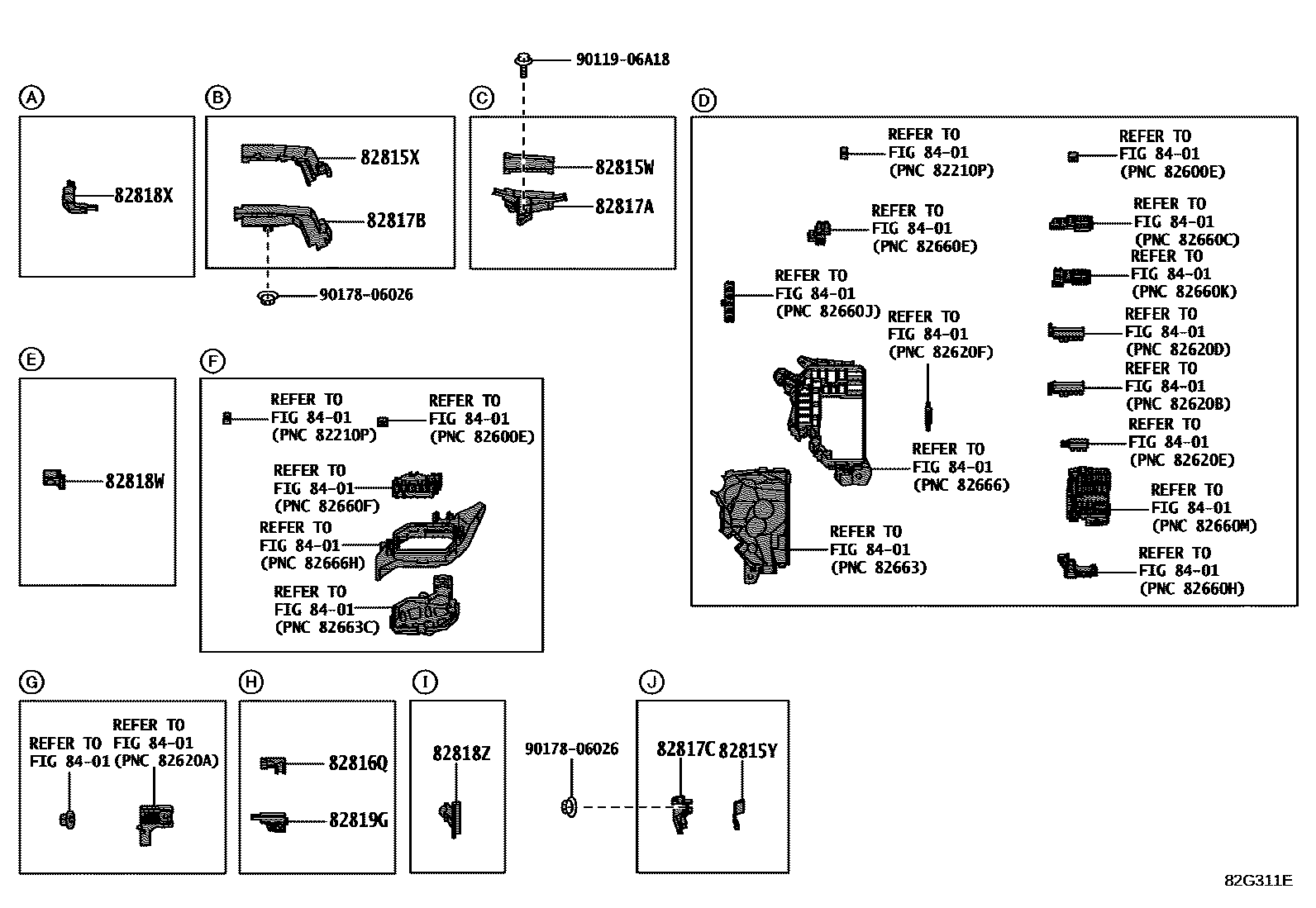

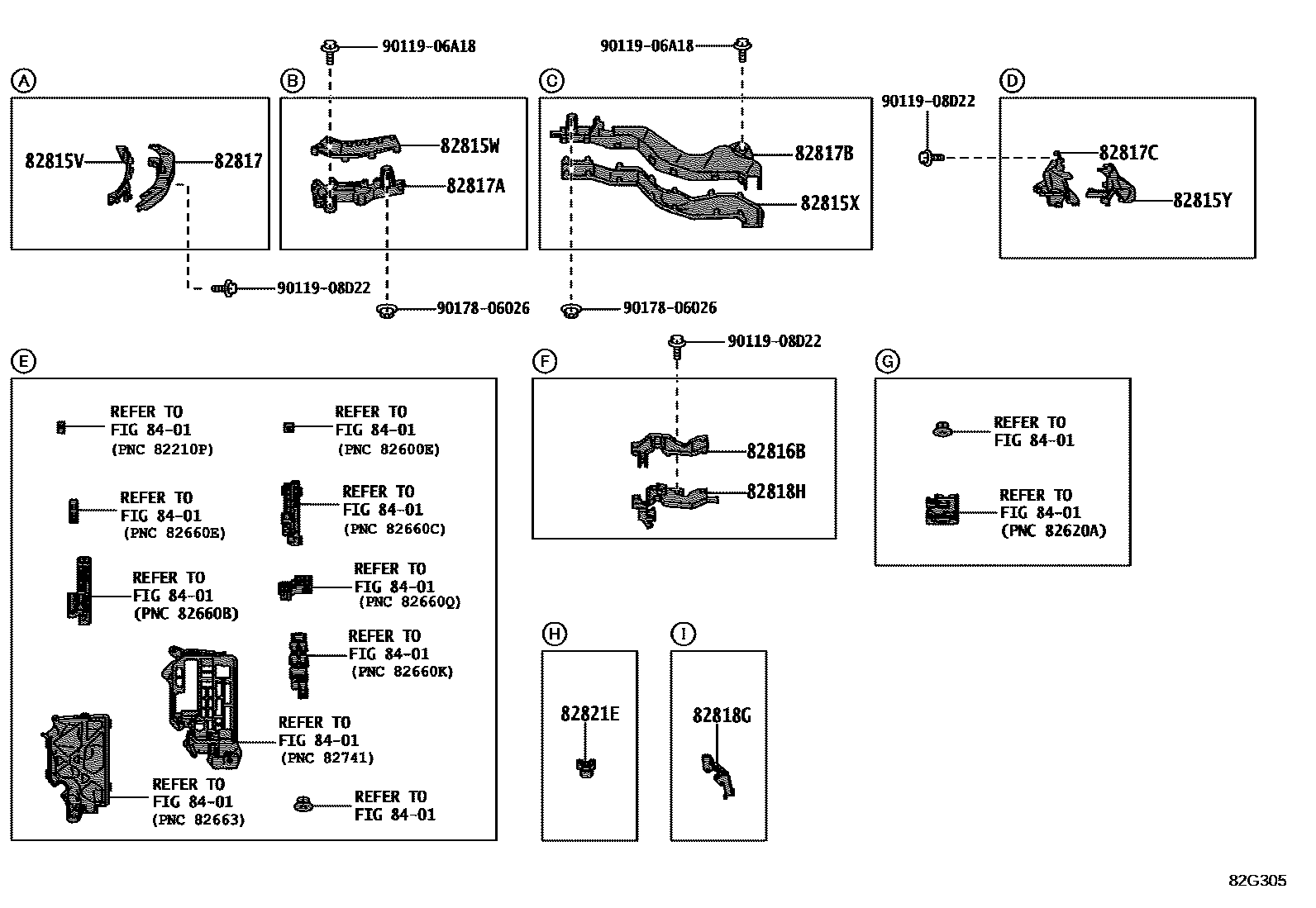

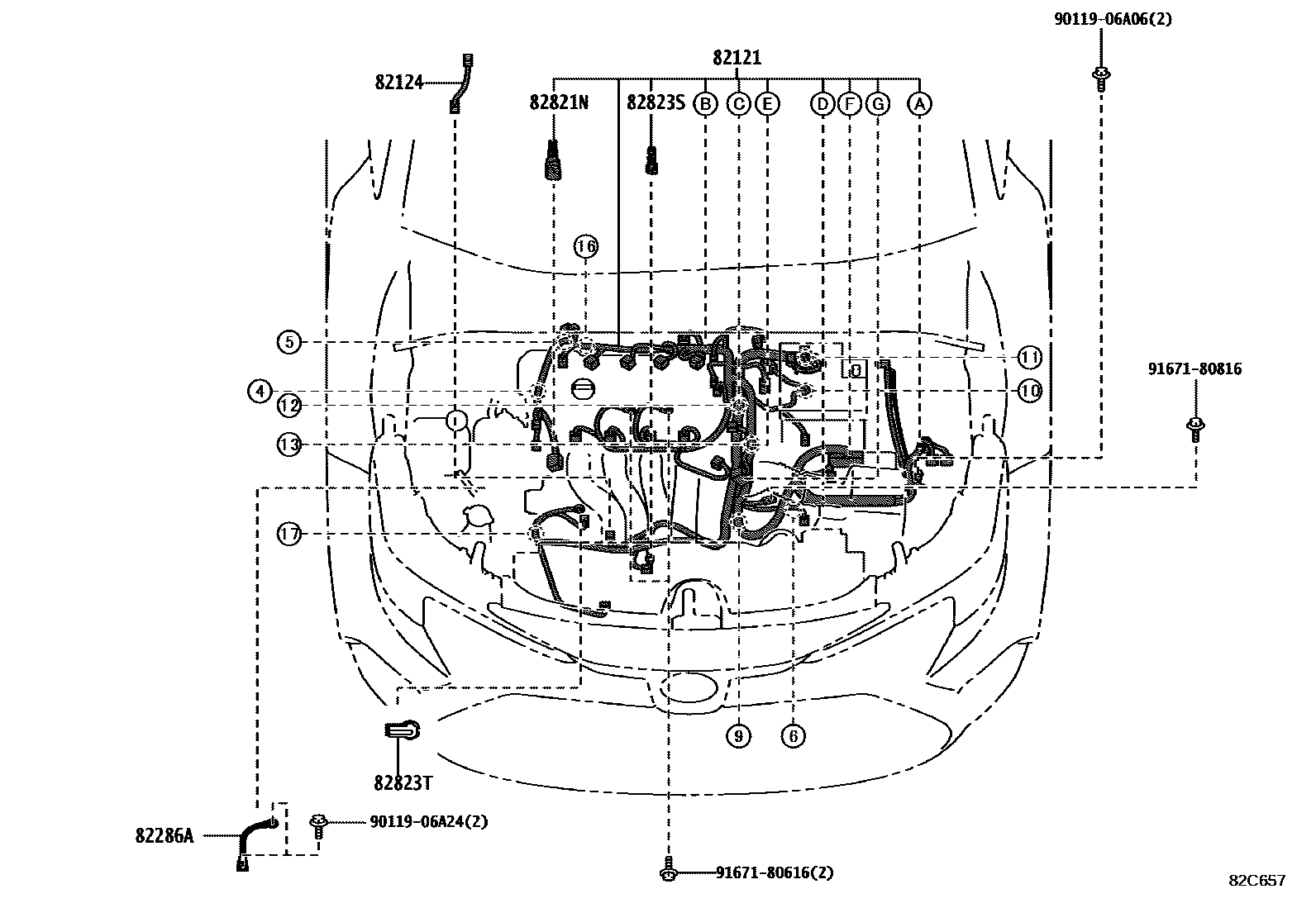

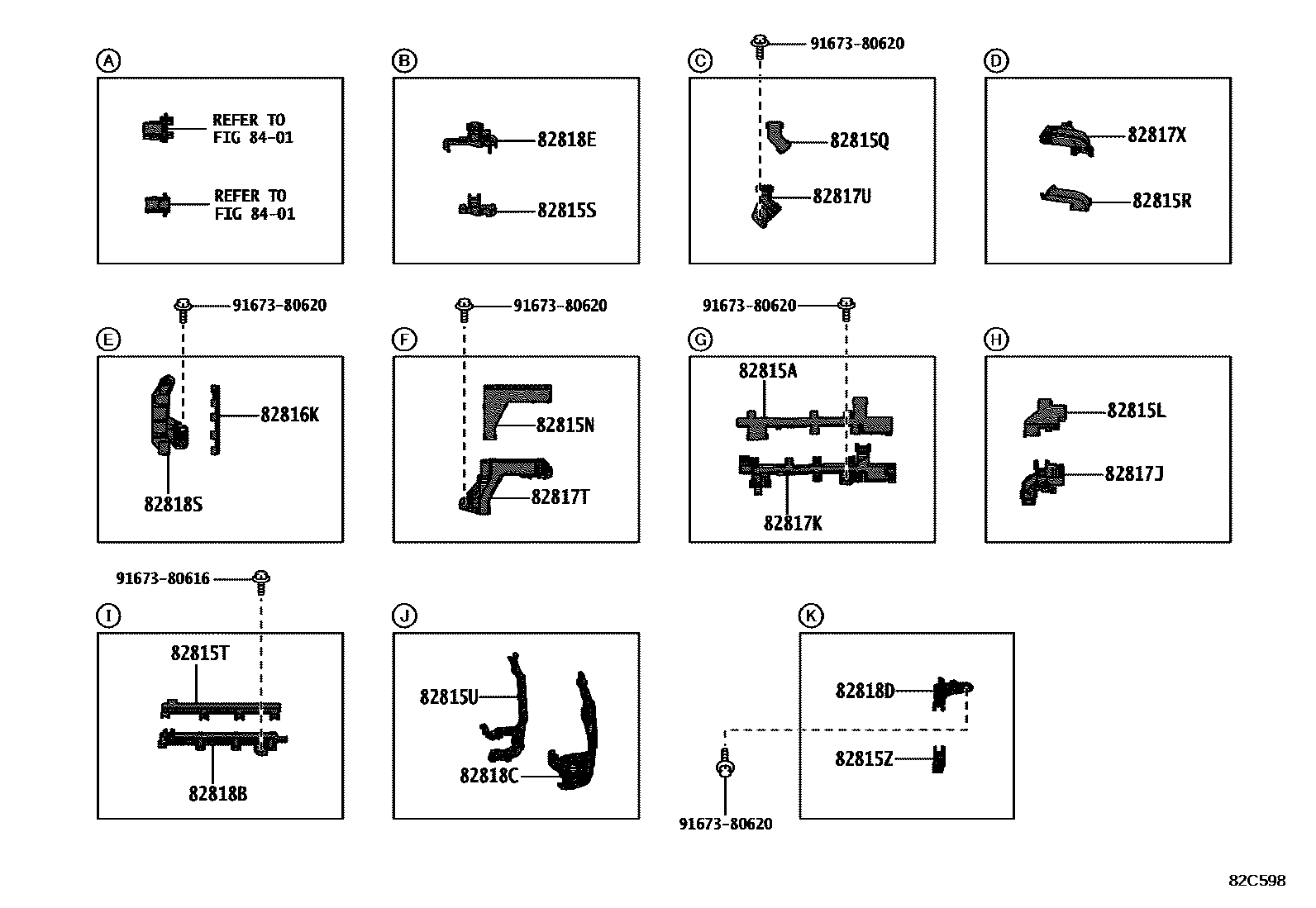

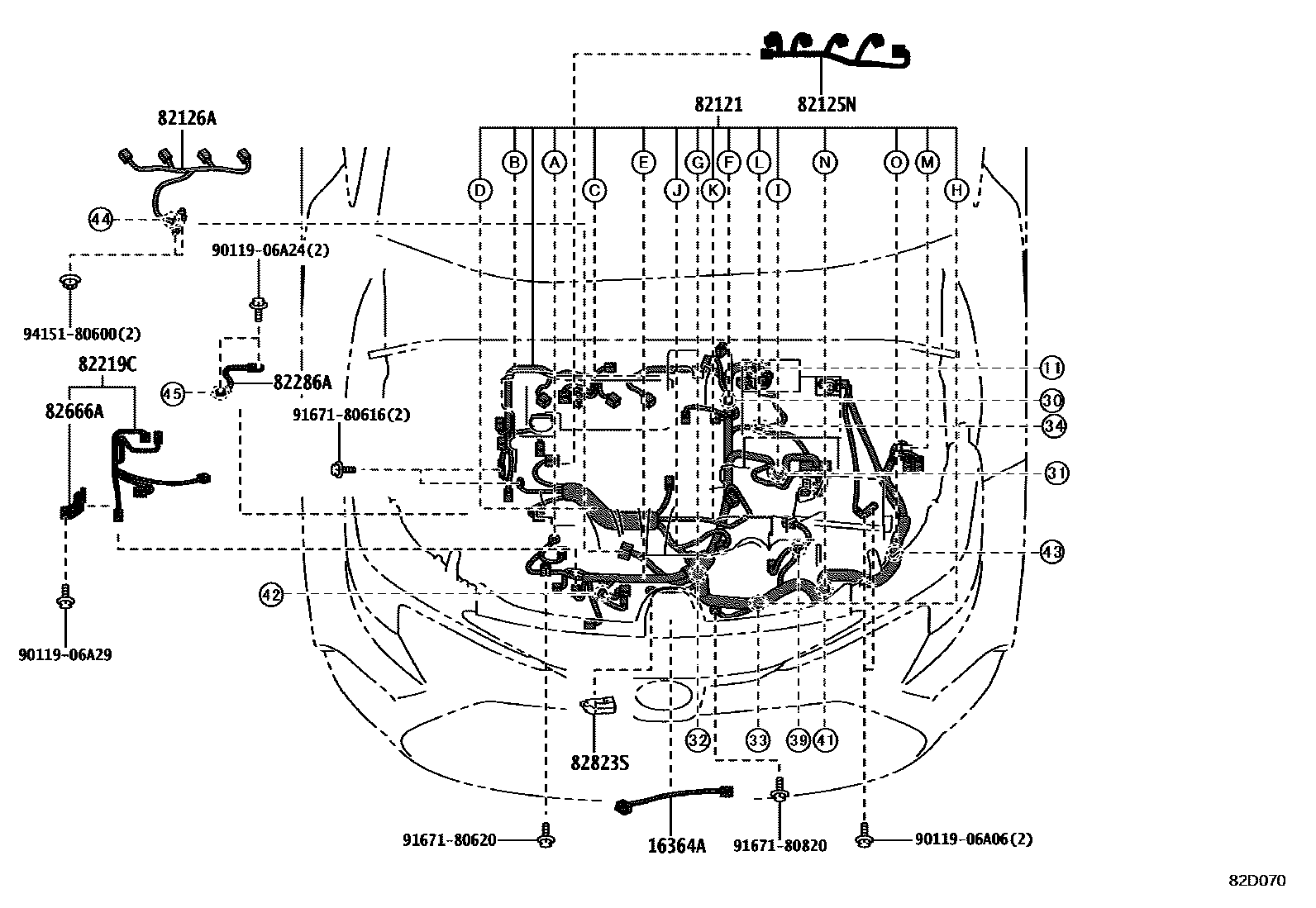

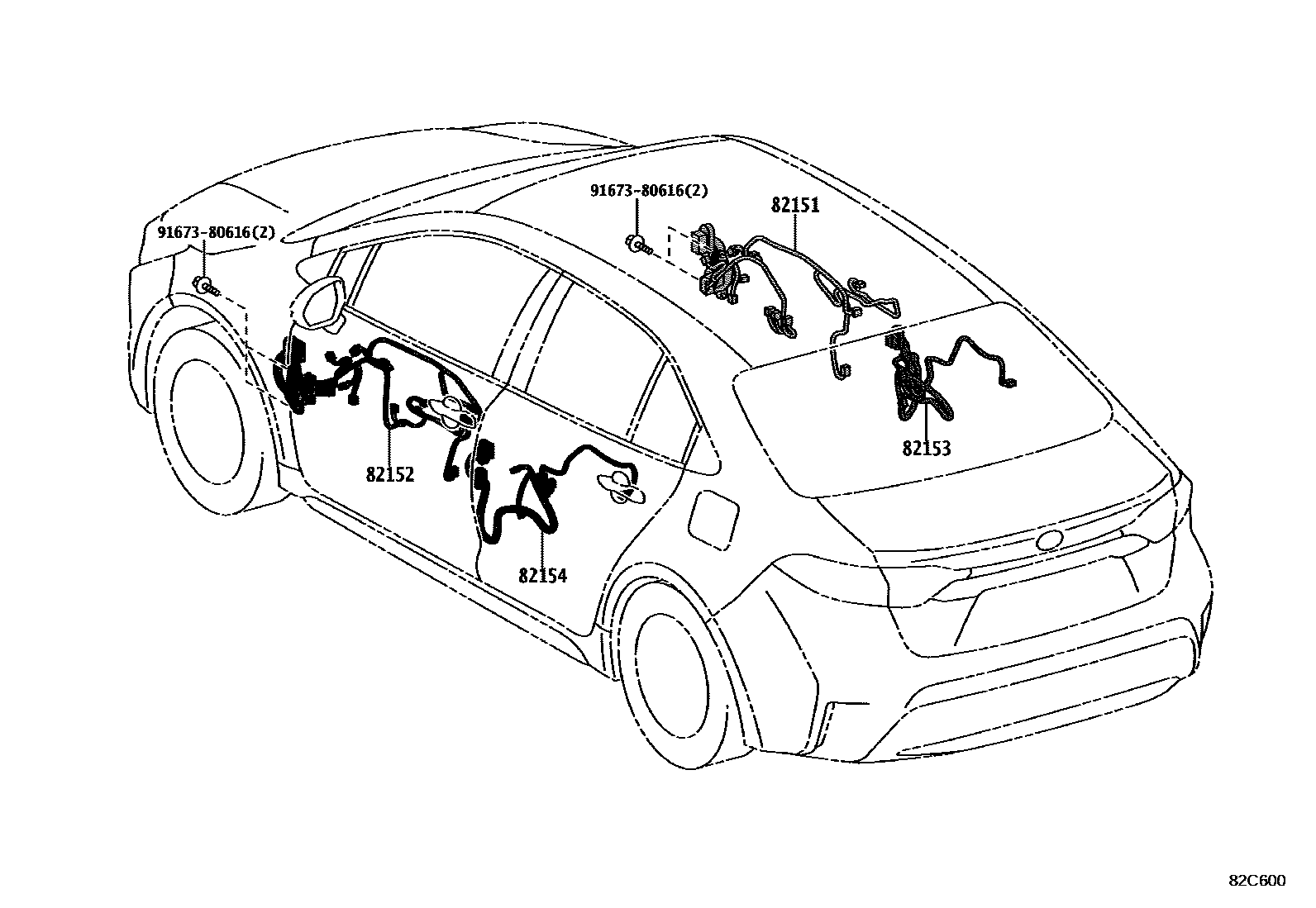

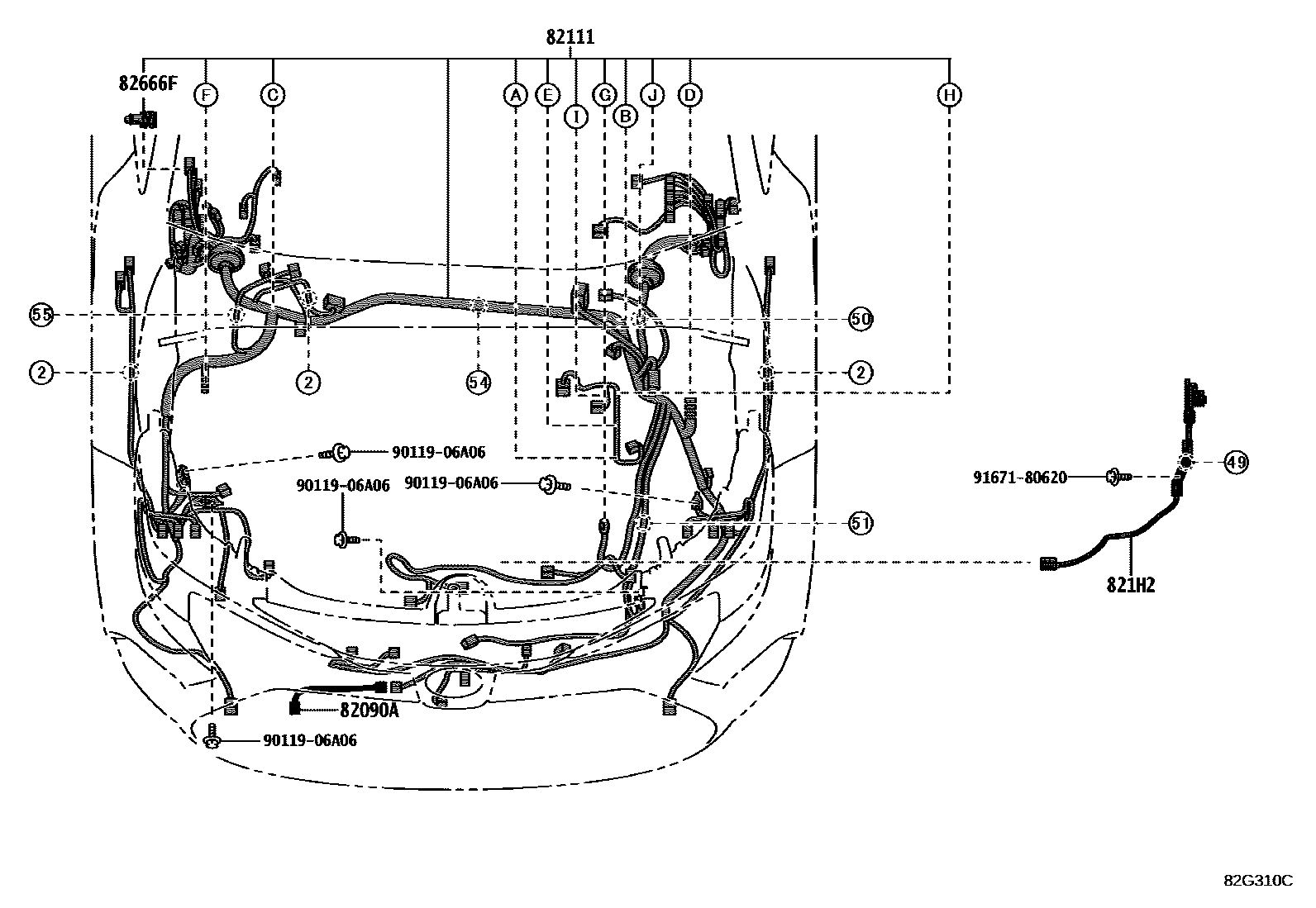

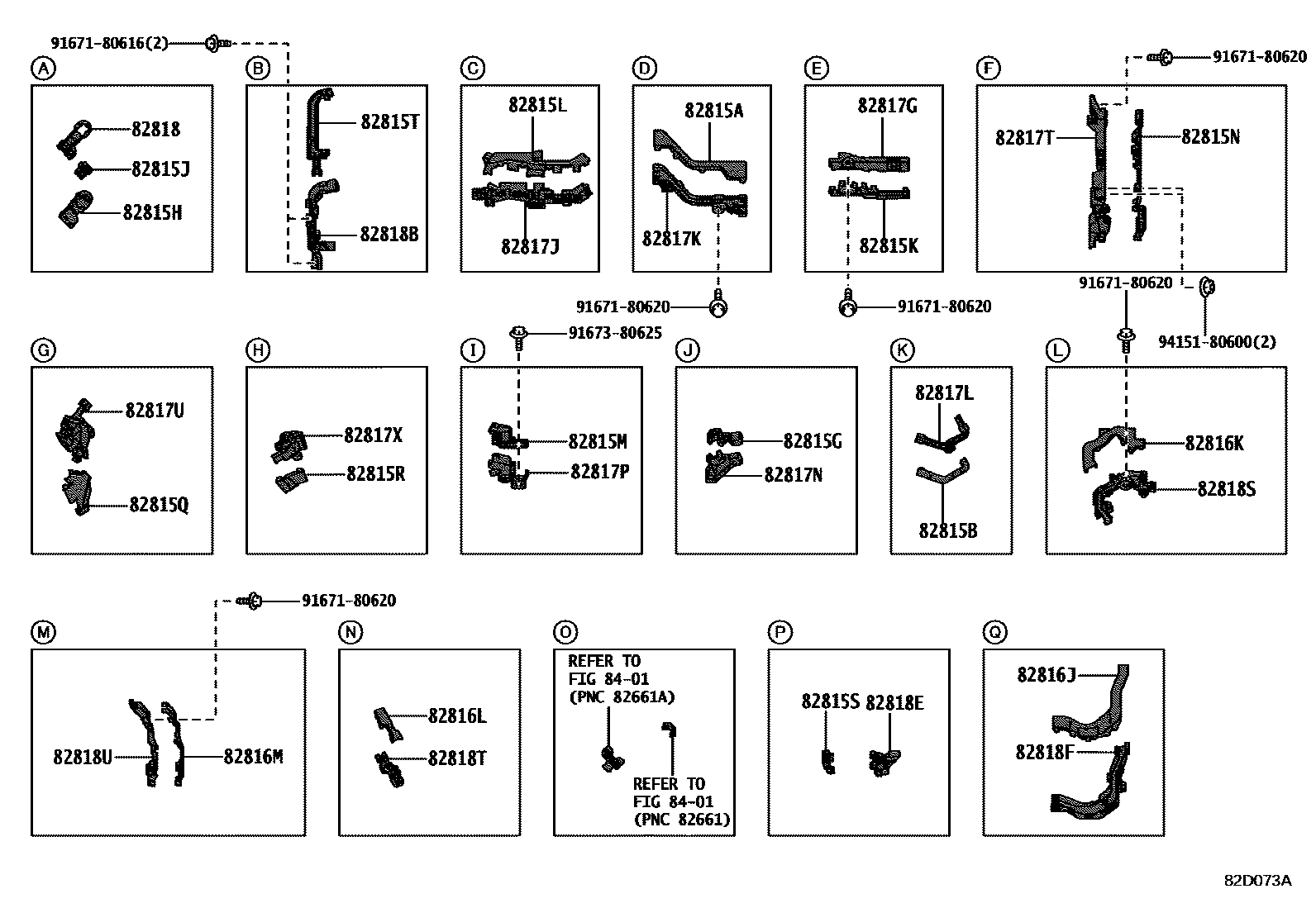

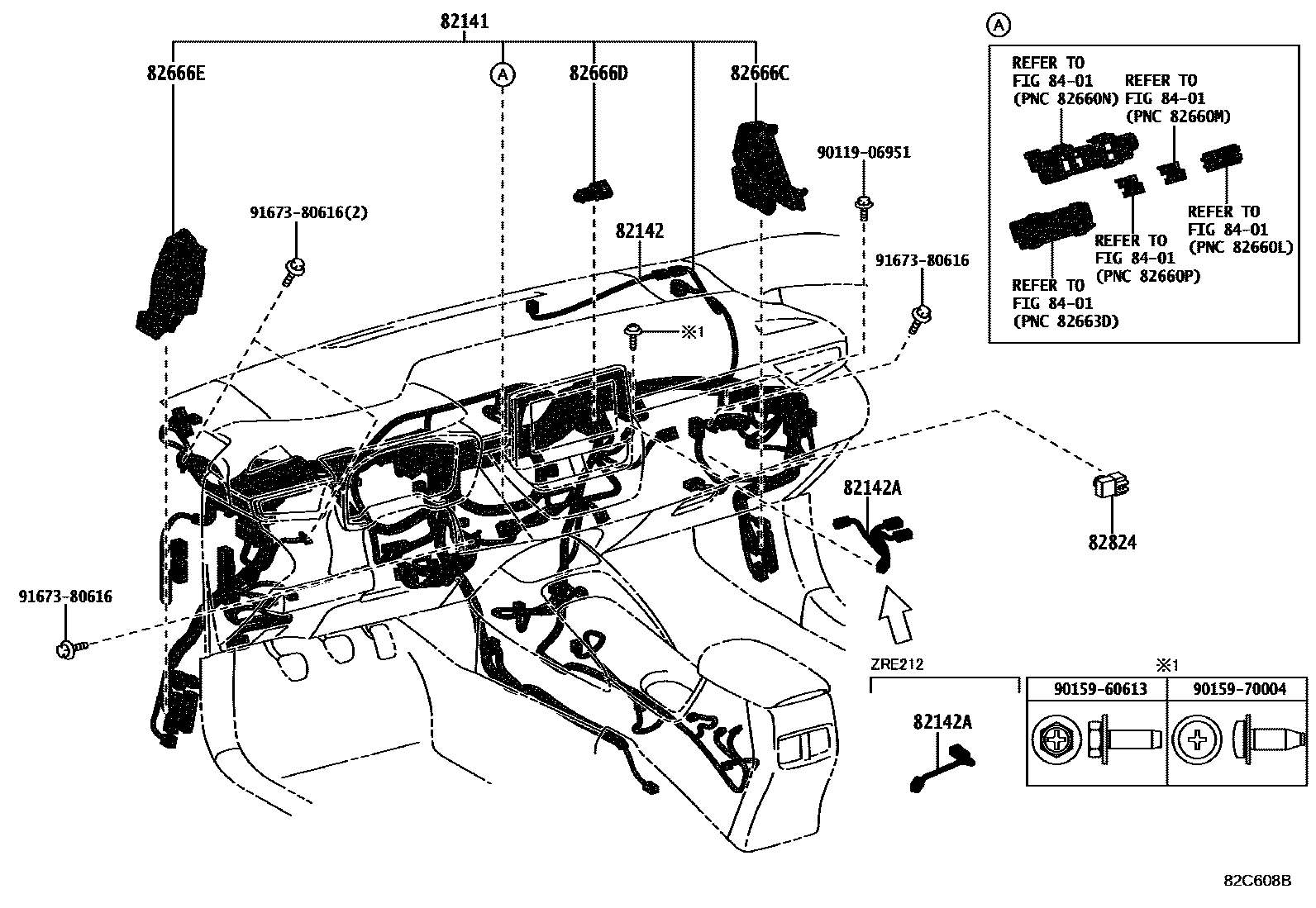

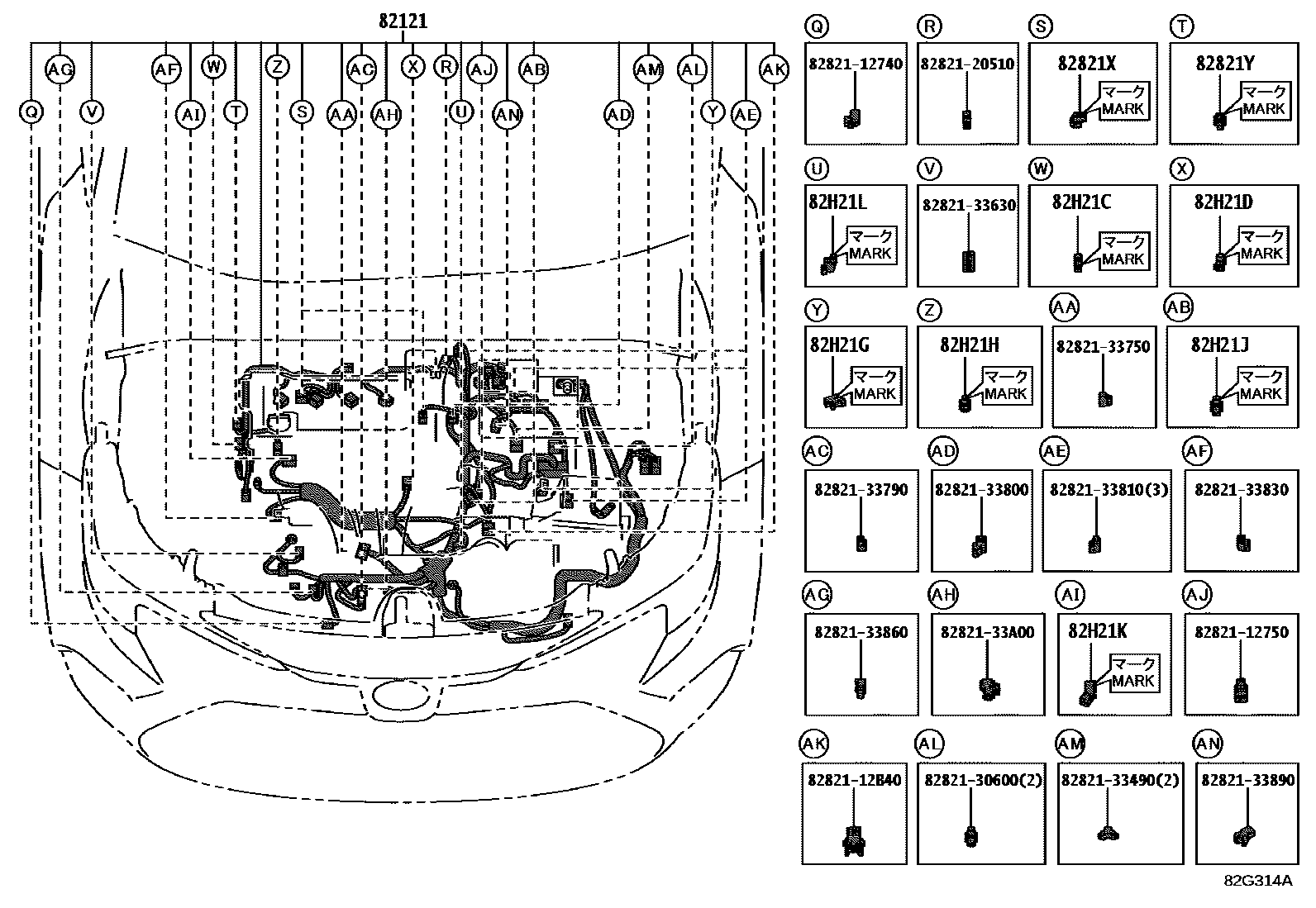

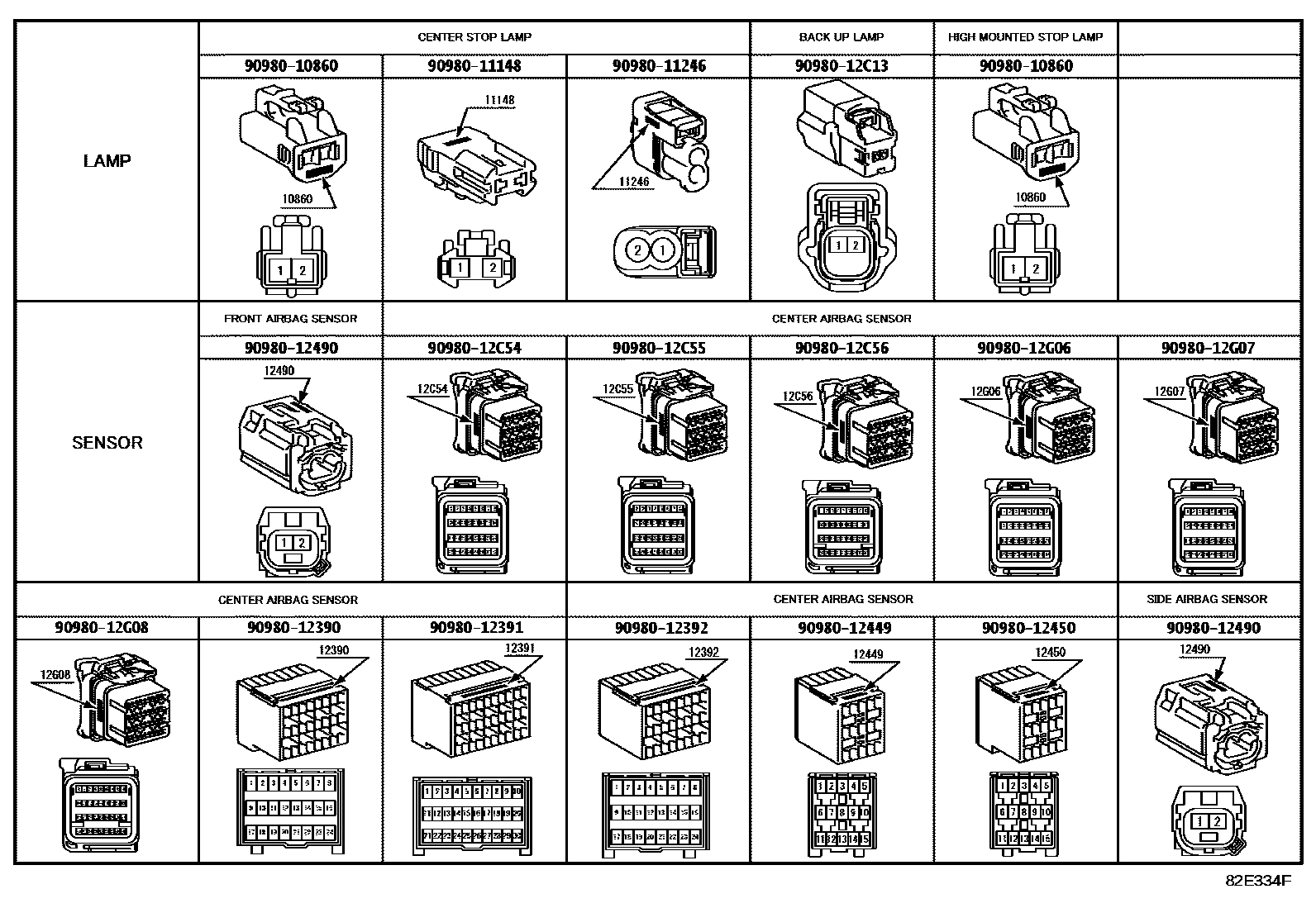

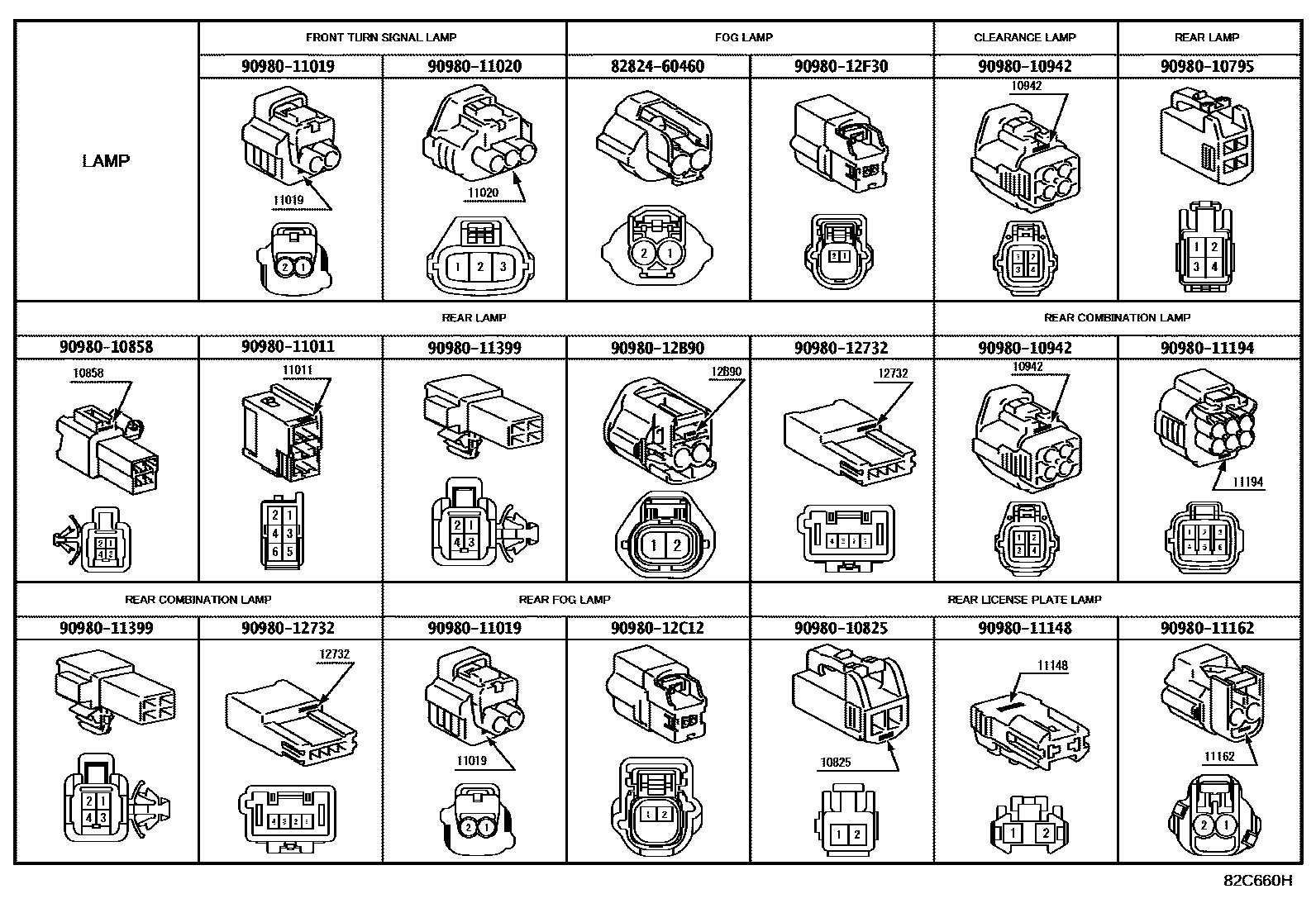

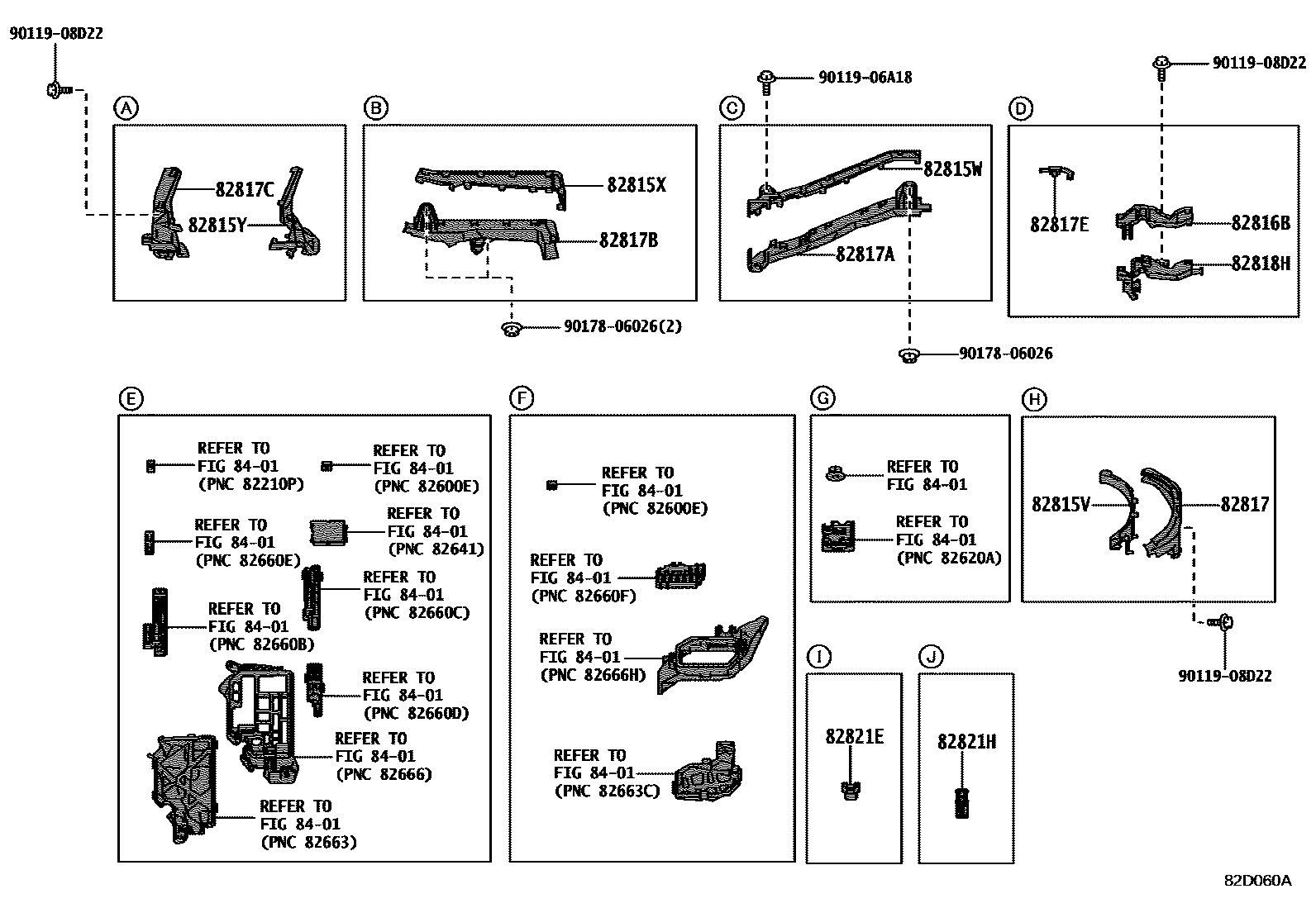

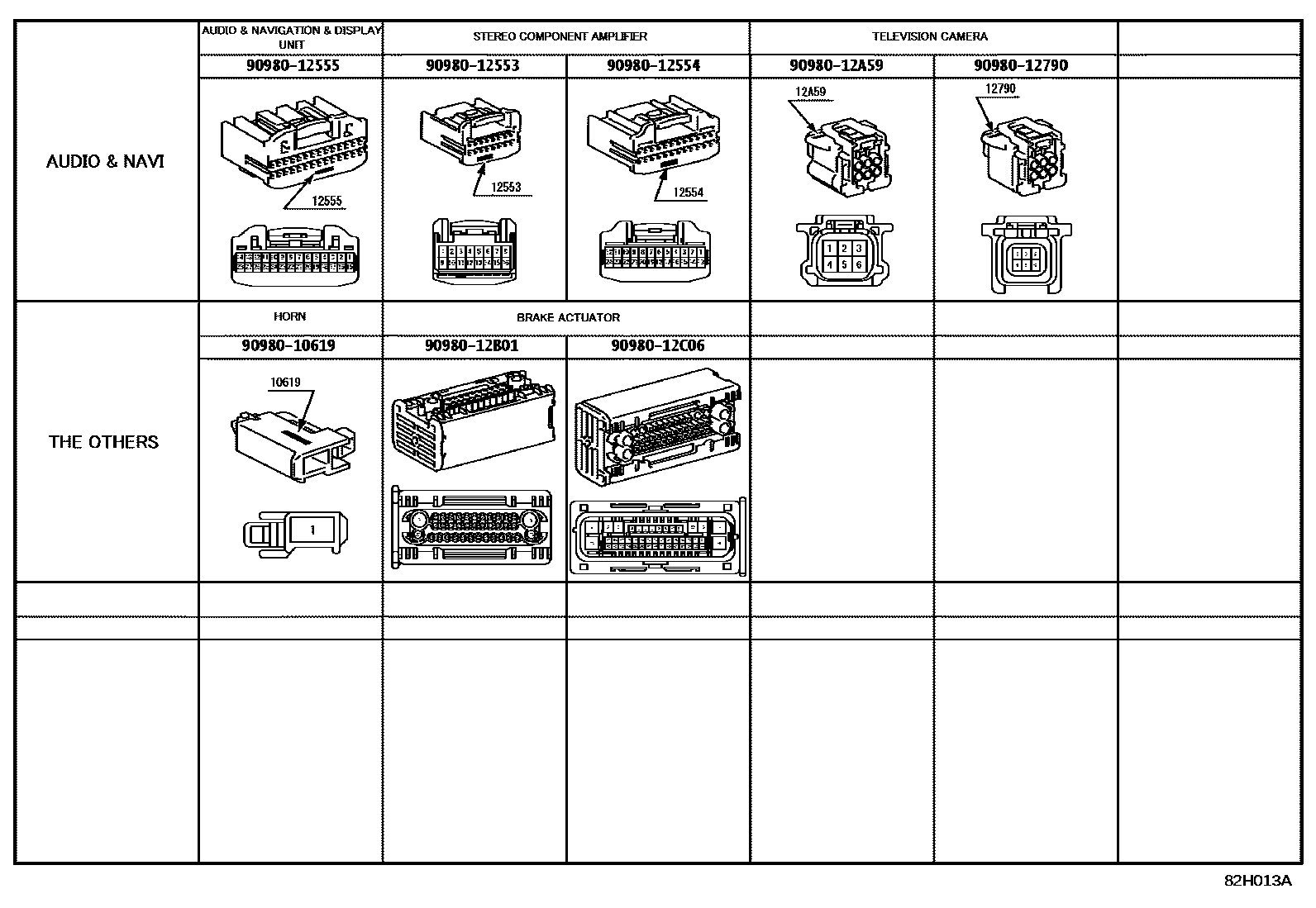

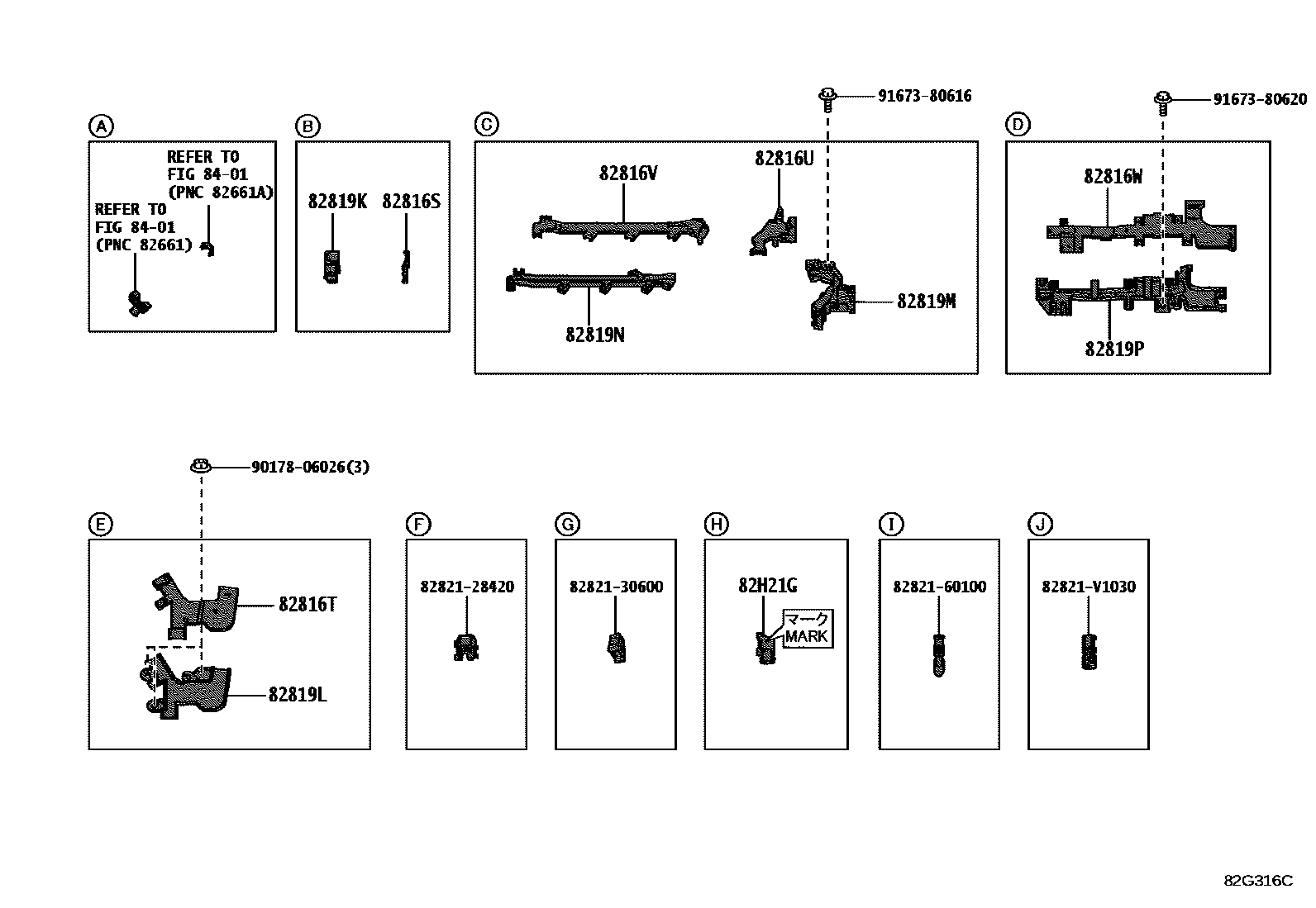

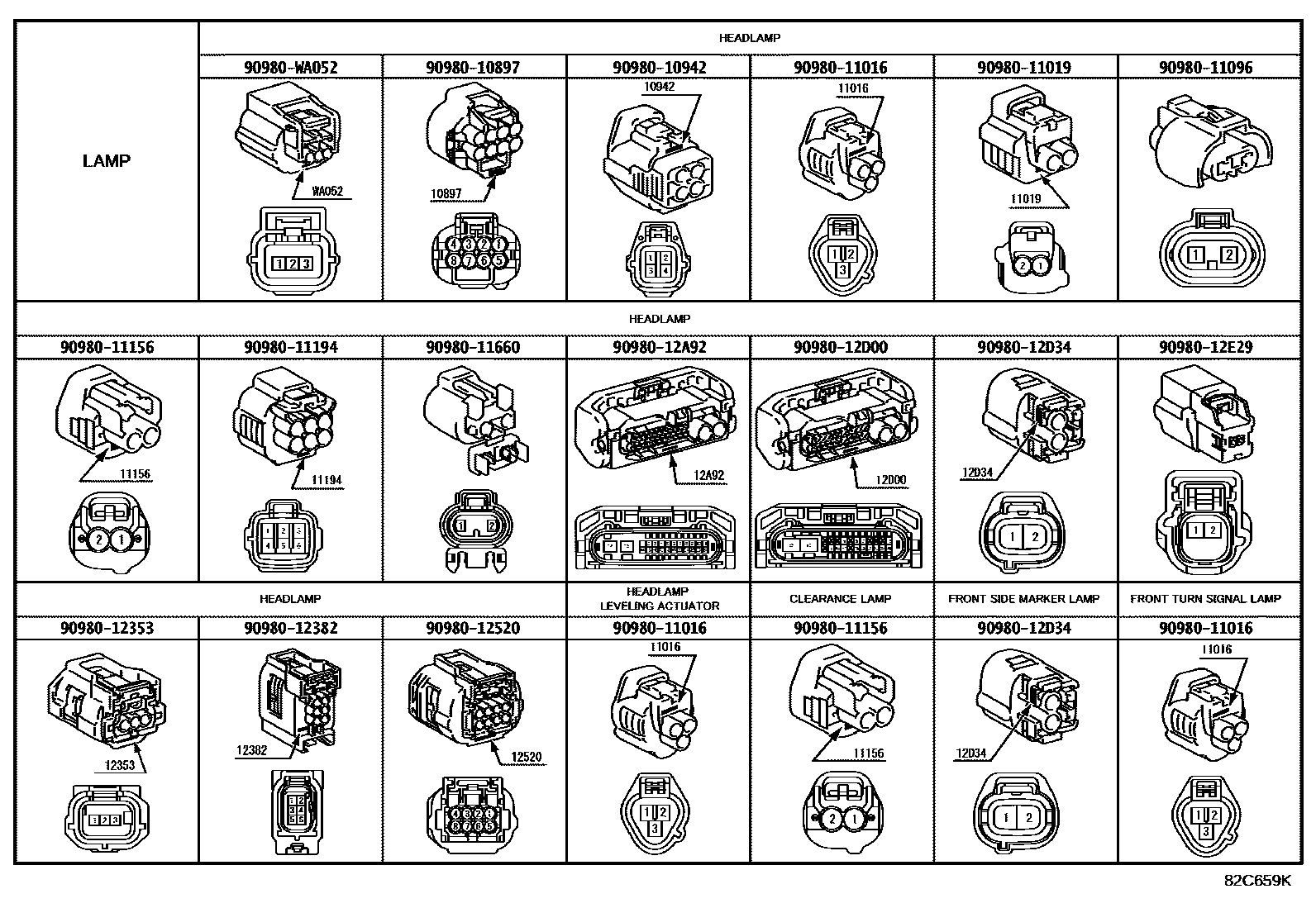

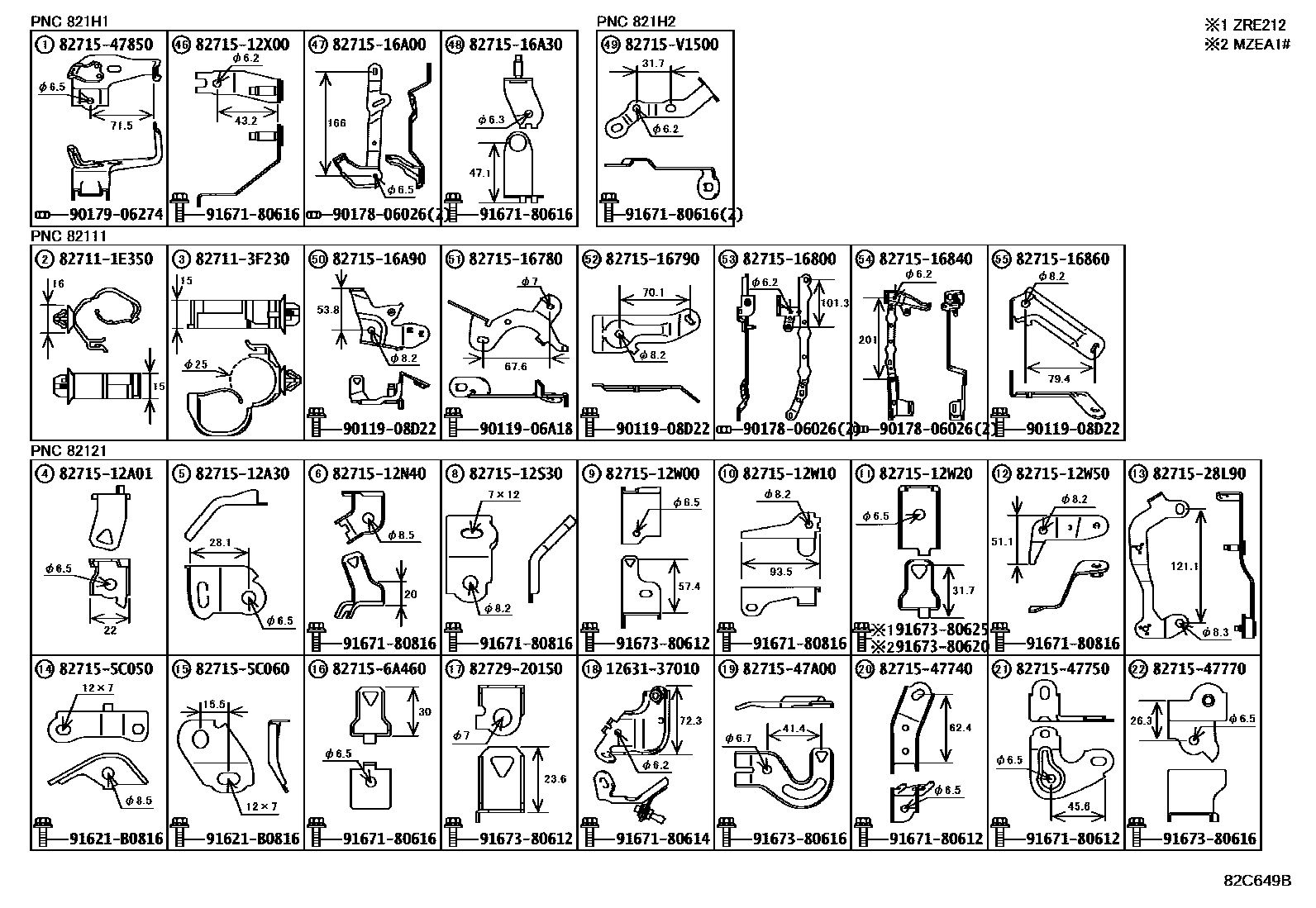

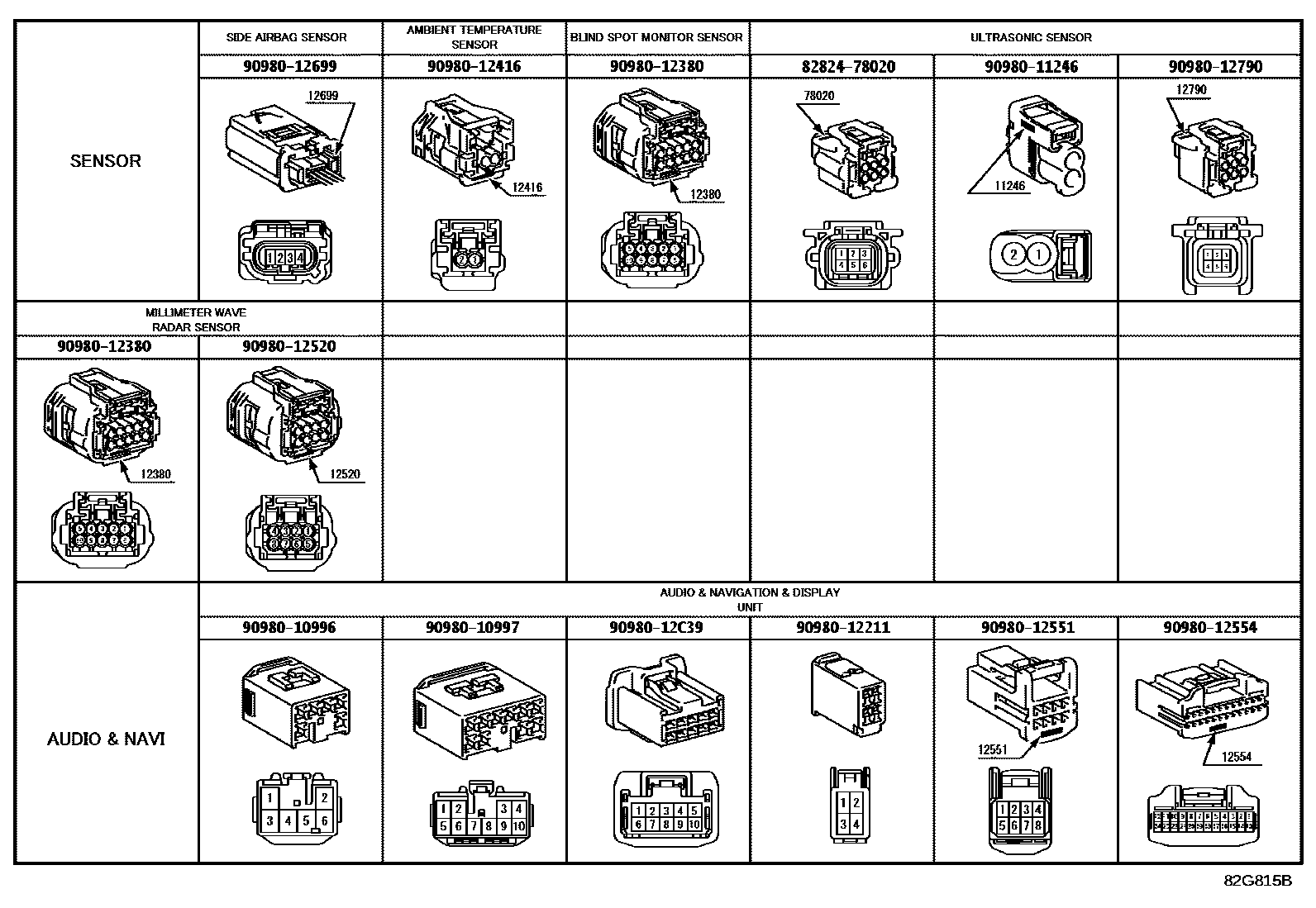

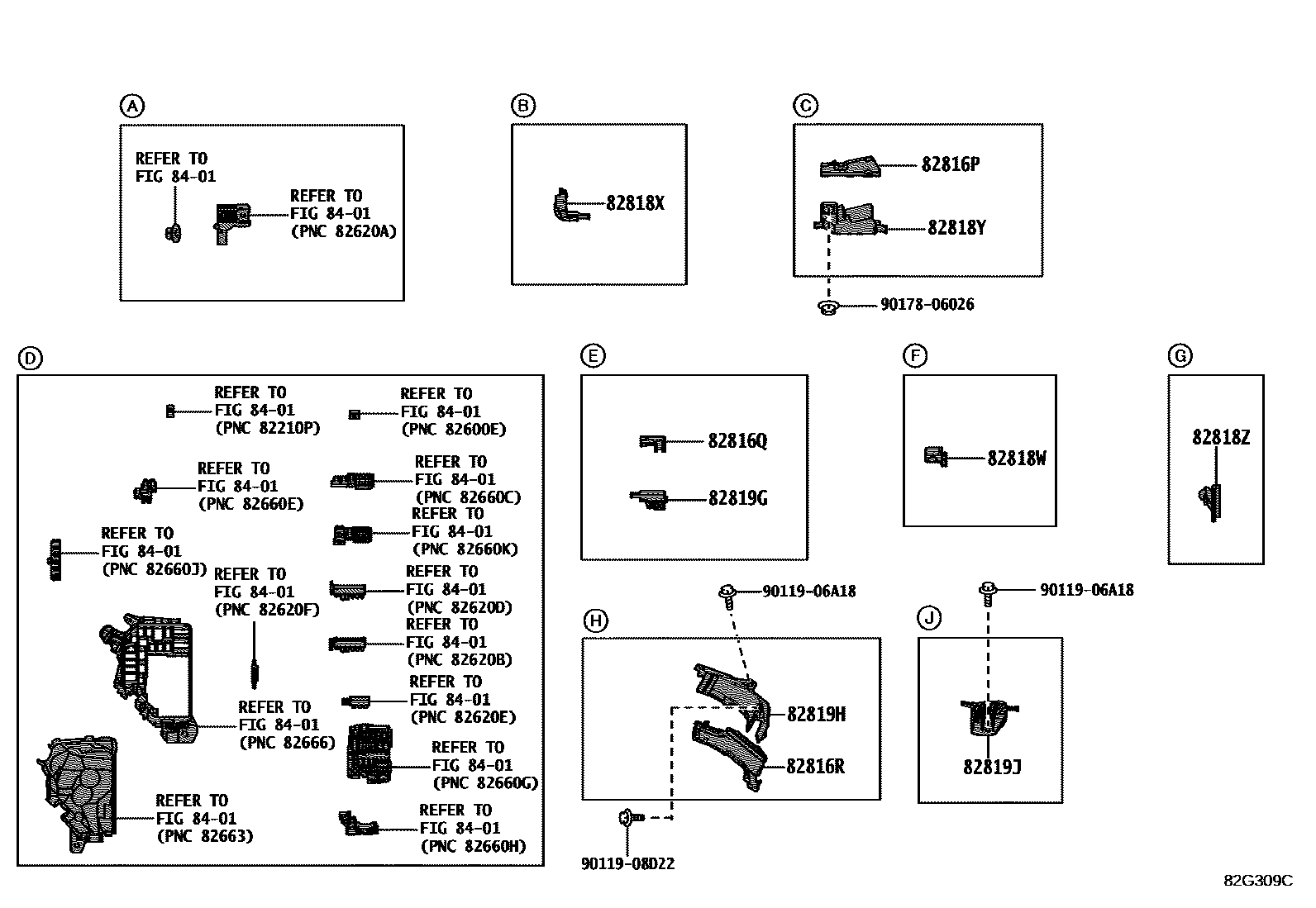

Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 51 images and 156 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16364A | Cooling fan harness | 16364-47010 |
| 82090A | Extension cord assembly | 82090-47020 |

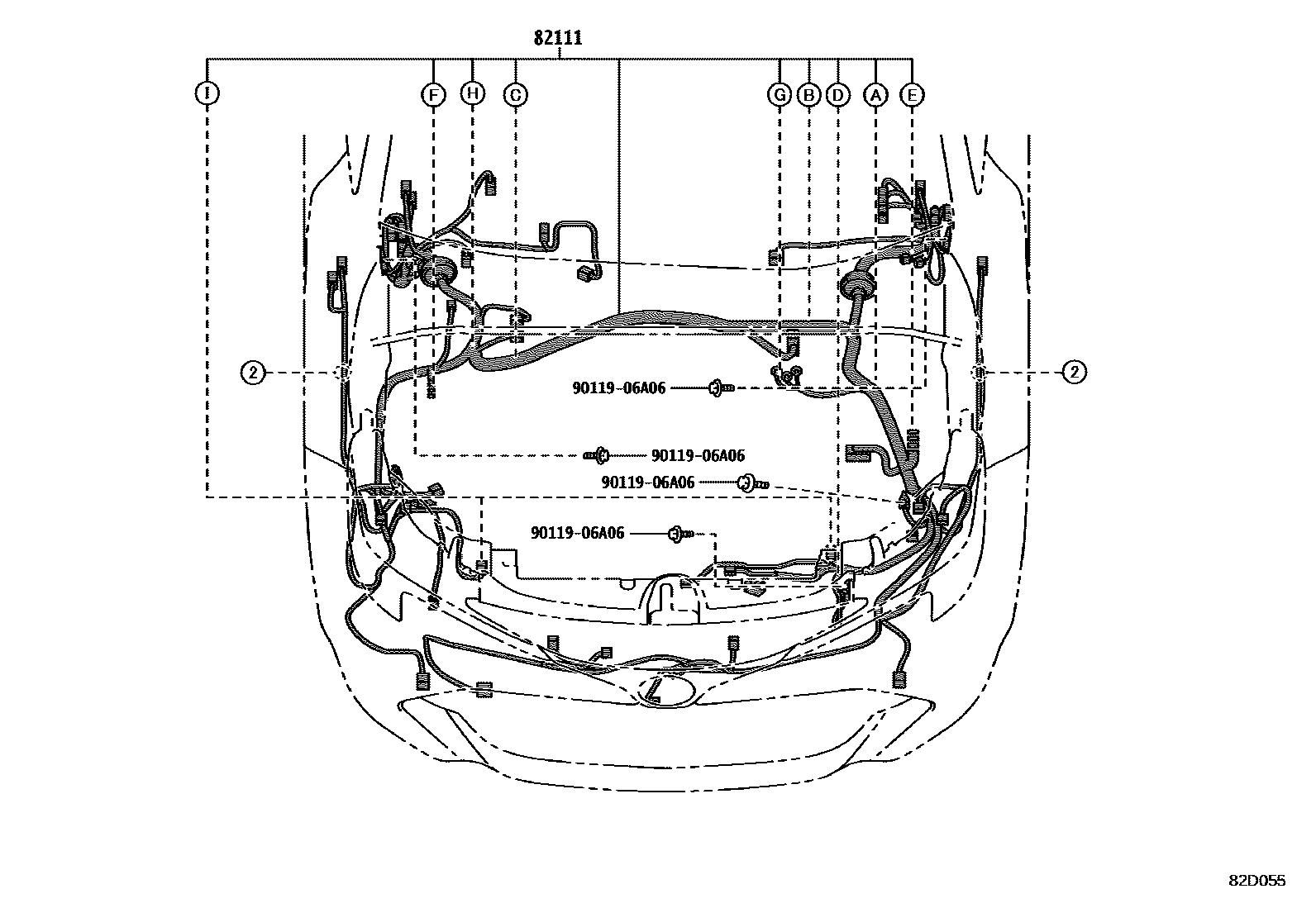

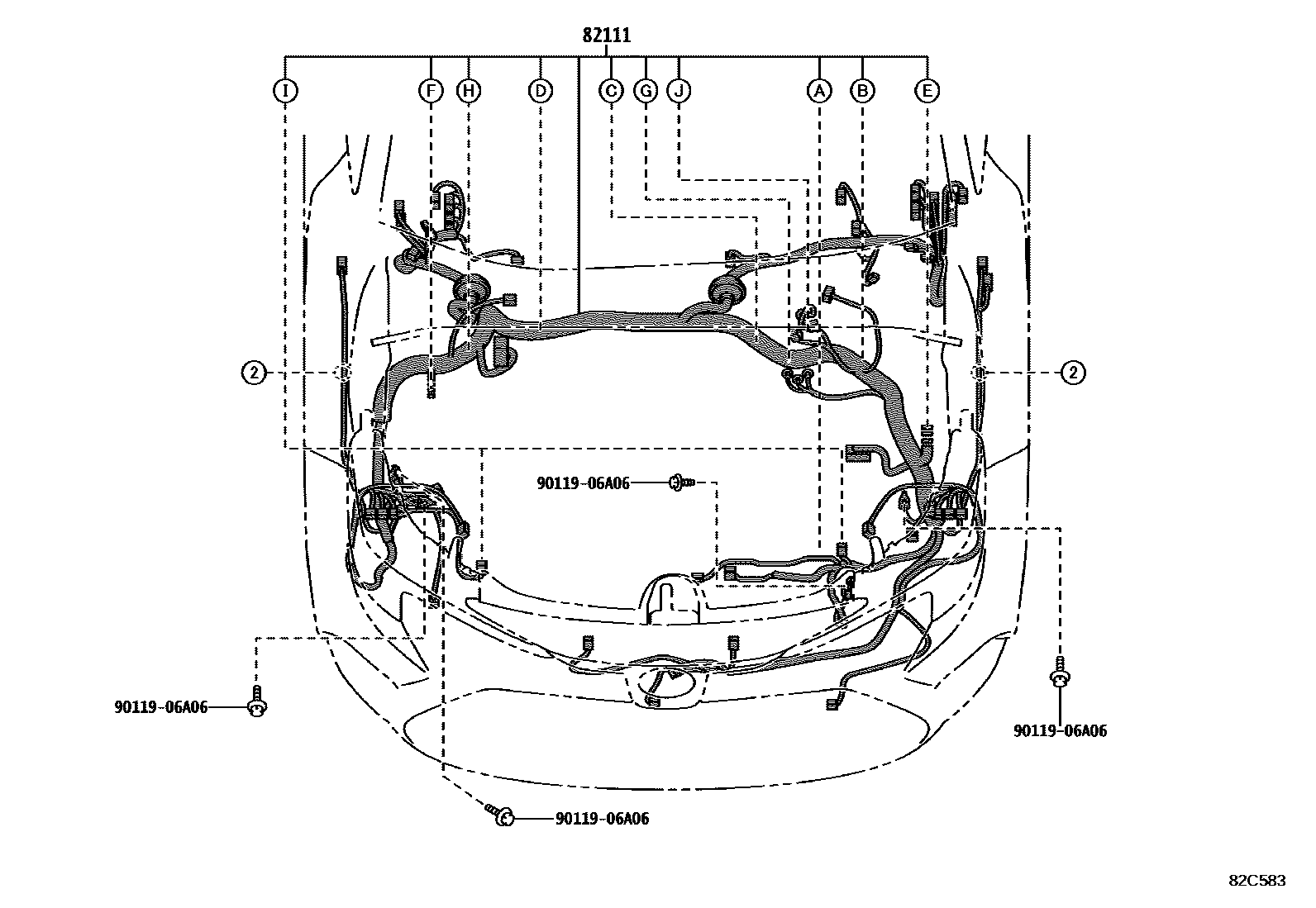

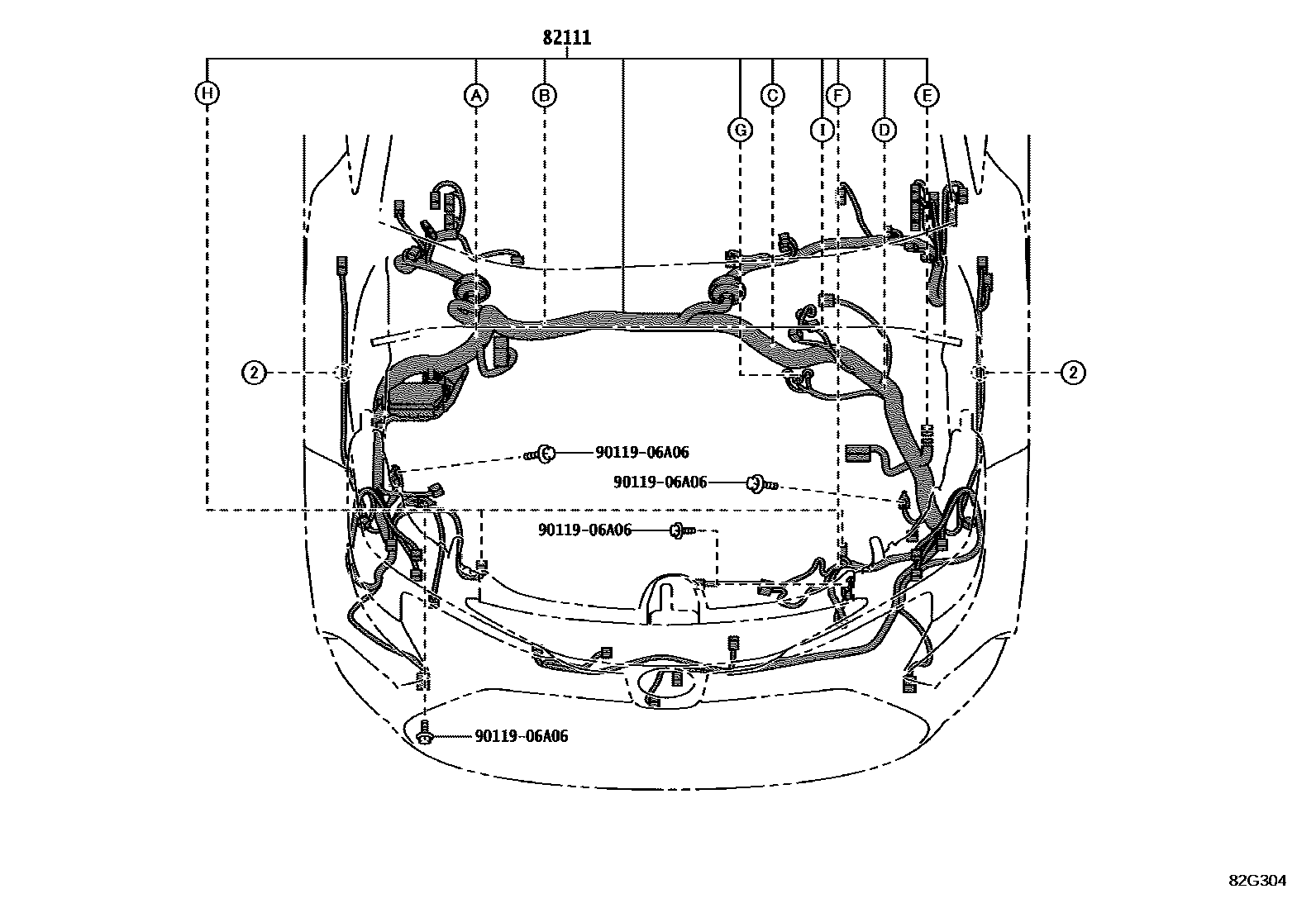

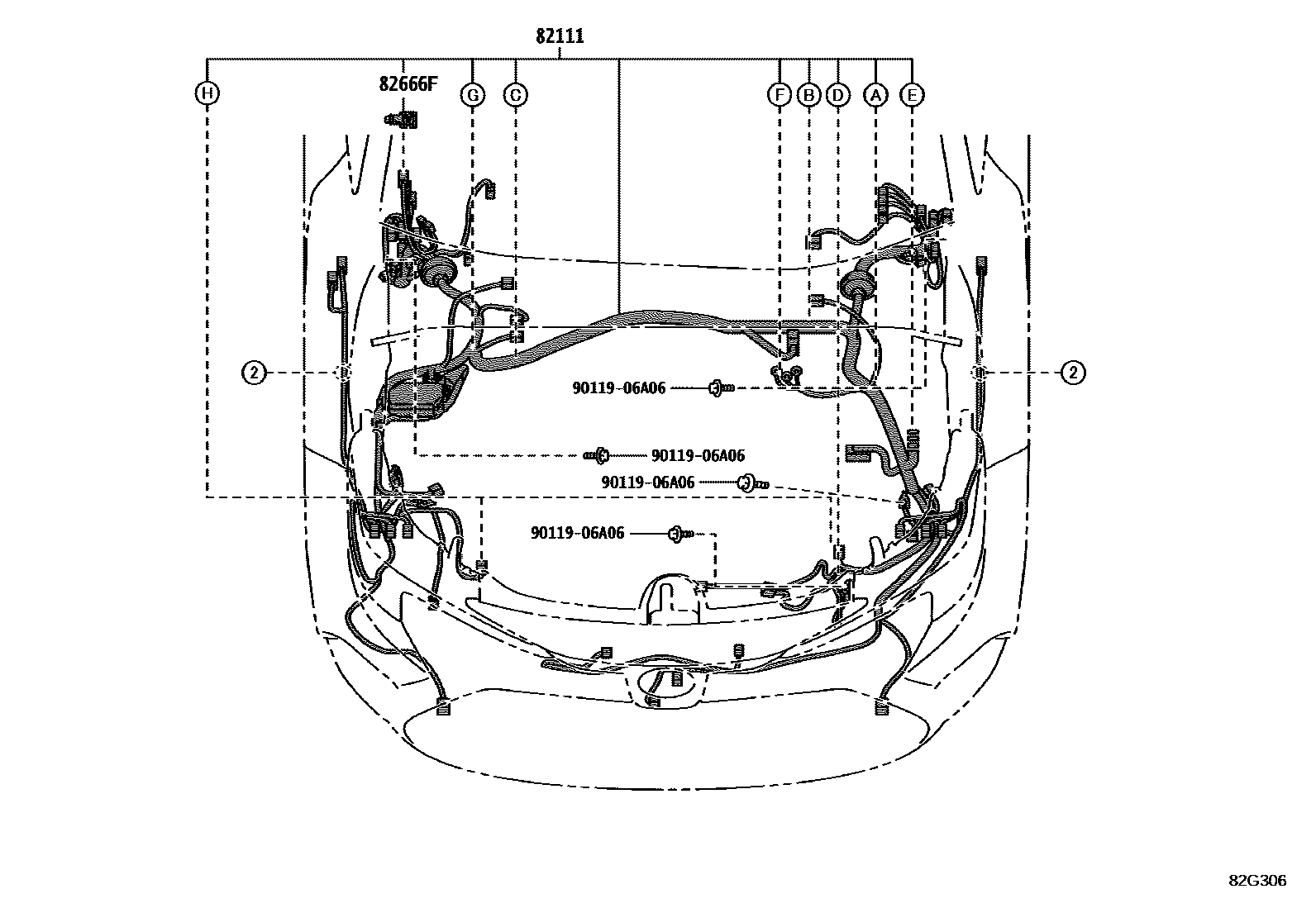

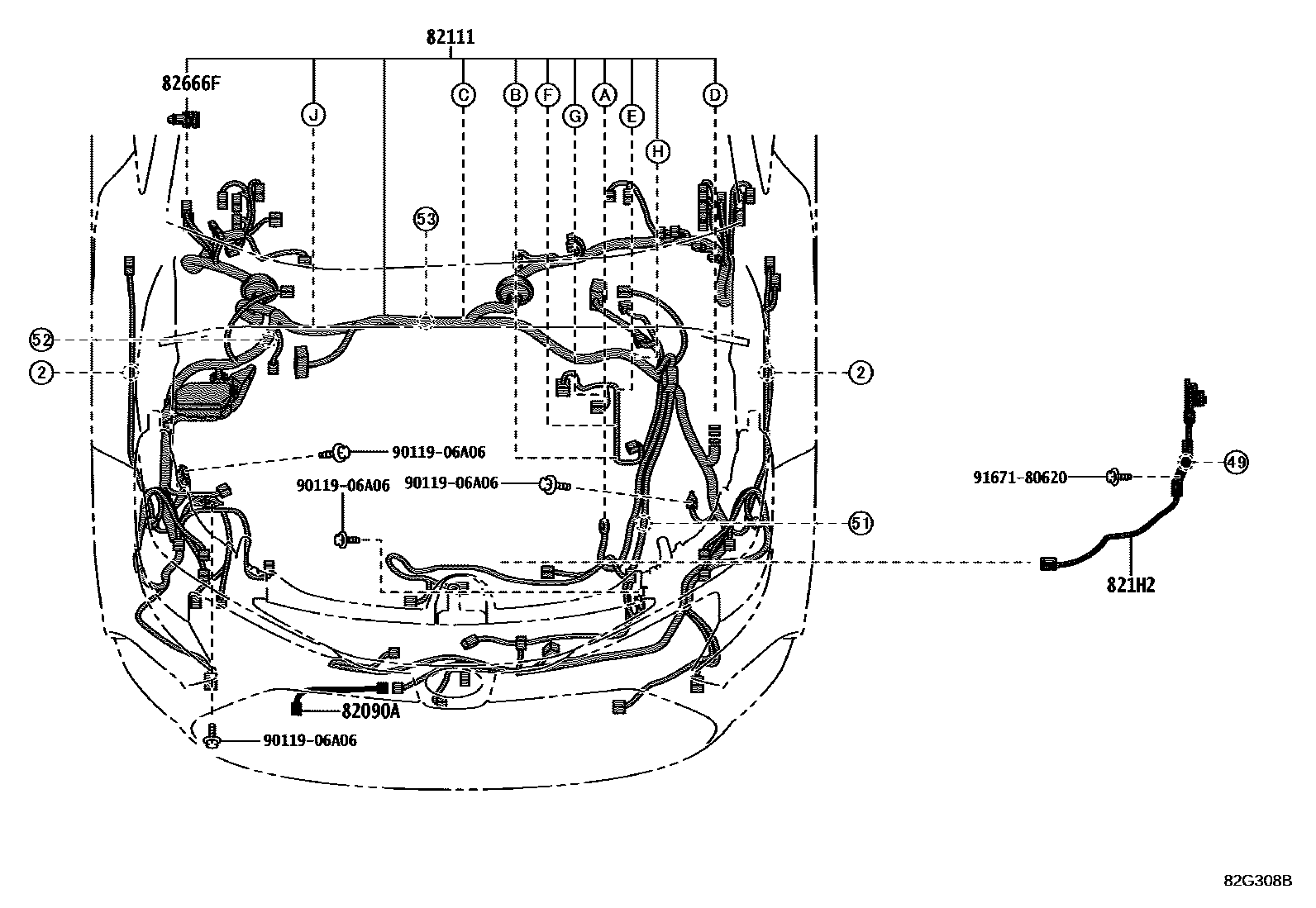

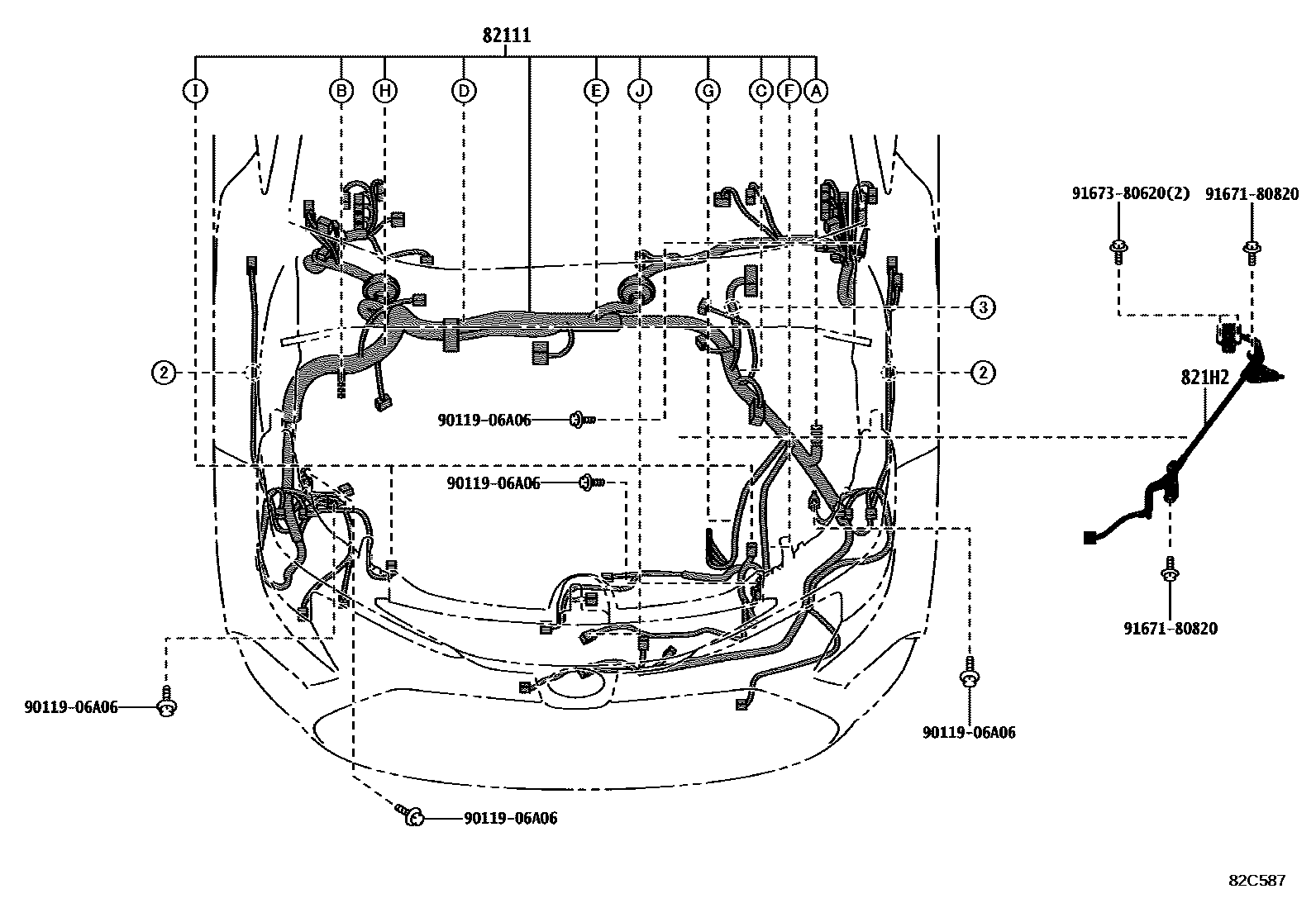

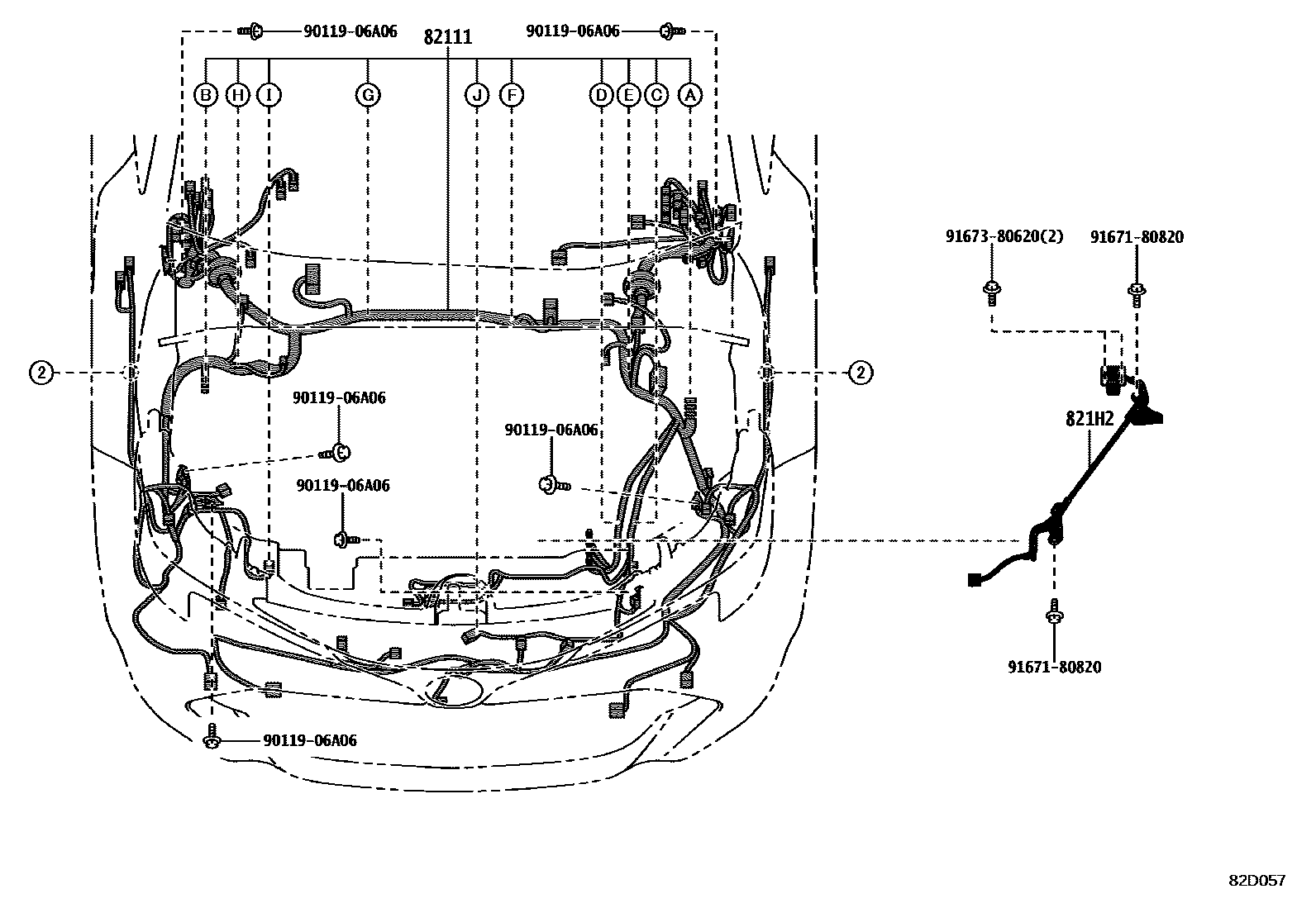

| 82111 | Engine room main wiring harness | 82111-1HQ60 · 82111-1HQ61 · 82111-1HQ62 · 82111-1HQ70 · 82111-1HQ71 · 82111-1HQ72 · 82111-1HR00 · 82111-1HR01 · 82111-1HR10 · 82111-1HR11 · 82111-1HR40 · 82111-1HR41 · 82111-1HR42 · 82111-1HR50 · 82111-1HR51 · 82111-1HR52 · 82111-1HS00 · 82111-1HX90 · 82111-1HY00 · 82111-1HY10 · 82111-1HY40 · 82111-1KD00 · 82111-1KD01 · 82111-1KD30 · 82111-1KD31 · 82111-1KD40 · 82111-1KD41 · 82111-1KD80 · 82111-1KD81 · 82111-1KD90 · 82111-1KD91 · 82111-1KE30 · 82111-1KE31 · 82111-1KE50 · 82111-1KE51 · 82111-1KE60 · 82111-1KE61 · 82111-1KE70 · 82111-1KE71 · 82111-1KE80 · 82111-1KE81 · 82111-1KK20 · 82111-1KK21 · 82111-1KK50 · 82111-1KK51 · 82111-1KK60 · 82111-1KK61 · 82111-1KK80 · 82111-1KM40 · 82111-1KM41 · 82111-1KN10 · 82111-1KN11 · 82111-1KN20 · 82111-1KN21 · 82111-1KN30 · 82111-1KN31 · 82111-1KS50 · 82111-1KS60 · 82111-1KS70 · 82111-1KS80 · 82111-1KS90 · 82111-1KT10 · 82111-1KT20 · 82111-1KT30 · 82111-1KT40 · 82111-1KT50 · 82111-1KT70 · 82111-1KT90 · 82111-1KU00 · 82111-1KU10 · 82111-1KU20 · 82111-1KU30 · 82111-1KU40 · 82111-1L320 · 82111-1L330 · 82111-1L540 · 82111-1L541 · 82111-1L542 · 82111-1L543 · 82111-1L550 · 82111-1L551 · 82111-1L552 · 82111-1L570 · 82111-1L580 · 82111-1LA10 · 82111-1LA11 · 82111-1LA12 |

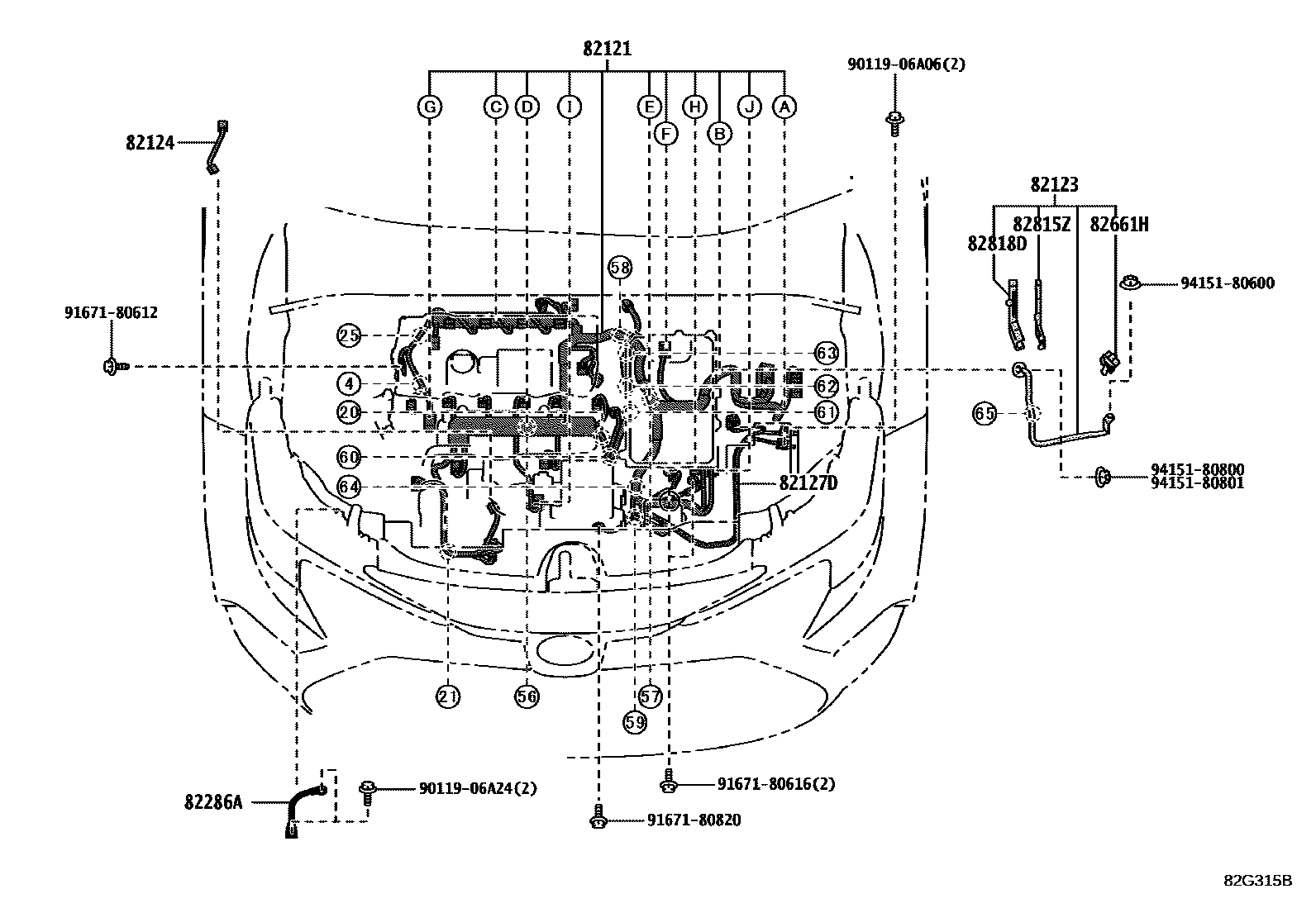

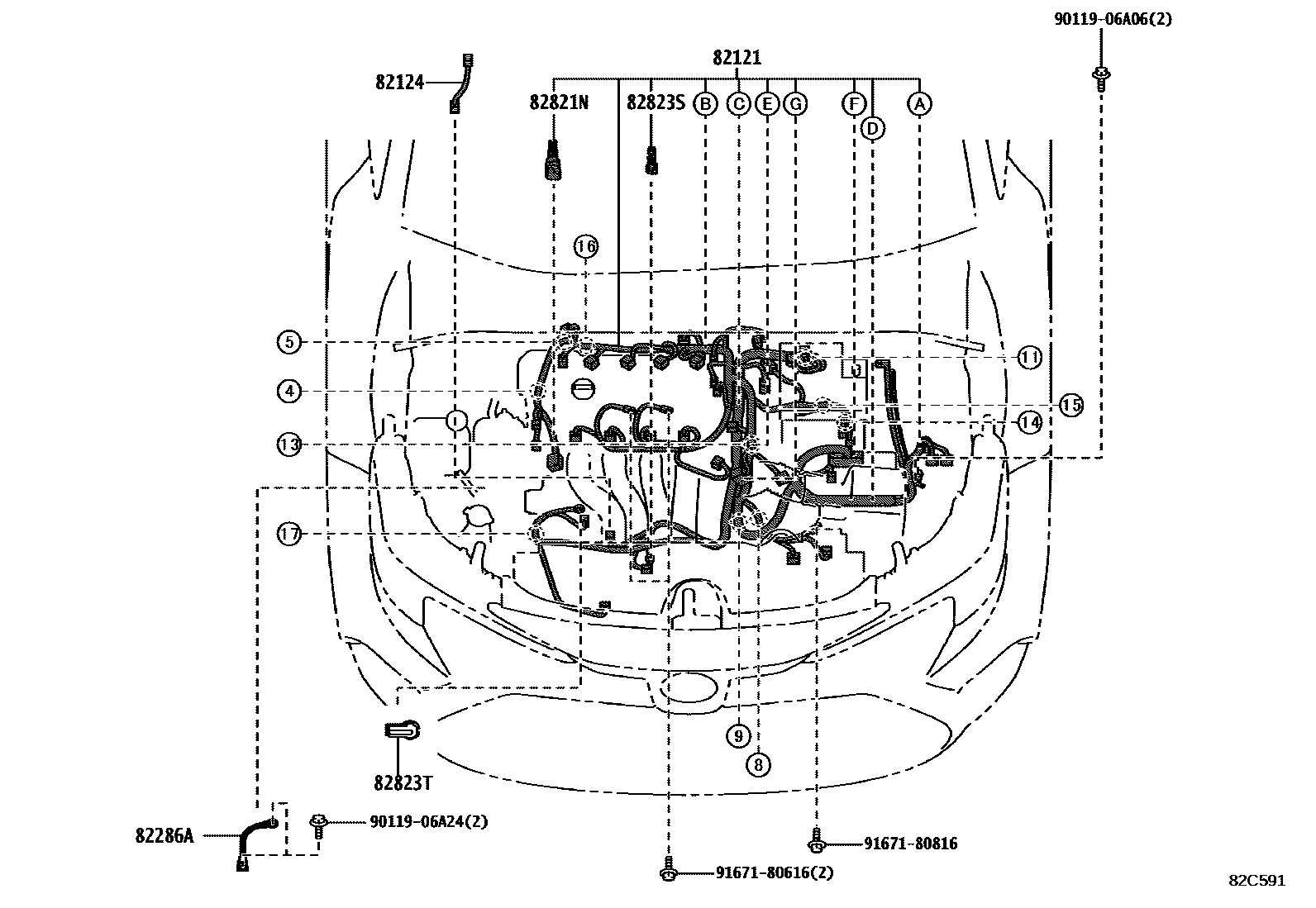

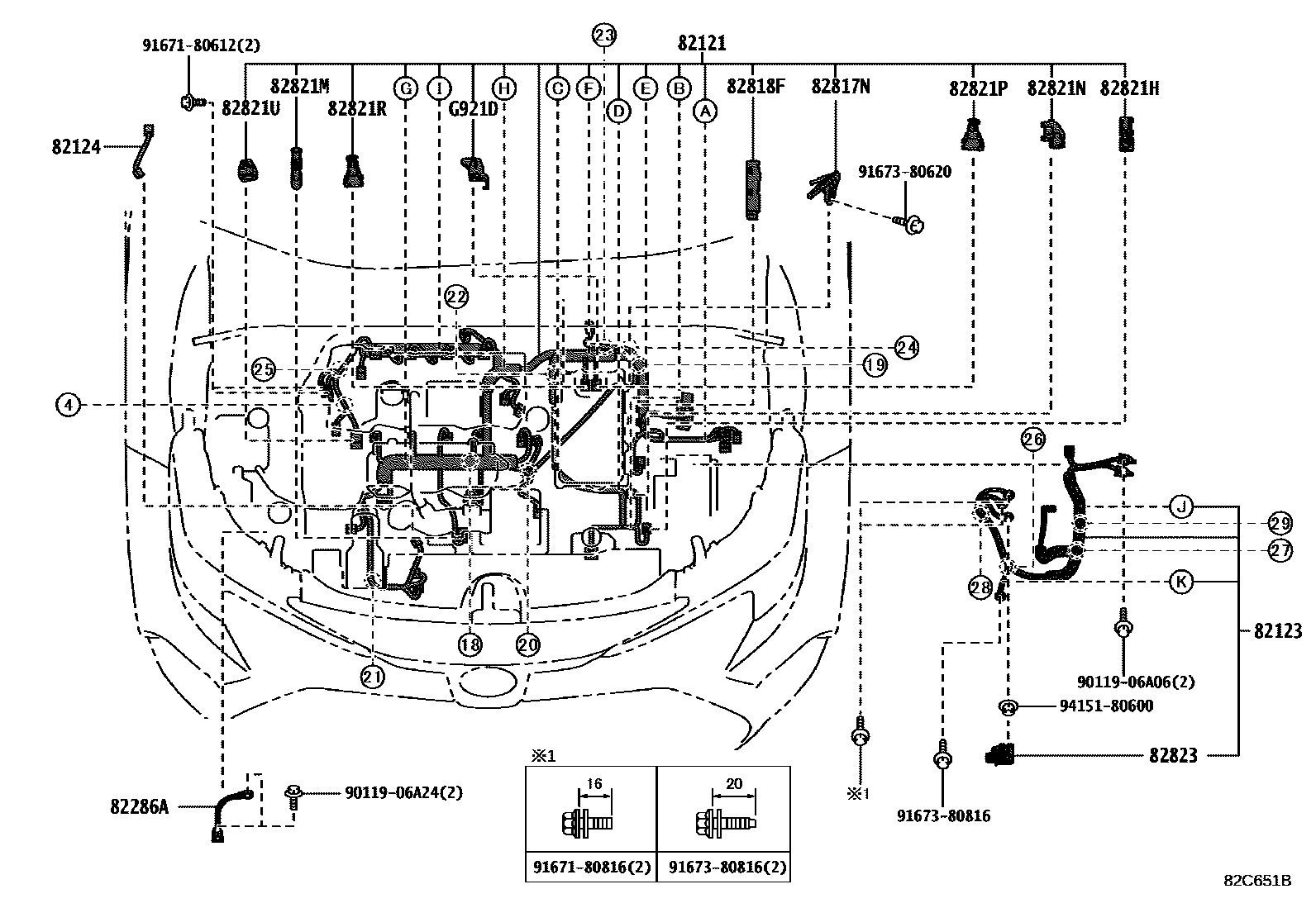

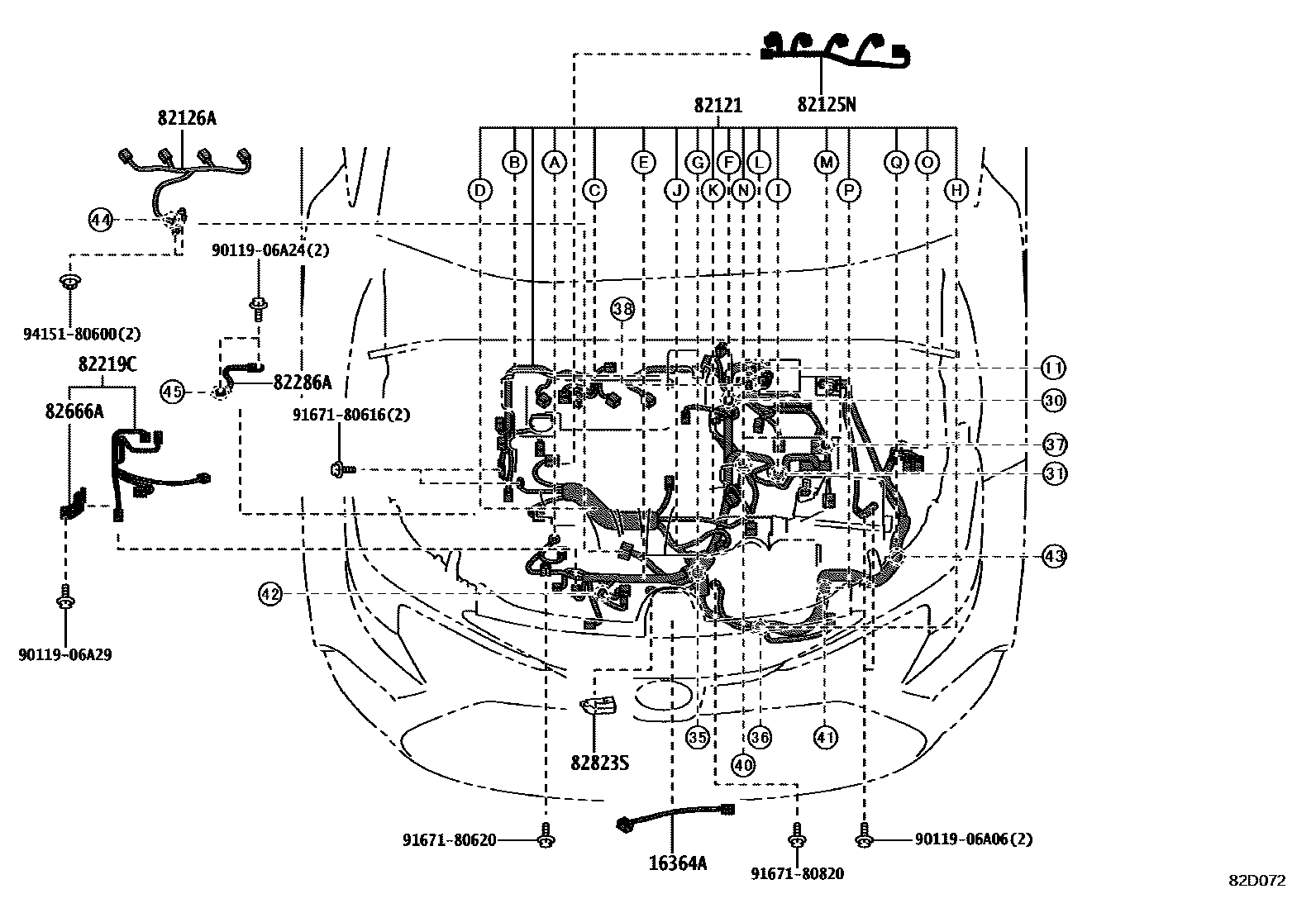

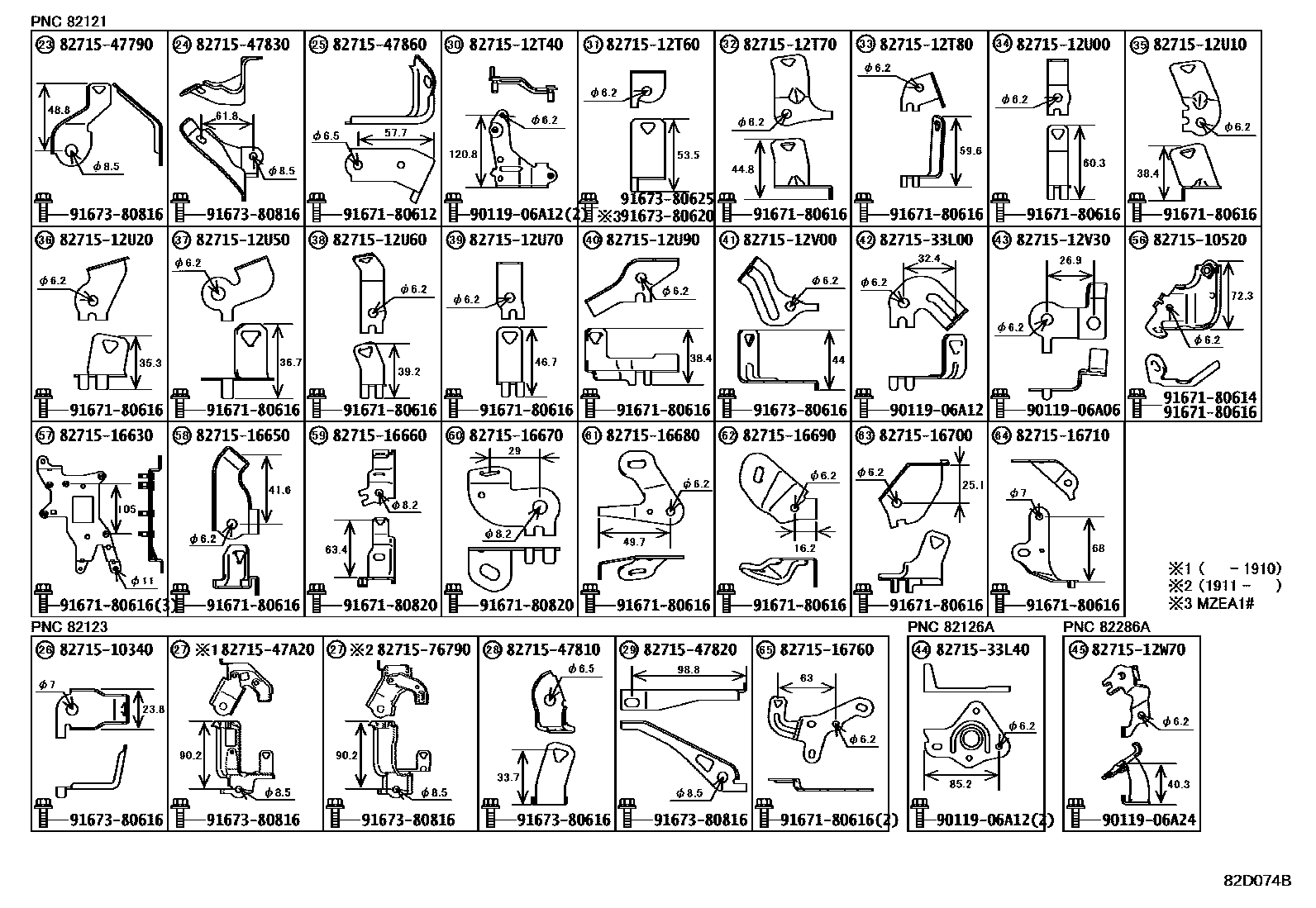

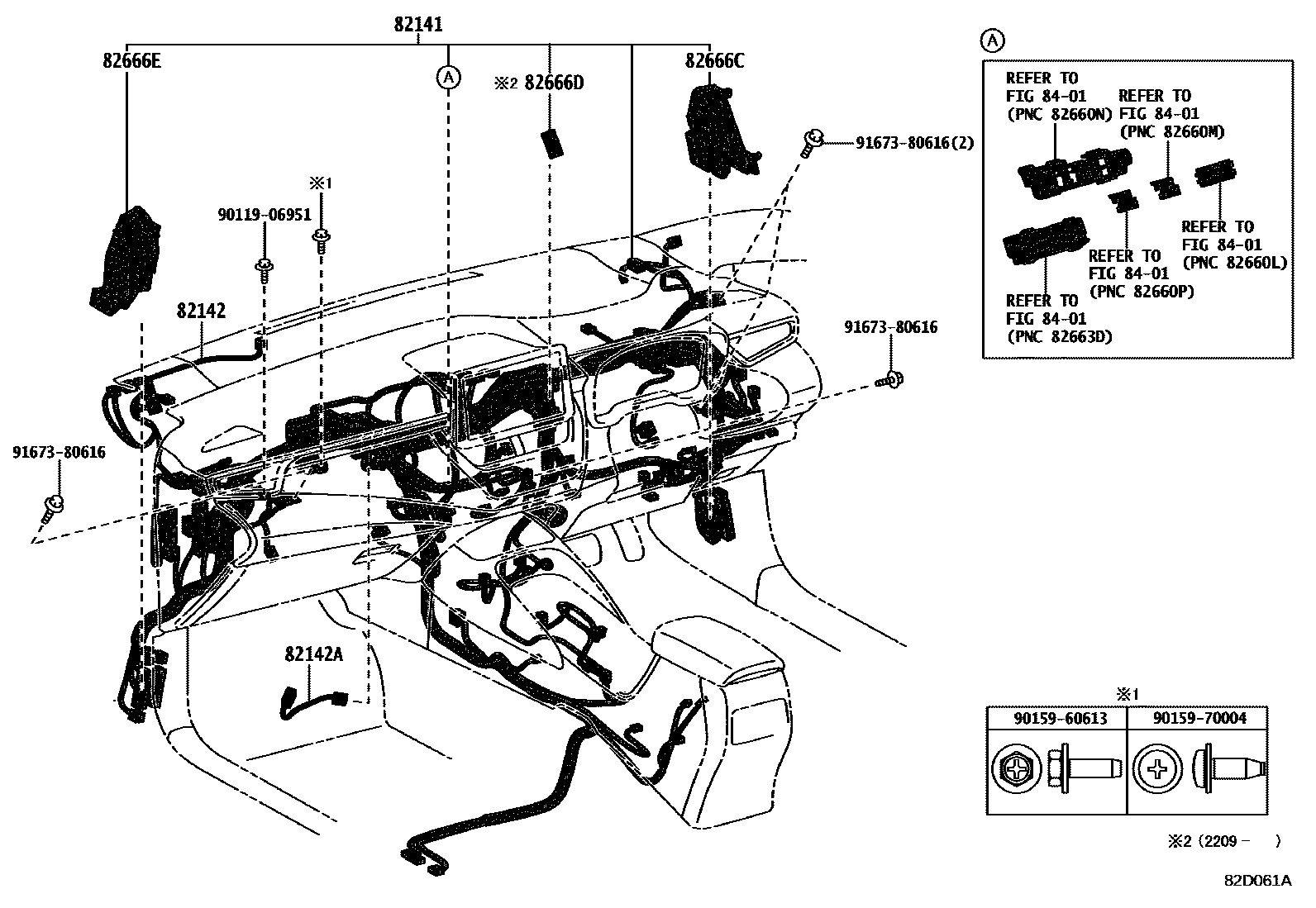

| 82121 | Engine wiring harness | 82121-12R30 · 82121-12S20 · 82121-12S21 · 82121-12S30 · 82121-12S31 · 82121-12T10 · 82121-12T30 · 82121-12V20 · 82121-12V30 · 82121-12V31 · 82121-12W10 |
| 82123 | Engine No. 3 wiring harness | 82123-10170 · 82123-16210 |
| 82124 | Engine No. 4 wiring harness | 82124-12160 |
| 82125N | Engine No. 5 wiring harness | 82125-12660 |
| 82126A | No. 6 engine wiring harness | 82126-12010 |
| 82127D | Engine No. 7 wiring harness | 82127-16010 |
| 82141 | Dashboard wiring harness | 82141-1KW80 · 82141-1KW81 · 82141-1KW82 · 82141-1LU31 · 82141-1LU32 · 82141-1LU33 · 82141-1TL80 · 82141-1TL81 · 82141-1TL82 · 82141-1TM10 · 82141-1TM11 · 82141-1TM12 · 82141-1TM50 · 82141-1TM51 · 82141-1TM52 · 82141-1TQ10 · 82141-1TQ11 · 82141-1TQ12 · 82141-1XC60 · 82141-1XC61 · 82141-1XC62 · 82141-1XC80 · 82141-1XC81 · 82141-1XC82 · 82141-1XC90 · 82141-1XC91 · 82141-1XC92 · 82141-1XD40 · 82141-1XD60 · 82141-1XD61 · 82141-1XD62 · 82141-1XD80 · 82141-1XD81 · 82141-1XD82 · 82141-1XJ00 · 82141-1XJ01 · 82141-1XJ02 · 82141-1XK40 · 82141-1XM10 · 82141-1XM11 · 82141-1XM12 · 82141-1XR30 · 82141-1XR50 · 82141-1XR80 · 82141-1XR81 · 82141-1XR90 · 82141-1XR91 · 82141-1XS00 · 82141-1XS02 · 82141-1XS03 · 82141-1XS10 · 82141-1XS20 · 82141-1XS60 · 82141-1XS90 · 82141-1XS91 · 82141-1XS92 · 82141-1XT10 · 82141-1XT20 · 82141-1XT30 · 82141-1XT31 · 82141-1XT40 · 82141-1XX00 · 82145-12L70 · 82145-12L80 · 82145-12M00 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-12670 · 82142-12680 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-12B60 · 82140-12B80 |
| 82151 | Right front door wiring harness | 82151-12N60 · 82151-12N61 · 82151-12S40 · 82151-12S41 · 82151-1AA40 · 82151-1AA41 · 82151-1AA50 · 82151-1AA51 · 82151-1AA60 · 82151-1AA61 · 82151-1AB80 · 82151-1AB81 · 82151-1AB90 · 82151-1AB91 · 82151-1AC50 · 82151-1AC51 · 82151-1AC60 · 82151-1AC61 · 82151-1AD20 · 82151-1AD30 · 82151-1AD31 · 82151-1AD40 · 82151-1AD41 · 82151-1AE20 · 82151-1AE30 · 82151-1AE60 · 82151-1AE70 · 82151-1AE80 · 82151-1AE90 · 82151-1AF00 · 82151-1AF10 |
| 82152 | Left front door wiring harness | 82152-12Y00 · 82152-12Y01 · 82152-12Y40 · 82152-12Y41 · 82152-12Z60 · 82152-12Z61 · 82152-12Z80 · 82152-12Z81 · 82152-12Z90 · 82152-12Z91 · 82152-1AA80 · 82152-1AA81 · 82152-1AA90 · 82152-1AA91 · 82152-1AB50 · 82152-1AB51 · 82152-1AB60 · 82152-1AB61 · 82152-1AC60 · 82152-1AC80 · 82152-1AD10 · 82152-1AD20 · 82152-1AD30 · 82152-1AD40 · 82152-1AD50 · 82152-1AD60 |
| 82153 | Rear door wiring harness No. 1 | 82153-12B90 · 82153-12B91 · 82153-12C10 · 82153-12C11 · 82153-12C20 · 82153-12C21 · 82153-12C70 · 82153-12C90 · 82153-12D00 |
| 82154 | Rear door wiring harness No. 2 | 82154-12B40 · 82154-12B41 · 82154-12B70 · 82154-12B71 · 82154-12B80 · 82154-12B81 · 82154-12C20 · 82154-12C40 · 82154-12C50 |

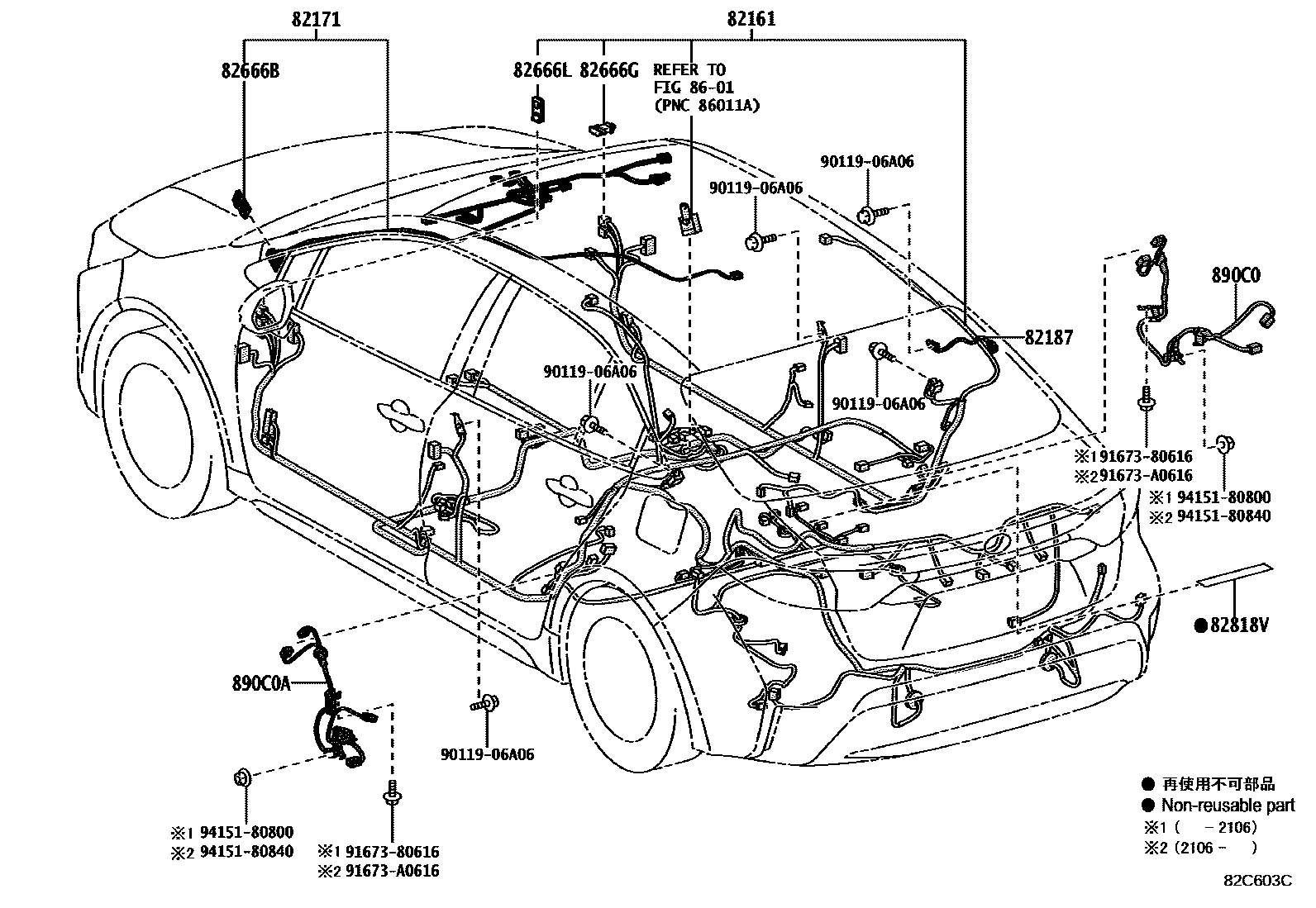

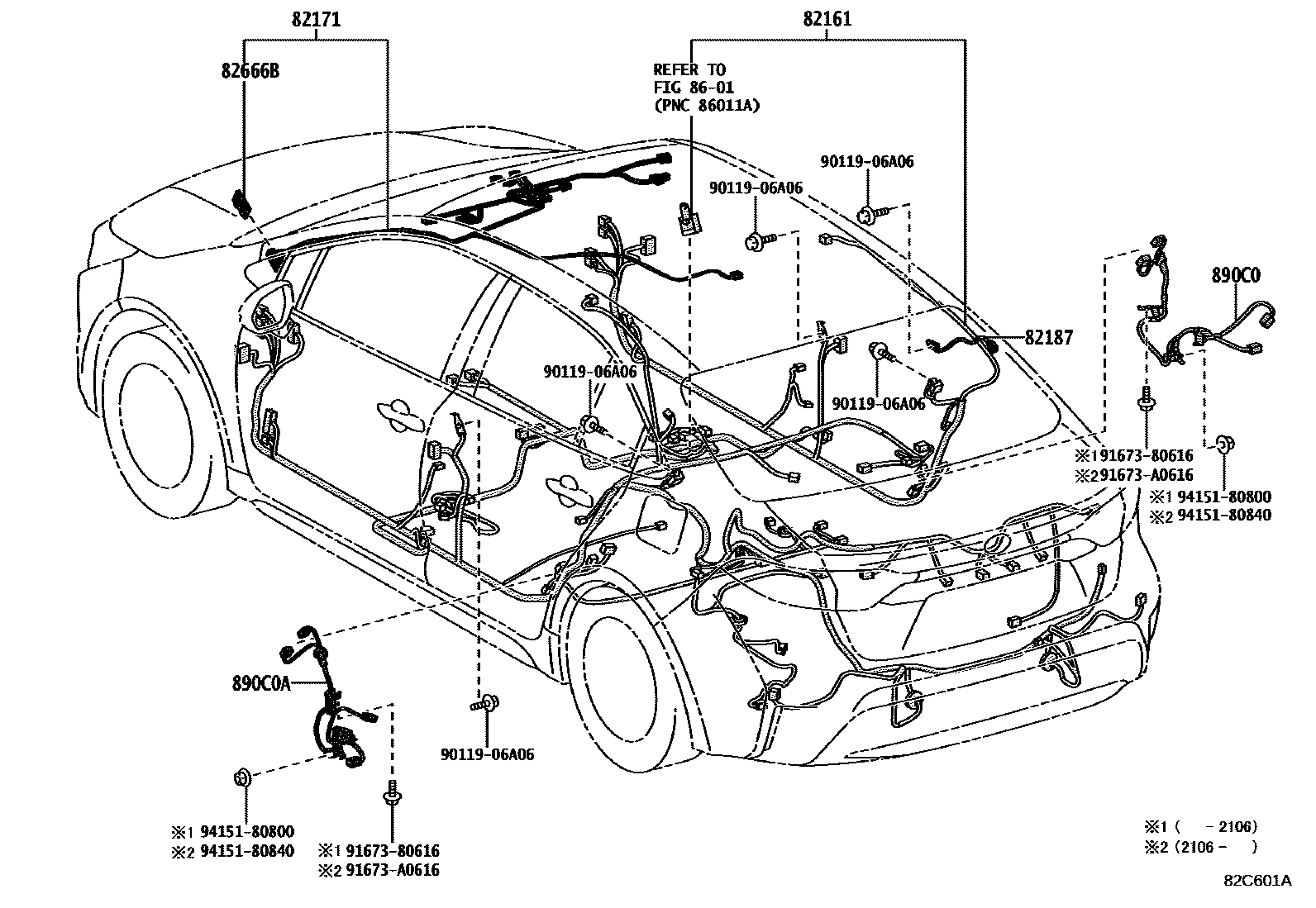

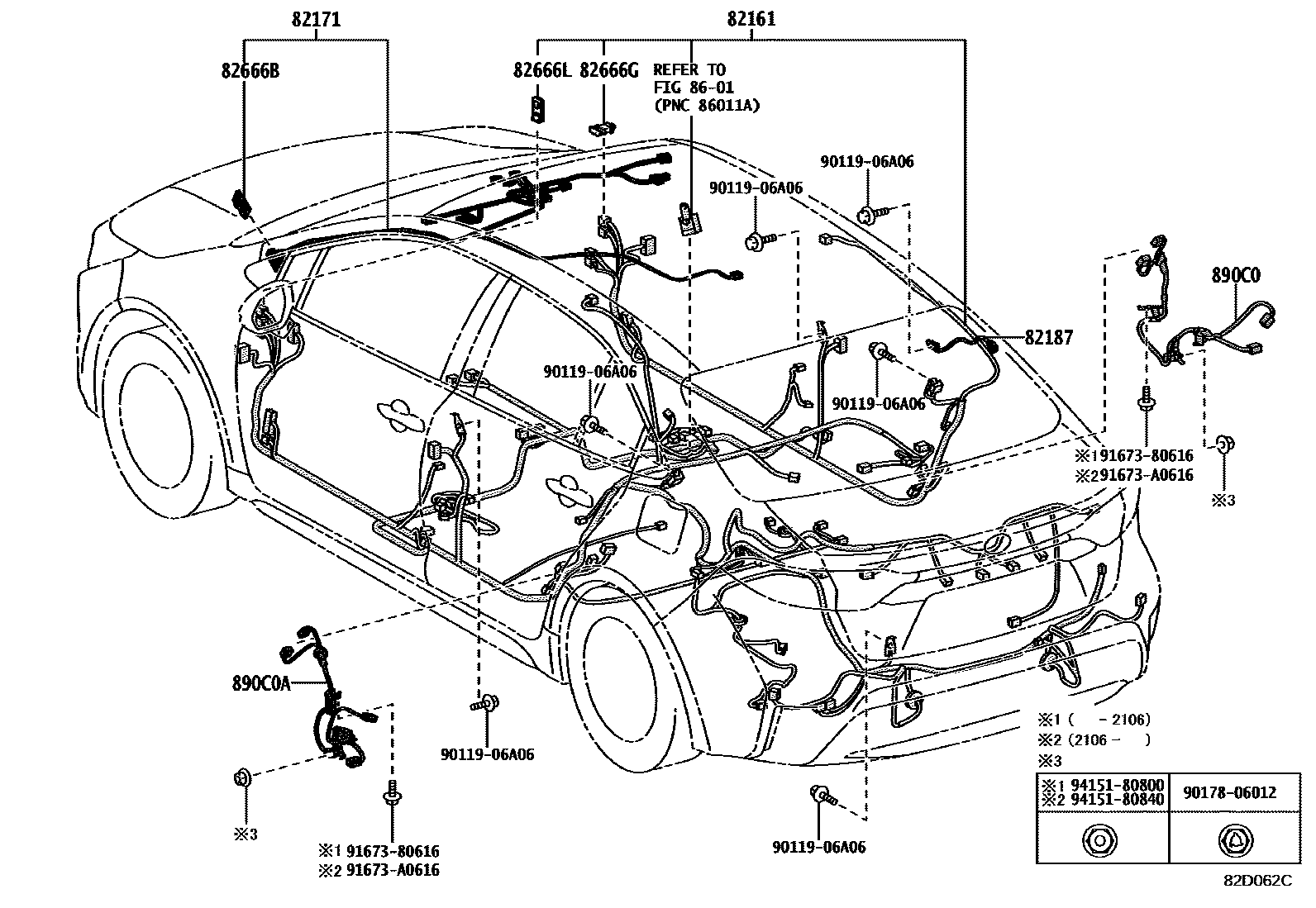

| 82161 | floor wiring harness | 82161-12S30 · 82161-12S31 · 82161-12S32 · 82161-12S50 · 82161-12S51 · 82161-12S52 · 82161-1AD40 · 82161-1AD41 · 82161-1AD42 · 82161-1AE90 · 82161-1AE91 · 82161-1AE92 · 82161-1AF50 · 82161-1AF51 · 82161-1AF52 · 82161-1AF60 · 82161-1AF61 · 82161-1AF62 · 82161-1AF70 · 82161-1AF71 · 82161-1AF72 · 82161-1AF80 · 82161-1AF81 · 82161-1AF82 · 82161-1AK50 · 82161-1AK51 · 82161-1AK52 · 82161-1AN50 · 82161-1AN51 · 82161-1AN52 · 82161-1AN70 · 82161-1AN71 · 82161-1AN72 · 82161-1AN90 · 82161-1AN91 · 82161-1AN92 · 82161-1AP00 · 82161-1AP01 · 82161-1AP02 · 82161-1AQ20 · 82161-1AQ21 · 82161-1AQ22 · 82161-1AQ50 · 82161-1AQ51 · 82161-1AQ52 · 82161-1AQ60 · 82161-1AQ61 · 82161-1AQ62 · 82161-1AT00 · 82161-1AT01 · 82161-1EB20 · 82161-1EB21 · 82161-1EB22 · 82161-1EB30 · 82161-1EB31 · 82161-1EB32 · 82161-1EG60 · 82161-1EG70 · 82161-1EG71 · 82161-1EG72 · 82161-1EG80 · 82161-1EG81 · 82161-1EG82 · 82161-1EL70 · 82161-1EL80 · 82161-1EM00 · 82161-1EM10 · 82161-1EM30 · 82161-1EM40 · 82161-1EM41 · 82161-1EN40 · 82161-1EN41 · 82161-1EN50 · 82161-1EN51 · 82161-1EP60 · 82161-1EP80 · 82161-1EP90 · 82161-1EV90 · 82161-1EW10 · 82161-1EW30 · 82161-1EW40 · 82161-1EW50 · 82161-1EW60 · 82161-1EW70 · 82161-1EW80 · 82161-1EW90 · 82161-1EX00 · 82161-1HD00 · 82161-1HD01 · 82161-1HD10 · 82161-1HD20 · 82161-1HJ20 · 82161-1HJ21 · 82161-1HJ30 · 82161-1HJ31 |
| 82171 | Roof No. 1 wiring harness | 82171-12M90 · 82171-12M91 · 82171-12S30 · 82171-12S40 · 82171-12S41 · 82171-12U40 · 82171-12U41 · 82171-12U50 · 82171-12U51 · 82171-12U60 · 82171-12U61 · 82171-12V00 · 82171-12V01 · 82171-12V10 · 82171-12V11 · 82171-12V20 · 82171-12V21 · 82171-12V70 · 82171-12W30 · 82171-12W31 · 82171-12W40 · 82171-12W41 · 82171-12W50 · 82171-12W51 · 82171-12W60 · 82171-12W61 · 82171-12X70 · 82171-12X80 · 82171-12Y00 · 82171-12Y10 · 82171-12Y30 · 82171-1A460 · 82171-1A490 · 82171-1A520 · 82171-1A530 · 82171-1A540 · 82171-1A600 · 82171-1A620 |
| 82187 | Rear window wiring harness No. 2 | 82187-12260 |

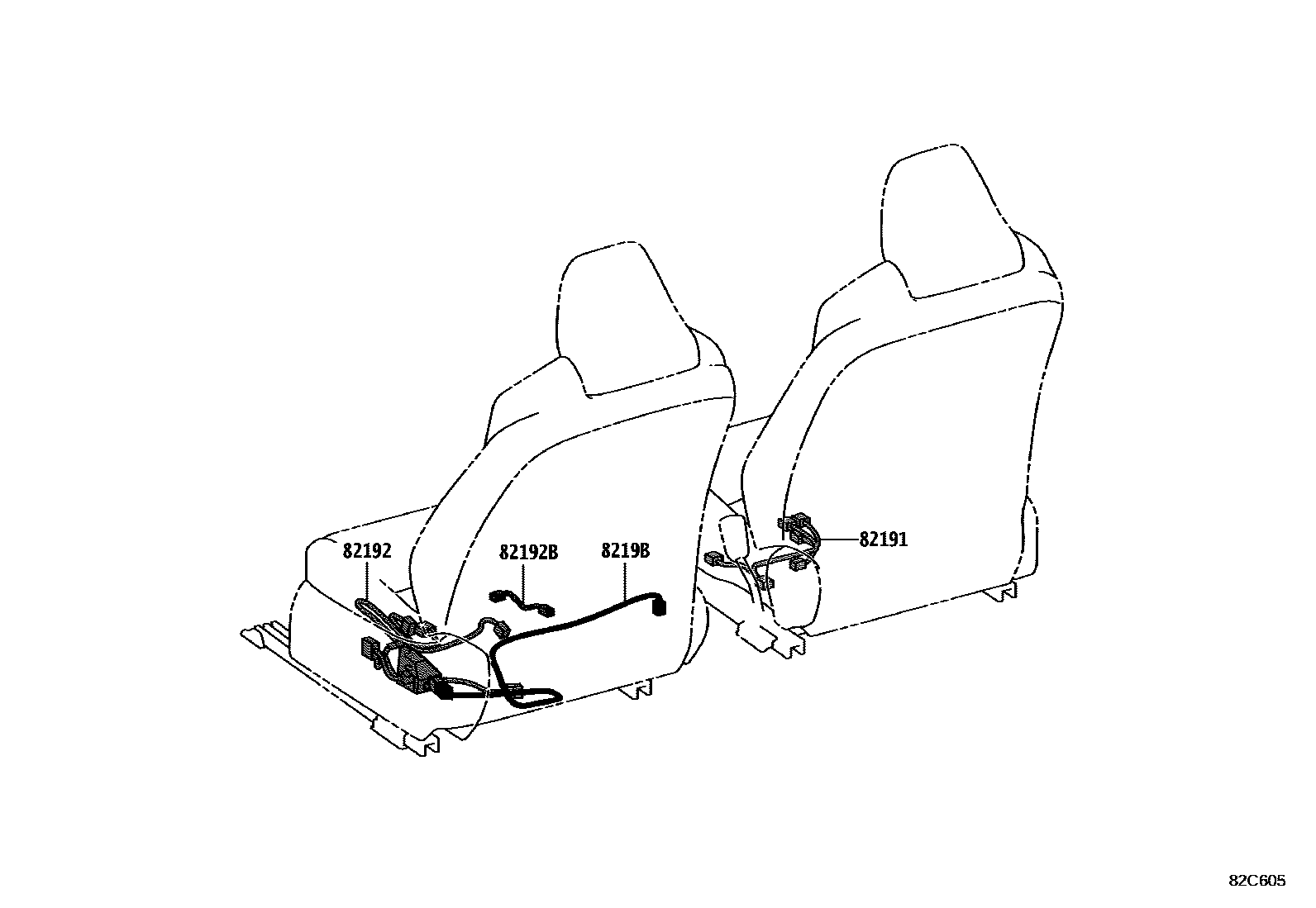

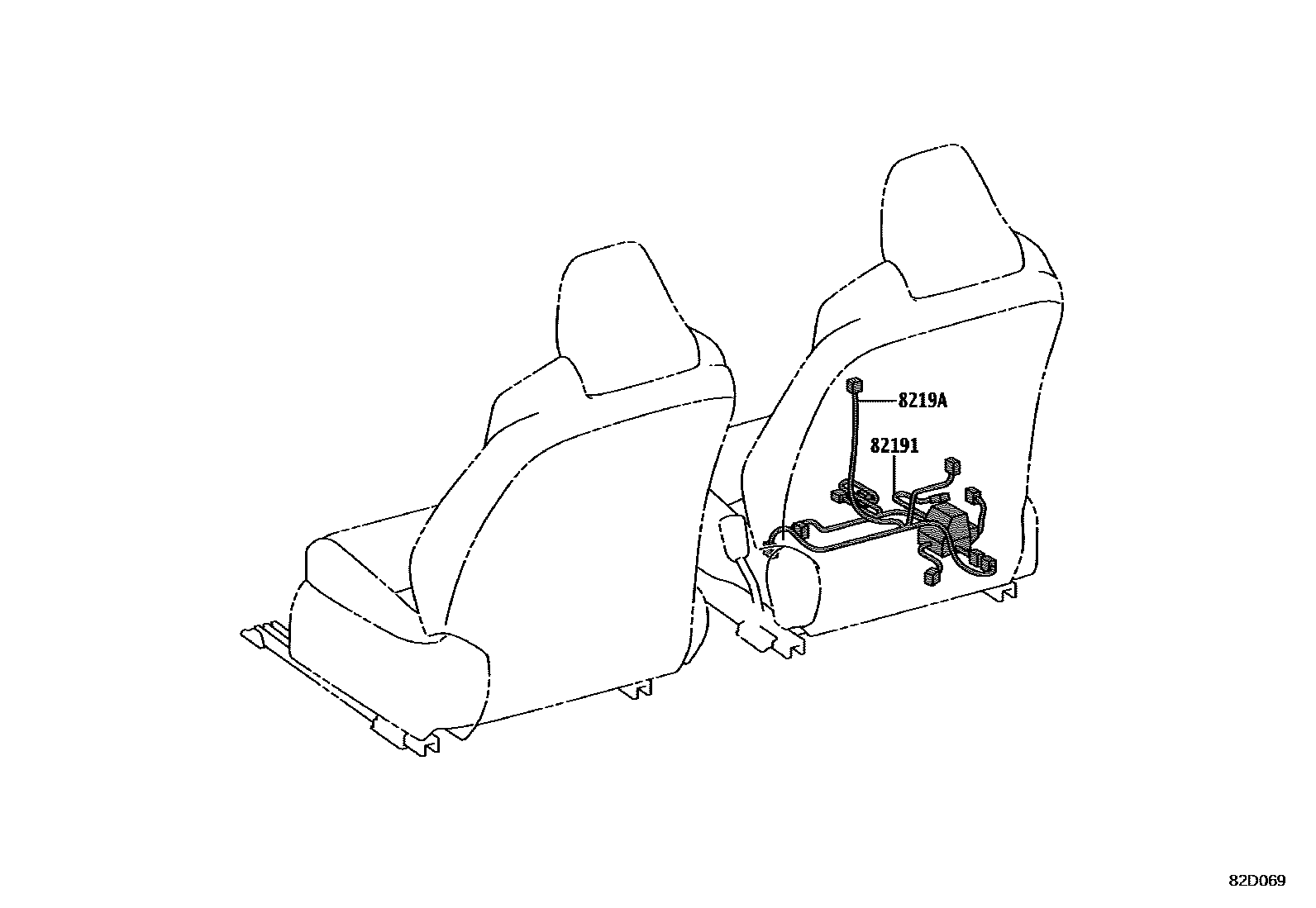

| 82191 | Front right seat wiring harness | 82191-12110 · 82191-12120 · 82191-12130 · 82191-33A80 |
| 82192 | Front left seat wiring harness | 82192-12020 · 82192-12030 · 82192-12060 · 82192-47100 |
| 82192B | Wire harness No. 2, left side of front seat | 82192-11080 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-33160 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-12020 · 8219B-33100 · 8219B-33150 |

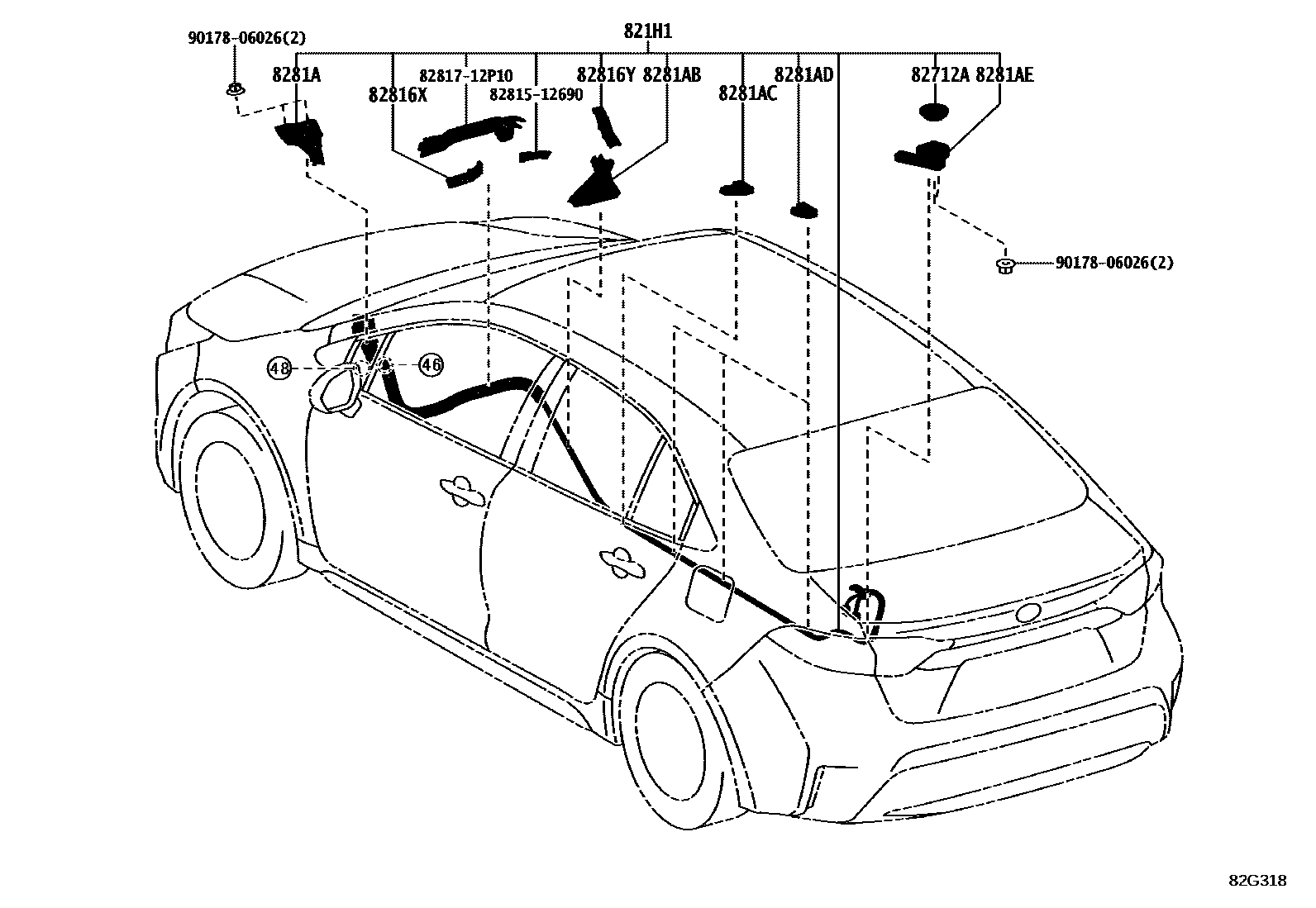

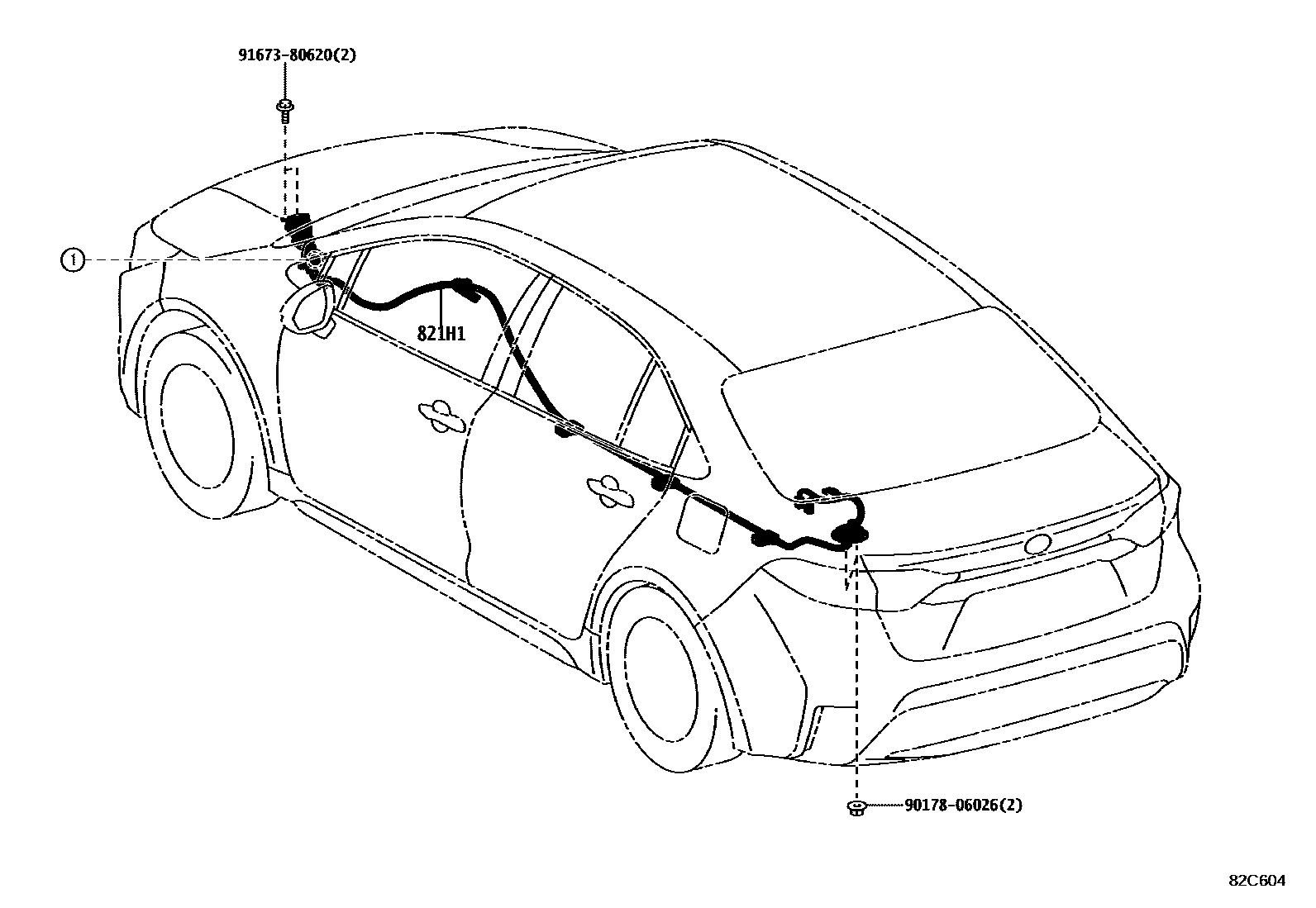

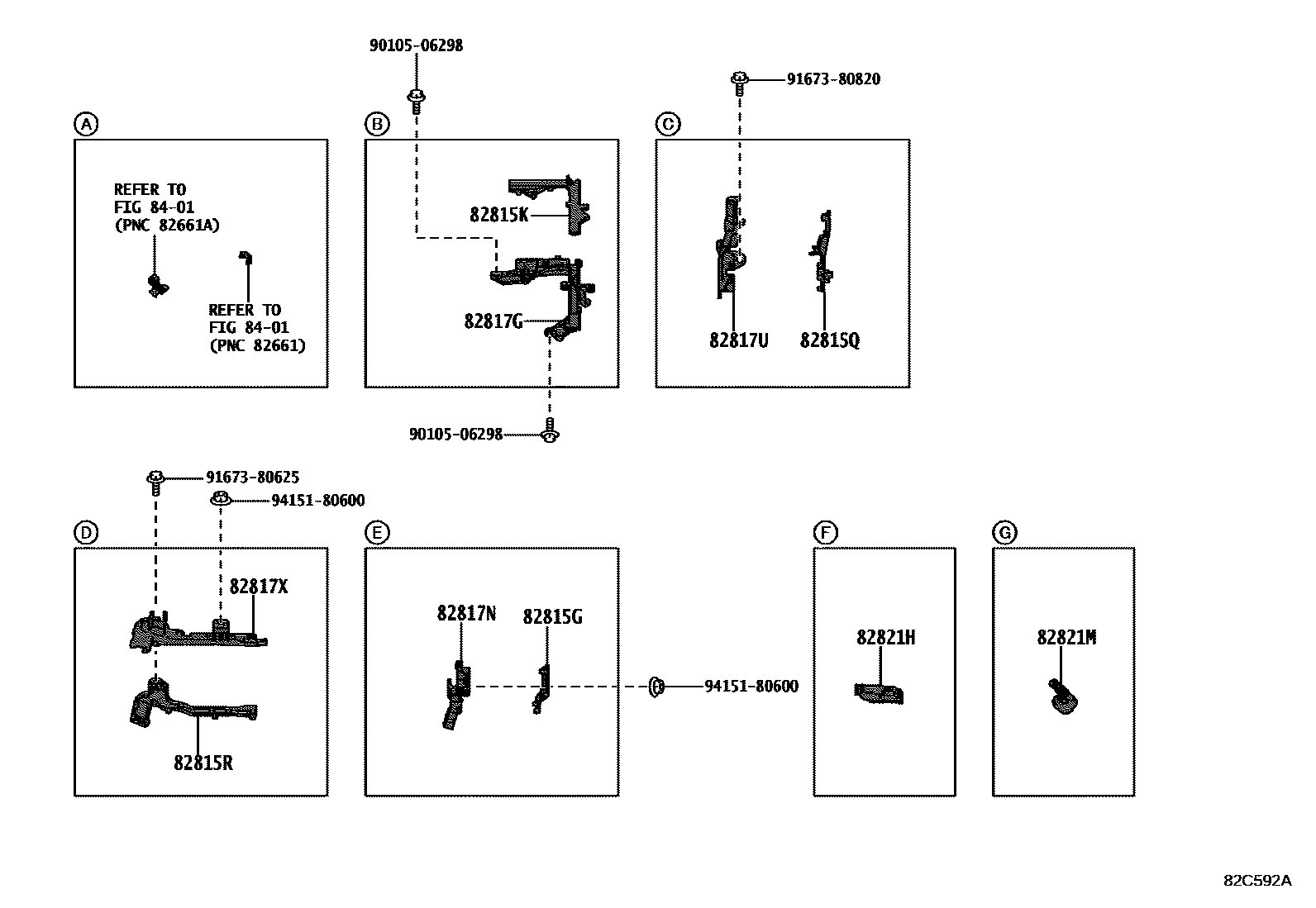

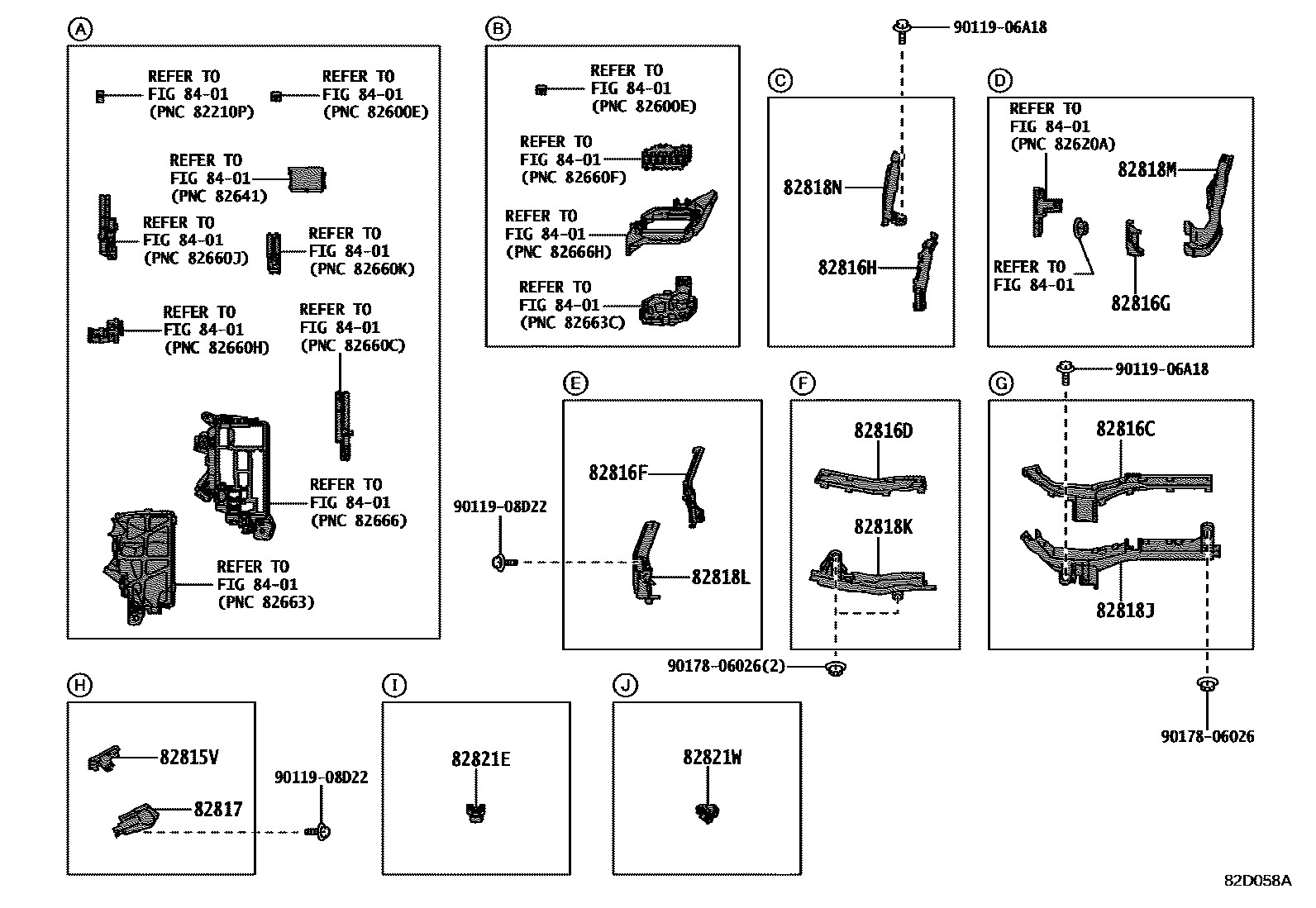

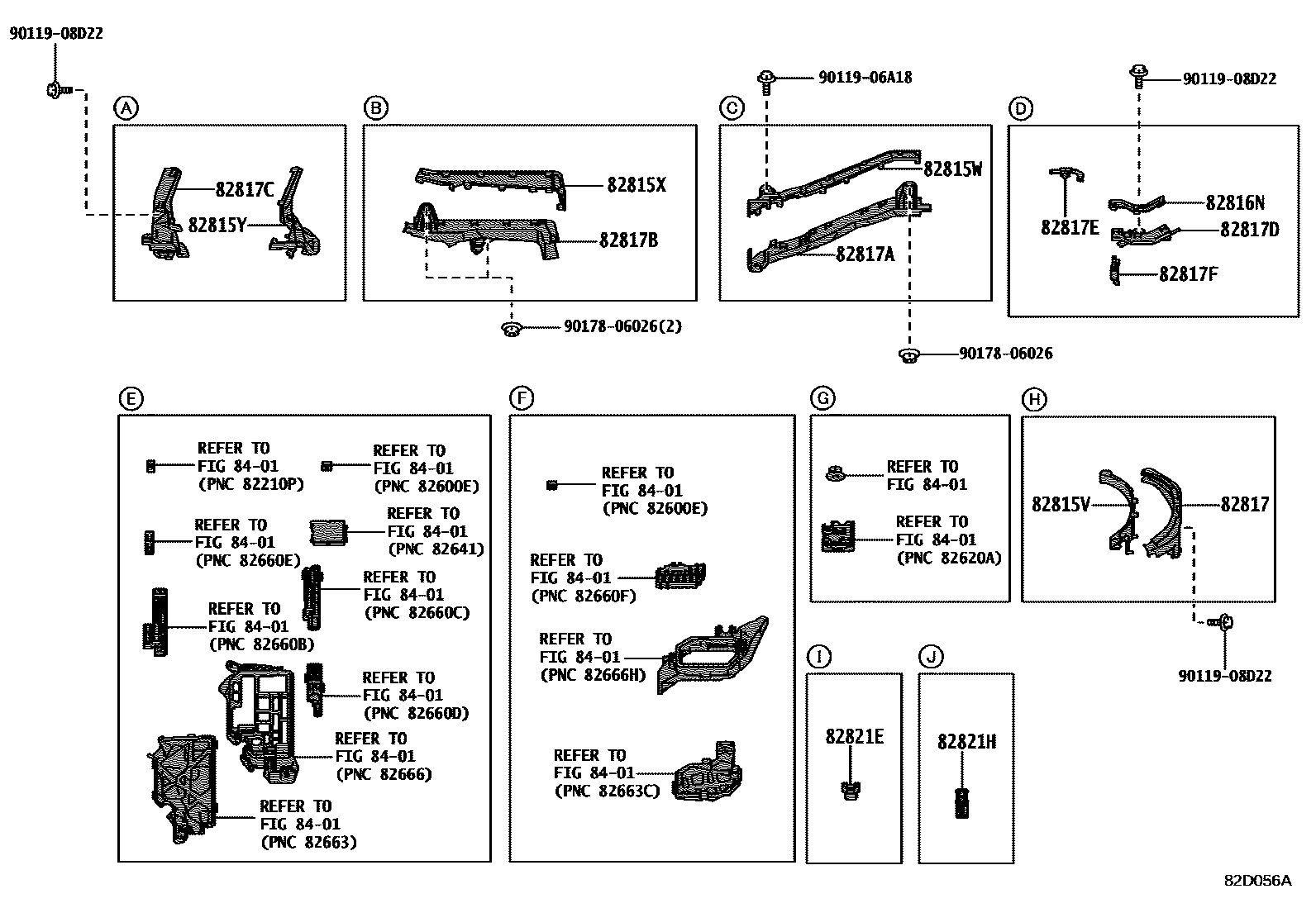

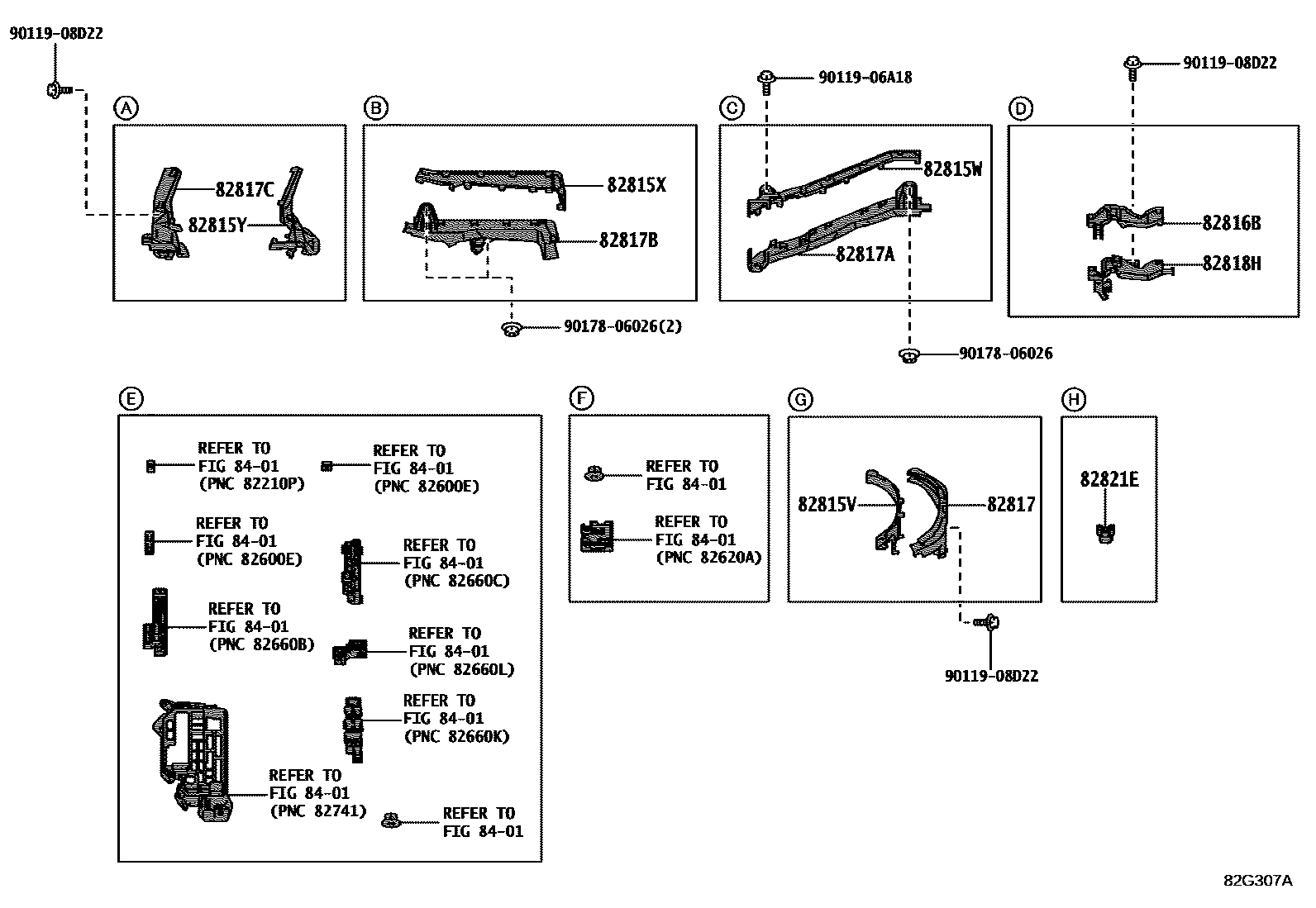

| 821H1 | Underfloor wiring harness | 821H1-12010 · 821H1-12040 · 821H1-12130 · 821H1-12150 |
| 821H2 | HV air conditioner wiring harness | 821H2-47010 · 821H2-V1010 |
| 82219C | sensor harness | 82219-12140 · 82219-76020 |
| 82286A | Line 2 | 82286-12010 · 82286-47010 |
| 82661H | Relay box cover | 82661-16250 |
| 82666A | Connector holder No. 2 | 82666-12490 |
| 82666B | No. 3 connector holder | 82666-60220 |
| 82666C | No. 4 connector holder | 82666-12680 |
| 82666D | No. 5 connector holder | 82666-26180 · 82666-60220 |
| 82666E | No. 6 connector holder | 82666-12670 |
| 82666F | No. 7 connector holder | 82666-26180 |
| 82666G | No. 8 connector holder | 82666-26180 |
| 82666L | No. 9 connector holder | 82666-22070 |
| 82712A | Wire harness bracket | 82712-16040 |
| 82815A | Wiring harness protector cover | 82815-12D80 · 82815-47E20 |
| 82815B | Wiring harness protector cover | 82815-12E90 |
| 82815G | No. 5 wire harness protector cover | 82815-12E80 · 82815-12K70 |
| 82815H | No. 6 wire harness protector cover | 82815-33J10 |
| 82815J | No. 7 wire harness protector cover | 82815-33L00 |
| 82815K | No. 8 wire harness protector cover | 82815-12E00 · 82815-12K40 |
| 82815L | No. 9 wire harness protector cover | 82815-12D60 · 82815-47E30 |
| 82815M | No. 10 wire harness protector cover | 82815-12E70 |
| 82815N | No. 11 wire harness protector cover | 82815-12E10 · 82815-47E10 |
| 82815P | No. 12 wire harness protector cover | 82815-12F20 |
| 82815Q | No. 13 wire harness protector cover | 82815-12E20 · 82815-12K50 · 82815-12M10 |
| 82815R | No. 14 wire harness protector cover | 82815-12E30 · 82815-12K60 · 82815-47D80 |
| 82815S | No. 15 wire harness protector cover | 82815-12F60 · 82815-12M00 |
| 82815T | No. 16 wire harness protector cover | 82815-12B00 · 82815-47E40 |
| 82815U | No. 17 wire harness protector cover | 82815-47E50 |
| 82815V | No. 1 wire harness protector cover | 82815-12J00 · 82815-12L00 · 82815-12L60 · 82815-47D40 |
| 82815W | No. 2 wire harness protector cover | 82815-12L10 · 82815-12L90 · 82815-16230 |
| 82815X | No. 3 wire harness protector cover | 82815-12L20 · 82815-12L80 · 82815-16200 |
| 82815Y | No. 4 wire harness protector cover | 82815-12L30 · 82815-12L70 · 82815-16320 |
| 82815Z | No. 18 wire harness protector cover | 82815-10080 · 82815-V1340 |
| 82816B | No. 1 wire harness protector cover | 82815-12D10 |
| 82816C | No. 2 wire harness protector cover | 82815-47D20 · 82815-47D30 |
| 82816D | No. 3 wire harness protector cover | 82815-12L50 · 82815-47D00 |
| 82816F | No. 4 wire harness protector cover | 82815-47C80 · 82815-47C90 |
| 82816G | No. 5 wire harness protector cover | 82815-47C20 |
| 82816H | No. 6 wire harness protector cover | 82815-47880 |
| 82816J | No. 7 wire harness protector cover | 82815-12F70 |
| 82816K | No. 8 wire harness protector cover | 82815-12E40 · 82815-47E00 |
| 82816L | No. 9 wire harness protector cover | 82815-12E60 |
| 82816M | No. 10 wire harness protector cover | 82815-12E50 |
| 82816N | No. 11 wire harness protector cover | 82815-12L40 |
| 82816P | No. 12 wire harness protector cover | 82815-16220 |
| 82816Q | No. 13 wire harness protector cover | 82815-16300 |
| 82816R | No. 14 wire harness protector cover | 82815-16310 |
| 82816S | No. 15 wire harness protector cover | 82815-16090 |
| 82816T | No. 16 wire harness protector cover | 82815-16100 |
| 82816U | No. 17 wire harness protector cover | 82815-V1430 |
| 82816V | No. 18 wire harness protector cover | 82815-V1600 |
| 82816W | No. 19 wire harness protector cover | 82815-V1610 |
| 82816X | 20 gauge wire harness protector cover | 82815-16140 |
| 82816Y | No. 21 wire harness protector cover | 82815-16150 |
| 82816Z | 22 gauge wire harness protector cover | 82815-16290 |

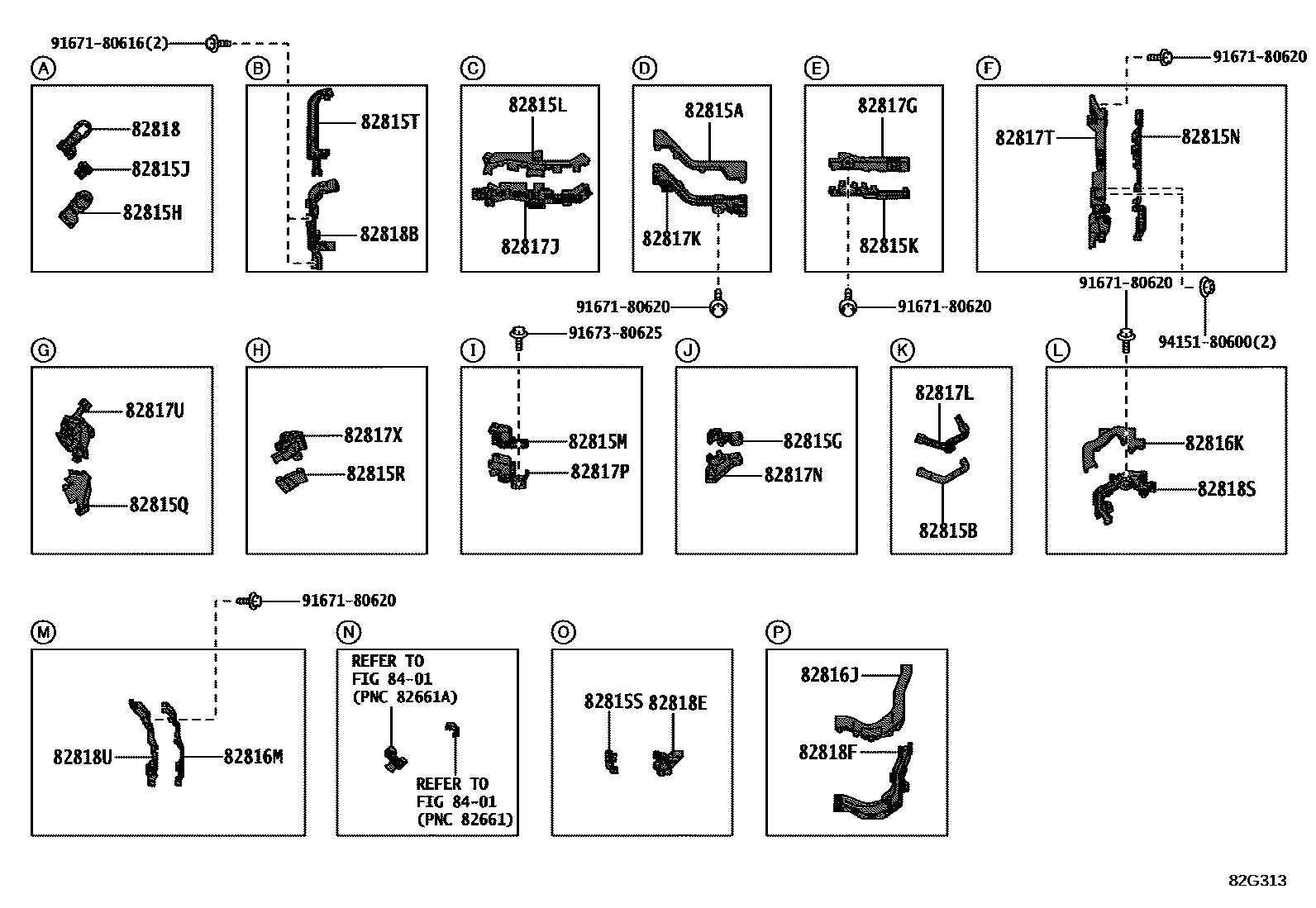

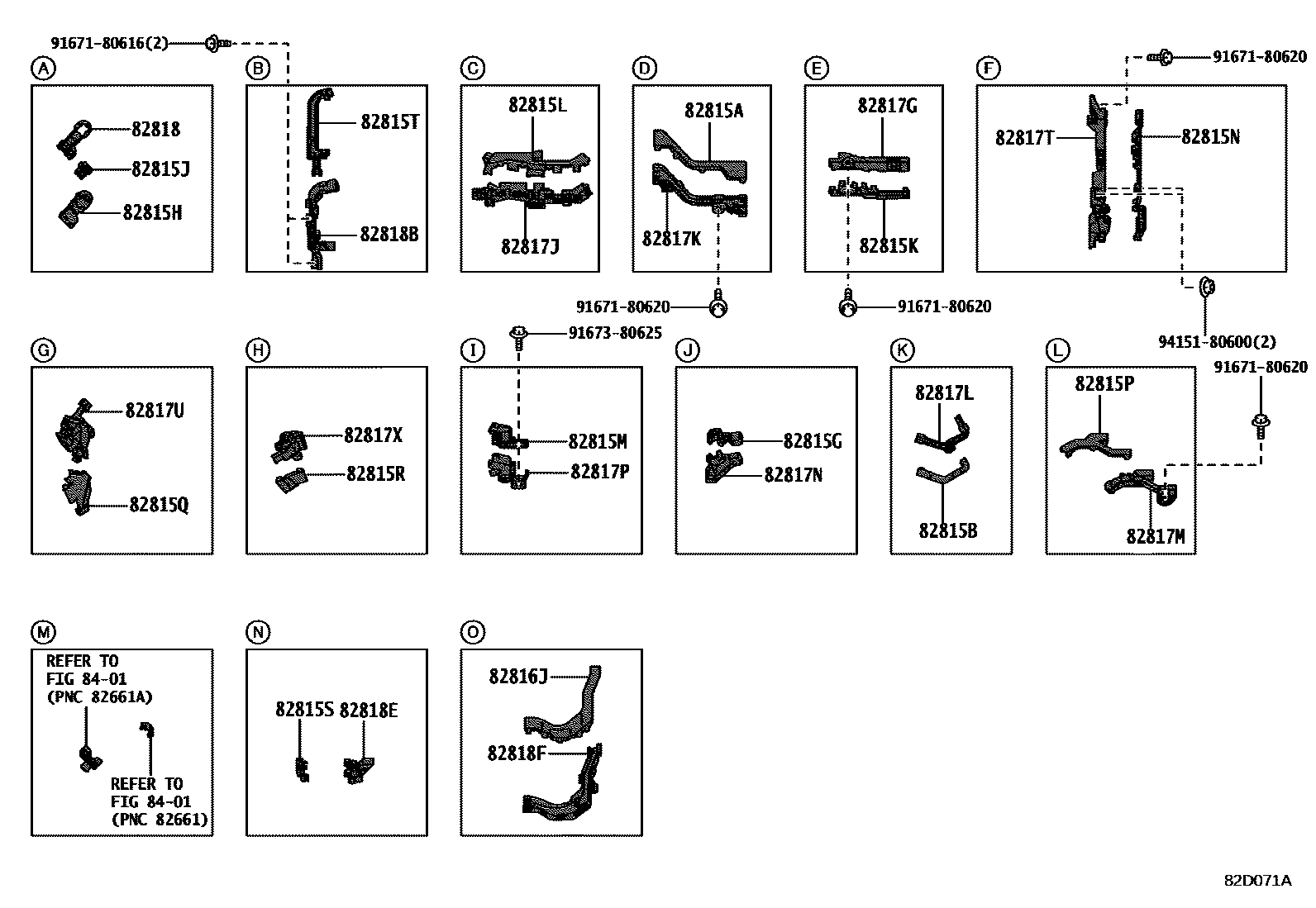

| 82817 | No. 1 wire harness protection device | 82817-12W50 · 82817-12Y70 · 82817-12Z40 · 82817-47P10 |
| 82817A | No. 2 wire harness protection device | 82817-12Y80 · 82817-12Z80 · 82817-16820 |
| 82817B | No. 3 wire harness protection device | 82817-12Y90 · 82817-12Z70 · 82817-16790 |
| 82817C | No. 4 wire harness protection device | 82817-12Z00 · 82817-12Z60 · 82817-16A40 |
| 82817D | No. 5 wire harness protection device | 82817-12Z20 |
| 82817E | No. 6 wire harness protection device | 82817-12Z10 |
| 82817F | No. 7 wire harness protection device | 82817-12Z50 |
| 82817G | No. 8 wire harness protection device | 82817-12S00 · 82817-12V60 |
| 82817J | No. 9 wire harness protection device | 82817-12R60 · 82817-47Q00 |
| 82817K | No. 10 wire harness protection device | 82817-12R80 · 82817-47P90 |
| 82817L | No. 11 wire harness protection device | 82817-12S90 |
| 82817M | No. 12 wire harness protection device | 82817-12T20 |
| 82817N | No. 13 wire harness protection device | 82817-12S80 · 82817-12V90 · 82817-47S30 |
| 82817P | No. 14 wire harness protection device | 82817-12S70 |
| 82817T | No. 15 wire harness protection device | 82817-12S10 · 82817-47L20 |
| 82817U | No. 16 wire harness protection device | 82817-12S20 · 82817-12V70 · 82817-1A890 |
| 82817X | No. 17 wire harness protection device | 82817-12S30 · 82817-12V80 · 82817-47P50 |
| 82818 | No. 2 wire harness protection device | 82817-33S70 |
| 82818B | No. 3 wire harness protection device | 82817-12V00 · 82817-47Q10 |
| 82818C | No. 4 wire harness protection device | 82817-47Q20 |
| 82818D | No. 5 wire harness protection device | 82817-10360 · 82817-V1510 |
| 82818E | No. 6 wire harness protection device | 82817-12T60 · 82817-1A880 |
| 82818F | No. 7 wire harness protection device | 82817-12T70 · 82817-47S40 |
| 82818G | No. 8 wire harness protection device | 82817-12W30 |
| 82818H | No. 9 wire harness protection device | 82817-12V50 |
| 82818J | No. 10 wire harness protection device | 82817-47N90 · 82817-47P00 |
| 82818K | No. 11 wire harness protection device | 82817-12Z30 · 82817-47N70 |
| 82818L | No. 12 wire harness protection device | 82817-47N50 · 82817-47N60 |
| 82818M | No. 13 wire harness protection device | 82817-47N40 |
| 82818N | No. 14 wire harness protection device | 82817-47N30 |
| 82818S | No. 15 wire harness protection device | 82817-12S40 · 82817-47P70 |
| 82818T | No. 16 wire harness protection device | 82817-12S60 |
| 82818U | No. 17 wire harness protection device | 82817-12S50 |
| 82818V | No. 18 wire harness protection device | 82817-52A60 |
| 82818W | No. 19 wire harness protection device | 82817-16770 |
| 82818X | No. 20 wire harness protection device | 82817-16780 |
| 82818Y | No. 21 wire harness protection device | 82817-16810 |
| 82818Z | No. 22 wire harness protection device | 82817-16A10 |
| 82819G | No. 23 wire harness protection device | 82817-16A20 |
| 82819H | No. 24 wire harness protection device | 82817-16A30 |
| 82819J | No. 25 wire harness protection device | 82817-16A50 |
| 82819K | No. 26 wire harness protection device | 82817-16830 |
| 82819L | No. 27 wire harness protection device | 82817-16840 |
| 82819M | No. 28 wire harness protection device | 82817-V1600 |
| 82819N | No. 29 wire harness protective cover | 82817-V1820 |
| 82819P | No. 30 wire harness protective cover | 82817-V1840 |
| 8281A | No. 1 wire harness protection device | 82817-16700 |
| 8281AA | No. 2 wire harness protection device | 82817-16710 |
| 8281AB | No. 3 wire harness protection device | 82817-16720 |
| 8281AC | No. 4 wire harness protection device | 82817-16730 |
| 8281AD | No. 5 wire harness protection device | 82817-16740 |
| 8281AE | No. 6 wire harness protection device | 82817-16750 |

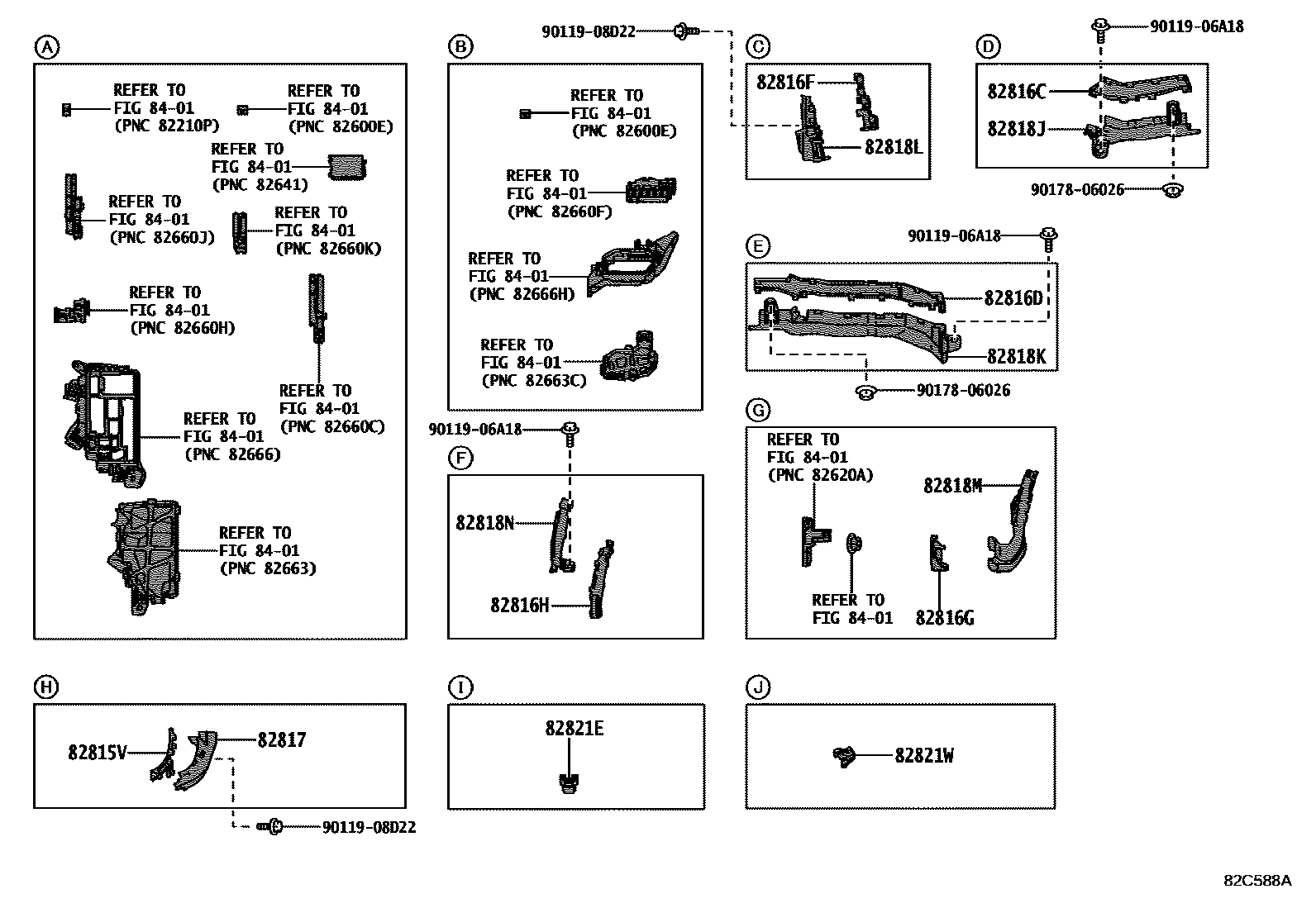

| 82821E | Connector cover | 82821-30650 |
| 82821H | Connector cover | 82821-12C20 · 82821-33310 · 82821-47330 · 82821-50500 |
| 82821M | Connector cover | 82821-60100 |
| 82821N | Connector cover | 82821-12B60 · 82821-50500 |
| 82821P | Connector cover | 82821-47430 |
| 82821R | Connector cover | 82821-47420 |
| 82821U | Connector cover | 82821-20410 |
| 82821W | Connector cover | 82821-78050 |
| 82821X | Connector cover | 82821-33590 |
| 82821Y | Connector cover | 82821-33610 |
| 82823 | No. 1 terminal cover | 82823-47050 |
| 82823S | starter terminal cover | 28192-24030 · 82823-12120 |
| 82823T | Generator terminal cover | 82823-22050 |
| 82824 | Harness connector | 82824-12530 |
| 82H21C | Connector cover | 82821-33650 |
| 82H21D | Connector cover | 82821-33660 |
| 82H21G | Connector cover | 82821-33690 |
| 82H21H | Connector cover | 82821-33700 |
| 82H21J | Connector cover | 82821-33780 |
| 82H21K | Connector cover | 82821-50510 |
| 82H21L | Connector cover | 82821-33620 |
| 890C0 | Parking brake cable assembly No. 1 | 890C0-12010 · 890C0-12090 |
| 890C0A | Parking brake No. 2 cable assembly | 890C0-12020 · 890C0-12100 |
| G921D | Inverter Connector Cover Protector | G921D-47020 |
