Toyota COROLLA 后组合灯 — Figure 8111

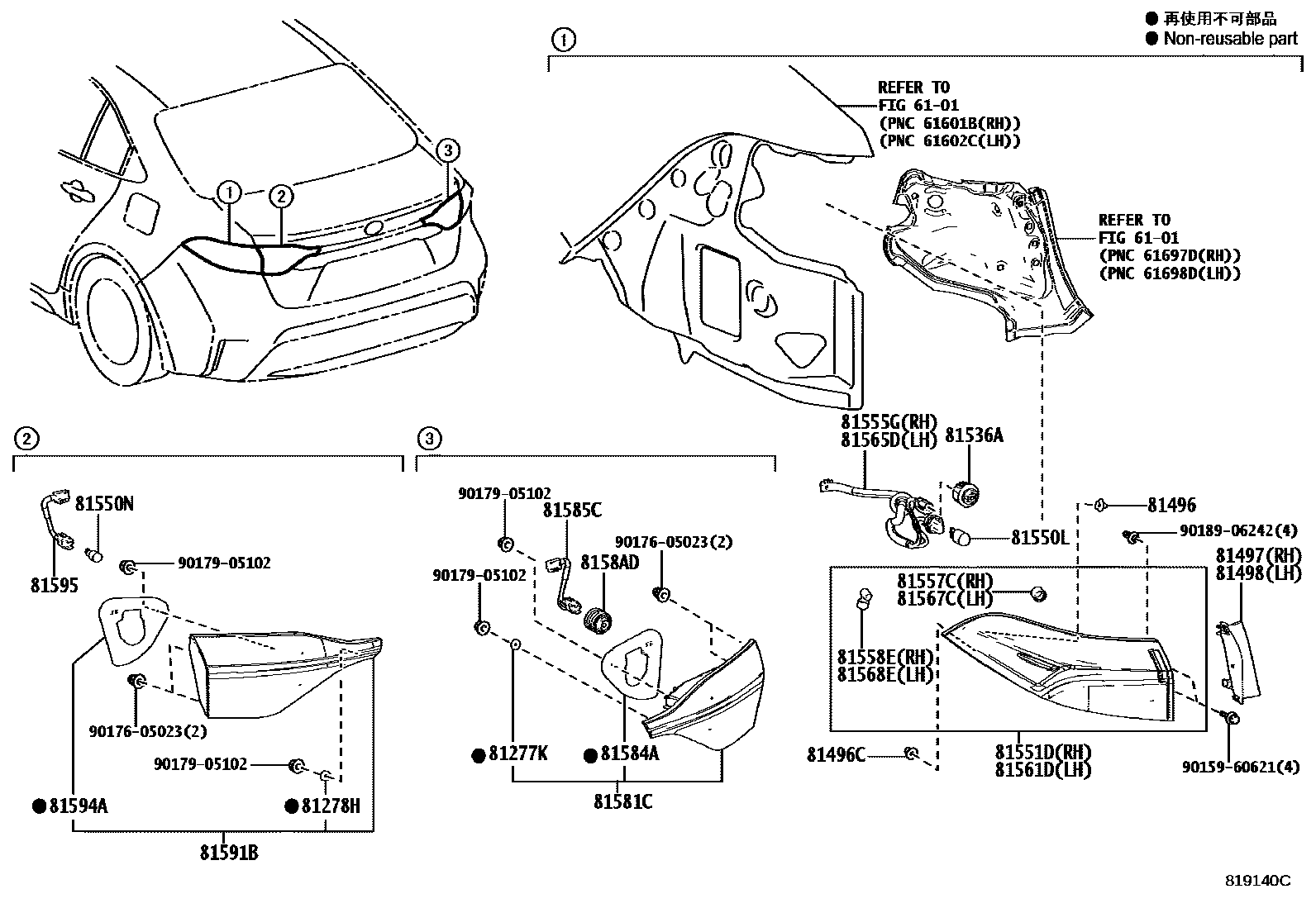

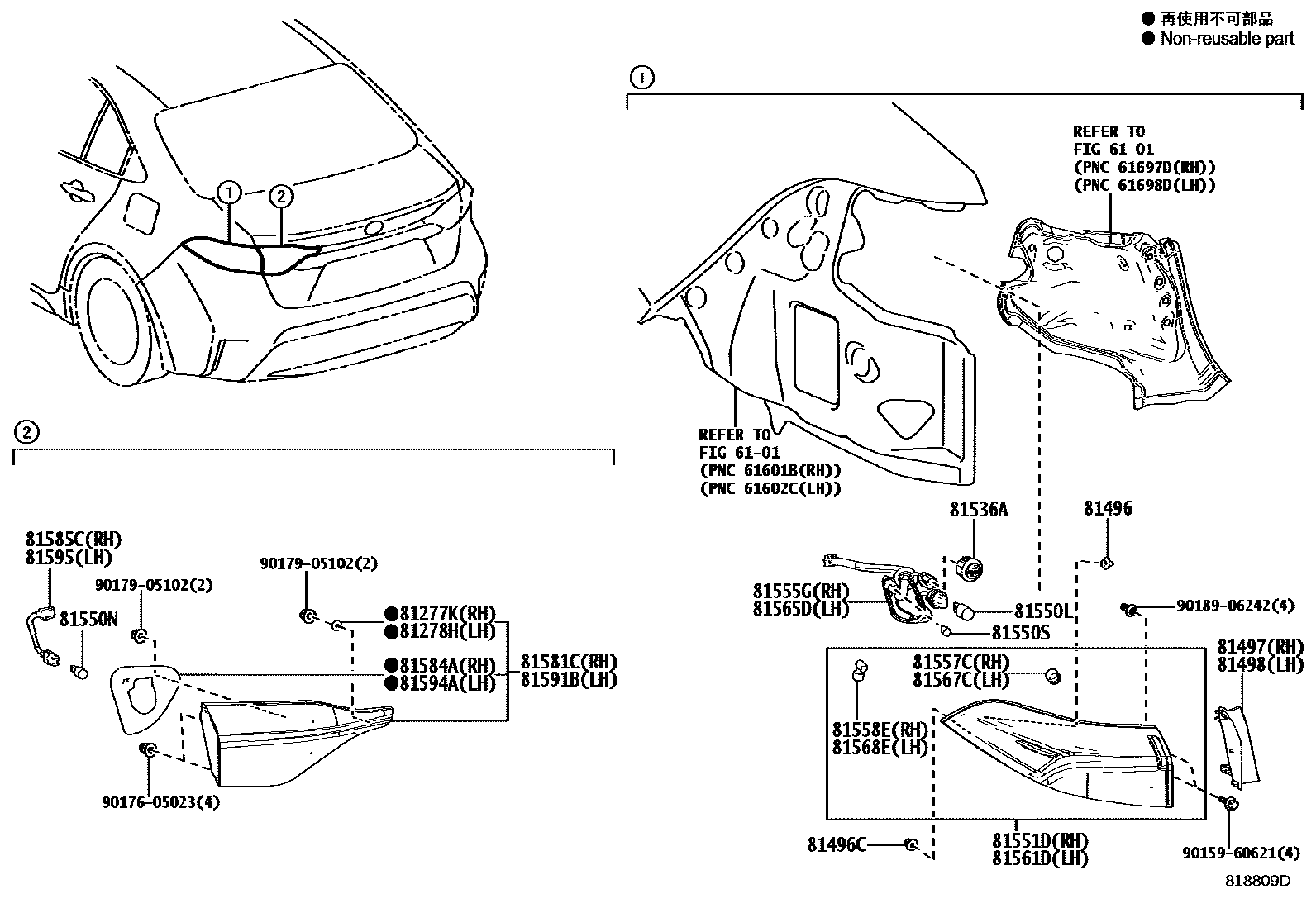

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81277K | Right license plate light shade | 81277-20240 |
| 81278H | Left license plate light shade | 81277-20240 |
| 81496 | Rear combination light guide block | 81496-60010 |
| 81496C | No. 2 rear combination light guide block | 81496-52020 |
| 81497 | Right rear combination lamp cover | 81497-12010 |
| 81498 | Left rear combination lamp cover | 81498-12010 |
| 81536A | Rear LED combination light | 81536-15120 · 81965-70010 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550S | Rear width light bulb | 90981-11069 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-12D10 · 81551-12D50 |
| 81555G | Right rear combination lamp wire | 81555-12D10 · 81555-12D50 |
| 81557C | Right rear combination lamp cover | 90075-15512 |
| 81558E | Right rear combination lamp cover | 90075-15513 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-12D10 · 81561-12D50 |
| 81565D | Left rear combination lamp wire | 81565-12D10 · 81565-12D50 |
| 81567C | Left rear combination lamp cover | 90075-15512 |
| 81568E | Left rear combination lamp cover | 90075-15513 |
| 81581C | Right rear light lampshade and lamp body | 81581-12250 · 81581-12300 |
| 81584A | Right rear light gasket | 81584-12280 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-12250 · 81585-12300 |
| 8158AD | Rear LED fog lights | 8158A-0D610 |
| 81591B | Left rear light shade and body | 81591-12220 |
| 81594A | Left rear light gasket | 81584-12280 |
| 81595 | Left rear light lamp holder and wiring harness | 81585-12250 |
