Toyota COROLLA Headlamp — Figure 8101

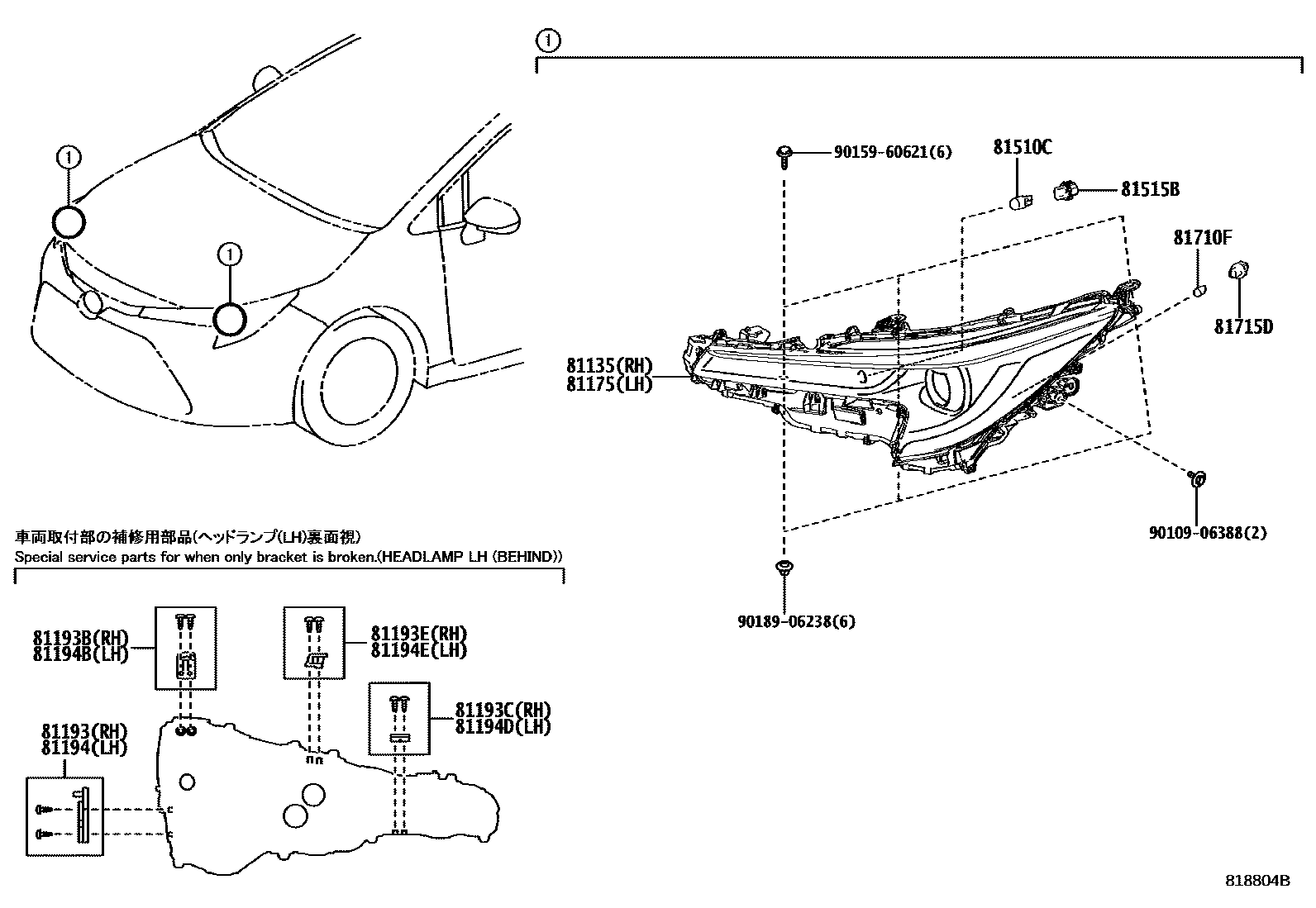

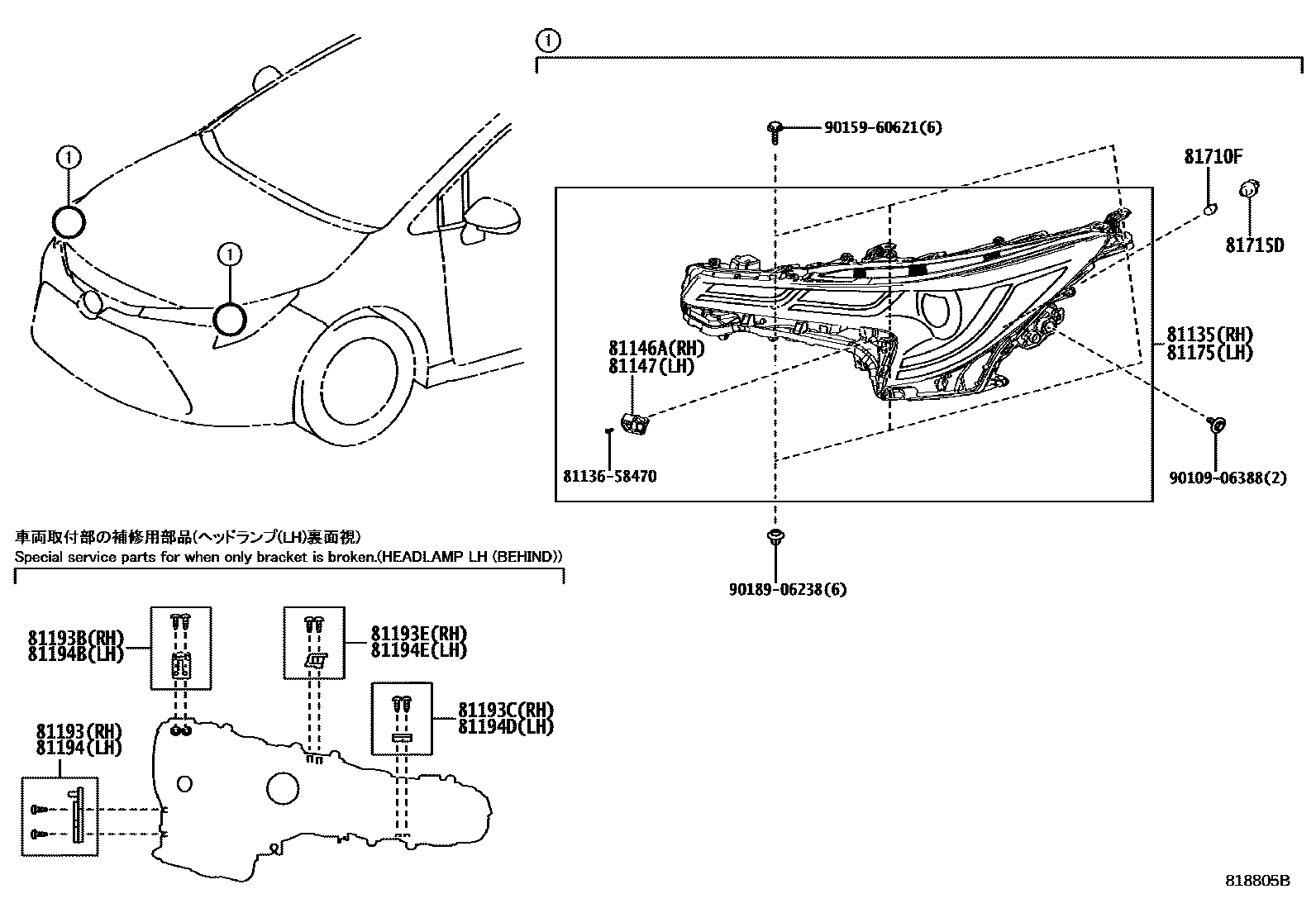

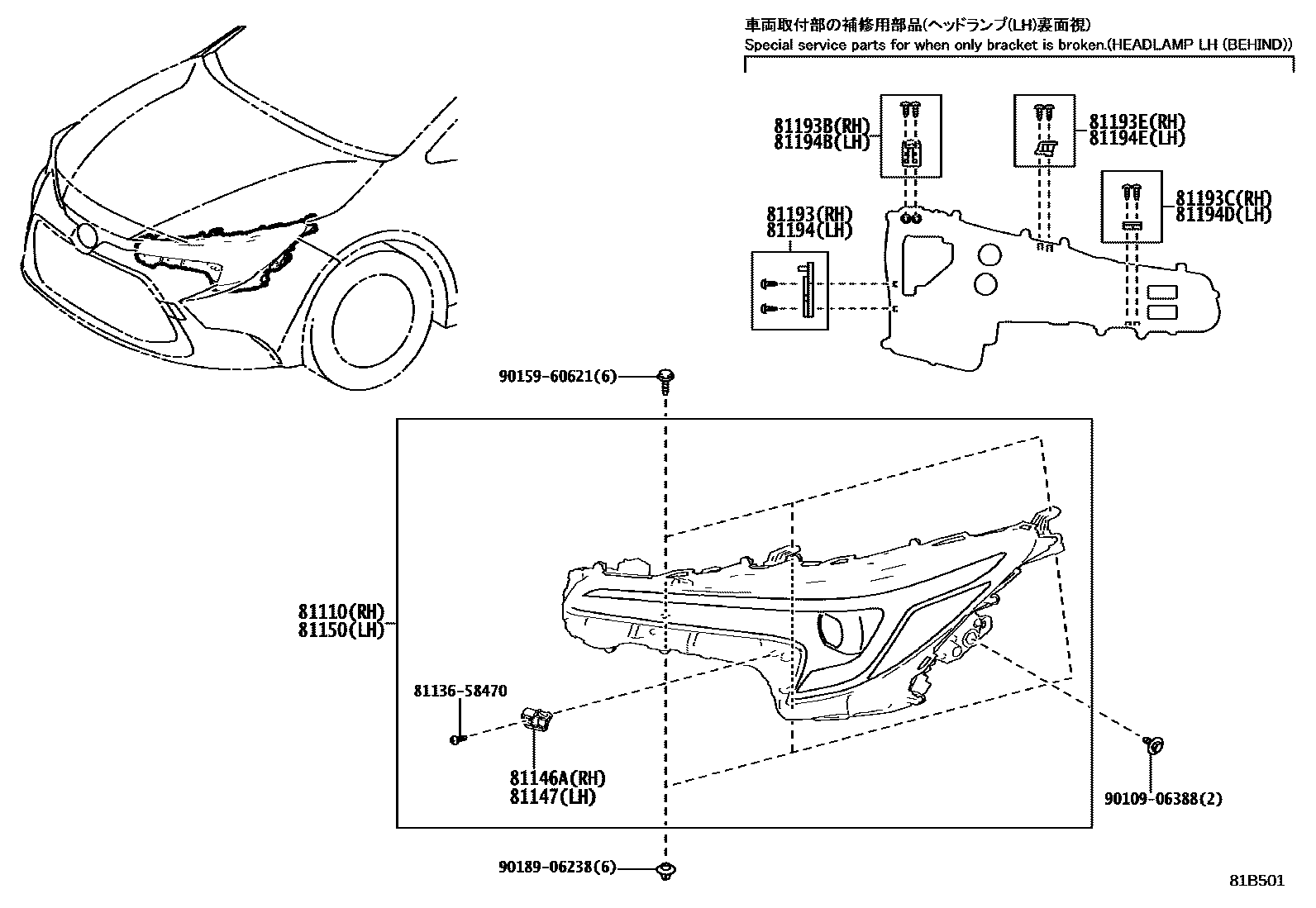

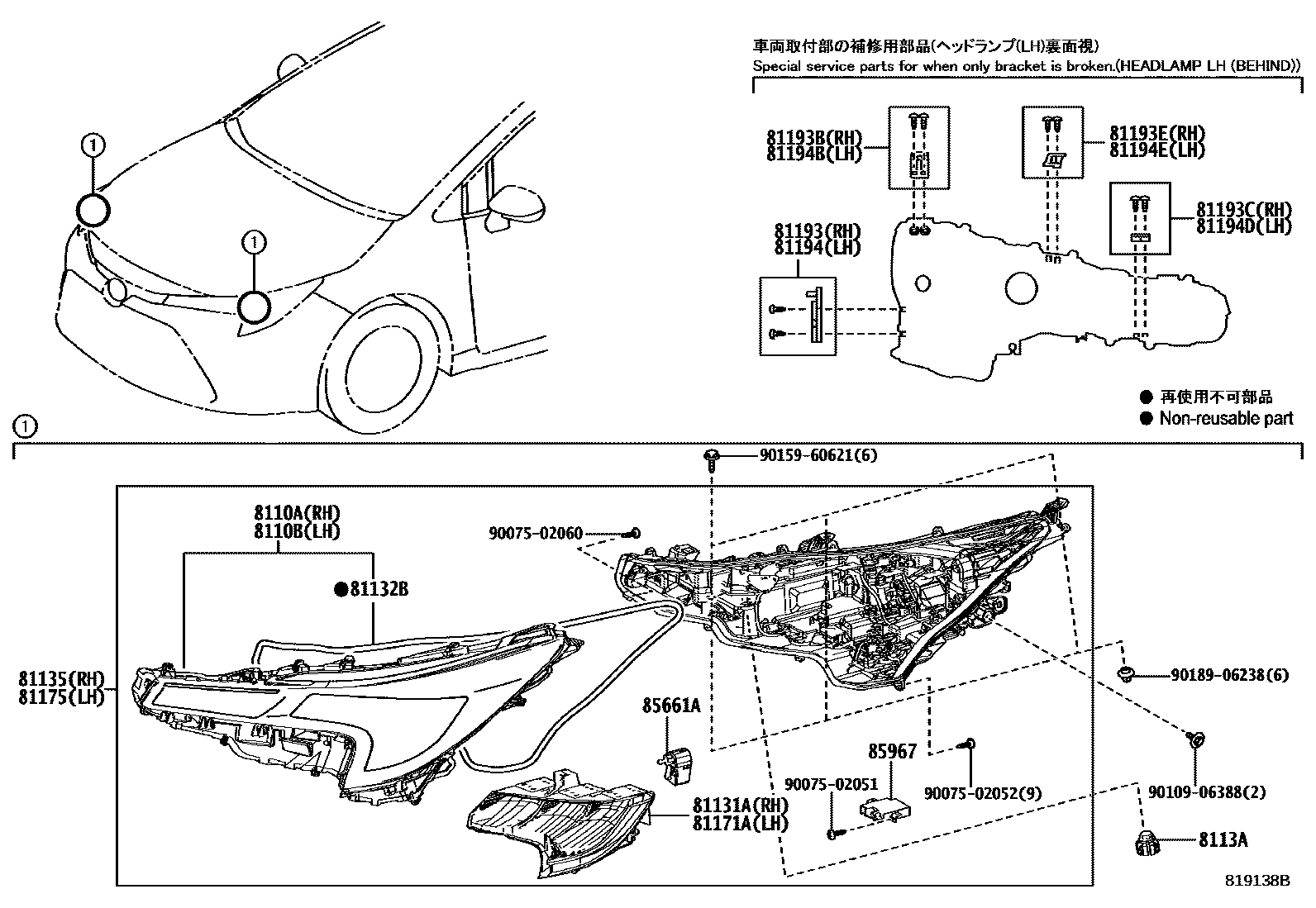

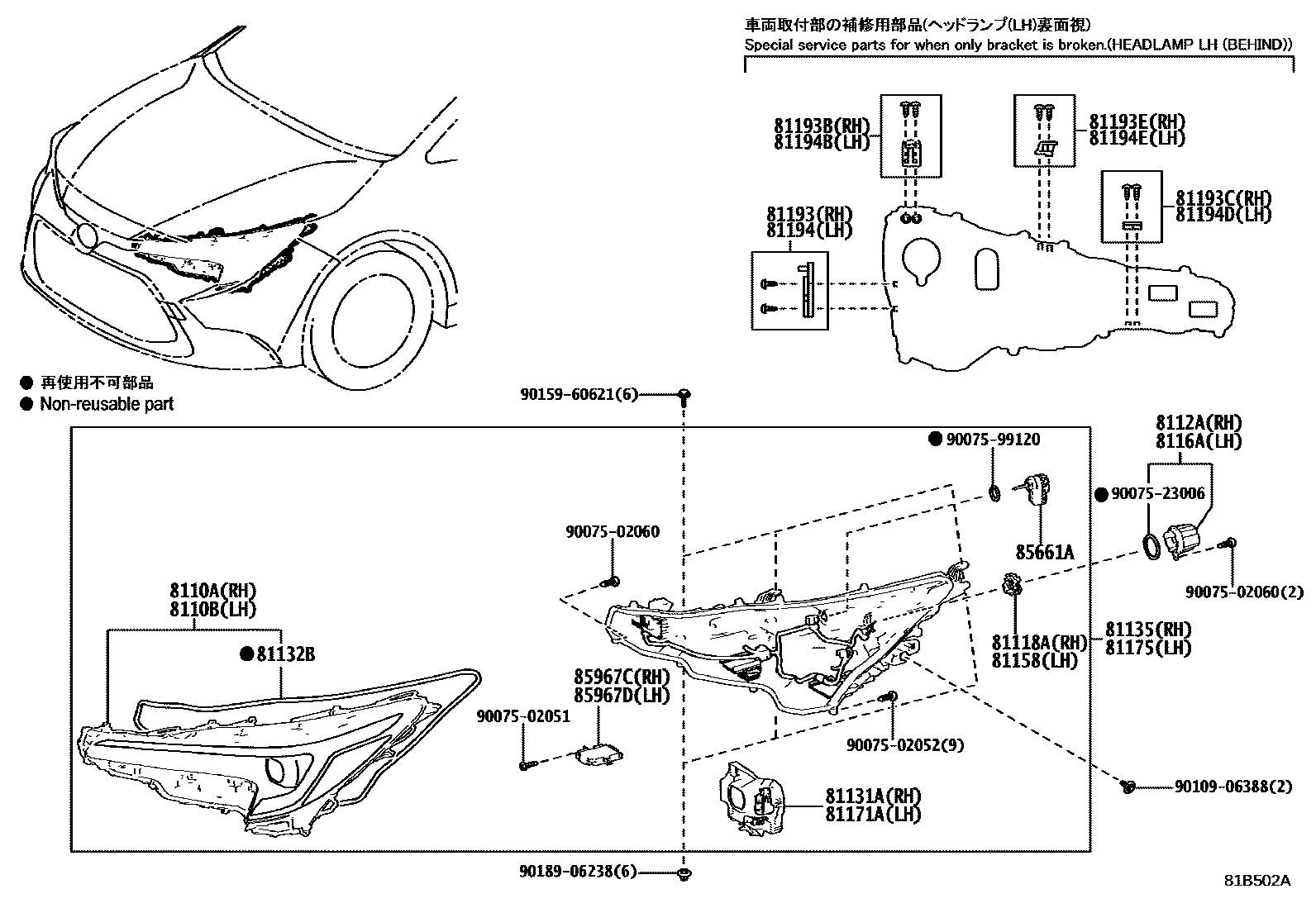

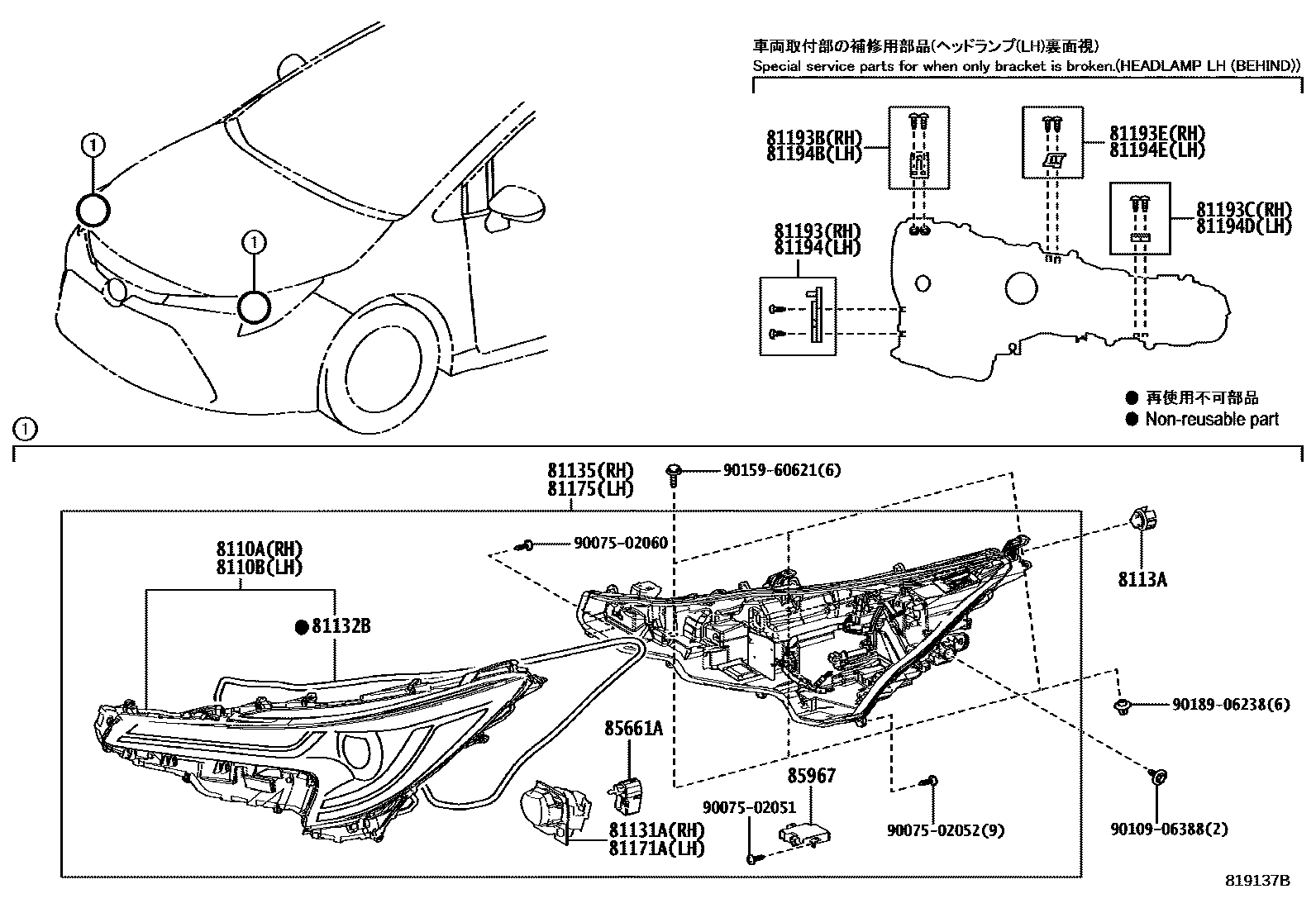

Toyota COROLLA EPC diagram 8101, Headlamp, with 6 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 8110A | Right headlight cover sub-assembly | 8110A-12M60 · 8110A-12M70 · 8110A-12N30 |
| 8110B | Left headlight cover sub-assembly | 8110B-12K20 · 8110B-12M40 · 8110B-12N30 |
| 81110 | Right headlight assembly | 81110-12N20 |
| 81118A | Right headlight bracket | 81118-76310 |
| 8112A | Right No. 1 headlight width indicator LED assembly | 8112A-12N30 |
| 81131A | Right headlight assembly | 81130-12L10 · 81130-12M10 · 81130-12N30 |
| 81132B | Headlight cover gasket | 81132-48C30 |
| 81135 | Right headlight assembly assembly | 81105-12M60 · 81105-12M70 · 81105-12N30 · 81130-12L00 · 81140-02S30 · 81140-12K90 · 81140-12N10 |
| 8113A | Headlight turn signal LED | 81536-12D30 |
| 81146A | Right headlight accessories | 81146-12L00 |
| 81147 | Left headlight accessories | 81186-12L00 |
| 81150 | Left headlight assembly | 81150-12N20 |
| 81158 | Left headlight bracket | 81158-76310 |
| 8116A | Left No. 1 headlight width indicator LED assembly | 8116A-12N30 |
| 81171A | Left headlight assembly | 81170-12L10 · 81170-12M10 · 81170-12N30 |
| 81175 | Left headlight assembly assembly | 81070-02S30 · 81070-12K90 · 81070-12N10 · 81106-12K20 · 81106-12M40 · 81106-12N30 · 81170-12L00 |
| 81193 | Right headlight upper protective ring | 81193-12250 |
| 81193B | No. 2 headlight upper protection ring on the right | 81193-12260 |
| 81193C | Right headlight upper right protection ring | 81193-12270 |
| 81193E | Protective ring on the right No. 3 headlight | 81193-12280 |
| 81194 | Left headlight upper protective ring | 81194-12250 |
| 81194B | No. 2 headlight upper protective ring on the left | 81194-12260 |
| 81194D | Left headlight upper left protective ring | 81194-12270 |
| 81194E | Protective ring on the left No. 3 headlight | 81194-12280 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15024 |
| 81515B | Front turn signal lamp holder | 90075-60083 |
| 81710F | Front width light bulb | 90981-11067 · 90981-11069 |
| 81715D | Front width light lamp holder plug | 90075-60077 · 90075-60089 |
| 85661A | Headlight beam height adjustment motor | 85661-48050 · 85661-52030 |
| 85967 | Light control ECU | 85967-12020 · 85967-12050 |
| 85967C | Right LED light control ECU | 8596A-12030 |
| 85967D | Left LED light control ECU | 8596A-12040 |
