Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 4 images and 11 PNC and OE references.

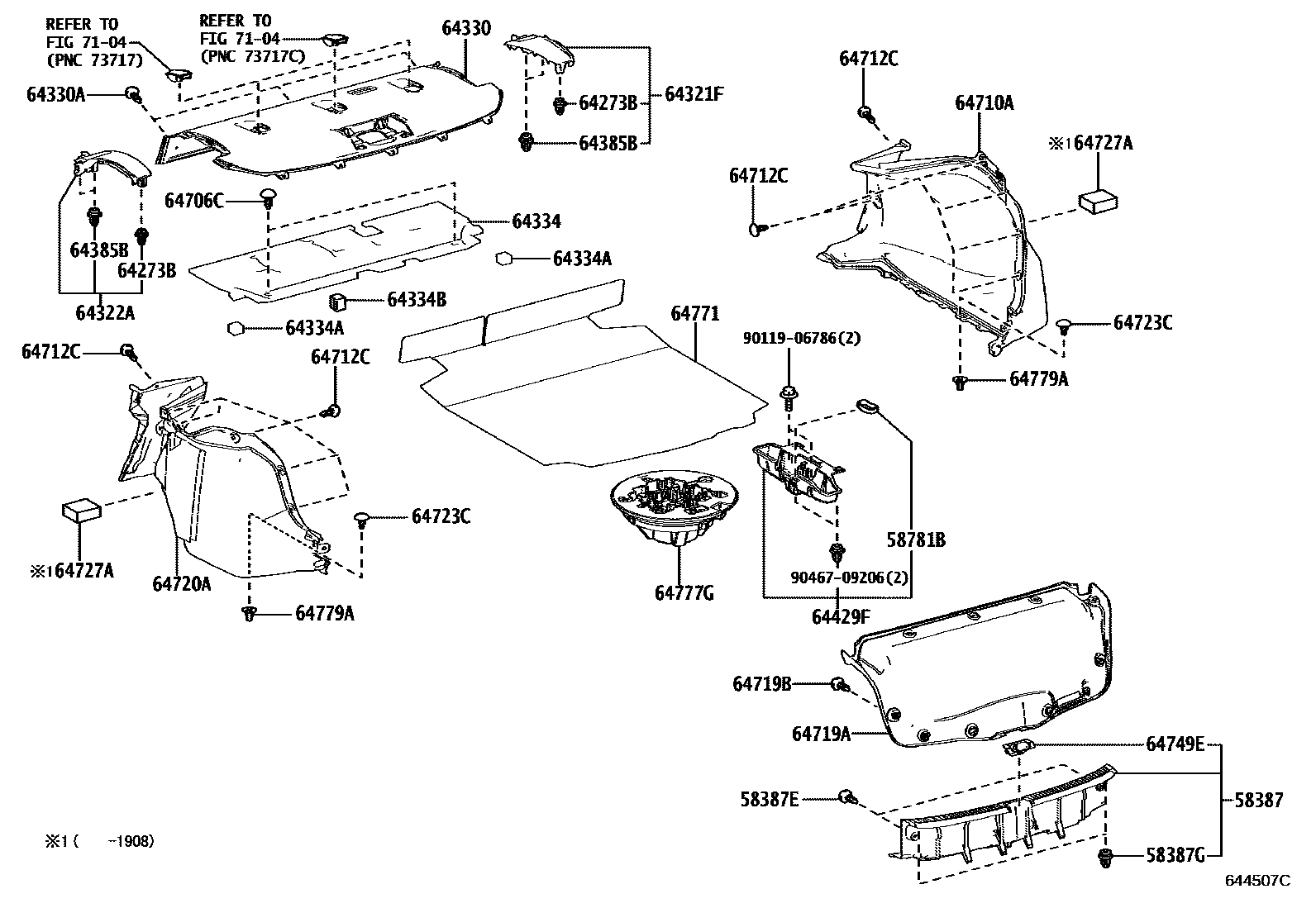

Toyota COROLLA 杂物箱板和行李箱垫 EPC diagram — 644507C
杂物箱板和行李箱垫 — 644507C (201901 – 999999)

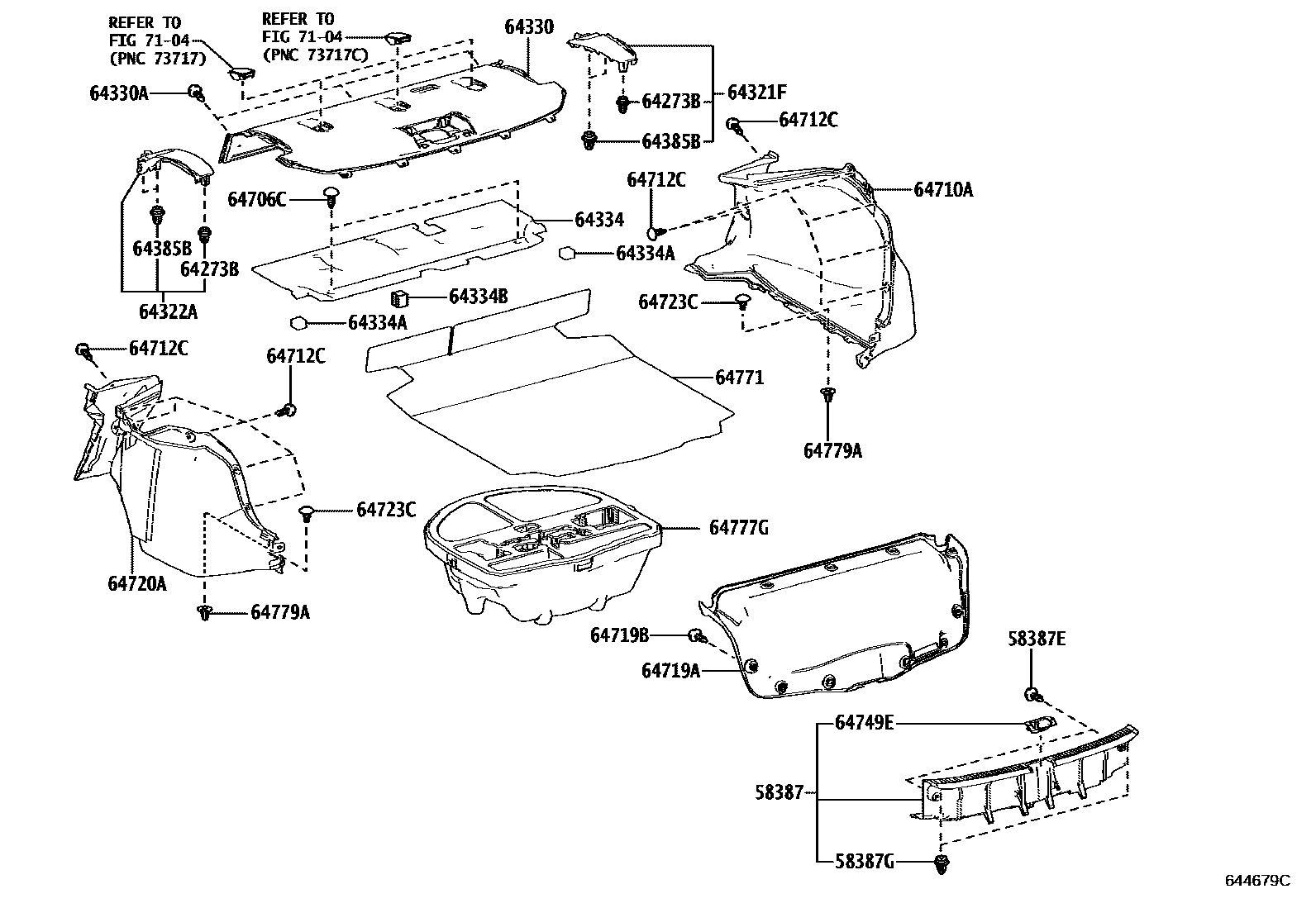

Toyota COROLLA 杂物箱板和行李箱垫 EPC diagram — 644679C
杂物箱板和行李箱垫 — 644679C (201909 – 999999)

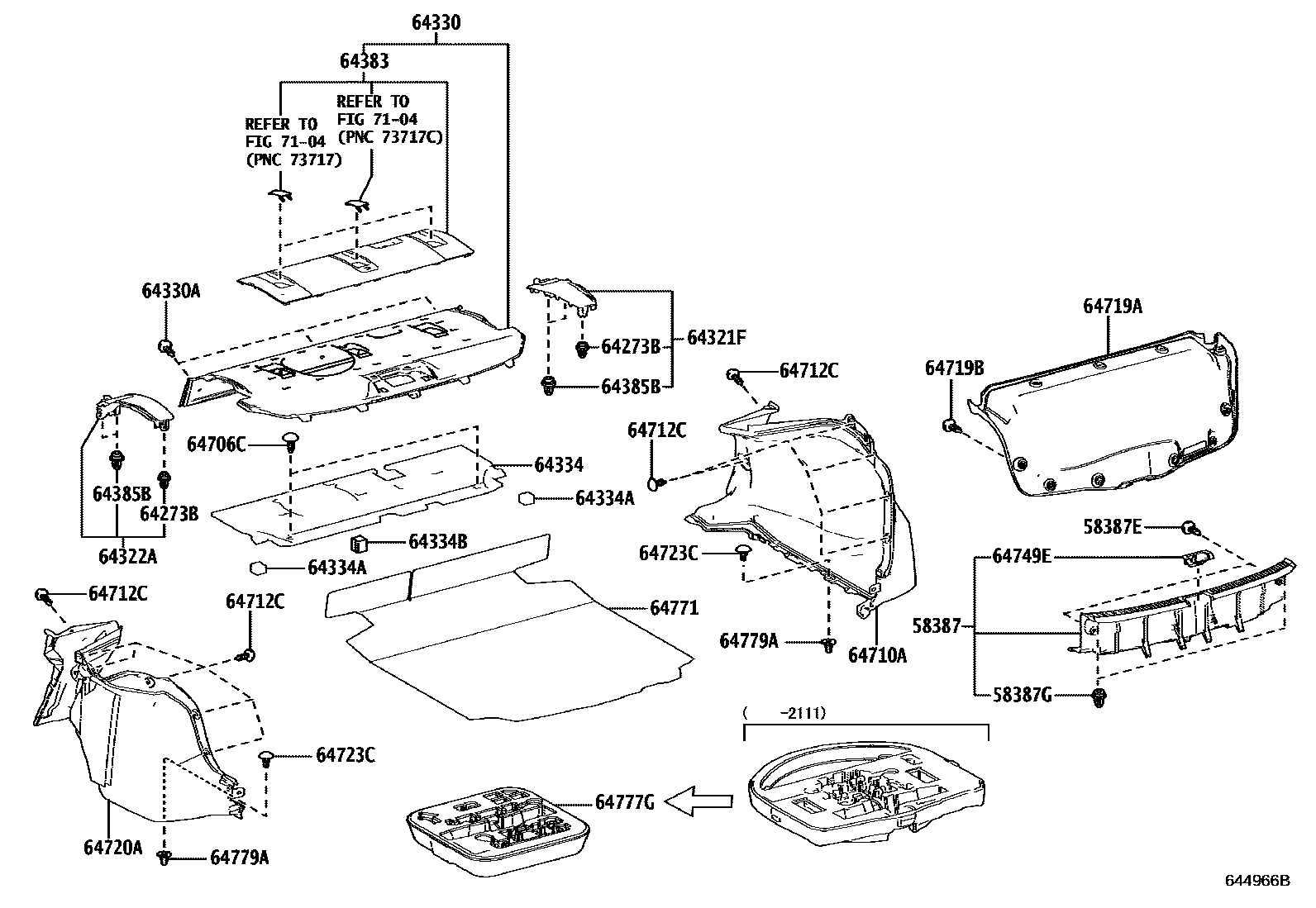

Toyota COROLLA 杂物箱板和行李箱垫 EPC diagram — 644966B
杂物箱板和行李箱垫 — 644966B (201909 – 999999)

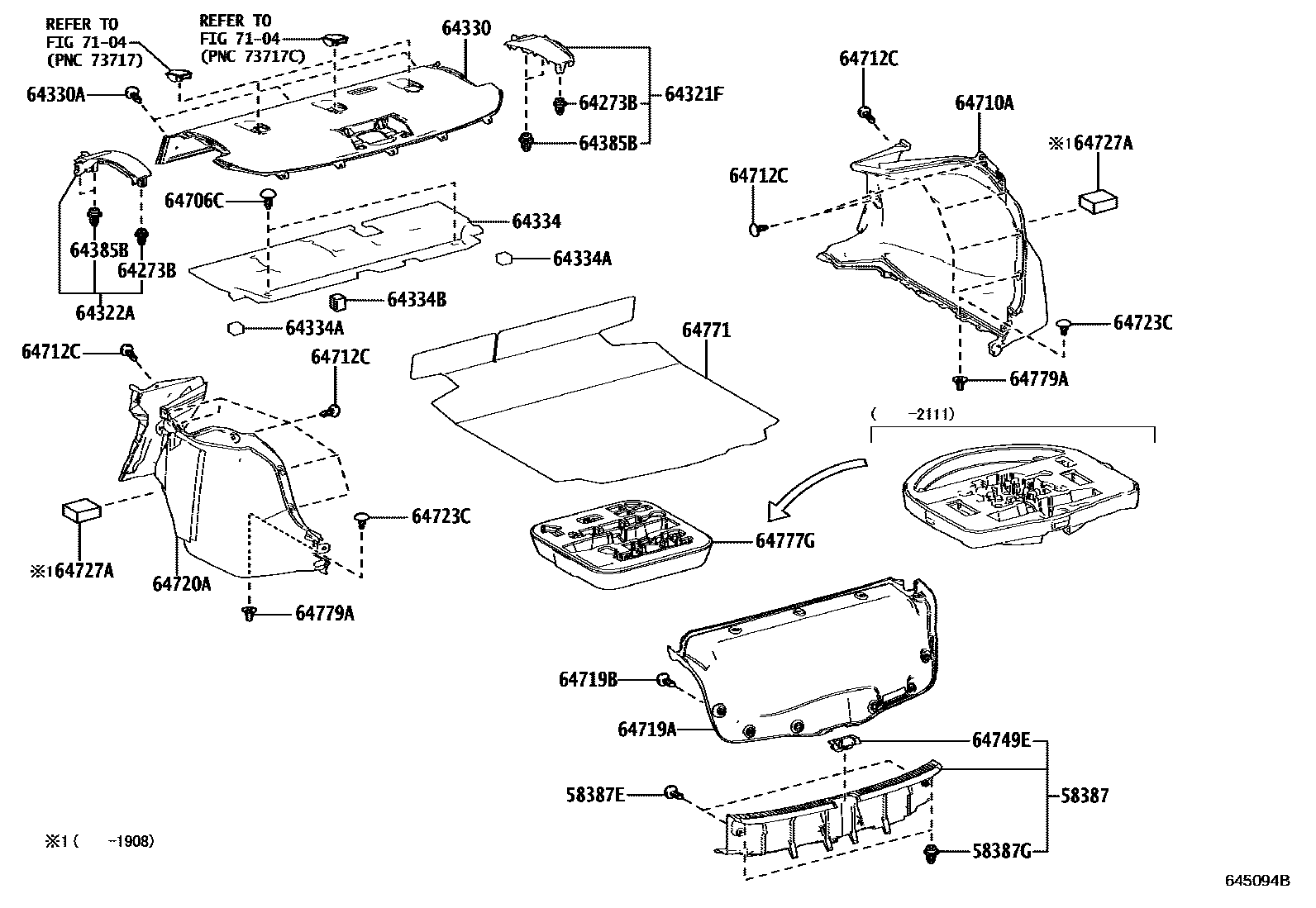

Toyota COROLLA 杂物箱板和行李箱垫 EPC diagram — 645094B
杂物箱板和行李箱垫 — 645094B (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
58387GClip (for rear floor trim panel)90467-10161
58781BLuggage decorative straps58781-52010
64273Bclip90467-09240
64334Glove box decorative panel muffler pad64334-12420
64334AGlove box decorative mat64334-12450
64334BNo. 2 glove box decorative mat64334-12460
64385Bclip90467-10161
64429Fsuitcase decorative box64429-12020
64727ALuggage interior decorative mat64727-12080
64777GSpare tire cushion64777-12180 · 64777-12190 · 64777-12270 · 64777-12271 · 64777-12550
64779ASpare tire cover stop64779-26010
