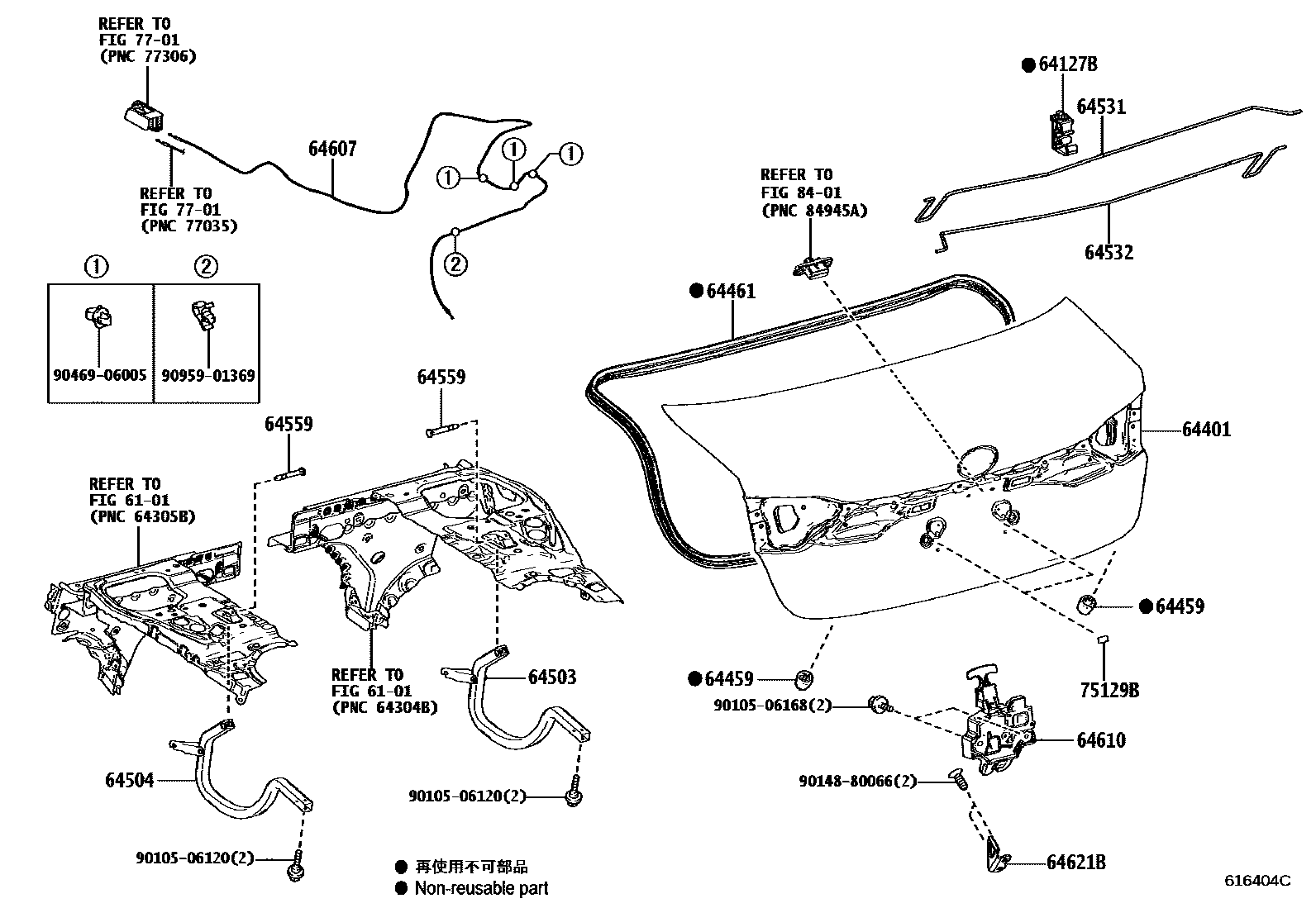

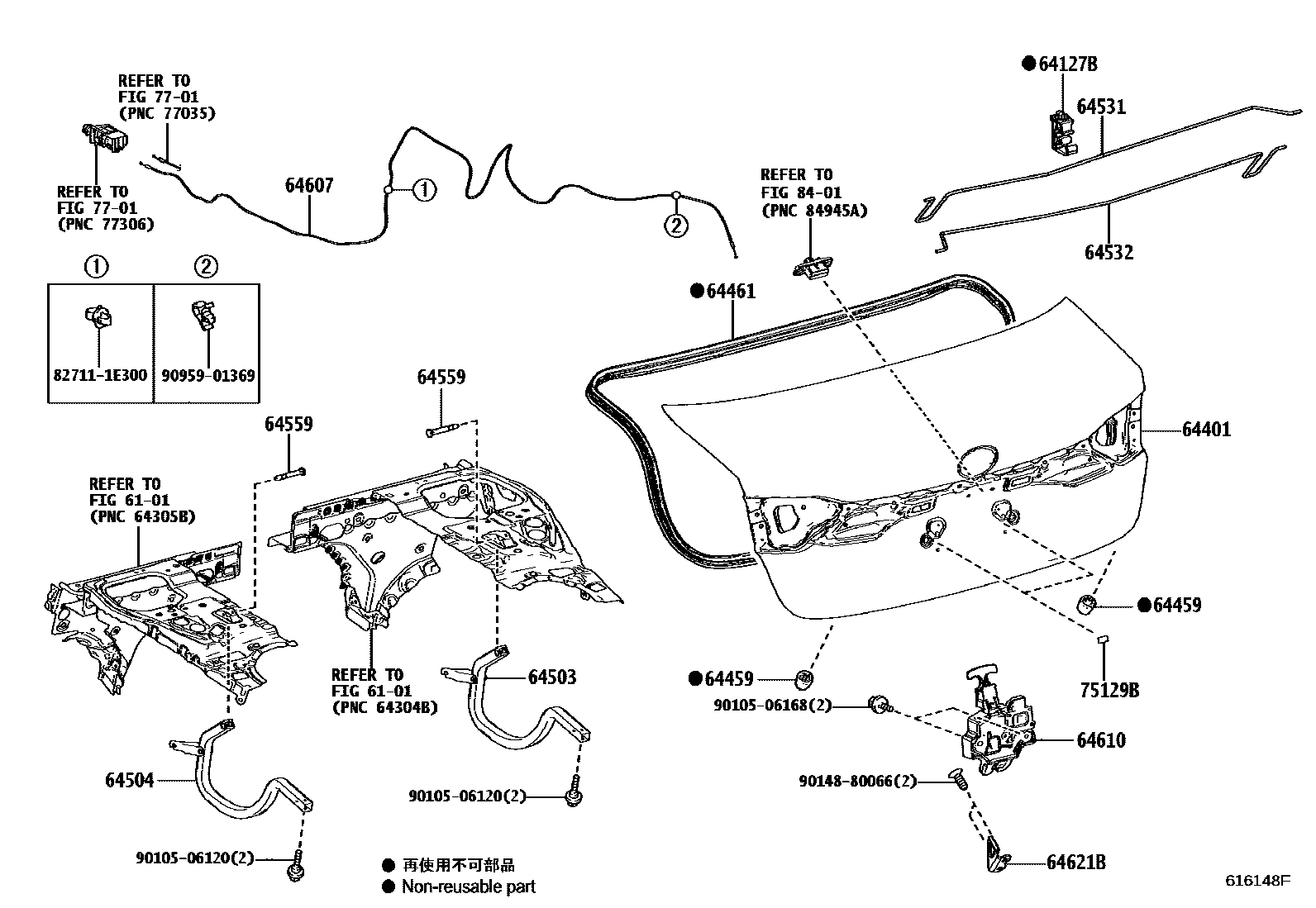

Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105
Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33071 |
| 64401 | Trunk door panel sub-assembly | 64401-12D70 · 64401-12D80 · 64401-12E00 · 64401-12E50 · 64401-12E60 · 64401-12E70 · 64401-12E80 |
| 64459 | Trunk door cushion | 90541-09069 |
| 64461 | Trunk door seal | 64461-12610 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-12200 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-12200 |
| 64531 | Trunk door right hinge torsion bar | 64531-12890 · 64531-12A00 |
| 64532 | Trunk door left hinge torsion bar | 64532-12880 · 64532-12890 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-12A70 · 64607-12A71 · 64607-12B10 |
| 64610 | Trunk door lock assembly | 64600-12090 |
| 64621B | Trunk door latch | 64621-33030 |
| 75129B | rear license plate cushion | 75129-30010 |
