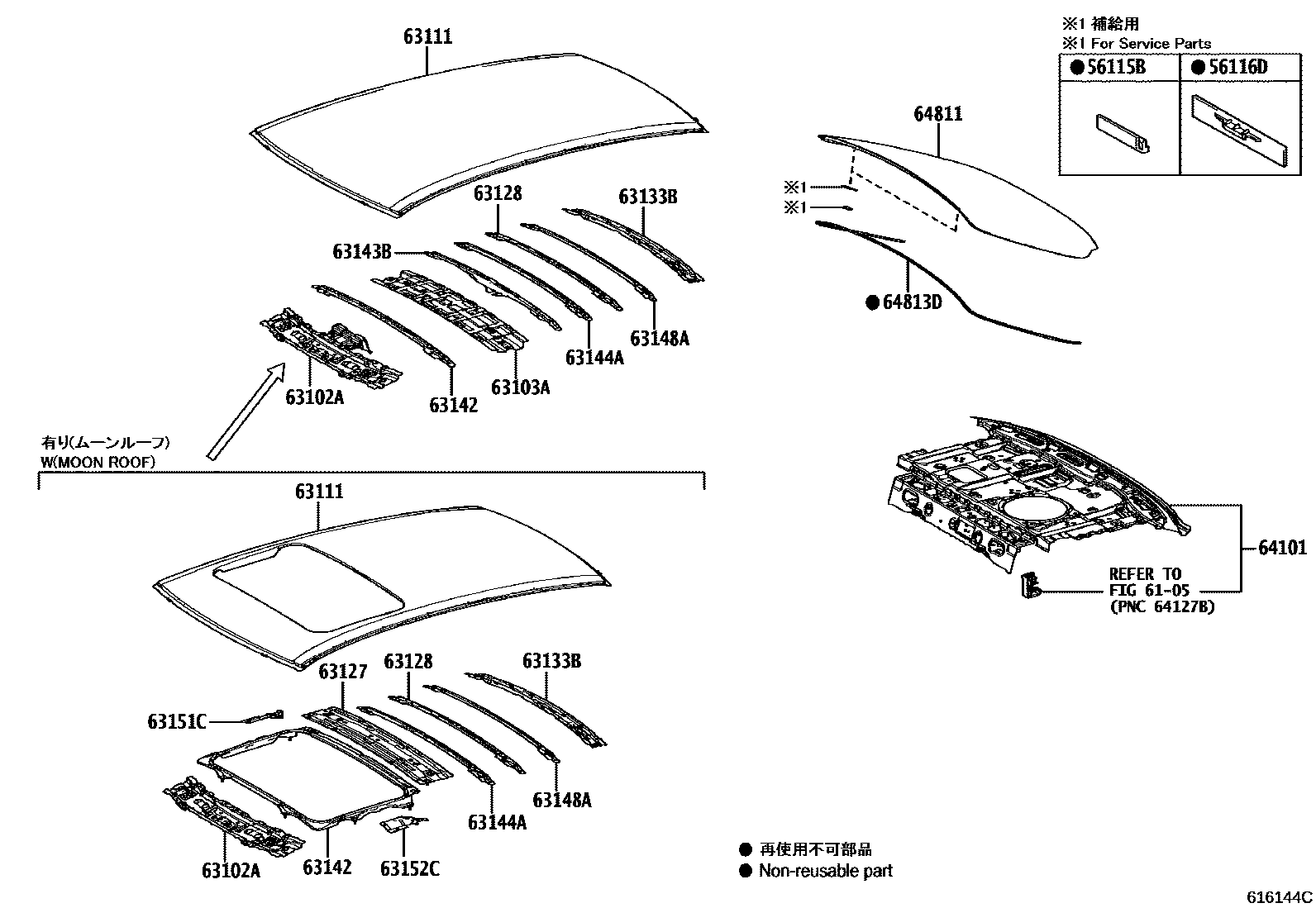

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63102A | Windshield roof sub-assembly | 63102-12911 · 63102-12912 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-12170 |
| 63111 | roof panel | 63111-12A80 · 63111-12A90 · 63111-12B00 · 63111-12B10 |
| 63127 | No. 5 roof panel reinforcement | 63107-12010 |
| 63128 | No. 6 roof panel reinforcement | 63128-12040 |
| 63133B | back window frame | 63133-12350 |
| 63142 | No. 2 roof panel reinforcement | 63142-12150 · 63142-12170 |
| 63143B | No. 3 roof panel reinforcement | 63143-12190 |
| 63144A | No. 4 roof panel reinforcement | 63144-12160 |
| 63148A | No. 7 roof panel reinforcement | 63148-12090 |
| 63151C | Opening frame on the right side of the roof | 63151-12010 |
| 63152C | Opening frame on the left side of the roof | 63152-12010 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-12320 · 63201-12321 |
| 63203A | Sliding sunroof or removable roof rack sub-assembly | 63203-12200 · 63203-12201 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-12170 |
| 63209 | Roof deflector sub-assembly | 63209-12250 · 63209-12260 |
| 63217G | Right sliding sunroof trim | 63217-47020 |
| 63218G | Sliding sunroof trim, left | 63217-47020 |
| 63235D | central sliding skylight frame | 63235-12040 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-33030 |
| 63236D | Sliding skylight drain hose clamp | 63236-30010 |
| 63236G | Sliding skylight drain hose clamp | 86147-30030 · 86147-30040 |
| 63236H | Sliding skylight drain hose clamp | 86147-50050 |
| 63236J | Sliding skylight drain hose clamp | 86147-30020 |
| 63247E | Right rear sliding sunroof drain hose | 63249-12510 |
| 63248E | Left rear sliding sunroof drain hose | 63249-12530 |
| 63249E | Sliding skylight drain hose | 63249-12500 · 63249-12501 |
| 63249F | Sliding skylight drain hose | 63249-12520 · 63249-12521 |
| 63251H | Sliding skylight seal | 63251-12200 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12180 · 63260-12181 |
| 63669B | Sliding skylight drain seal | 63669-50010 |
| 64101 | Upper back panel sub-assembly | 64101-12A20 |
| 64811 | back window glass | 64811-1A900 · 64811-1A901 · 64811-1A902 |
| 64813D | Back window glass adhesive seal | 56117-50130 |
