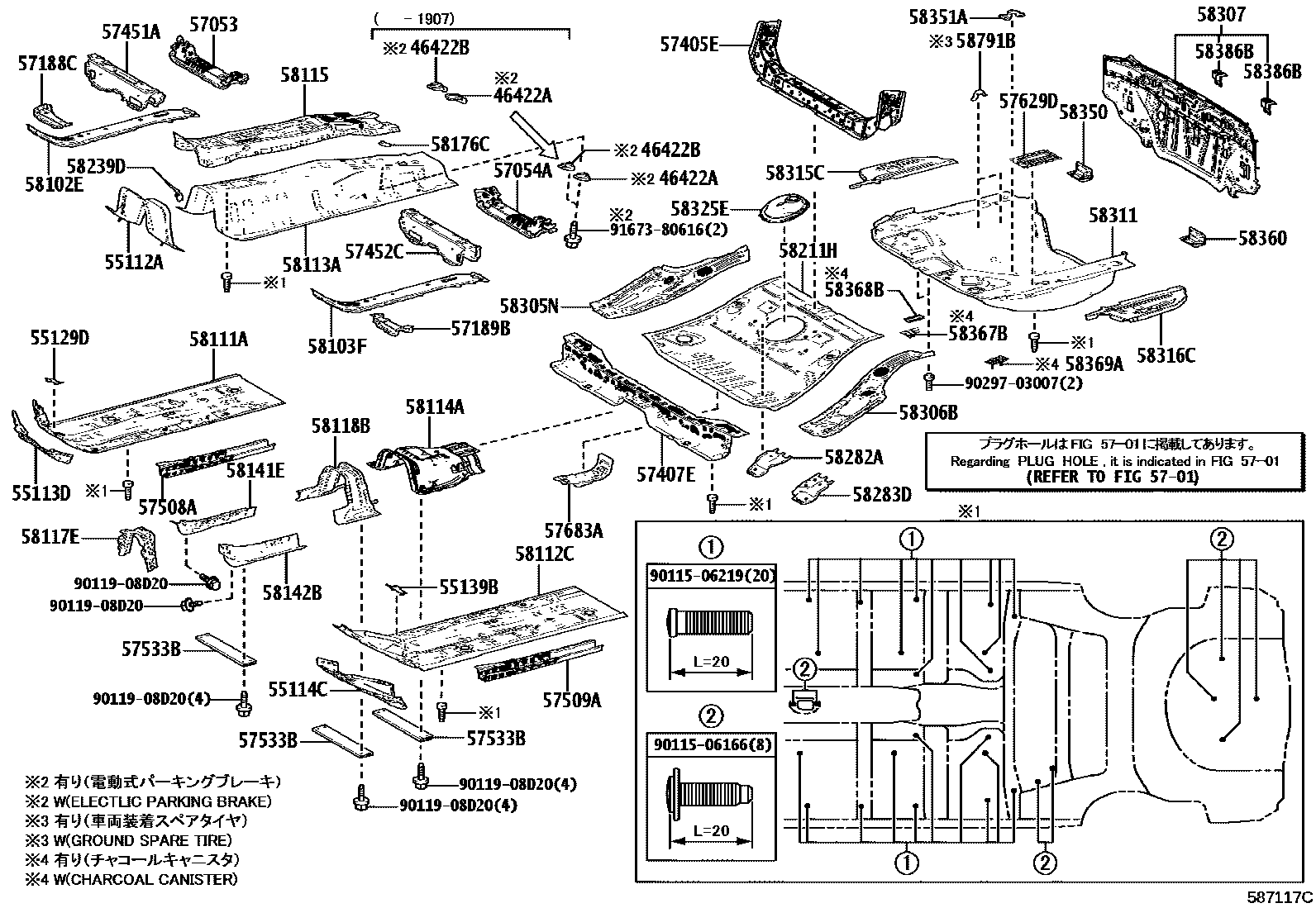

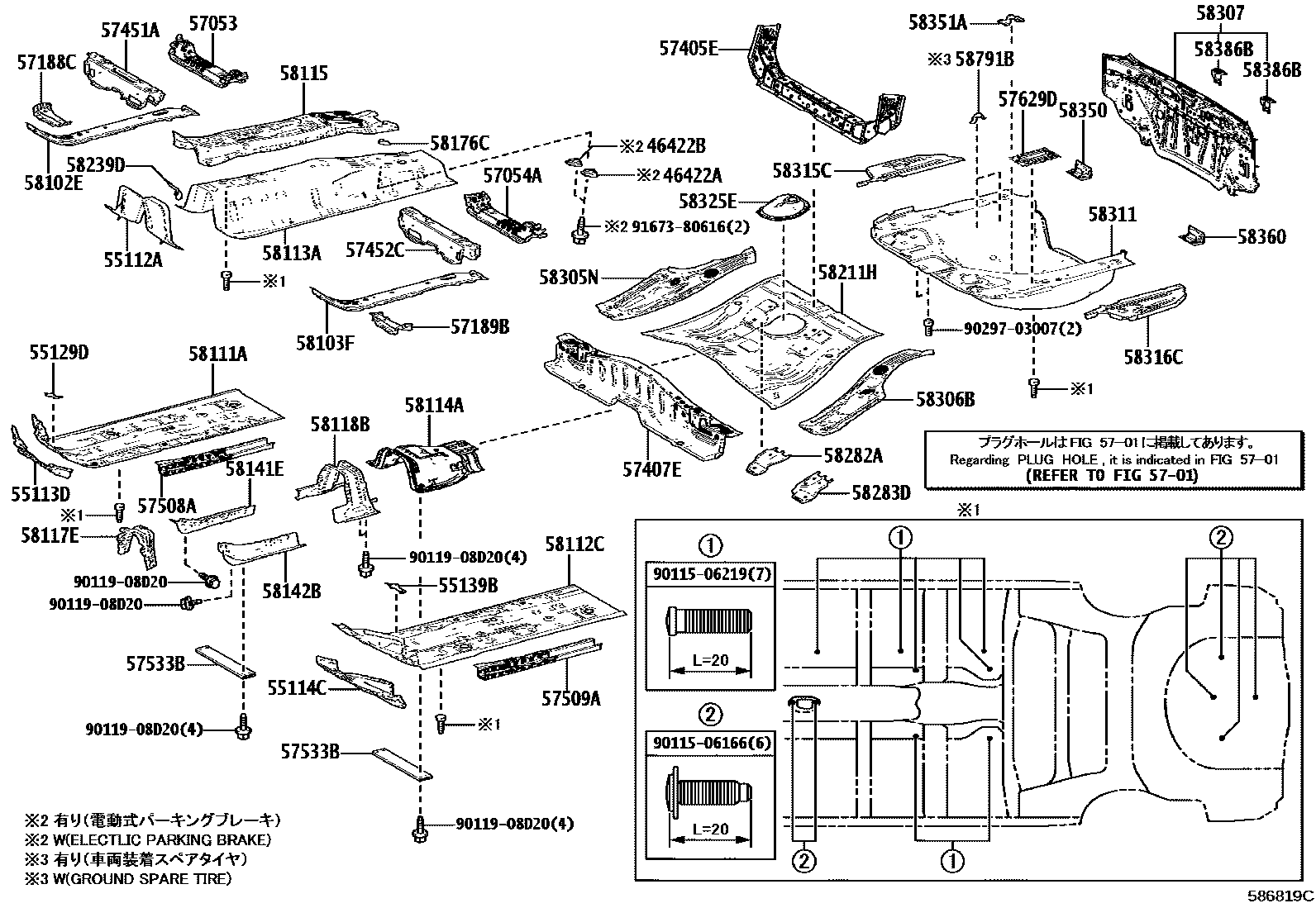

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46422A | Parking brake cable cover | 46422-12010 · 46422-12011 |
| 46422B | Parking brake cable cover | 46422-12011 · 46422-33020 |
| 55112A | No. 2 front panel | 55112-47040 |
| 55113D | lower right cowl | 55113-47020 · 55113-47021 |
| 55114C | Lower left cowl | 55114-47050 |
| 55129D | Right front panel hole cover | 55129-47021 |
| 55139B | Left front panel hole cover | 55139-47021 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-12041 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-12061 |
| 57188C | Right front longitudinal beam extension reinforcement | 57188-47030 |
| 57189B | Left front longitudinal beam extension reinforcement | 57189-47020 |
| 57405E | Center floor No. 2 beam sub-assembly | 57405-12060 · 57405-47010 · 57405-47011 |
| 57407E | Center floor beam sub-assembly | 57407-10070 · 57407-47020 · 57407-47021 |
| 57451A | Front floor right cross member | 57451-47040 |
| 57452C | Front floor left cross member | 57452-47010 |
| 57508A | Front floor right reinforcement sub-assembly | 57508-47010 |
| 57509A | Front floor left reinforcement sub-assembly | 57508-47010 |
| 57533B | Front floor center bracket | 57533-47030 |
| 57629D | Rear floor left longitudinal beam plate | 57629-12070 |
| 57683A | No. 1 fuel tank mounting bracket | 57683-47041 · 57683-47042 |
| 58102E | Front floor right reinforcement sub-assembly | 58102-47020 |
| 58103F | Front floor left reinforcement sub-assembly | 58102-47020 |
| 58111A | Front floor right bottom panel | 58111-47100 · 58111-47101 · 58111-47102 |
| 58112C | Front floor left bottom panel | 58112-47050 · 58112-47051 · 58112-47052 |
| 58113A | front floor center panel | 58113-12070 · 58113-12090 |
| 58114A | front floor reinforcement | 58105-12020 |
| 58115 | Front floor reinforcement | 58015-12140 · 58015-47050 |
| 58117E | Front floor sub-cover | 58117-47040 |
| 58118B | Front floor reinforcement No. 2 | 58118-47030 |
| 58141E | Right front longitudinal beam to floor panel reinforcement | 58141-47011 |
| 58142B | Left front longitudinal beam to floor panel reinforcement | 58142-47011 · 58142-47012 |
| 58176C | Parking brake base No. 2 reinforcement | 58176-12020 |
| 58211H | central floor base | 58211-12800 · 58211-16110 · 58211-47100 |
| 58239D | Cable clip bracket | 58239-12030 |
| 58282A | Right No. 3 seat belt anchor to floor base | 58282-16070 · 58282-47050 |
| 58283D | Left No. 3 seat belt anchor to floor base | 58283-16020 · 58283-47040 |
| 58305N | Rear floor to right side wall extension sub-assembly | 58305-12060 · 58305-47051 |
| 58306B | Rear floor to left side wall extension sub-assembly | 58306-12040 · 58306-47051 |
| 58307 | Body lower back panel sub-assembly | 58307-12C20 |
| 58311 | rear floor pan | 58311-12380 |
| 58315C | Rear floor right side panel extension | 58315-12090 |
| 58316C | Rear floor left side panel extension | 58316-12070 |
| 58325E | Rear floor access hole cover | 58325-10031 · 58325-12180 · 58325-47051 |
| 58350 | Rear floor right reinforcement assembly | 58350-47010 |
| 58351A | Spare tire rack bracket | 58351-12070 |
| 58360 | Rear floor left reinforcement assembly | 58350-47010 |
| 58367B | Fuel pipe bracket | 58367-47020 |
| 58368B | No. 2 fuel pipe bracket | 58368-33010 |
| 58369A | No. 3 fuel pipe bracket | 58369-47020 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-47020 |
| 58791B | jack bracket | 58791-12250 |
