Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

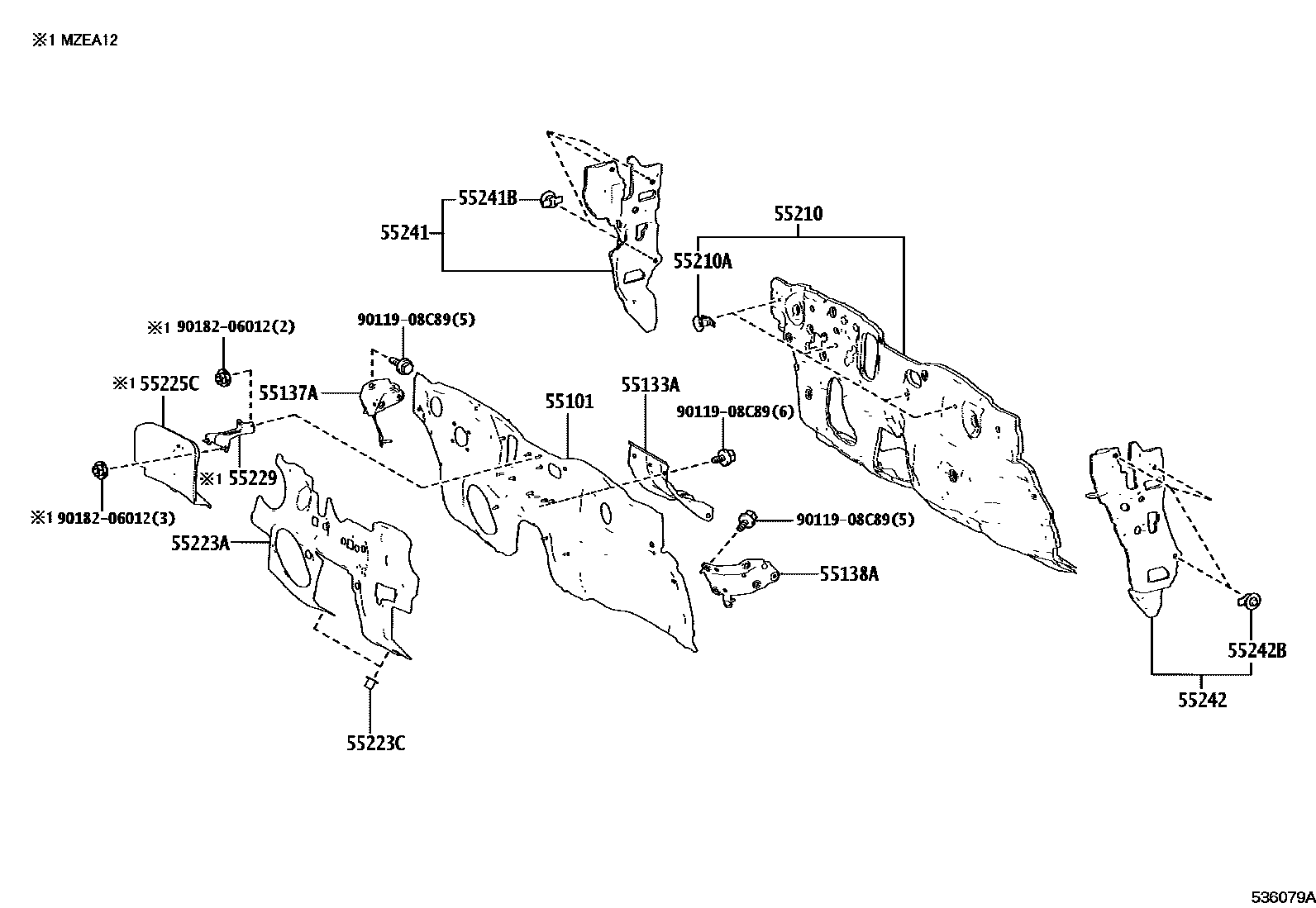

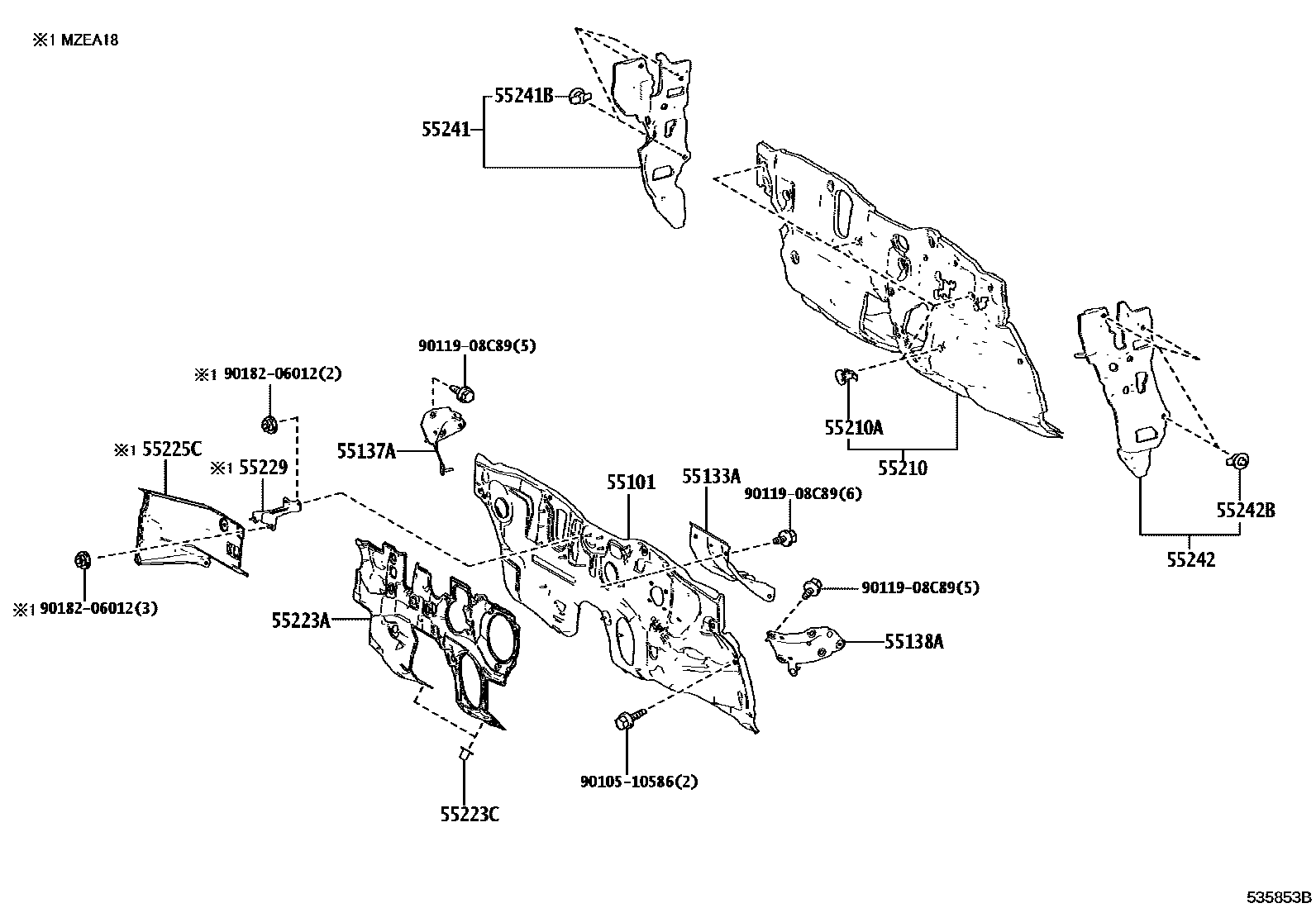

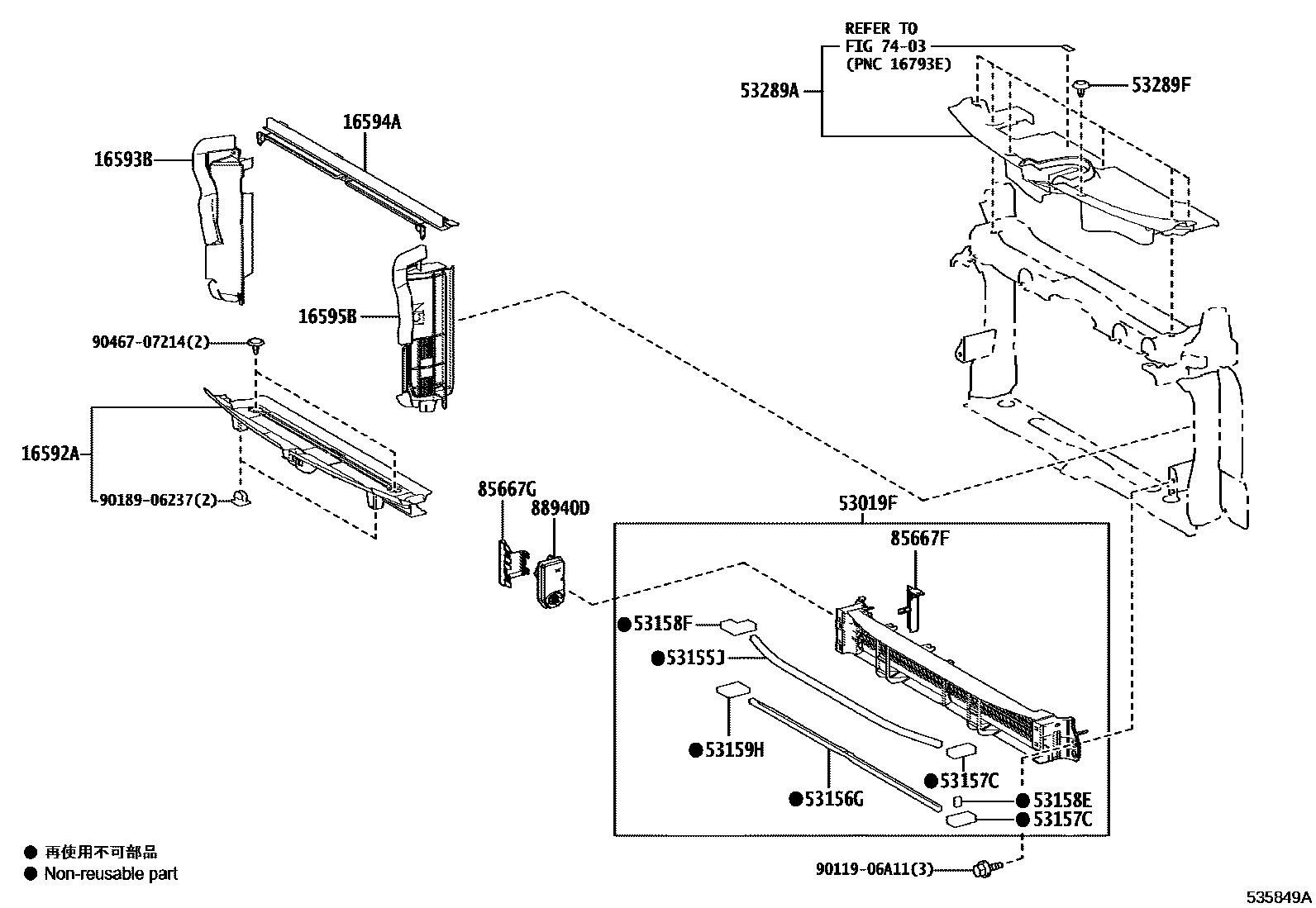

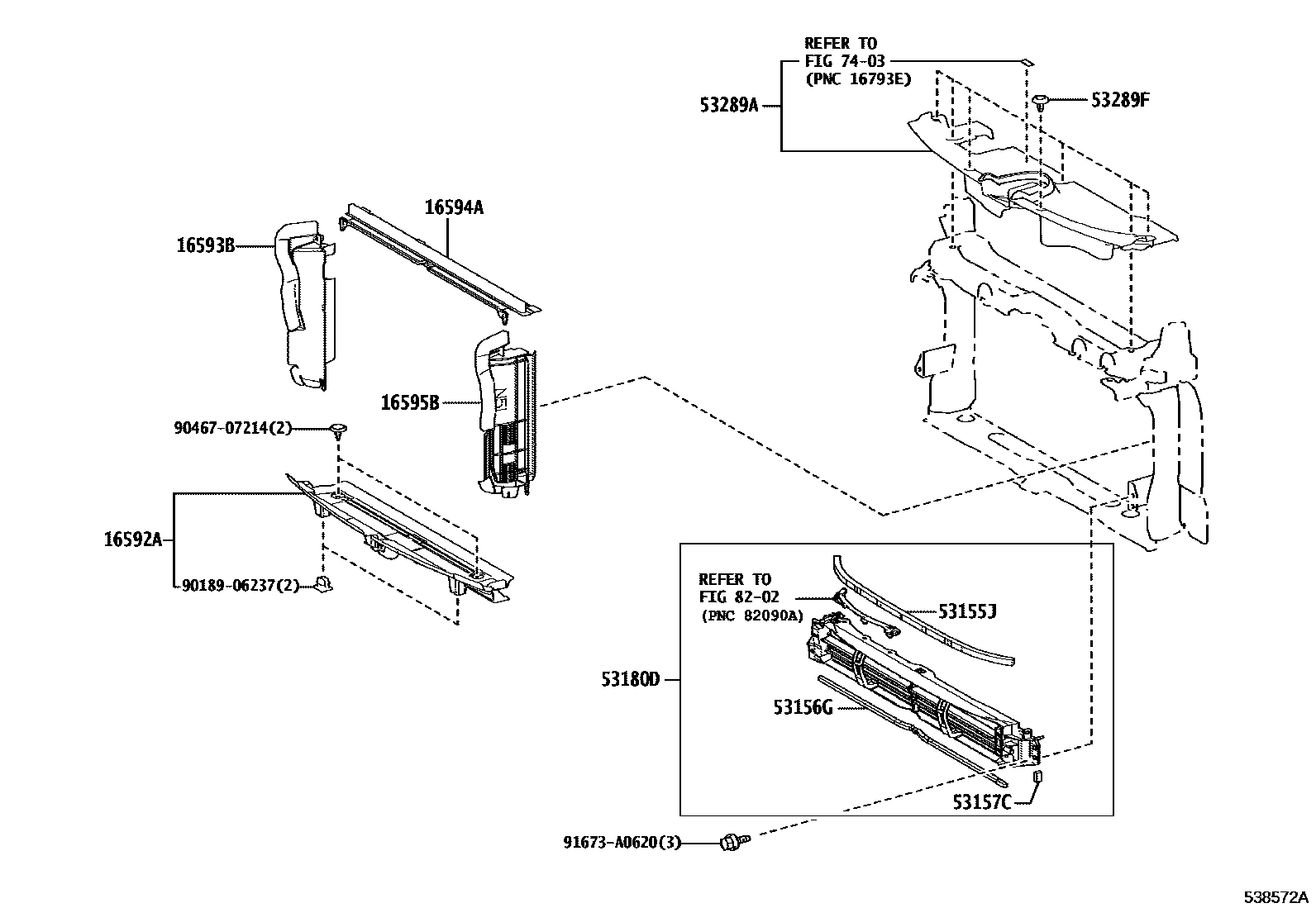

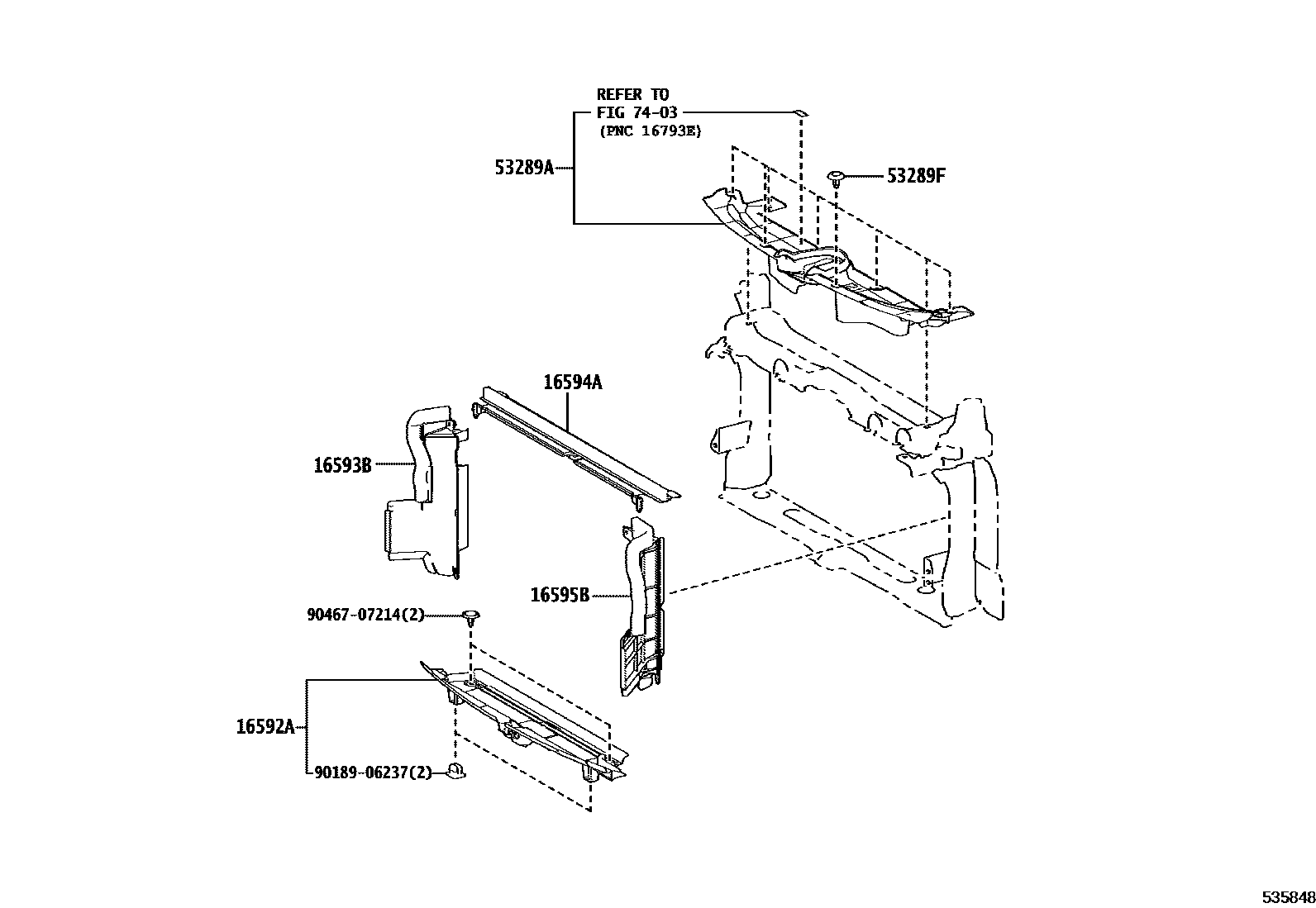

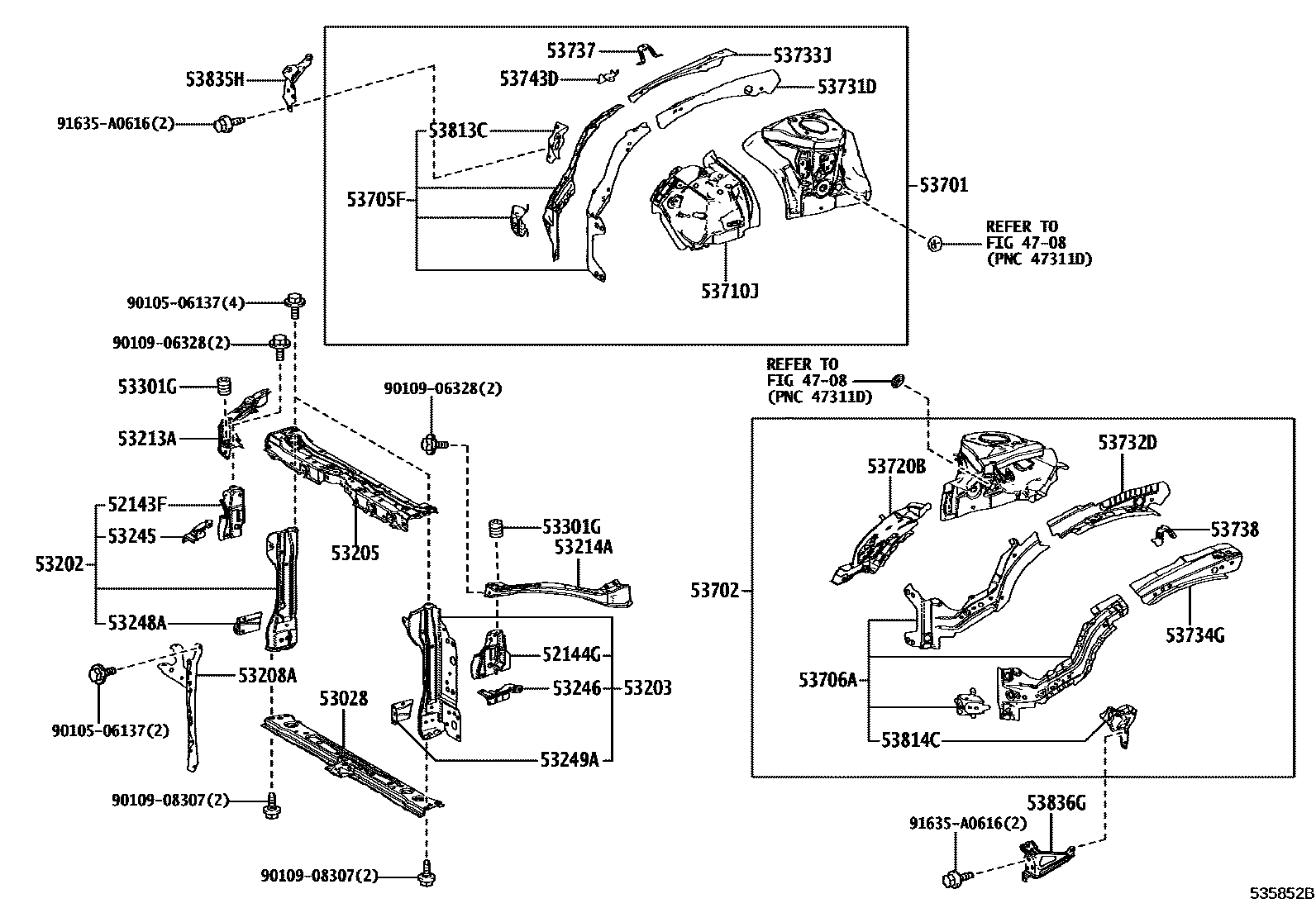

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 6 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | Radiator deflector No. 3 | 16592-24010 · 16592-24050 · 16592-37070 |
| 16593B | No. 1 radiator right deflector | 16593-24020 · 16593-37130 · 16593-37150 · 16593-37300 |
| 16594A | Radiator deflector No. 2 | 16594-24010 · 16594-24040 · 16594-37010 · 16594-37040 |
| 16595B | No. 1 radiator left deflector | 16595-24020 · 16595-37130 · 16595-37160 · 16595-37280 |
| 52143F | Front bumper right side bracket | 52143-47030 |
| 52144G | Front bumper left bracket | 52144-47050 |
| 53019F | Radiator louver sub-assembly | 53019-12010 · 53019-12020 |
| 53028 | Radiator lower bracket sub-assembly | 53028-12040 · 53028-12050 |
| 53155J | Radiator grille seal No. 1 | 53155-12100 · 53155-47070 |
| 53156G | Radiator grille seal No. 2 | 53156-12040 · 53156-47040 |
| 53157C | Radiator grille seal No. 3 | 53157-12010 · 53157-47030 |
| 53158E | Radiator grille seal No. 4 | 53158-12010 |
| 53158F | Radiator grille seal No. 4 | 53158-47010 |
| 53159H | Radiator grille seal No. 5 | 53159-47030 |
| 53180D | Radiator shutter assembly | 53180-47130 · 53180-47131 |
| 53202 | Radiator right side bracket sub-assembly | 53202-47903 · 53202-47904 |
| 53203 | Radiator left bracket sub-assembly | 53203-47903 |
| 53205 | Radiator upper bracket sub-assembly | 53205-12340 · 53205-12350 · 53205-12370 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-12580 |
| 53213A | Radiator upper right bracket | 53213-12190 · 53213-12220 |
| 53214A | Radiator upper left bracket | 53214-12150 · 53214-12180 |
| 53245 | Right headlight bracket | 53245-12150 |
| 53246 | Left headlight bracket | 53246-12090 |
| 53248A | Radiator shutter right bracket | 53248-47010 |
| 53249A | Radiator shutter left bracket | 53249-47010 |
| 53289A | Radiator bracket opening cover | 53289-12080 · 53289-12090 · 53289-12120 · 53289-12130 |
| 53289F | Clip (radiator bracket opening cover) | 90467-07214 · 90467-07217 |
| 53301G | engine cover cushion | 90541-15037 · 90541-15111 |
| 53701 | Right front fender fender sub-assembly | 53701-12A70 |
| 53702 | Left front fender fender sub-assembly | 53702-12A80 |
| 53705F | Right fender fender bracket sub-assembly | 53705-47901 |
| 53706A | Left fender fender bracket sub-assembly | 53706-47901 |
| 53710J | Right front fender fender assembly | 53710-47060 |
| 53720B | Left front fender fender assembly | 53720-47070 |
| 53731D | Right front fender to cowl side upper beam | 53731-47031 |
| 53732D | Left front fender to cowl side upper beam | 53732-47020 |
| 53733J | Right front fender to front wall side outer beam | 53733-47020 |
| 53734G | Left front fender to front wall side outer beam | 53734-47020 |
| 53737 | Right front fender to front wall side sill | 53737-12140 |
| 53738 | Left front fender to front wall side sill | 53738-12100 |
| 53743D | Right front fender fender front extension reinforcement | 53743-47020 |
| 53813C | Right front fender extension | 53813-47050 |
| 53814C | Left front fender extension | 53814-47030 |
| 53835H | Right front fender to extension stay | 53835-12140 |
| 53836G | Left front fender to extension stay | 53836-12090 |
| 55101 | Front apron sub-assembly | 55101-10A01 · 55101-10A11 · 55101-12E00 · 55101-12E10 |
| 55133A | Right reinforcement (front wall to floor) | 55133-47010 |
| 55137A | Right side bracket (front wall to frame) | 55137-47040 |
| 55138A | Left side bracket (front wall to frame) | 55138-47070 |
| 55210 | Front wall insulation pad assembly | 55210-12680 · 55210-12700 · 55210-12730 · 55210-47260 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-47090 · 55223-47100 |
| 55223C | clip | 90467-06197 |
| 55225C | Front wall insulation pad | 55225-12010 · 55225-12030 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-10020 |
| 55241 | Front panel No. 1 right side silencer | 55241-12030 |
| 55241B | Front panel side muffler clip | 90467-13079 |
| 55242 | Front panel No. 1 left side silencer | 55242-12010 |
| 55242B | Front panel side muffler clip | 90467-13079 |
| 85667F | Motor cover | 85667-12010 |
| 85667G | Motor cover | 85667-47010 |
| 88940D | Swing grille actuator assembly | 88940-12040 · 88940-12050 · 88940-12060 · 88940-12070 · 88940-12071 |
