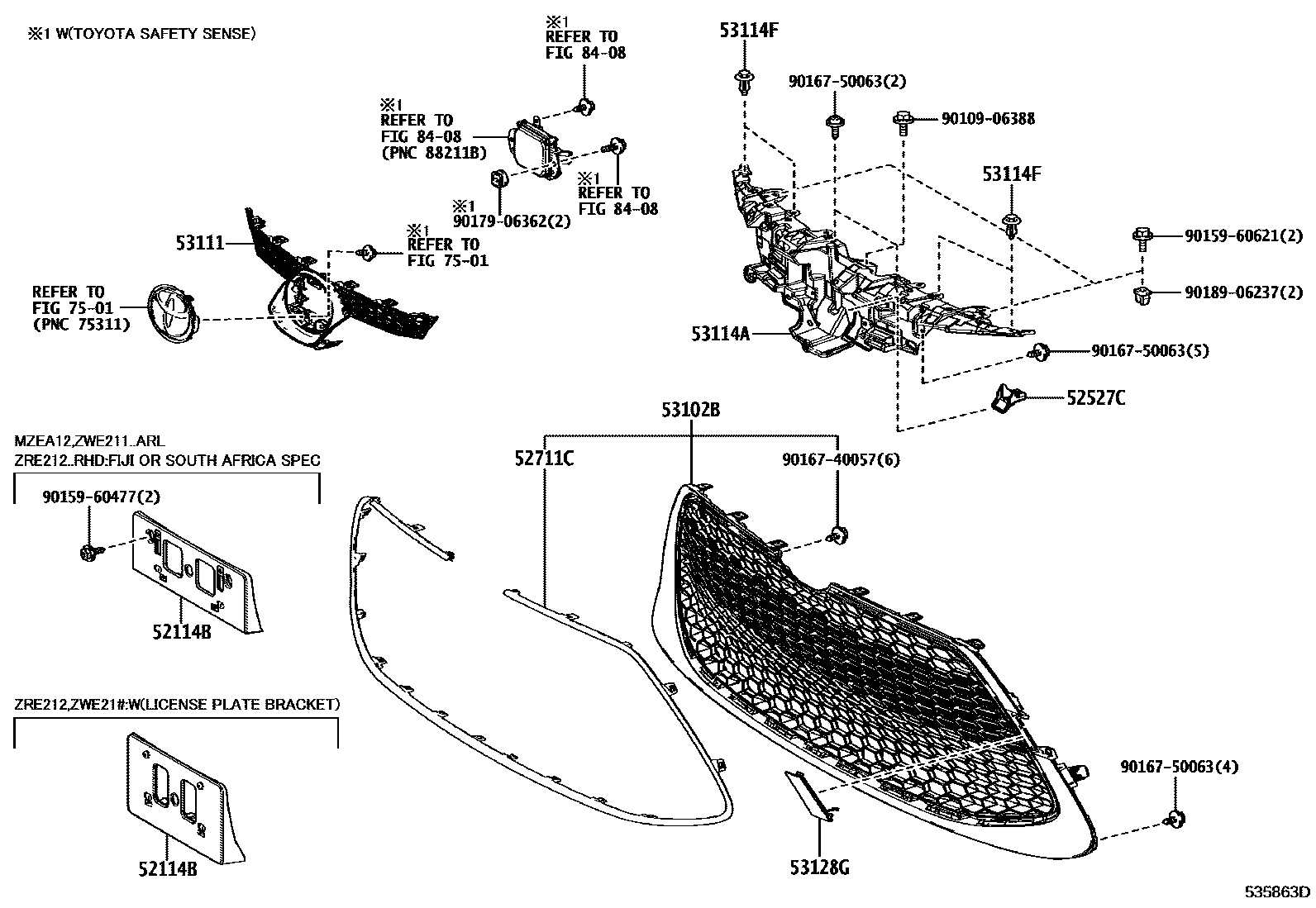

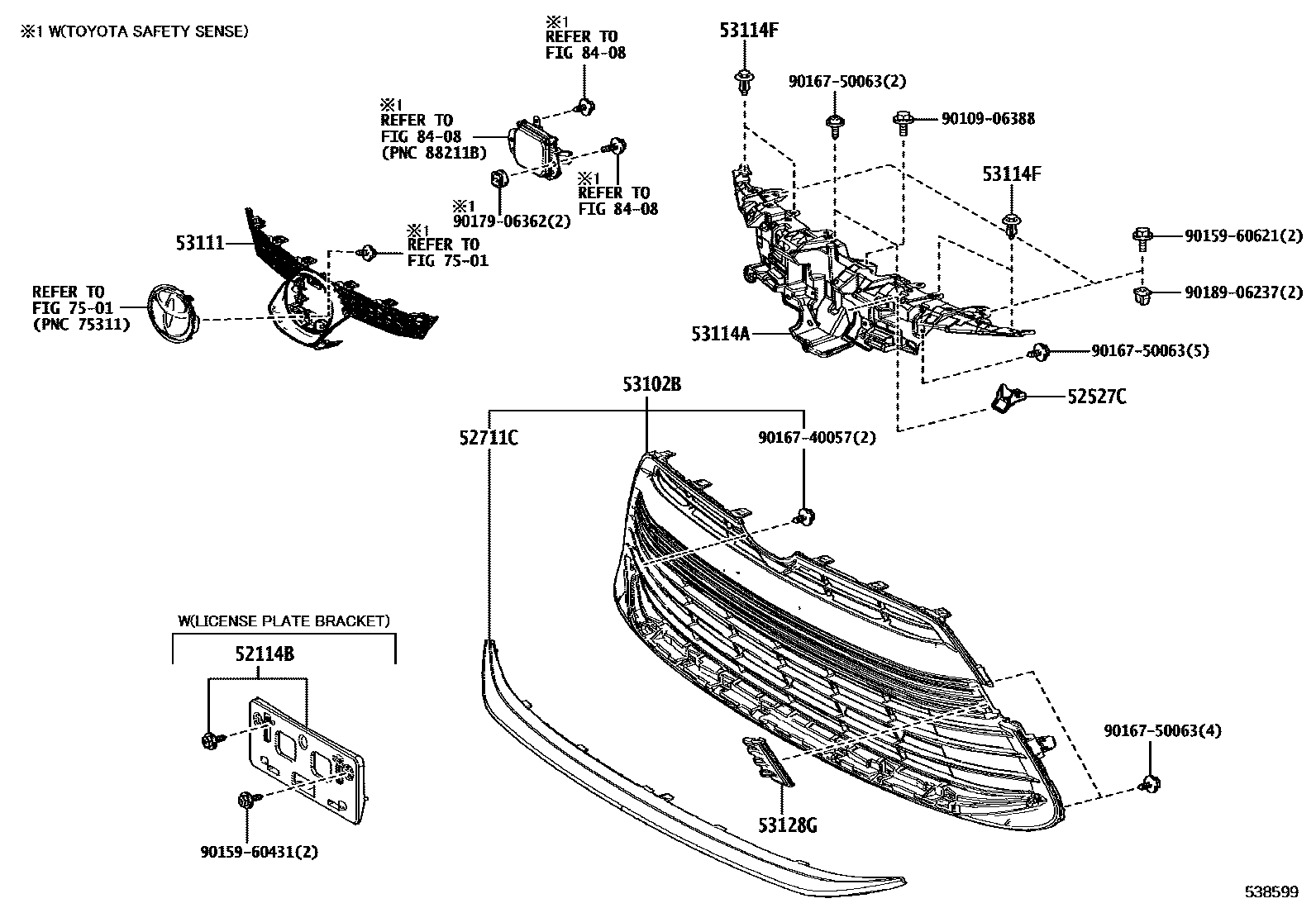

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52114B | Front bumper extension mounting bracket | 52114-12280 · 52114-12290 · 52114-12400 · 52114-12410 |
| 52527C | Front bumper No. 2 lower fixing bracket | 52527-12060 |
| 52711C | Front bumper protection strip | 52711-12420 · 52711-12450 |
| 53102B | Radiator lower grille sub-assembly | 53102-12070 · 53102-12150 · 53102-12230 · 53102-12310 |
| 53111 | radiator grille | 53111-12E60 |
| 53114A | inner radiator grille | 53114-12240 |
| 53128G | Lower left radiator grille | 53128-12050 · 53128-12190 |
