Toyota COROLLA 后保险杠及附件 — Figure 5202

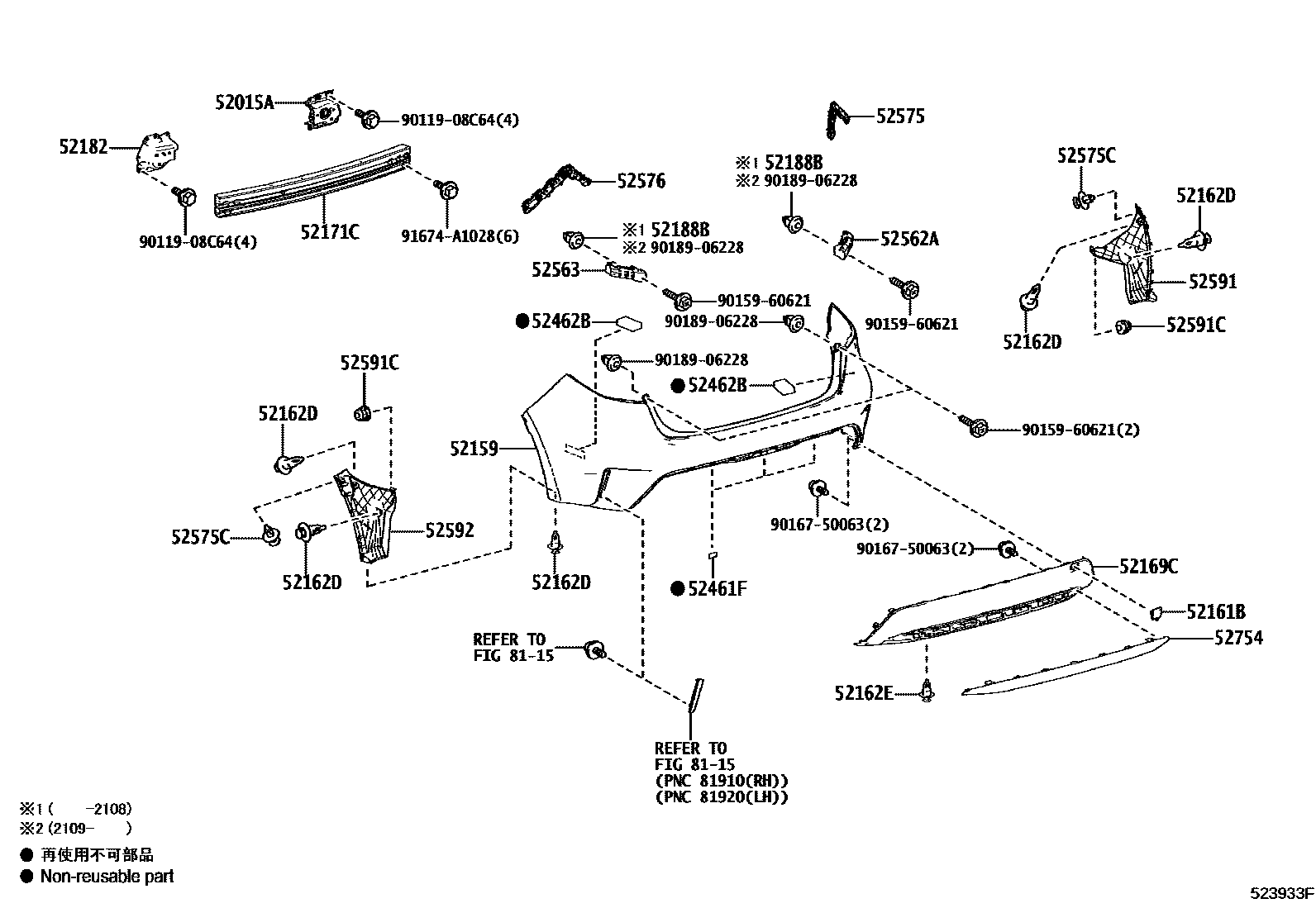

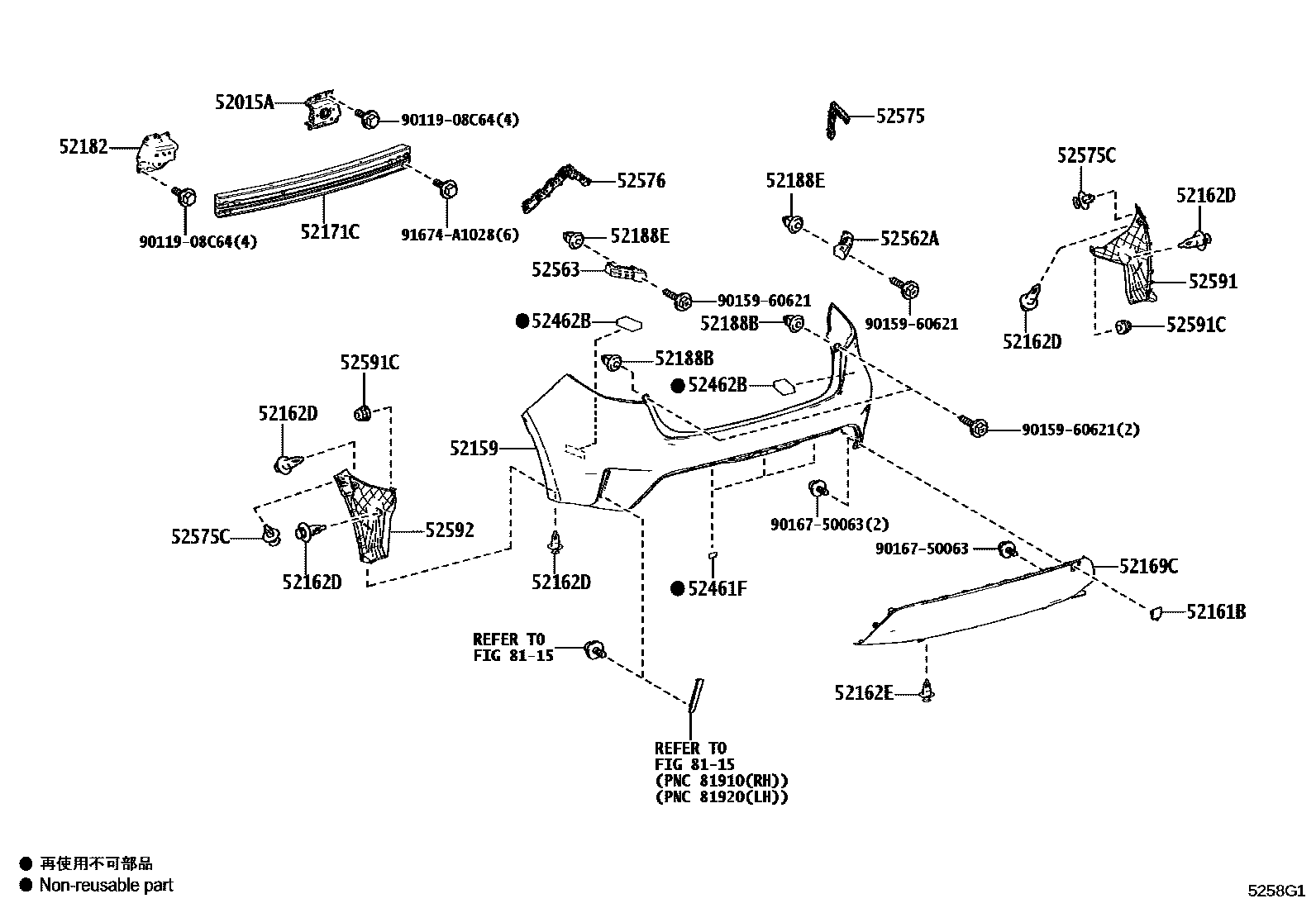

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-12420 |
| 52159 | rear bumper cover | 52159-12960 |
| 52161B | Rear bumper insert | 52161-12040 · 52161-12050 |
| 52162D | Rear bumper insert | 52161-16010 |
| 52162E | Rear bumper insert | 52161-16010 |
| 52169C | Rear bumper lower cover | 52169-12150 · 52169-12280 |
| 52171C | Rear bumper reinforcement | 52171-12270 · 52171-12310 |
| 52182 | Rear bumper left arm | 52182-12460 |
| 52188B | Rear bumper installation spacer | 52188-33040 · 90189-06228 |
| 52188E | Rear bumper installation spacer | 52188-33040 |
| 52461F | rear bumper lining | 52461-12040 |
| 52462B | rear bumper lining | 52462-12140 |
| 52562A | Rear bumper arc filler No. 2 fixing piece | 52562-12230 |
| 52563 | Rear bumper arc filler No. 3 fixing piece | 52563-12230 |
| 52575 | Rear bumper right side fixing bracket | 52575-12210 |
| 52575C | Rear bumper side fixing clip | 90467-05170 |
| 52576 | Rear bumper left side fixing bracket | 52576-12210 |
| 52591 | Rear bumper right seal | 52591-12300 |
| 52592 | Rear bumper left seal | 52592-12300 |
| 52754 | Rear bumper No. 2 protective strip | 52754-12902 |
