Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

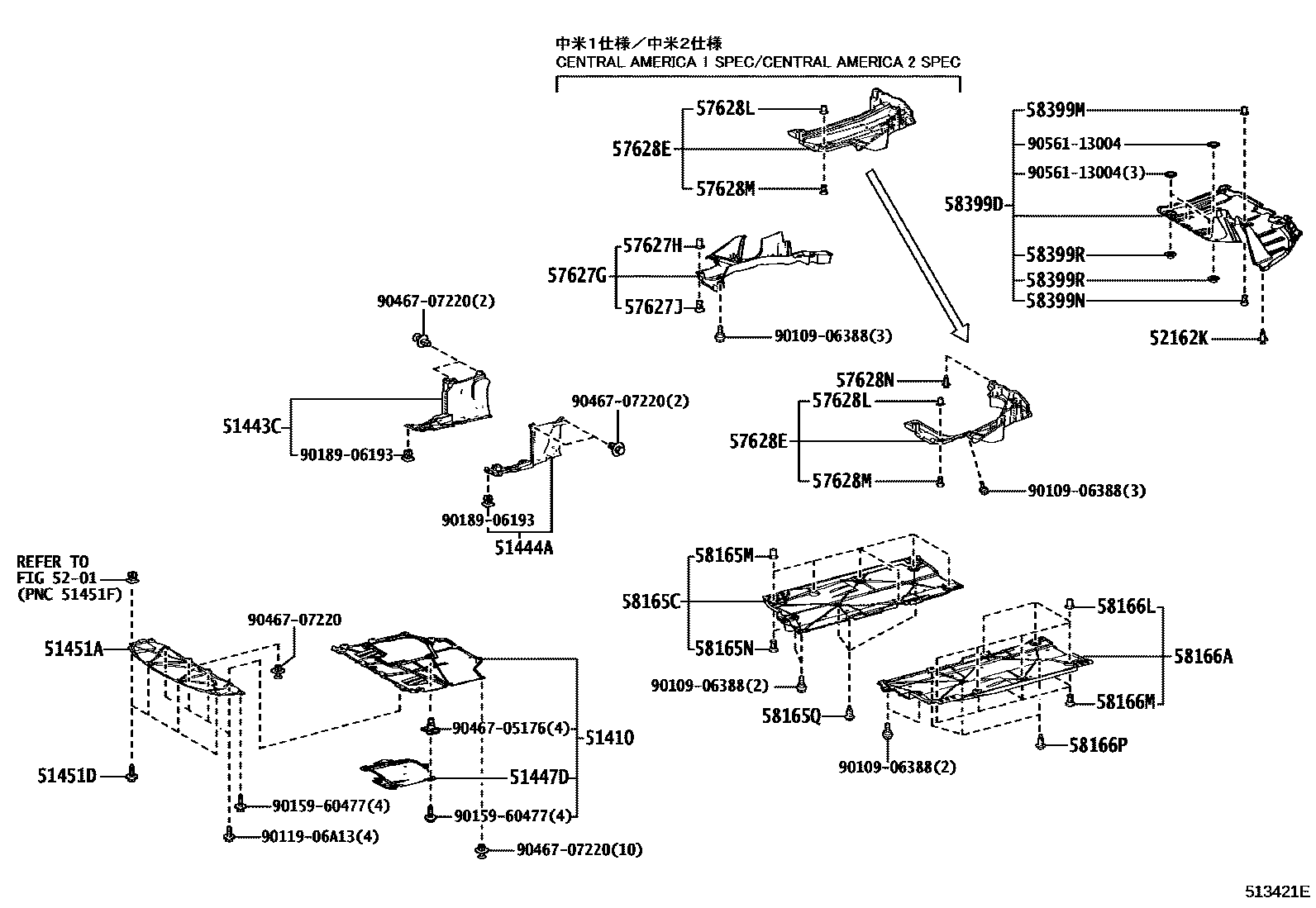

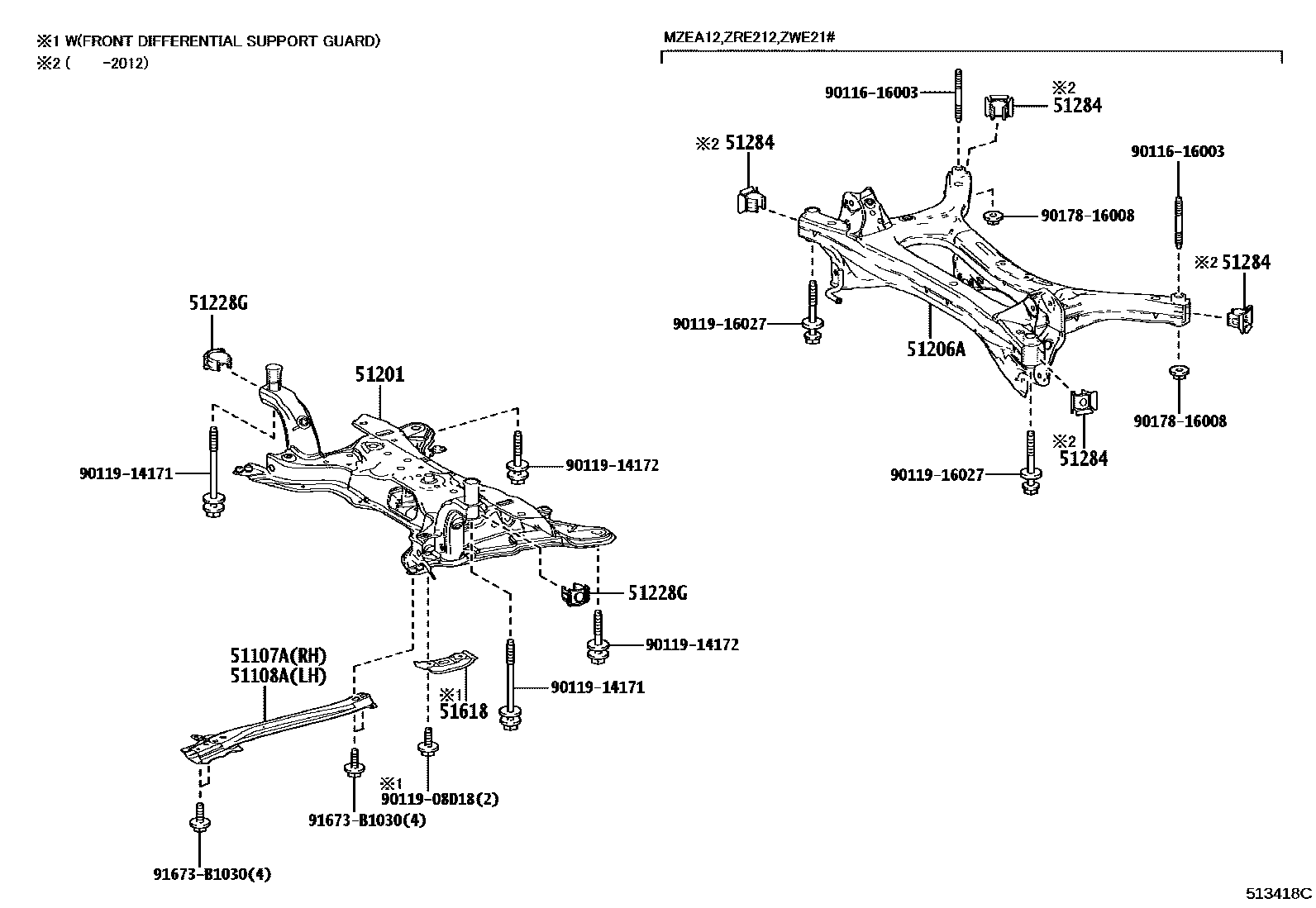

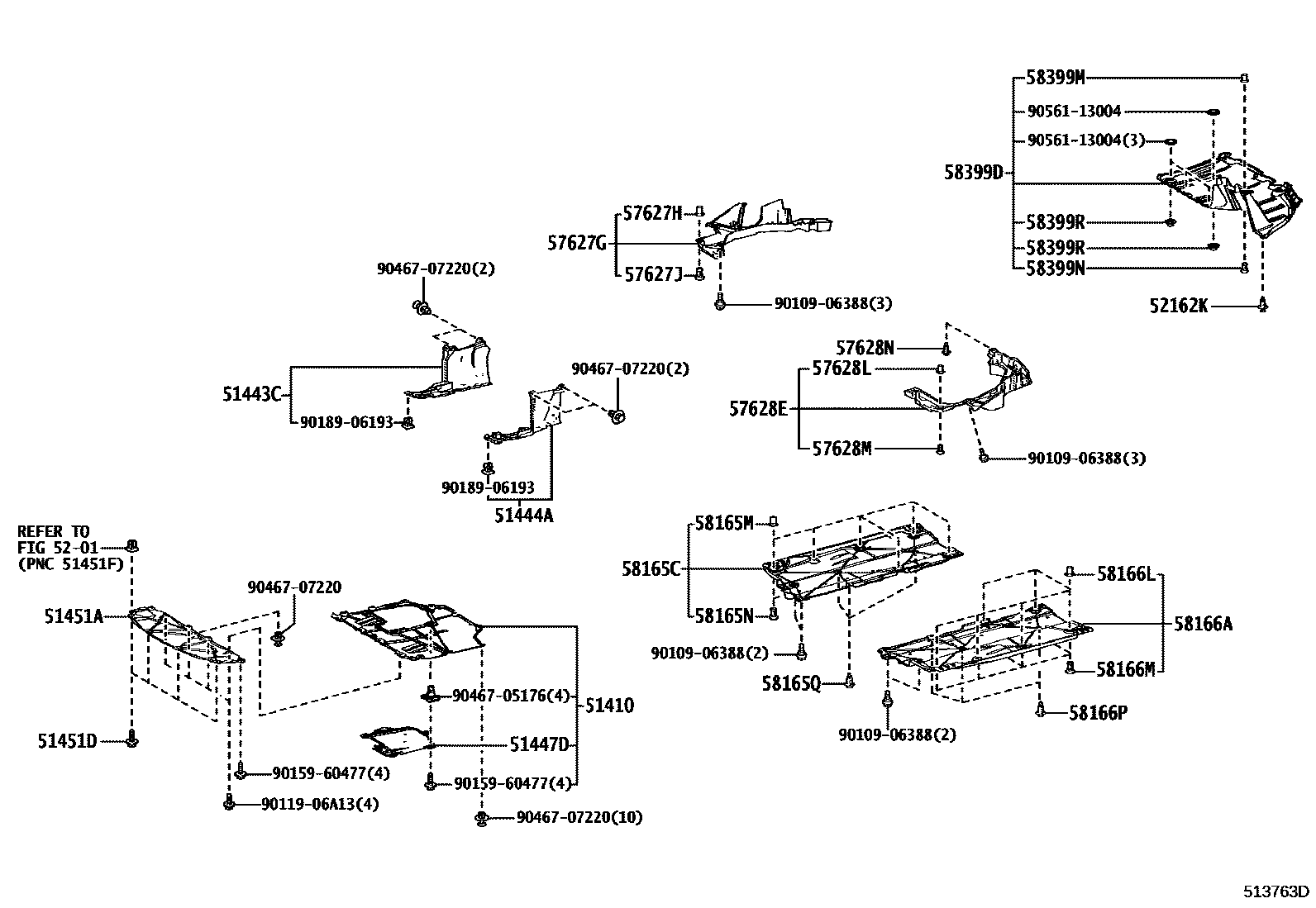

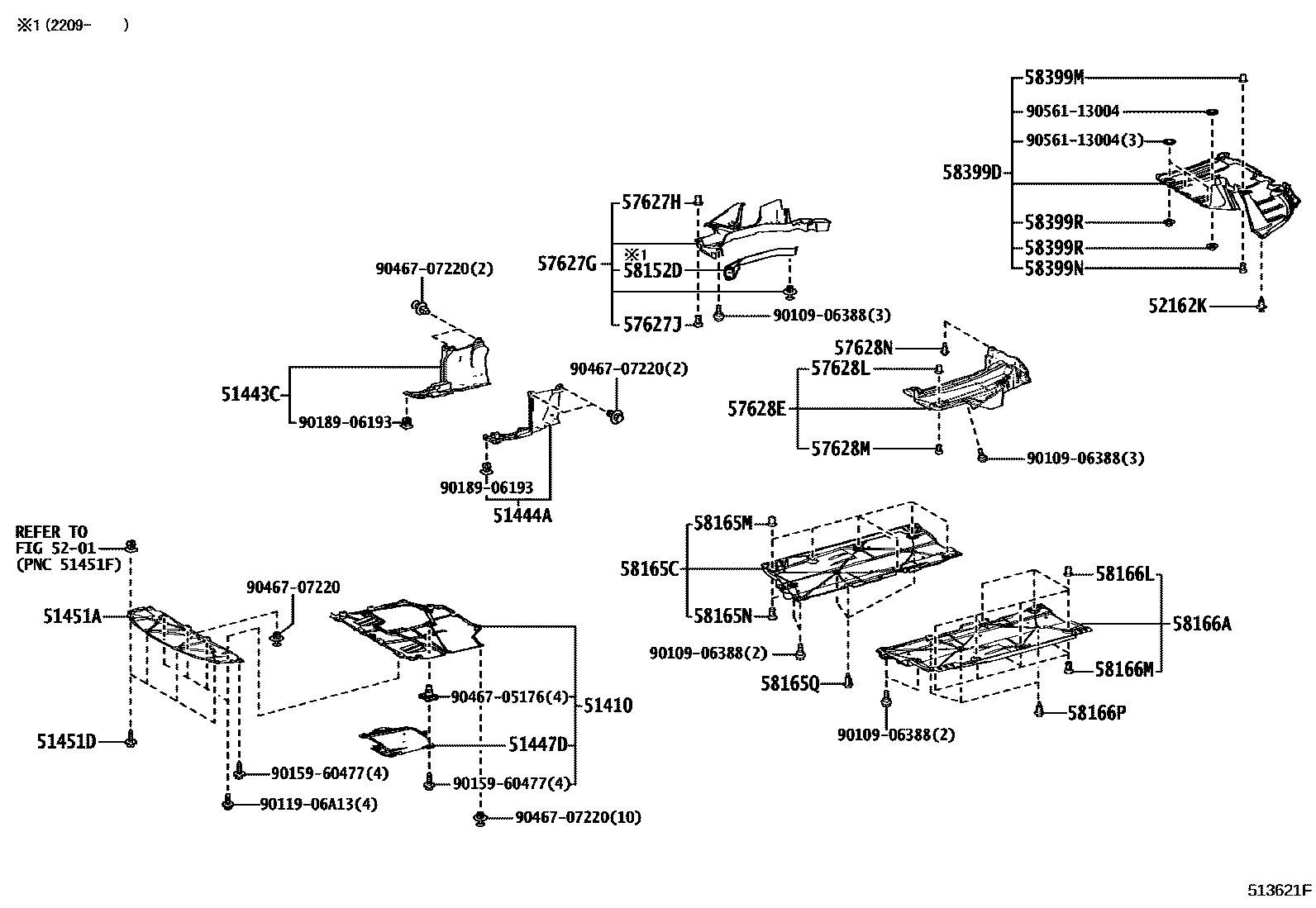

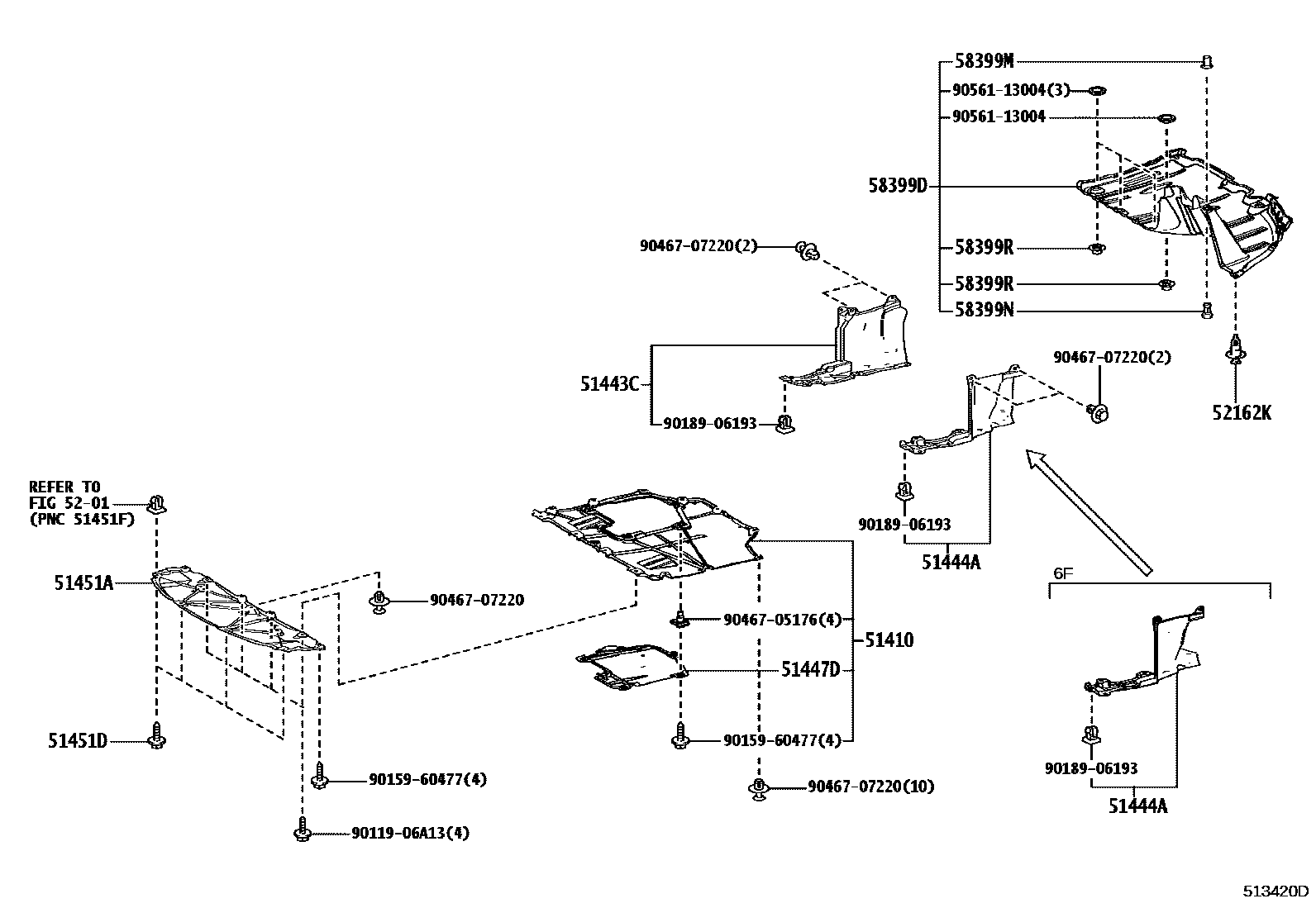

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51107A | Right rear longitudinal beam reinforcement sub-assembly | 51107-47010 · 51107-47020 |
| 51108A | Left rear longitudinal beam reinforcement sub-assembly | 51108-47010 · 51108-47020 |
| 51201 | Front suspension cross member sub-assembly | 51201-47071 · 51201-47072 |
| 51206A | Rear suspension cross member sub-assembly | 51206-12200 · 51206-12201 |
| 51228G | front suspension cross member plate | 51228-47010 |
| 51284 | Rear suspension cross member hole cover | 51284-47010 |
| 51410 | Engine No. 1 bottom cover assembly | 51410-12181 |
| 51443C | Engine right rear bottom cover | 51443-12110 |
| 51444A | Engine left rear bottom cover | 51444-12080 · 51444-12090 |
| 51447D | No. 4 engine center bottom cover | 51447-12121 |
| 51451A | Engine center cover | 51451-12120 |
| 51451D | Screw No. 1 | 90159-60477 |
| 51618 | Left front differential bracket guard | 51618-47010 |
| 52162K | Rear bumper insert | 52161-16010 |
| 57627G | Rear floor right longitudinal member cover | 58390-12010 |
| 57628E | Rear floor left longitudinal member cover | 57628-12160 · 57628-12180 |
| 57628N | Rear floor longitudinal beam cover clip | 90467-07220 |
| 58152D | Front floor No. 1 lower heat insulation pad | 58152-47010 |
| 58165C | Front floor right cover | 58165-12210 |
| 58165Q | Front floor cover clip | 90467-07220 |
| 58166A | Front floor left cover | 58166-12040 |
| 58166P | Front floor cover clip | 90467-07220 |
| 58399D | Floor No. 2 lower cover | 58399-12050 |
| 58399R | Lower floor cover clip No. 3 | 90467-14053 · 90467-14054 |
