Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

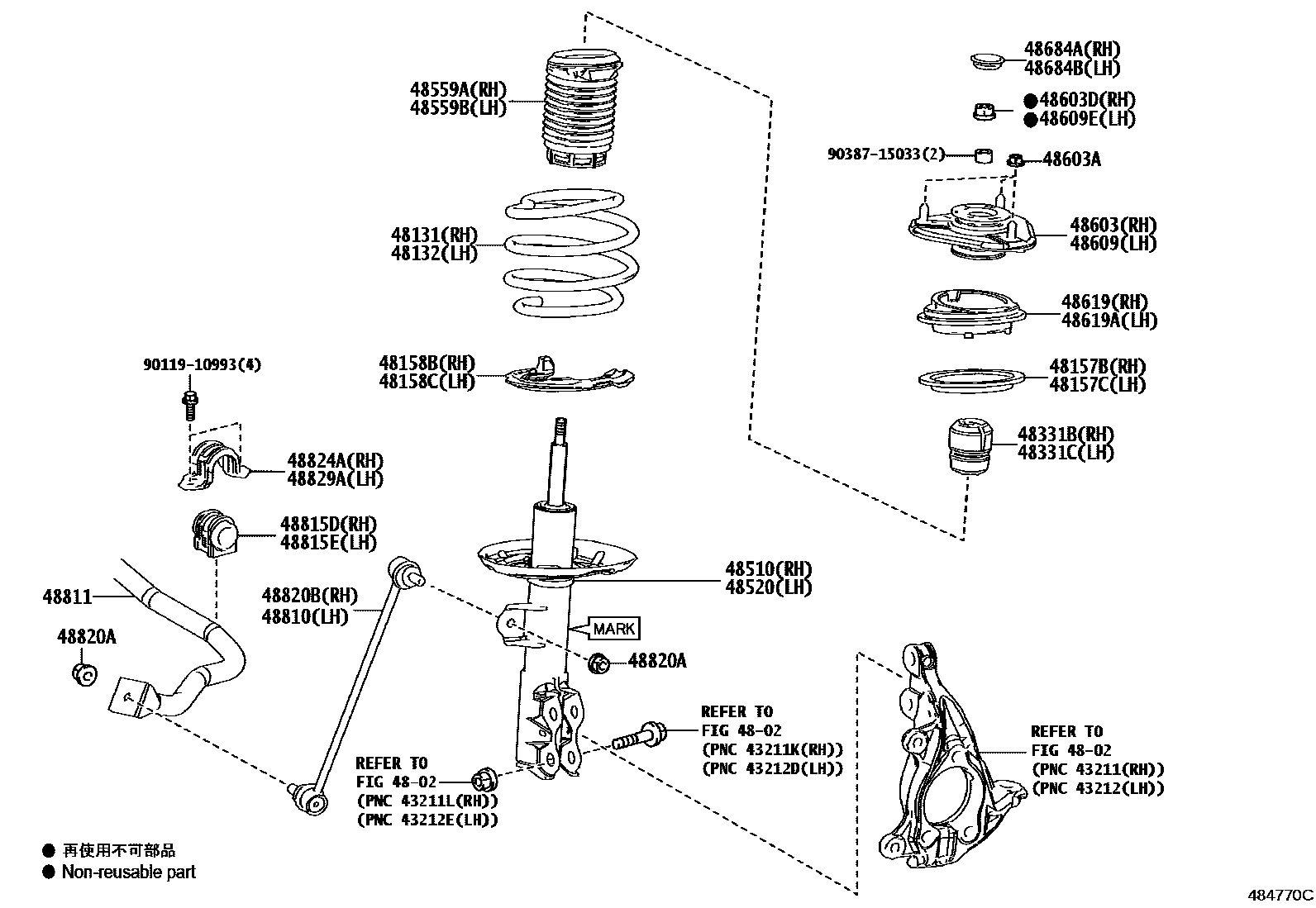

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-12F60 · 48131-12F80 · 48131-12F81 · 48131-12G00 · 48131-12G10 · 48131-12J10 · 48131-12L20 · 48131-12L30 · 48131-12M30 · 48131-12M40 · 48131-12M50 |
| 48132 | Left front coil spring | 48131-12F60 · 48131-12F80 · 48131-12F81 · 48131-12G00 · 48131-12G10 · 48131-12J10 · 48131-12L20 · 48131-12L30 · 48131-12M30 · 48131-12M40 · 48131-12M50 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-47030 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-47030 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-47020 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-47020 |
| 48331B | Right front spring buffer block | 48331-10120 · 48331-12280 |
| 48331C | Left front spring buffer block | 48331-10120 · 48331-12280 |
| 48510 | Right front shock absorber assembly | 48510-80A53 · 48510-80A54 · 48510-80A55 · 48510-80A56 · 48510-80A57 · 48510-80B77 · 48510-80B78 · 48510-80B79 · 48510-8Z579 · 48510-8Z580 · 48510-8Z581 · 48510-8Z582 |
| 48520 | Left front shock absorber assembly | 48520-80613 · 48520-80614 · 48520-80615 · 48520-80616 · 48520-80617 · 48520-80728 · 48520-80729 · 48520-80730 · 48520-8Z404 · 48520-8Z405 · 48520-8Z406 · 48520-8Z407 |
| 48559A | Right front shock absorber No. 1 dust cover | 48559-47010 |
| 48559B | Left front shock absorber No. 1 dust cover | 48559-47010 |
| 48603 | Right front suspension bearing sub-assembly | 48609-47060 |
| 48603A | Nut (for front suspension mount) | 90178-10029 |
| 48603D | Nut (for front mount to right front shock absorber) | 90177-14007 |
| 48609 | Left front suspension bearing sub-assembly | 48609-47060 |
| 48609E | Nut (for front mount to left front shock absorber) | 90177-14007 |
| 48619 | Bearing installed on the right sliding column | 48619-47030 · 48619-F4010 |
| 48619A | Bearing installed on the left sliding column | 48619-47030 · 48619-F4010 |
| 48684A | Right front suspension support dust cover | 48684-52010 |
| 48684B | Left front suspension support dust cover | 48684-52010 |
| 48810 | Left front stabilizer bar link assembly | 48820-42050 · 48820-47040 |
| 48811 | front stabilizer bar | 48811-12B00 · 48811-12B10 |
| 48815D | Right front stabilizer bar bushing | 48815-12420 · 48815-12430 · 48815-12431 · 48815-12440 · 48815-12460 |
| 48815E | Left front stabilizer bar bushing | 48815-12420 · 48815-12430 · 48815-12431 · 48815-12440 · 48815-12460 |
| 48820A | Nut (for front stabilizer bar link) | 94151-21241 |
| 48820B | Right front stabilizer bar link assembly | 48820-42050 · 48820-47040 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-47020 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-47020 |
