Toyota COROLLA 制动助力器和真空管 — Figure 4703

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 4 images and 14 PNC and OE references.

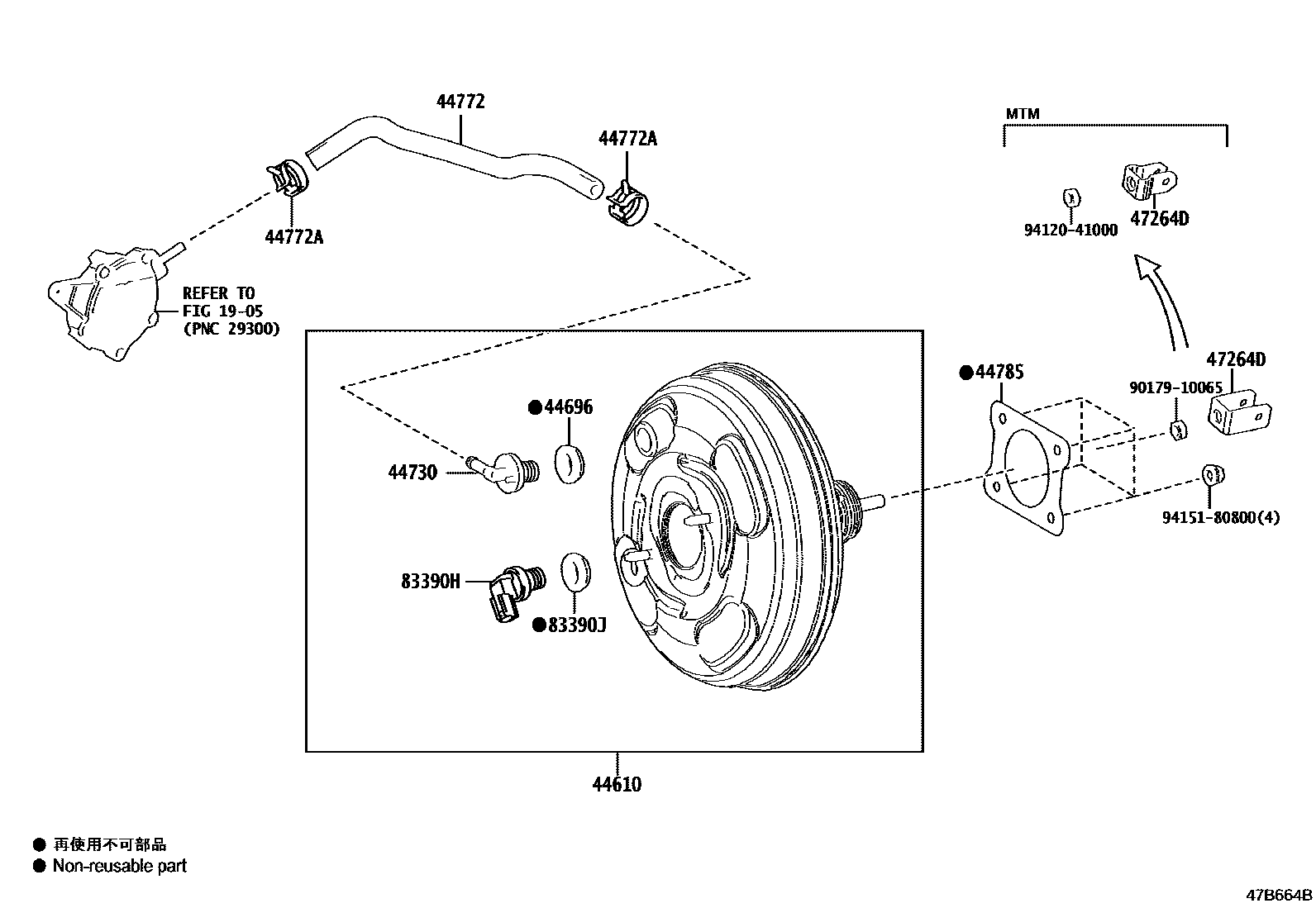

Toyota COROLLA 制动助力器和真空管 EPC diagram — 47B664B
制动助力器和真空管 — 47B664B (201901 – 999999)

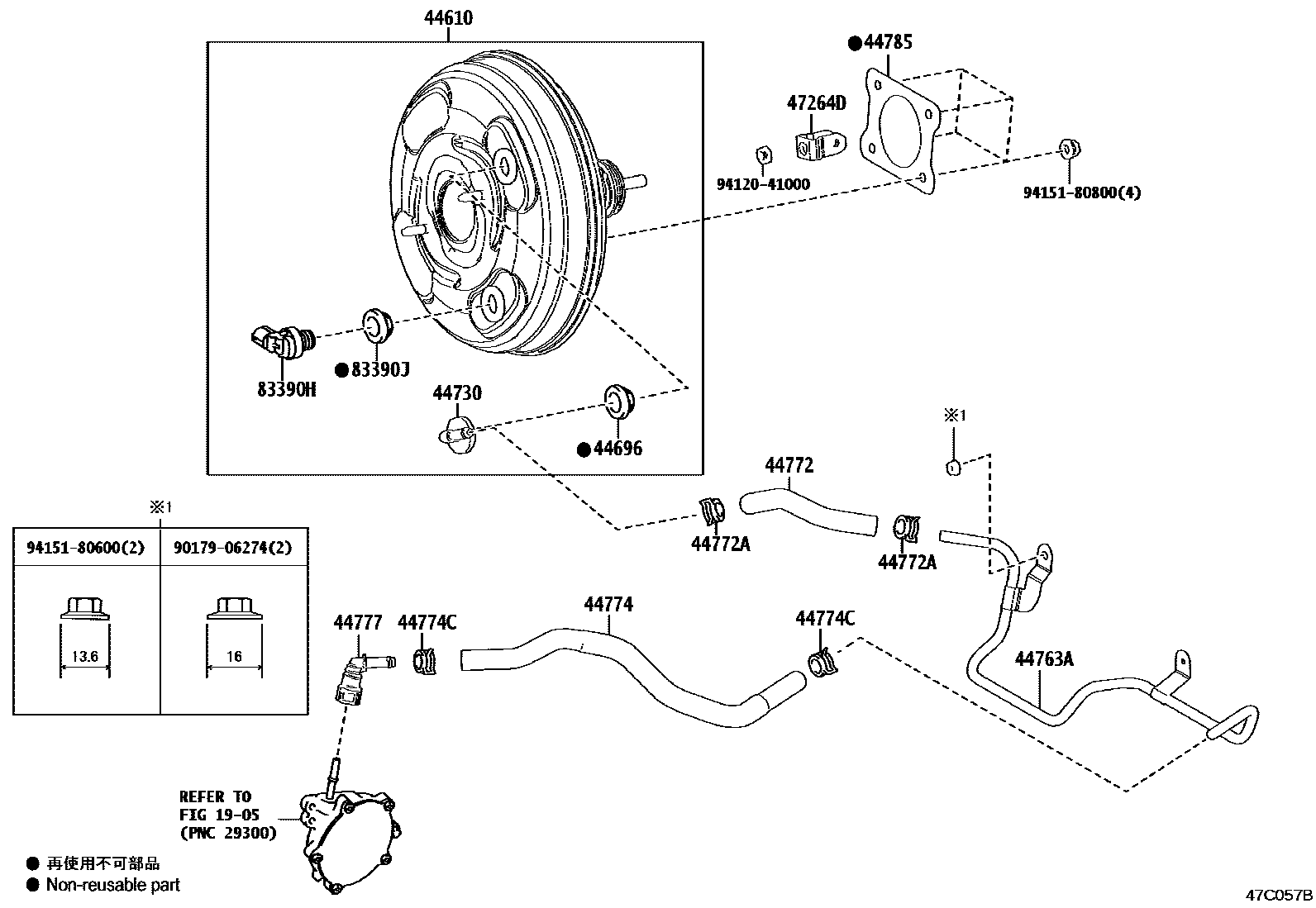

Toyota COROLLA 制动助力器和真空管 EPC diagram — 47C057B
制动助力器和真空管 — 47C057B (201909 – 999999)

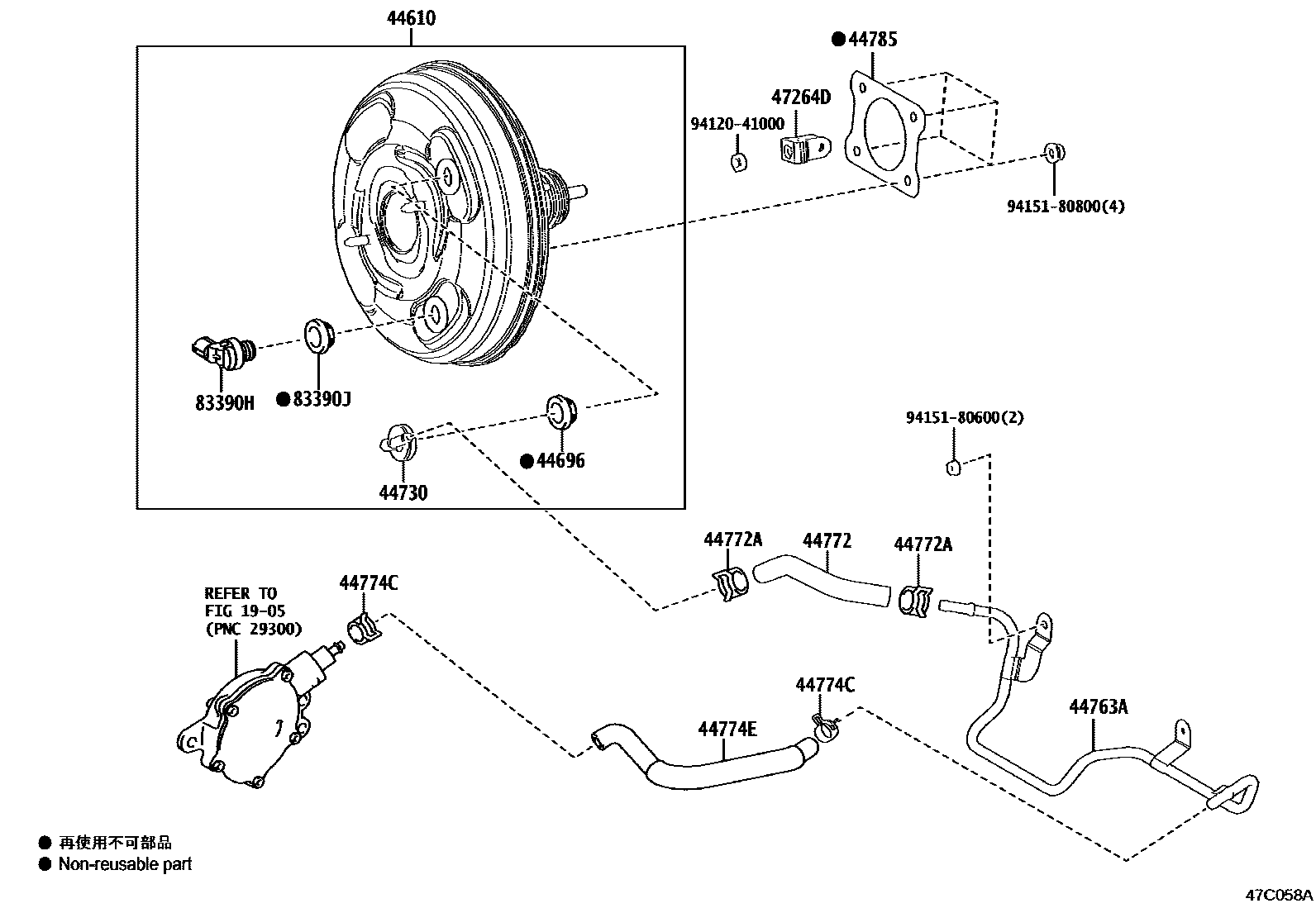

Toyota COROLLA 制动助力器和真空管 EPC diagram — 47C058A
制动助力器和真空管 — 47C058A (201909 – 999999)

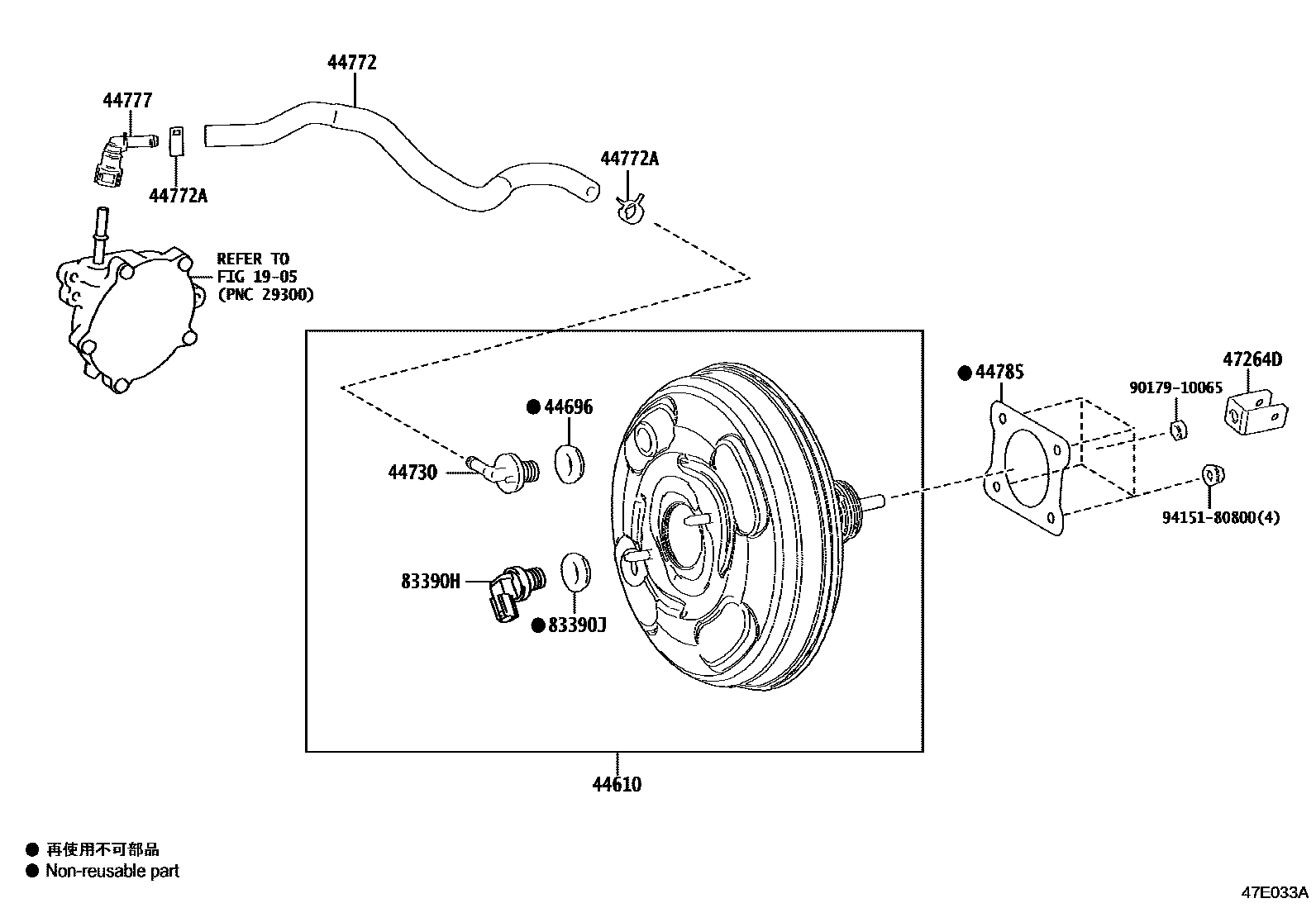

Toyota COROLLA 制动助力器和真空管 EPC diagram — 47E033A
制动助力器和真空管 — 47E033A (202209 – 999999)

PNC and OE references

PNCPart nameOE numbers
44610brake booster assembly44610-12M70 · 44610-12M90
44696One-way valve seal90480-24439
44730Vacuum check valve assembly (for brake)44730-52010
44763APipe No. 1 (hose to hose)44763-12590
44772Hoses (check valve to connector tube)44772-12730 · 44772-12780 · 44772-12810
44772AClip (for check valve to connector tube)90467-16014
44774Hoses (joints to connector tubes)44774-12860
44774CClip (for fitting to connector tube hose)90467-16014
44774EHoses (joints to connector tubes)44774-12870
44777No. 1 Vacuum Hose Connector44777-12010
44785brake booster pad44785-12040
47264DBrake master cylinder push rod U-shaped clamp47264-12060 · 47264-52060 · 47264-63010 · 47264-68010
83390HVacuum warning switch assembly83390-28120
83390JVacuum warning switch seal90480-24439
