Toyota COROLLA 前转向齿轮和连杆 — Figure 4505

Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 9 PNC and OE references.

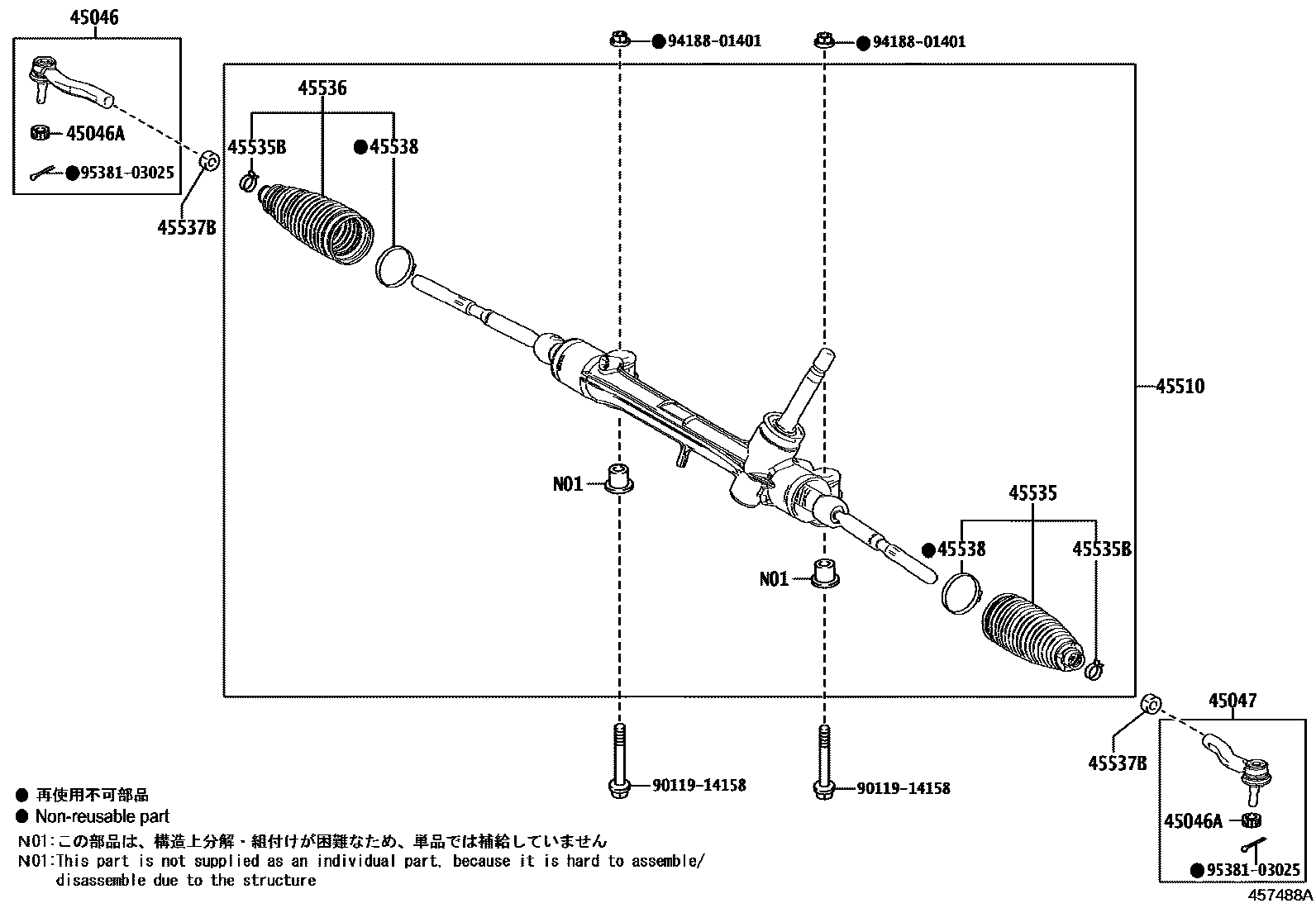

Toyota COROLLA 前转向齿轮和连杆 EPC diagram — 457488A
前转向齿轮和连杆 — 457488A (201901 – 999999)

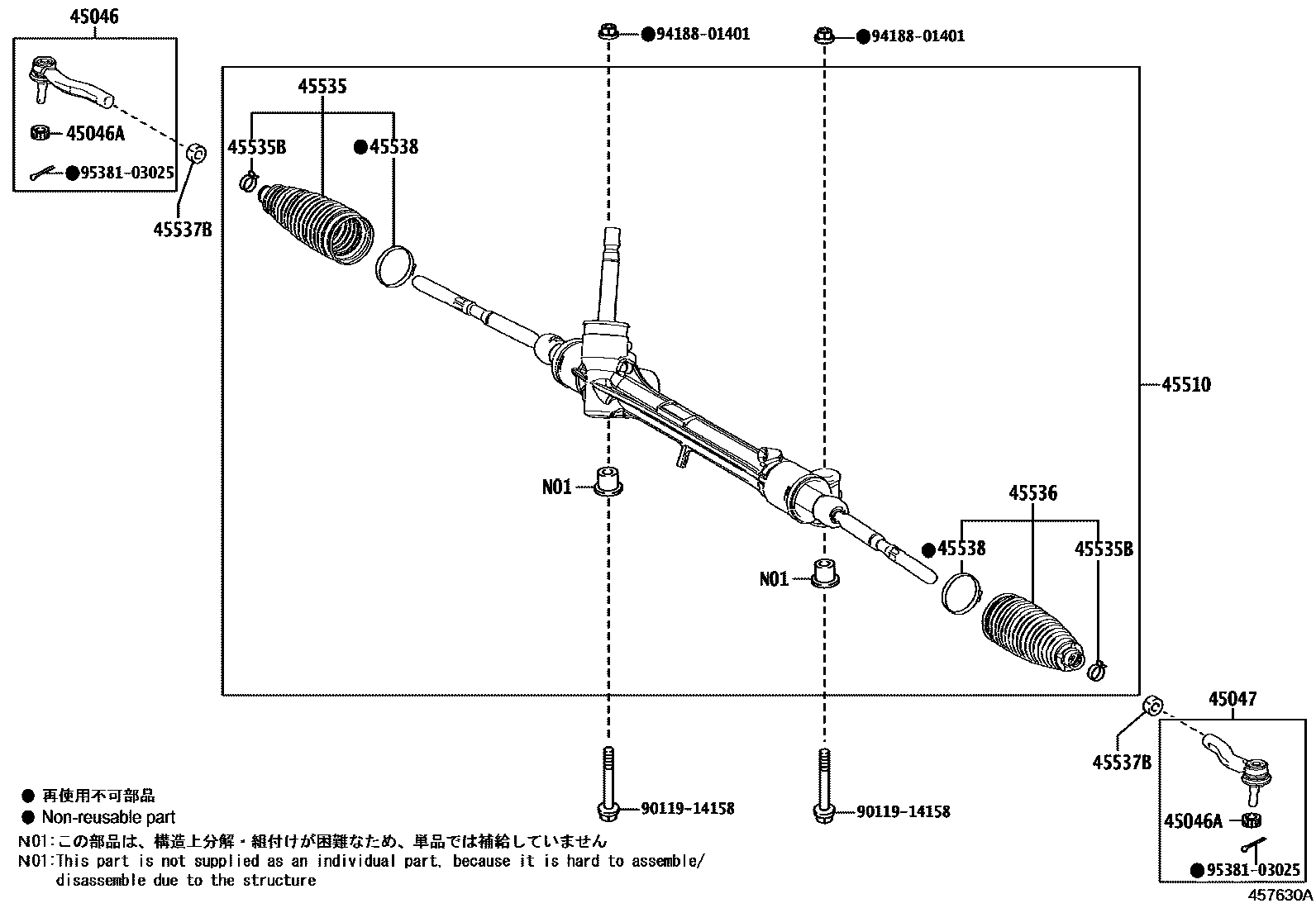

Toyota COROLLA 前转向齿轮和连杆 EPC diagram — 457630A
前转向齿轮和连杆 — 457630A (201909 – 999999)

PNC and OE references

PNCPart nameOE numbers
45046Right tie rod end sub-assembly45046-49255
45046ACastle nuts (for tie rod ends)90171-12028
45047Left tie rod end sub-assembly45047-49195
45510Steering gear assembly45510-12530 · 45510-12540 · 45510-12580 · 45510-12600 · 45510-12650 · 45510-47150
45535No. 1 steering rack dust cover45535-59075
45535BClamp (for steering rack dust boot)90467-19019
45536No. 2 steering rack dust cover45535-59075
45537BRack end lock nut90178-16001
45538Steering rack dust boot fixing45538-48020
