Toyota COROLLA Front Drive Shaft — Figure 4302

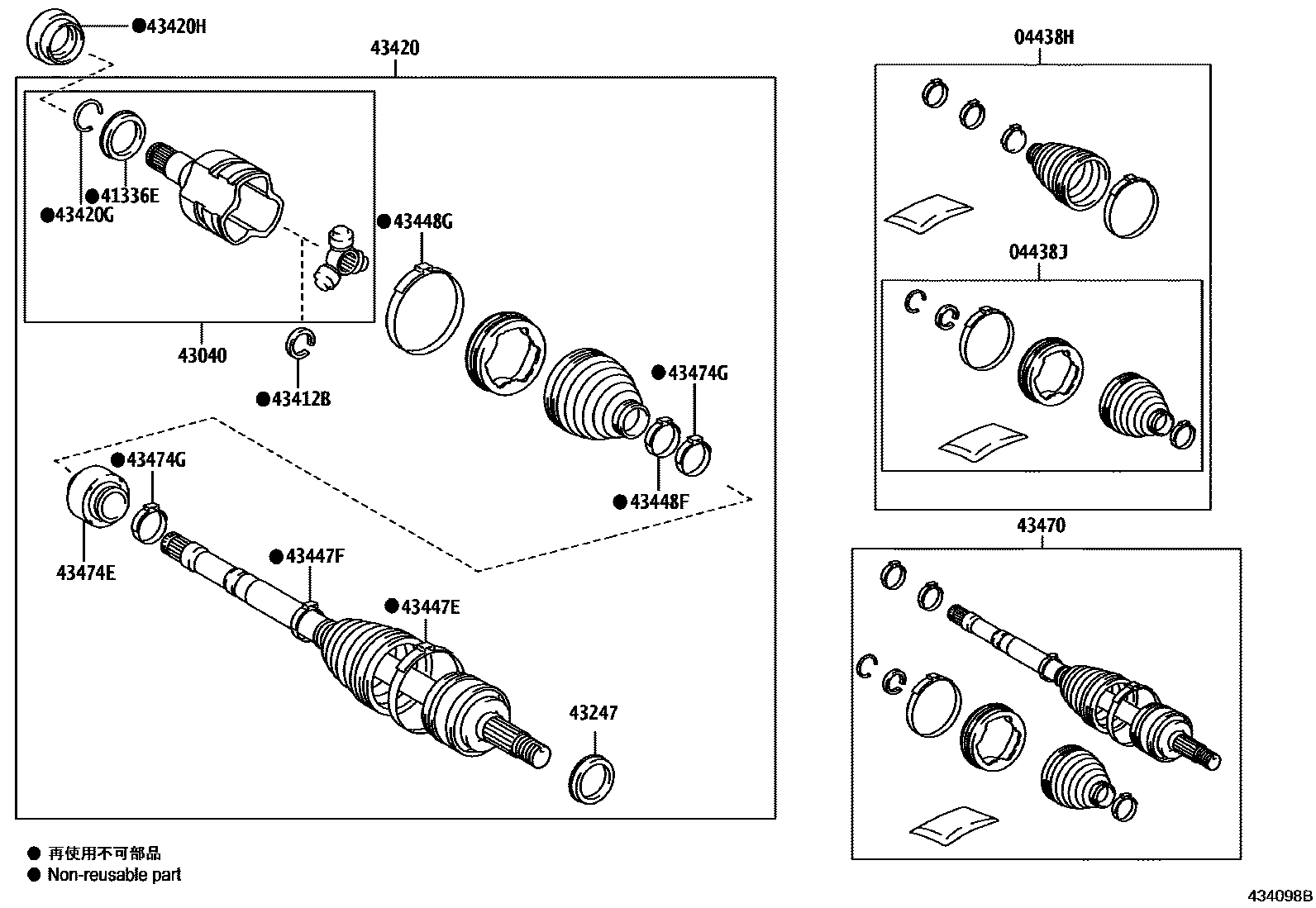

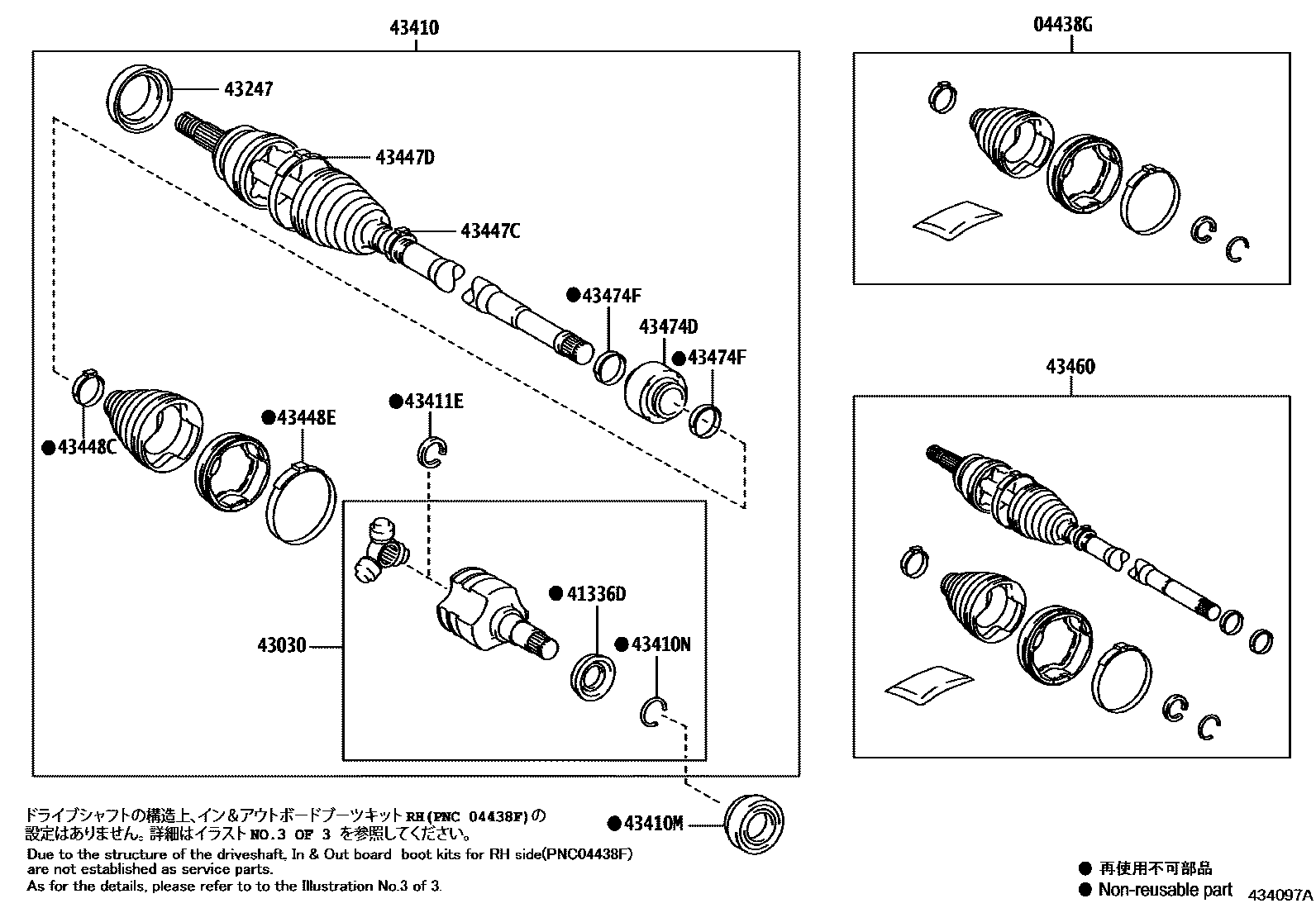

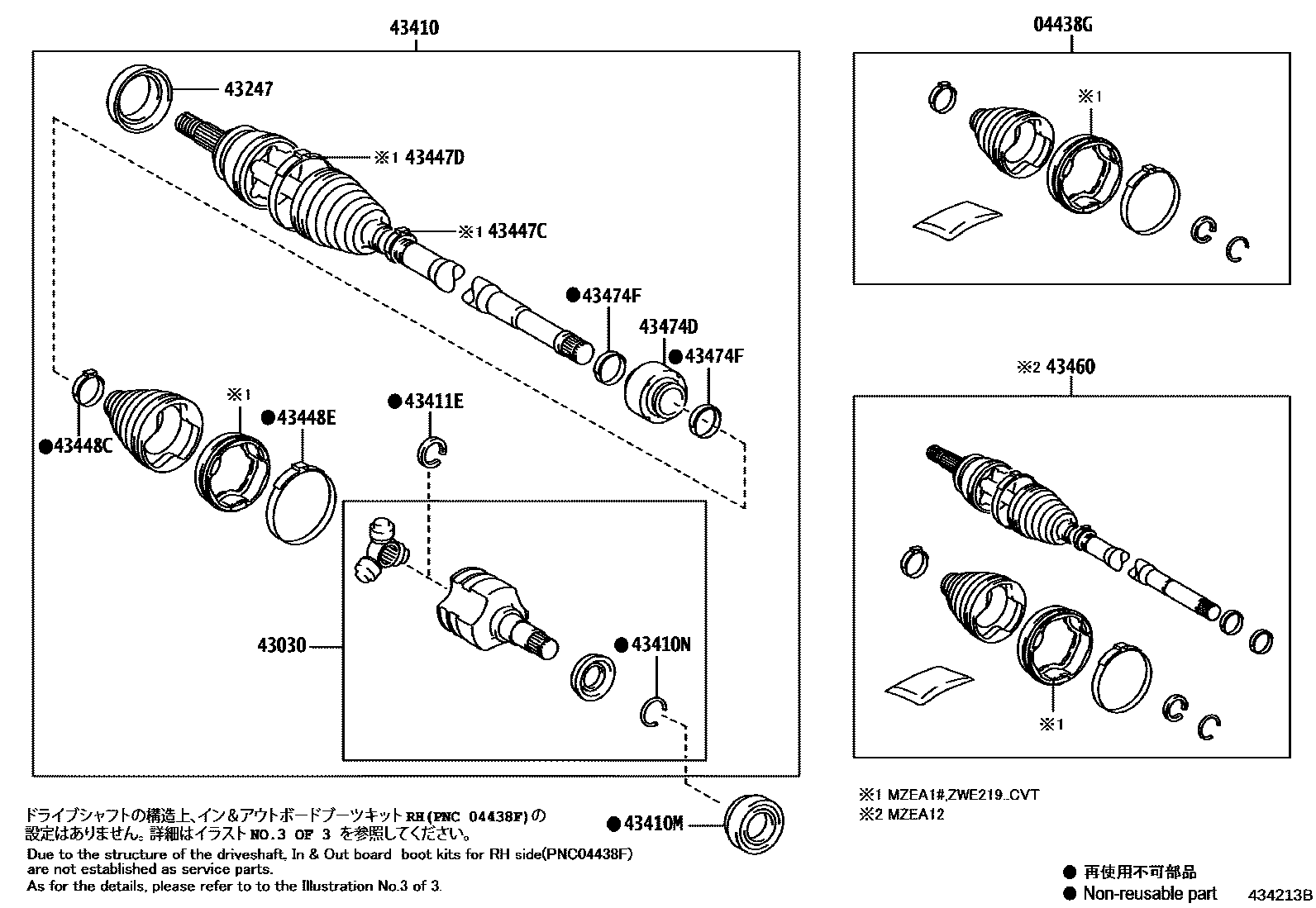

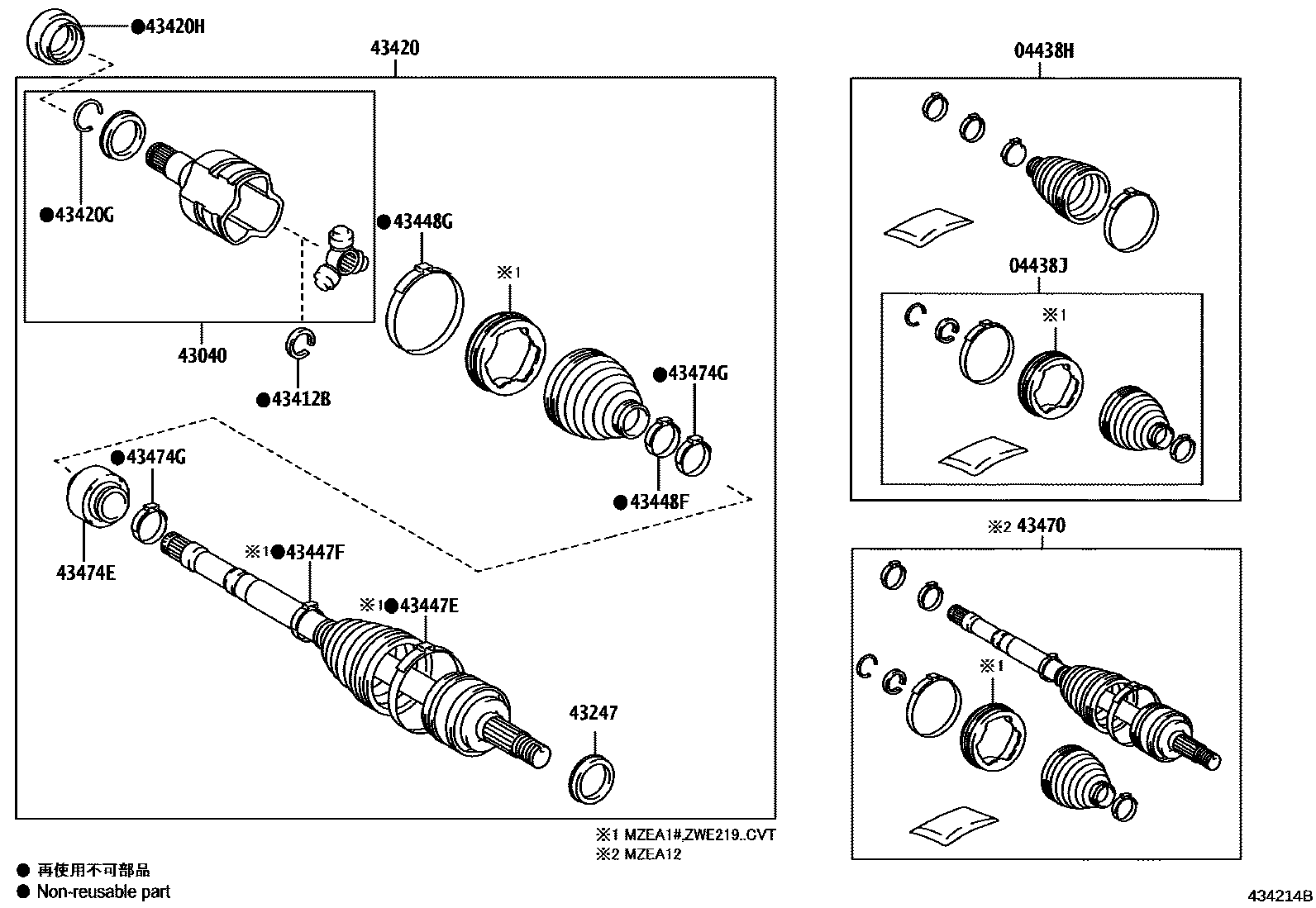

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 5 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-10020 · 04437-12440 · 04437-47033 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-12790 · 04428-12800 · 04428-12801 · 04428-47065 · 04428-47066 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-10020 · 04437-12440 · 04437-47033 |
| 41336D | Right front driveshaft dust cover | 41336-12020 · 41336-12060 |
| 41336E | Left front driveshaft dust cover | 41336-12060 · 41336-28020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43040-12120 · 43040-12160 · 43040-47010 · 43403-12080 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-12120 · 43040-12170 · 43040-47030 · 43404-12010 |
| 43247 | No. 2 front wheel bearing dust cover | 43247-47010 · 43247-76010 |
| 43410 | Right front driveshaft assembly | 43410-12B50 · 43410-12B60 · 43410-12C10 · 43410-47040 |
| 43410M | Front drive shaft right oil seal | 90311-35065 · 90311-35076 · 90311-40038 · 90311-40047 · 90311-40051 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-10040 · 90521-27005 · 90521-33002 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-12070 · 43425-13010 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-12070 · 43425-13010 |
| 43420 | Left front drive shaft assembly | 43420-12A90 · 43420-12B00 · 43420-12B40 · 43420-47040 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-10040 · 90521-27005 · 90521-33002 |
| 43420H | Front drive shaft left oil seal | 90311-35075 · 90311-35080 · 90311-50045 · 90311-50058 · 90311-50062 · 90311-50064 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-12230 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-12240 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-12240 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-12230 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-12230 · 42345-12350 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-12180 · 42345-12340 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-12230 · 42345-12350 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-12180 · 42345-12340 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-49427 · 43460-80187 · 43460-80188 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-80407 · 43470-80443 · 43470-80463 |
| 43474D | Right front driveshaft shock absorber | 43474-12210 · 43474-12240 · 43474-47020 |
| 43474E | Left front driveshaft shock absorber | 43474-12160 · 43474-12200 · 43474-12250 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-12090 · 42345-12100 · 42345-12370 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-12090 · 42345-74130 |
