Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 3 images and 10 PNC and OE references.

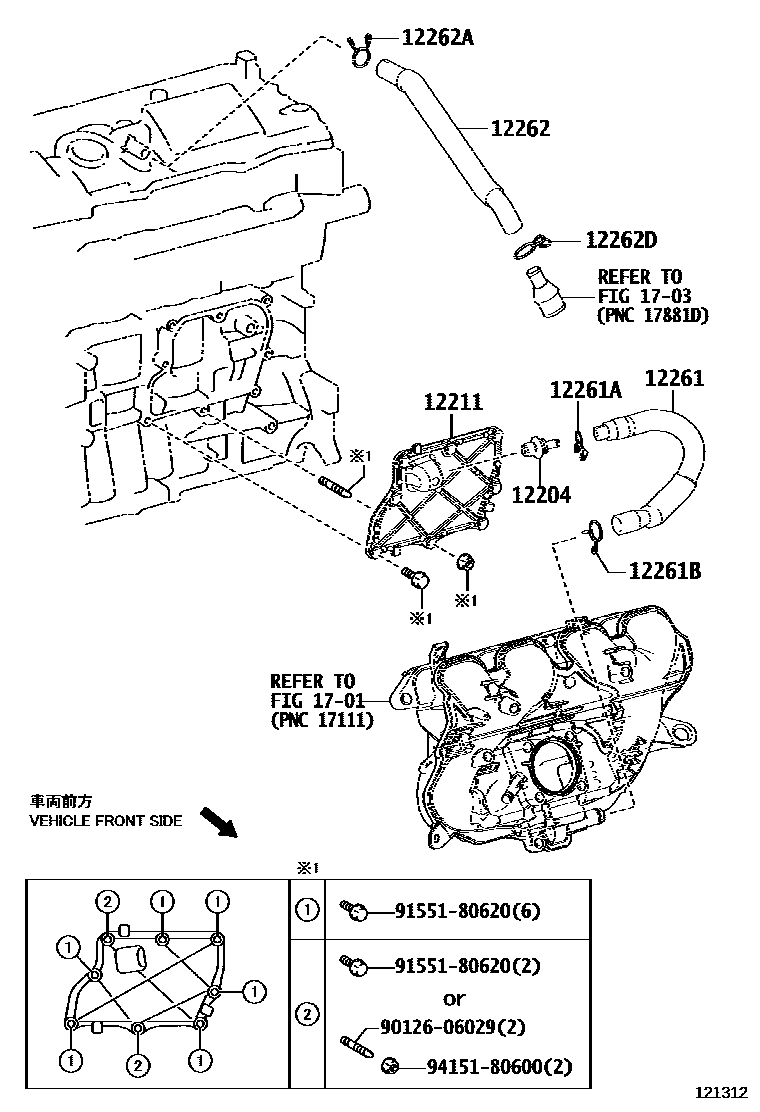

Toyota COROLLA Ventilation Hose EPC diagram — 121312
Ventilation Hose — 121312 (201901 – 999999)

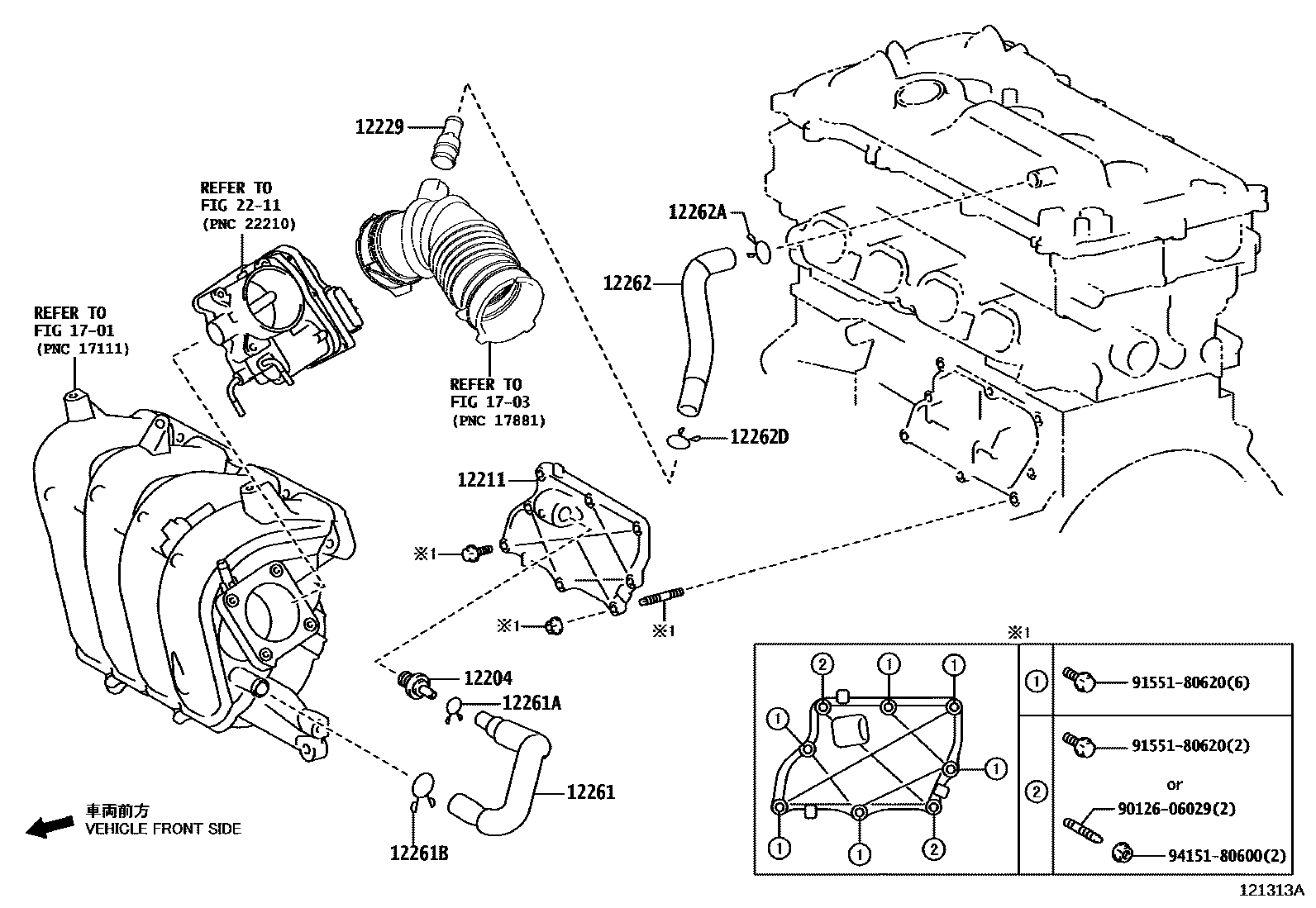

Toyota COROLLA Ventilation Hose EPC diagram — 121313A
Ventilation Hose — 121313A (201901 – 999999)

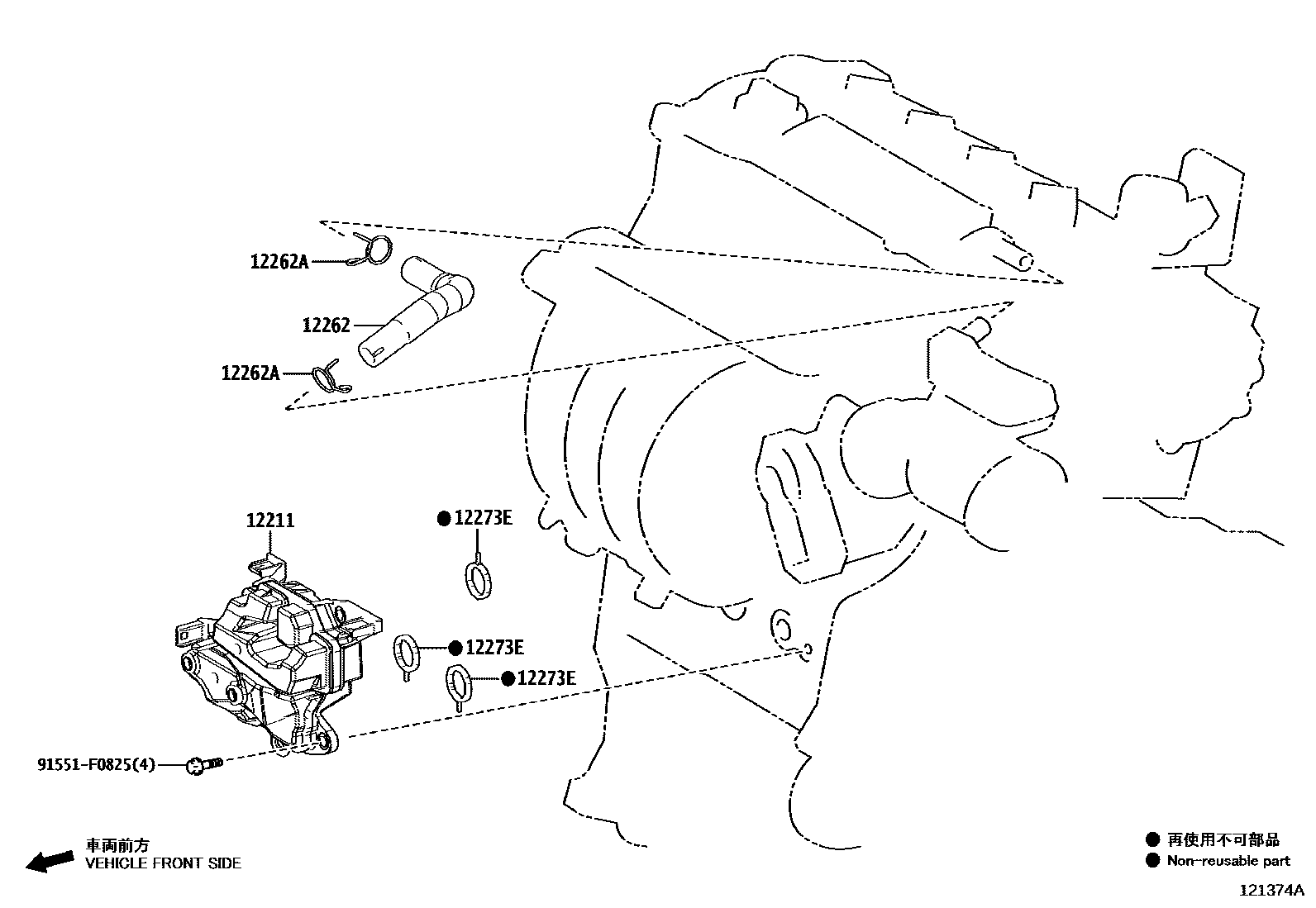

Toyota COROLLA Ventilation Hose EPC diagram — 121374A
Ventilation Hose — 121374A (201909 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-37040 · 12204-37070
12211Ventilation box No. 112211-24010 · 12211-24020 · 12211-37010
12229ventilation duct12229-21010
12261Ventilation Hose12261-37040 · 12261-37070
12261AClip or clip (for vent hose)90467-15120
12261BClip or clip (for vent hose)90466-22005
12262Ventilation hose No. 212262-24020 · 12262-37020 · 12262-37060 · 12262-37110
12262AClamp (for vent hose No. 2)90467-21004
12262DClamp (for vent hose No. 2)90467-21004
12273EPads (for ventilation boxes)12273-24010
