Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719

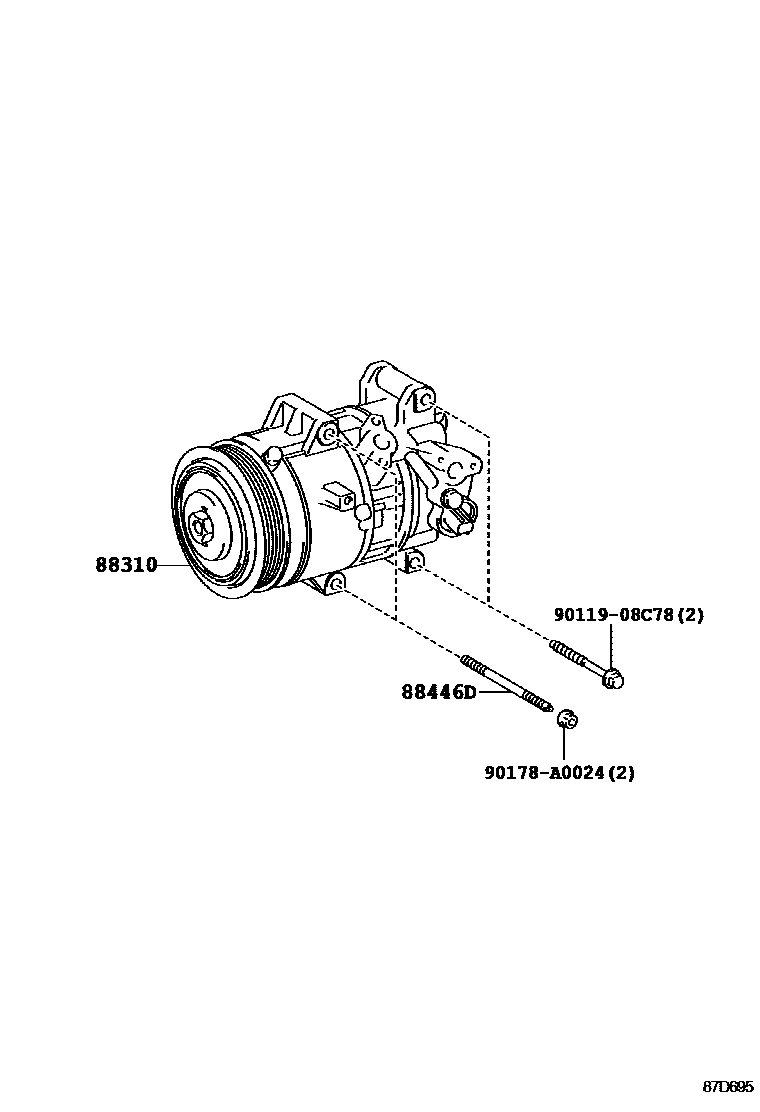

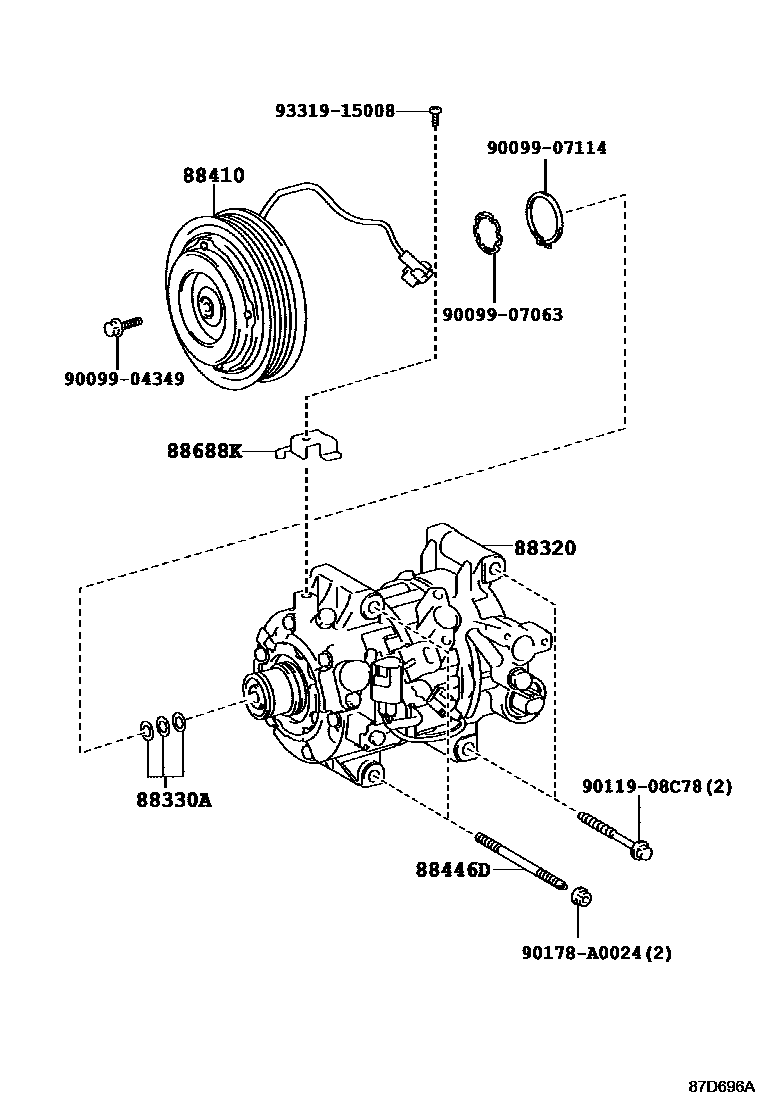

Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-02850 · 88310-02851 · 88310-02852 |
| 88320 | Cooler Compressor Assembly | 88320-0Z080 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88410 | Magnetic Clutch Assembly | 88410-0Z020 |
| 88446D | cooler bolt | 88446-02120 |
| 88688K | Cooler compressor bracket | 88849-0Z010 |
