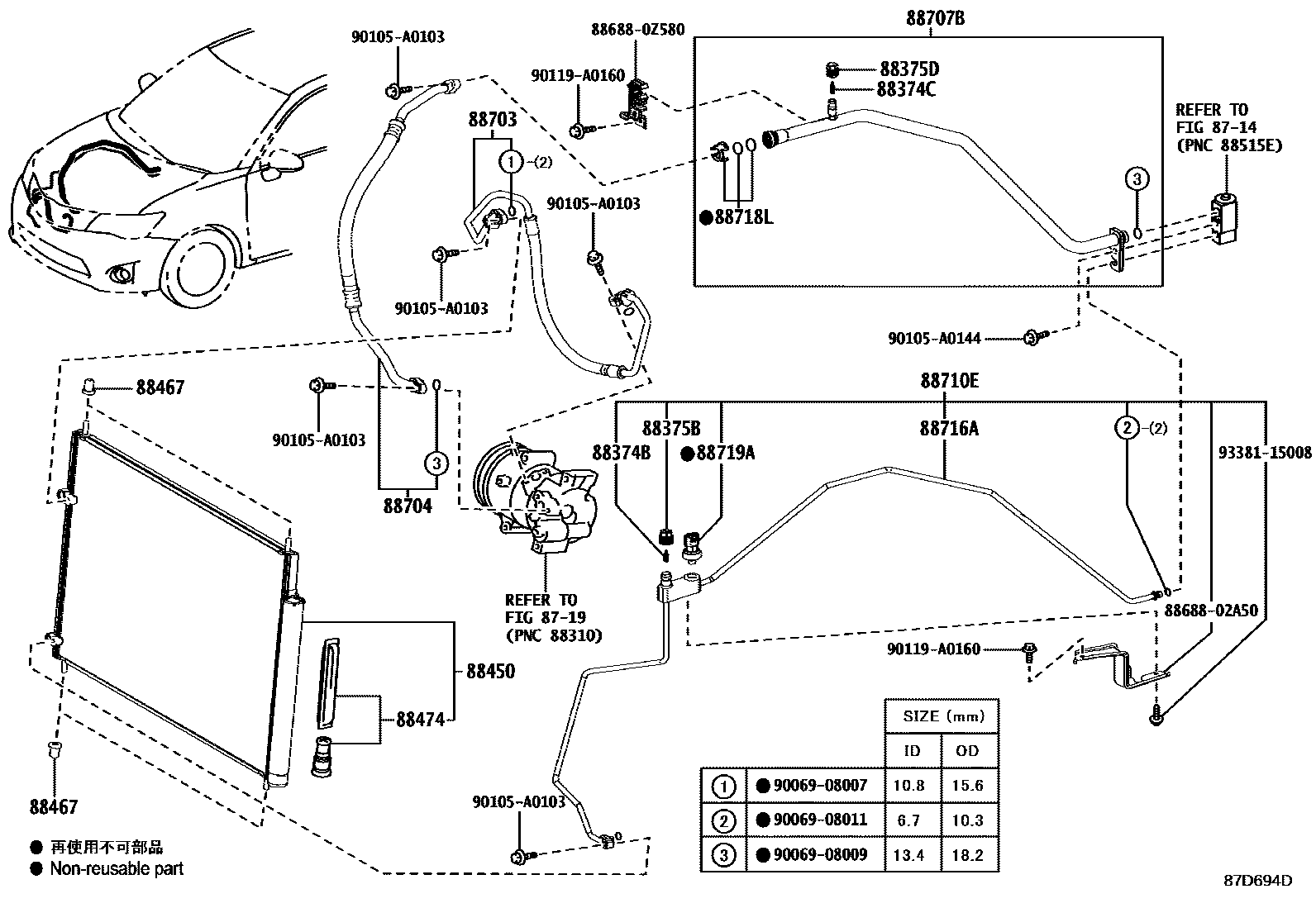

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-02060 · 88375-0E020 · 88375-30280 |
| 88375D | No. 2 maintenance valve cover | 88375-02070 · 88375-0E030 · 88375-30290 |
| 88450 | Condenser assembly with liquid reservoir | 88450-02330 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-17010 |
| 88703 | Discharge hose sub-assembly | 88703-02860 |
| 88704 | Oil suction hose sub-assembly | 88704-0Z180 |
| 88707B | Suction pipe B sub-assembly | 88707-02240 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-0Z460 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-02A20 |
| 88718L | Pipe clamp | 88718-52280 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
