Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

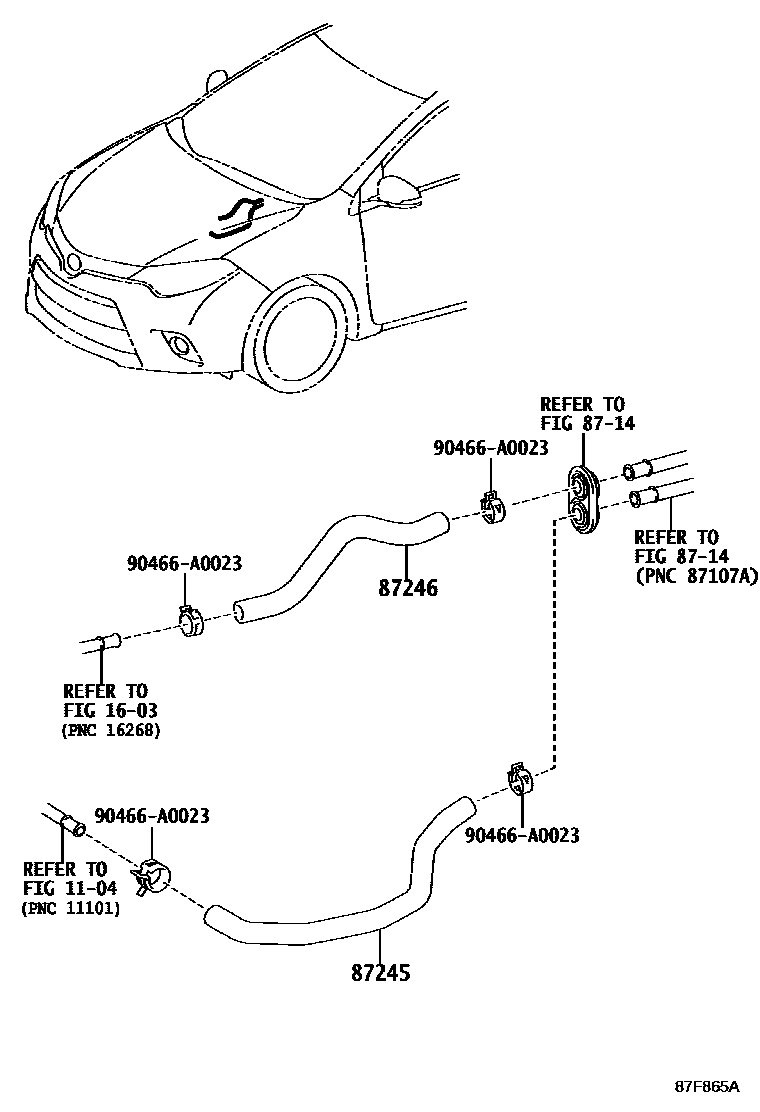

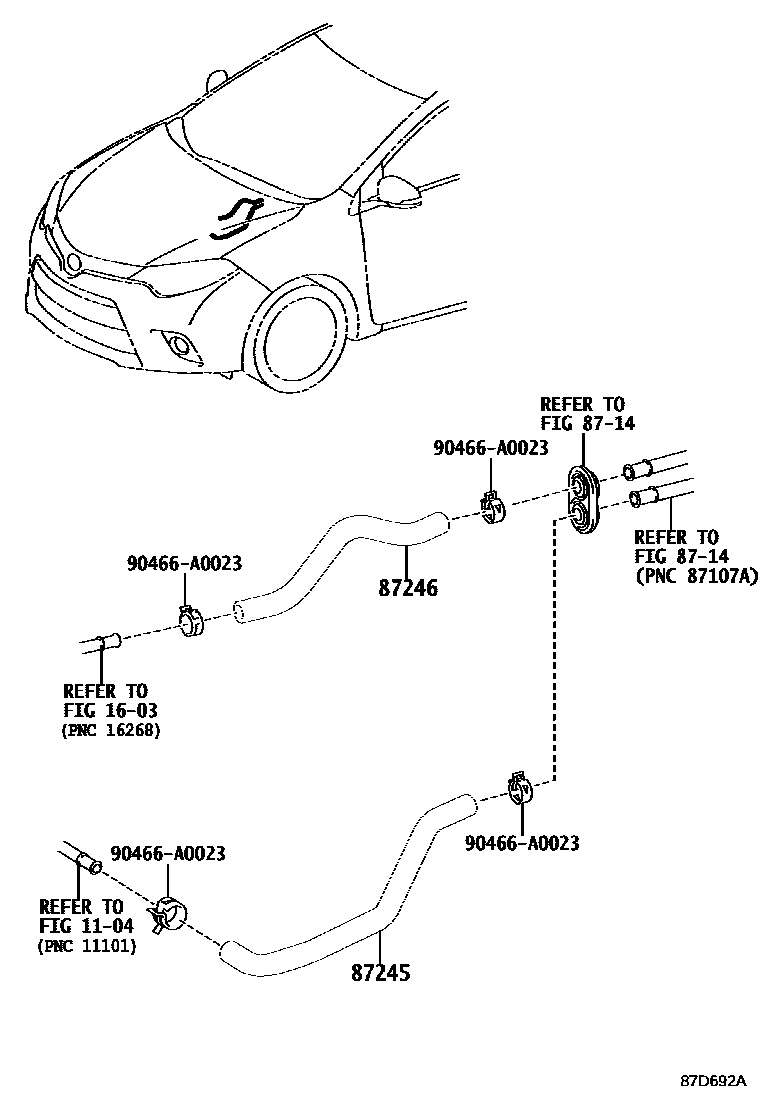

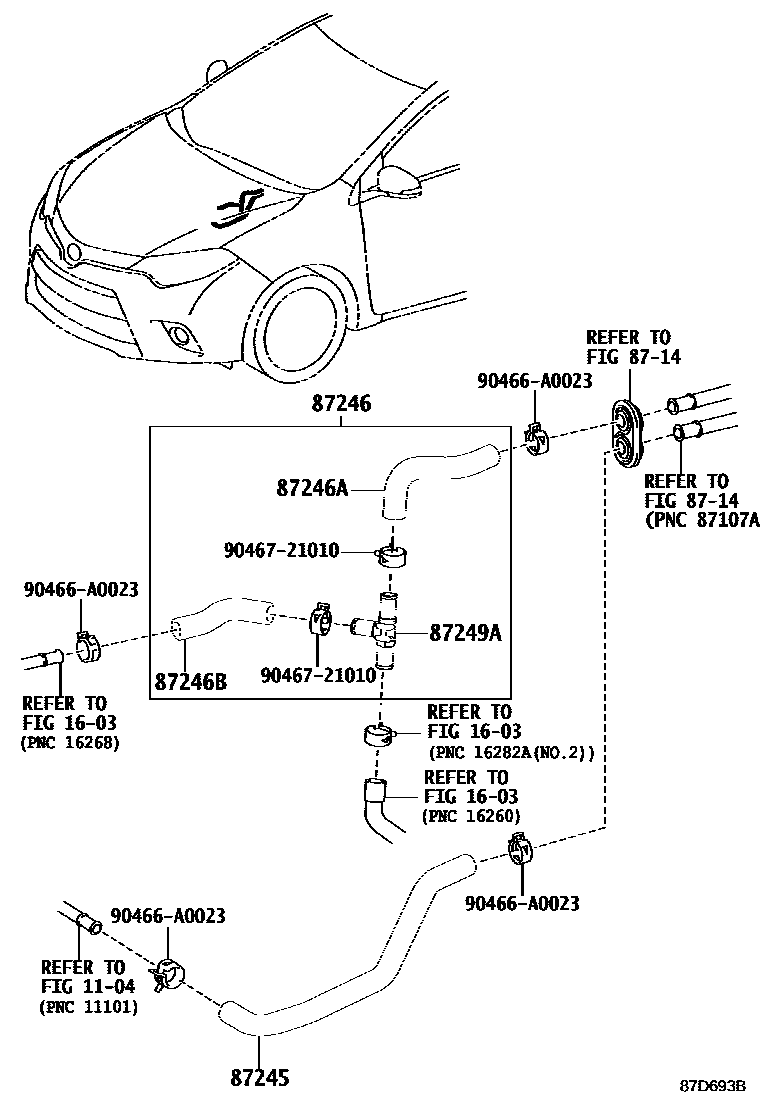

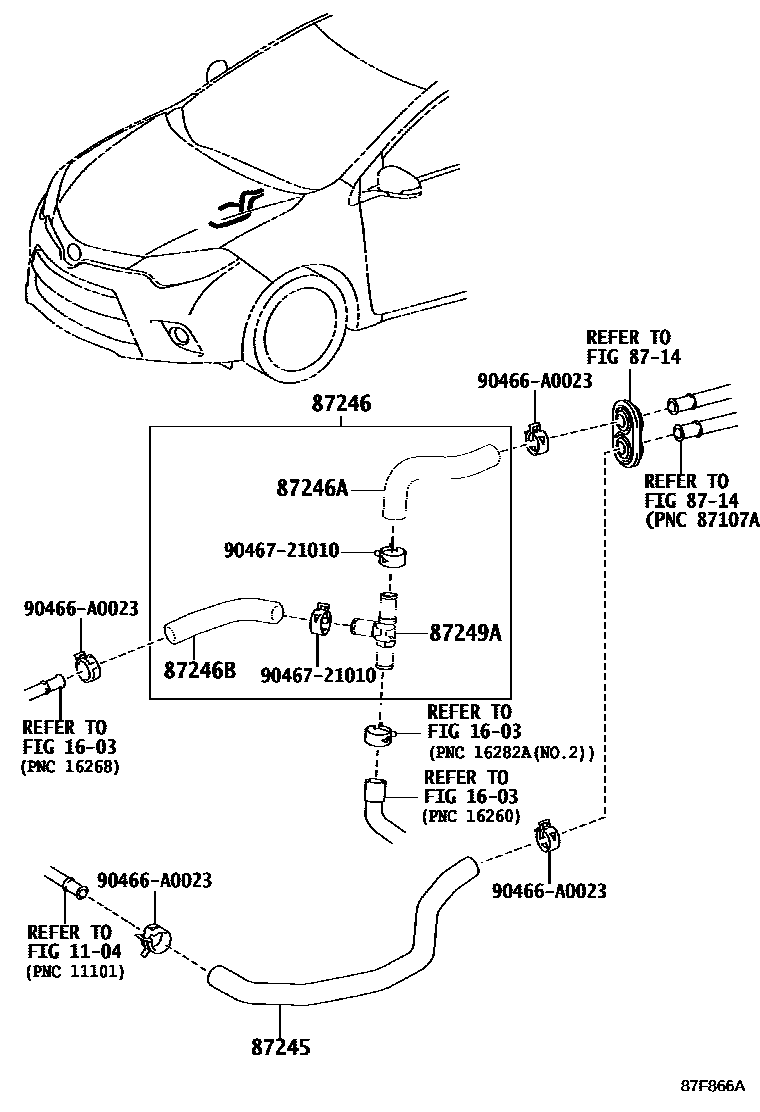

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245 | Heater water inlet hose | 87245-02C60 · 87245-02C61 |
| 87246 | Heater outlet hose | 87209-02090 · 87209-02091 · 87245-02C70 |
| 87246A | Heater outlet hose A | 87245-02L20 · 87245-02L21 |
| 87246B | Heater outlet hose B | 87245-02L30 · 87245-02L31 |
| 87249A | Heater outlet pipe A | 87248-12300 |
